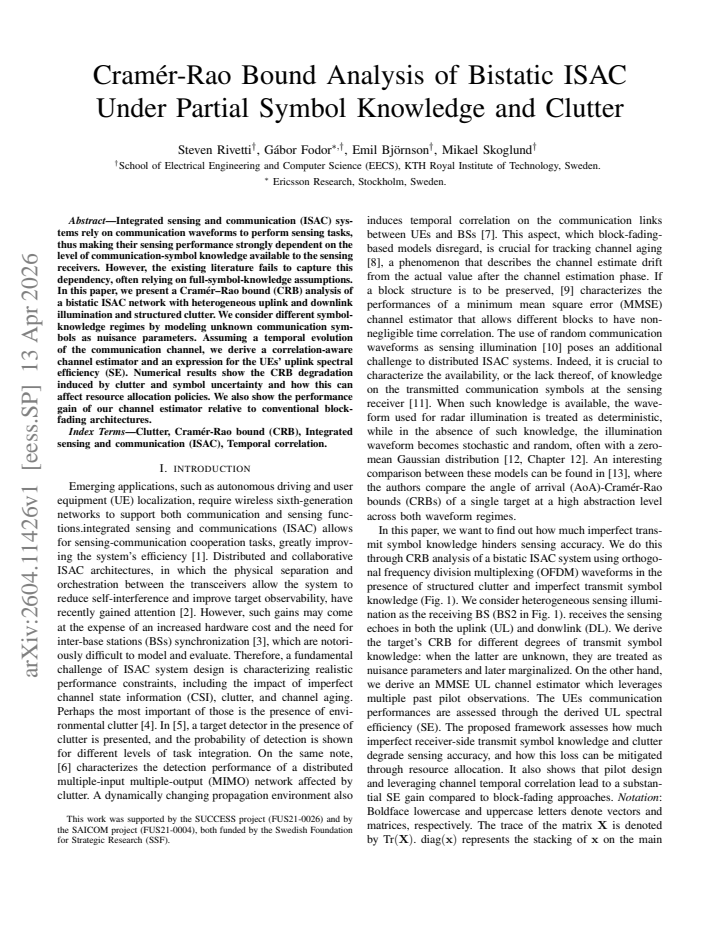

Cram\'er-Rao Bound Analysis of Bistatic ISAC Under Partial Symbol Knowledge and Clutter

Steven Rivetti , Gabor Fodor , Emil Bjornson , Mikael Skoglund This is my paper

Pith reviewed 2026-05-10 15:23 UTC · model grok-4.3

classification 📡 eess.SP
keywords integrated sensing and communicationCramer-Rao boundbistatic networkpartial symbol knowledgestructured clutterchannel estimationspectral efficiency
0
0 comments X

The pith

Unknown communication symbols and structured clutter raise the sensing error bound in bistatic ISAC networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives the Cramer-Rao bound for parameter estimation in a bistatic integrated sensing and communication system where the sensing receiver has only partial knowledge of the transmitted communication symbols. It treats those unknown symbols as nuisance parameters and incorporates a model of structured clutter under heterogeneous uplink and downlink illumination. By assuming the communication channel evolves over time, the work also produces a correlation-aware channel estimator and a closed-form expression for the uplink spectral efficiency of the user equipment. Numerical evaluations illustrate how both clutter and symbol uncertainty increase the bound and how the new estimator improves upon standard block-fading approaches. The results indicate that these effects must be considered when designing resource allocation policies.

Core claim

In a bistatic ISAC network, the Cramer-Rao bound on sensing-parameter estimation is obtained by modeling unknown communication symbols as nuisance parameters under different knowledge regimes and by including structured clutter. Assuming temporal evolution of the communication channel, a correlation-aware estimator is derived together with an expression for the user-equipment uplink spectral efficiency. The bound increases when symbol uncertainty or clutter is present, and the estimator yields lower estimation error than conventional block-fading methods.

What carries the argument

The Cramer-Rao bound expression that incorporates unknown symbols as nuisance parameters, together with the correlation-aware channel estimator derived from the assumed temporal evolution of the communication channel.

If this is right

  • Clutter increases the Cramer-Rao bound on sensing parameters.
  • Treating unknown symbols as nuisances further raises the bound relative to full-knowledge cases.
  • The correlation-aware estimator achieves lower error than block-fading estimators.
  • Resource-allocation policies must be adjusted to maintain target sensing accuracy under symbol uncertainty.
  • Uplink spectral efficiency admits an explicit expression that depends on the channel estimator performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Systems could reduce the bound by feeding back a subset of symbols or by predicting them from prior estimates.
  • Joint waveform design that balances illumination strength between uplink and downlink may mitigate the combined effect of clutter and uncertainty.
  • The framework can be tested in multi-target scenarios to see whether the same nuisance-parameter treatment remains tractable.
  • Hardware experiments that violate the temporal-evolution assumption would directly quantify the estimator's robustness.

Load-bearing premise

The communication channel changes over time in a manner that permits a correlation-aware estimator, and unknown symbols affect the observation statistics only through their role as nuisance parameters.

What would settle it

A controlled measurement campaign in a bistatic ISAC setup that records the empirical variance of the sensing-parameter estimates while varying the fraction of known symbols and the clutter intensity, then checks whether the observed variance lies at or above the analytically derived bound.

Figures

Figures reproduced from arXiv: 2604.11426 by Emil Bjornson, Gabor Fodor, Mikael Skoglund, Steven Rivetti.

Figure 2
Figure 2. Figure 2: shows BS1’s resource scheduling policy: assuming time-division duplexing (TDD) and UL/DL channel reci￾procity, UL channel estimates are reused for DL precoding. BS2 acts as a sensing receiver, collecting echoes across all frame phases. These echoes are used to calculate the position and velocity of a target, located at t = [tx, ty] ⊤, in a bistatic manner. We define the symbol time index i, with a time uni… view at source ↗
Figure 4
Figure 4. Figure 4: Depiction of the CRB regimes of θBS (a), and τBS (b) as a function of θBS. The red areas represent the areas with |θBS| > ∆θ/2 while the cyan one is the angular sector occupied by the clutter patches. The ”noise only” regime is obtained by setting RUL = RDL = σ 2 IMRx BS and using the un-whitened µi,v. 0 20 40 60 80 100 100 101 102 Hyb. Clair. γ[%] CRB(τBS) [m] θBS = 45◦ θBS = 15◦ θBS = −41◦ 0 20 40 60 80 … view at source ↗
Figure 5
Figure 5. Figure 5: Clutter affected CRB for different target positions, as a function of the power trade-off parameter γ gap almost disappears when the target is aligned with a UEs communication set of clusters (green ellipsis). In [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Cumulative distribution function (CDF) of the sum SE for different as a function of UEs power budget and νp (a), UE’s velocity magnitude ∥ω∥k (b) and νp (c). These CDFs are obtained with 1000 Montecarlo realizations. UEs’ SNR, but reduces the fraction of resources available for data transmission:when in an SNR-limited regime, the SNR gain dominates; conversely, at higher SNRs, the pre-log penalty becomes t… view at source ↗
read the original abstract

Integrated sensing and communication (ISAC) systems rely on communication waveforms to perform sensing tasks, thus making their sensing performance strongly dependent on the level of communication symbol knowledge available to the sensing receivers. However, the existing literature fails to capture this dependency, often relying on full symbol knowledge assumptions. In this paper, we present a Cramer Rao bound (CRB) analysis of a bistatic ISAC network with heterogeneous uplink and downlink illumination and structured clutter. We consider different symbol knowledge regimes by modeling unknown communication symbols as nuisance parameters. Assuming a temporal evolution of the communication channel, we derive a correlation aware channel estimator and an expression for the UEs uplink spectral efficiency (SE). Numerical results show the CRB degradation induced by clutter and symbol uncertainty and how this can affect resource allocation policies. We also show the performance gain of our channel estimator relative to conventional block fading architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The paper conducts a Cramér-Rao bound (CRB) analysis for bistatic integrated sensing and communication (ISAC) systems with structured clutter and heterogeneous uplink/downlink illumination. Unknown communication symbols are treated as nuisance parameters under different knowledge regimes. Assuming temporal evolution of the communication channel, the authors derive a correlation-aware channel estimator and an uplink spectral efficiency (SE) expression for the UEs. Numerical results illustrate CRB degradation due to clutter and symbol uncertainty, its effect on resource allocation, and the performance gain of the proposed estimator relative to block-fading architectures.

Significance. This work addresses a practical gap in ISAC analysis by relaxing the common full-symbol-knowledge assumption and explicitly incorporating partial knowledge via nuisance-parameter modeling together with structured clutter. The derivation of the correlation-aware estimator under a temporal channel model and its linkage to uplink SE provide a concrete bridge between sensing bounds and communication metrics. Numerical demonstrations of CRB sensitivity to clutter and symbol uncertainty, along with implications for resource allocation, are consistent with the stated modeling assumptions and offer usable design insights if the central expressions hold.

minor comments (4)
  1. Section 2 (system model): the heterogeneous uplink and downlink illumination is described in text but would benefit from an accompanying diagram or table that explicitly labels the illumination paths, clutter scatterers, and receiver locations to improve immediate readability.
  2. Numerical results section: the CRB curves for varying symbol-knowledge regimes are presented without error bars or multiple Monte-Carlo realizations; adding these would strengthen the claim of observable degradation induced by symbol uncertainty.
  3. Abstract and Section 4: the performance gain of the correlation-aware estimator is stated relative to block-fading; the text should clarify whether the gain is measured in CRB, MSE, or SE, and at which operating points the improvement is most pronounced.
  4. The structured-clutter covariance model is introduced without a dedicated reference to the specific clutter correlation function used; a short citation or explicit functional form would aid reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of our manuscript, the accurate summary of its contributions, and the recommendation for minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper derives the CRB for bistatic ISAC parameters by treating unknown symbols as nuisance parameters and incorporating structured clutter into the standard Fisher information matrix partitioning. The correlation-aware estimator and uplink SE expression are obtained directly from the assumed temporal channel evolution model under clearly stated statistical assumptions, without any reduction of the target bound to fitted constants or self-referential definitions. All load-bearing steps begin from conventional signal models and proceed via explicit derivations rather than by construction or imported uniqueness claims.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review performed from abstract only; full derivation details unavailable. The central claim rests on standard signal-processing modeling choices whose precise parameter count and independence from the target CRB cannot be audited.

axioms (2)
  • domain assumption Communication channel exhibits temporal correlation that can be exploited for estimation
    Invoked to derive the correlation-aware estimator and SE expression
  • domain assumption Unknown communication symbols can be treated as nuisance parameters without altering the fundamental sensing model
    Used to define the different symbol-knowledge regimes in the CRB analysis

pith-pipeline@v0.9.0 · 5457 in / 1460 out tokens · 34637 ms · 2026-05-10T15:23:11.596685+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

18 extracted references · 18 canonical work pages

  1. [1]

    Integrated sensing and communications: Towards dual-functional wire- less networks for 6G and beyond,

    F. Liu, Y . Cui, C. Masouros, J. Xu, T. X. Han, Y . C. Eldar, and S. Buzzi, “Integrated sensing and communications: Towards dual-functional wire- less networks for 6G and beyond,”IEEE journal on selected areas in communications, 2022

    work page 2022

  2. [2]

    Distributed intelligent integrated sensing and communications: The 6g-disac approach,

    E. C. Strinati, G. C. Alexandropouloset al., “Distributed intelligent integrated sensing and communications: The 6g-disac approach,” in2024 Joint European Conference on Networks and Communications & 6G Summit (EuCNC/6G Summit). IEEE, 2024, pp. 392–397

    work page 2024

  3. [3]

    Impact of synchronization error and phase noise on ofdm-based distributed isac systems,

    K. Han, K. Meng, and C. Masouros, “Impact of synchronization error and phase noise on ofdm-based distributed isac systems,” in2025 IEEE Radar Conference (RadarConf25). IEEE, 2025, pp. 538–543

    work page 2025

  4. [4]

    Clutter-aware integrated sensing and communication: Models, methods, and future directions,

    R. Liu, P. Li, M. Li, and A. L. Swindlehurst, “Clutter-aware integrated sensing and communication: Models, methods, and future directions,” arXiv preprint arXiv:2602.10537, 2026

    work page arXiv 2026

  5. [5]

    Statistical inference in large antenna arrays under unknown noise pattern,

    J. Vinogradova, R. Couillet, and W. Hachem, “Statistical inference in large antenna arrays under unknown noise pattern,”IEEE Transactions on Signal Processing, vol. 61, no. 22, pp. 5633–5645, 2013

    work page 2013

  6. [6]

    Clutter-aware target detection for ISAC in a millimeter-wave cell-free massive MIMO system,

    S. Rivetti, O. T. Demir, E. Bjornson, and M. Skoglund, “Clutter-aware target detection for ISAC in a millimeter-wave cell-free massive MIMO system,”arXiv preprint arXiv:2411.08759, 2024

    work page arXiv 2024

  7. [7]

    Channel semantic characterization for integrated sensing and communi- cation scenarios: From measurements to modeling,

    Z. Zhang, R. He, B. Ai, M. Yang, X. Zhang, Z. Qi, and Z. Zhong, “Channel semantic characterization for integrated sensing and communi- cation scenarios: From measurements to modeling,”IEEE Transactions on Wireless Communications, vol. 25, pp. 13 073–13 089, 2026

    work page 2026

  8. [8]

    Optimizing pilot spacing in MU-MIMO systems operating over aging channels,

    S. Fodor, G. Fodor, D. G ¨urg¨uno˘glu, and M. Telek, “Optimizing pilot spacing in MU-MIMO systems operating over aging channels,”IEEE Transactions on Communications, vol. 71, no. 6, pp. 3708–3720, 2023

    work page 2023

  9. [9]

    5G new radio for automotive, rail, and air transport,

    G. Fodor, J. Vinogradova, P. Hammarberg, K. K. Nagalapur, Z. T. Qi, H. Do, R. Blasco, and M. U. Baig, “5G new radio for automotive, rail, and air transport,”IEEE Communications Magazine, vol. 59, no. 7, pp. 22–28, 2021

    work page 2021

  10. [10]

    Deterministic- random tradeoff of integrated sensing and communications in gaussian channels: A rate-distortion perspective,

    F. Liu, Y . Xiong, K. Wan, T. X. Han, and G. Caire, “Deterministic- random tradeoff of integrated sensing and communications in gaussian channels: A rate-distortion perspective,” in2023 IEEE International Symposium on Information Theory (ISIT). IEEE, 2023, pp. 2326–2331

    work page 2023

  11. [11]

    Sensing with random communication signals,

    S. Lu, F. Liu, Y . Xiong, Z. Du, Y . Cui, S. Li, W. Yuan, J. Yang, and S. Jin, “Sensing with random communication signals,”IEEE Network, vol. 40, no. 1, pp. 98–106, 2026

    work page 2026

  12. [12]

    A. B. Gershman,Array signal processing. Cambridge University Press, 2006, pp. 241–260

    work page 2006

  13. [13]

    On the trade-off between angle of arrival and symbol estimation in bistatic ISAC systems using unitary signaling,

    S. Fodor, G. Fodor, and M. Telek, “On the trade-off between angle of arrival and symbol estimation in bistatic ISAC systems using unitary signaling,”IEEE Transactions on Communications, vol. 73, no. 7, pp. 5328–5343, 2025

    work page 2025

  14. [14]

    Uplink perfor- mance of cell-free massive MIMO with multi-antenna users over jointly- correlated Rayleigh fading channels,

    Z. Wang, J. Zhang, B. Ai, C. Yuen, and M. Debbah, “Uplink perfor- mance of cell-free massive MIMO with multi-antenna users over jointly- correlated Rayleigh fading channels,”IEEE Transactions on Wireless Communications, vol. 21, no. 9, pp. 7391–7406, 2022

    work page 2022

  15. [15]

    Channel modeling and channel estimation for holographic massive MIMO with planar arrays,

    ¨O. T. Demir, E. Bj ¨ornson, and L. Sanguinetti, “Channel modeling and channel estimation for holographic massive MIMO with planar arrays,” IEEE Wireless Communications Letters, vol. 11, no. 5, pp. 997–1001, 2022

    work page 2022

  16. [16]

    Efficient simulation of multiple cross- correlated Rayleigh fading channels,

    C.-X. Wang and M. Patzold, “Efficient simulation of multiple cross- correlated Rayleigh fading channels,” in14th IEEE Proceedings on Personal, Indoor and Mobile Radio Communications, 2003. PIMRC 2003., vol. 2. IEEE, 2003, pp. 1526–1530

    work page 2003

  17. [17]

    On the impact of channel aging and doppler-affected clutter on OFDM ISAC systems,

    S. Rivetti, G. Fodor, E. Bj ¨ornson, and M. Skoglund, “On the impact of channel aging and doppler-affected clutter on OFDM ISAC systems,” arXiv preprint arXiv:2601.05032, 2026

    work page arXiv 2026

  18. [18]

    Study on channel model for frequencies from 0.5 to 100 GHz: 3GPP TR 38.901 version 15.0. 0 release 15,

    European Telecommunications Standards Institute (ETSI), “Study on channel model for frequencies from 0.5 to 100 GHz: 3GPP TR 38.901 version 15.0. 0 release 15,” 2018

    work page 2018
