arxiv: 2604.12090 · v1 · submitted 2026-04-13 · 💻 cs.DC

Recognition: unknown

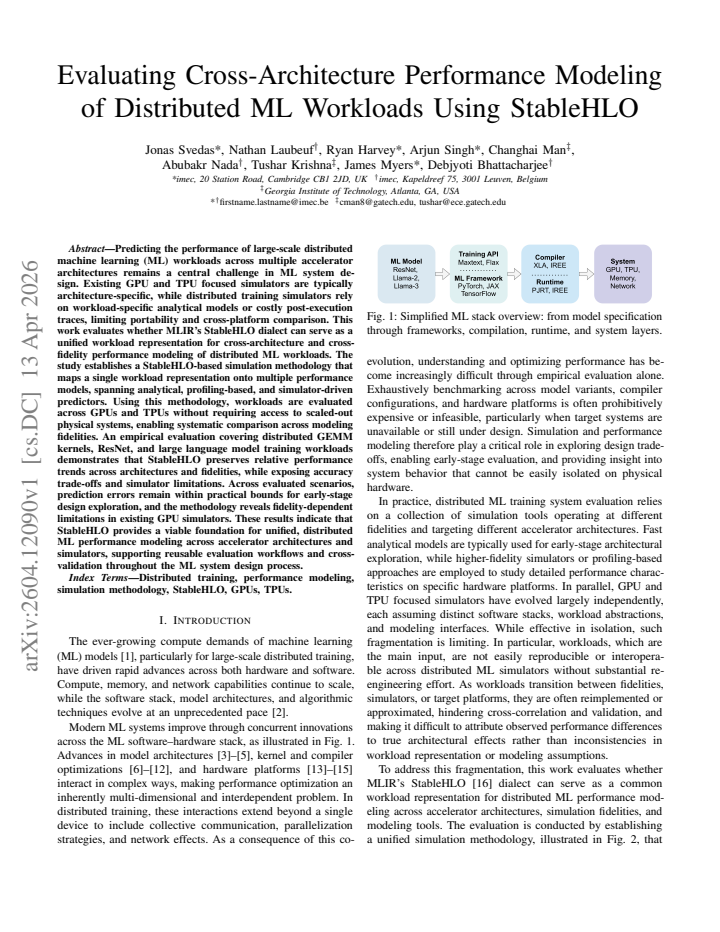

Evaluating Cross-Architecture Performance Modeling of Distributed ML Workloads Using StableHLO

Jonas Svedas , Nathan Laubeuf , Ryan Harvey , Arjun Singh , Changhai Man , Abubakr Nada , Tushar Krishna , James Myers

show 1 more author

Debjyoti Bhattacharjee

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:58 UTC · model grok-4.3

classification 💻 cs.DC

keywords StableHLOperformance modelingdistributed MLcross-architectureGPUTPUsimulatorsworkload representation

0 comments

The pith

StableHLO can serve as a single portable representation for predicting distributed ML workload performance across GPUs, TPUs, and varied simulators.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether StableHLO offers a common way to express machine learning workloads so that their performance can be modeled on different accelerator types without rewriting the description each time. It maps the same workload description into analytical models, profiling data, and full simulators to compare outcomes on GPUs versus TPUs. The evaluation covers distributed matrix multiplication kernels, ResNet models, and large language model training, showing that relative performance differences between architectures are captured with errors small enough for early design work. This approach exposes where current simulators lose accuracy on certain workloads. The results support using one StableHLO form for repeated evaluations during ML system planning.

Core claim

The study establishes a StableHLO-based simulation methodology that maps a single workload representation onto multiple performance models, spanning analytical, profiling-based, and simulator-driven predictors. Using this methodology, workloads are evaluated across GPUs and TPUs without requiring access to scaled-out physical systems, enabling systematic comparison across modeling fidelities. An empirical evaluation covering distributed GEMM kernels, ResNet, and large language model training workloads demonstrates that StableHLO preserves relative performance trends across architectures and fidelities, while exposing accuracy trade-offs and simulator limitations. Across evaluated scenarios,

What carries the argument

StableHLO dialect as a unified, portable representation of ML operations that feeds into multiple separate performance predictors.

If this is right

Workloads can be compared across GPUs and TPUs using one description and without building full hardware clusters.
Different prediction methods can be applied to the same StableHLO form to reveal accuracy differences.
Simulator shortcomings become visible when the same workload runs through multiple modeling paths.
Reusable workflows emerge for checking performance during early ML system design stages.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Teams could iterate on hardware choices faster by testing many configurations from one workload file before any physical runs.
Cross-checking outputs from different simulators against each other might expose and reduce individual tool biases.
The method could extend naturally to additional accelerator types once their simulators accept StableHLO input.
Adoption might lower the barrier for comparing new distributed training strategies across mixed hardware environments.

Load-bearing premise

Converting workloads into StableHLO keeps the performance traits that matter for predicting relative differences across architectures and simulators.

What would settle it

Direct measurements on physical multi-GPU and multi-TPU clusters that show the StableHLO-based models fail to match actual relative speedups or efficiencies for the tested workloads.

Figures

Figures reproduced from arXiv: 2604.12090 by Abubakr Nada, Arjun Singh, Changhai Man, Debjyoti Bhattacharjee, James Myers, Jonas Svedas, Nathan Laubeuf, Ryan Harvey, Tushar Krishna.

**Figure 2.** Figure 2: Overview of the StableHLO-based evaluation methodology for distributed ML performance modeling. Workloads are [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 4.** Figure 4: Compiler pathways enabled by StableHLO-MLIR. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

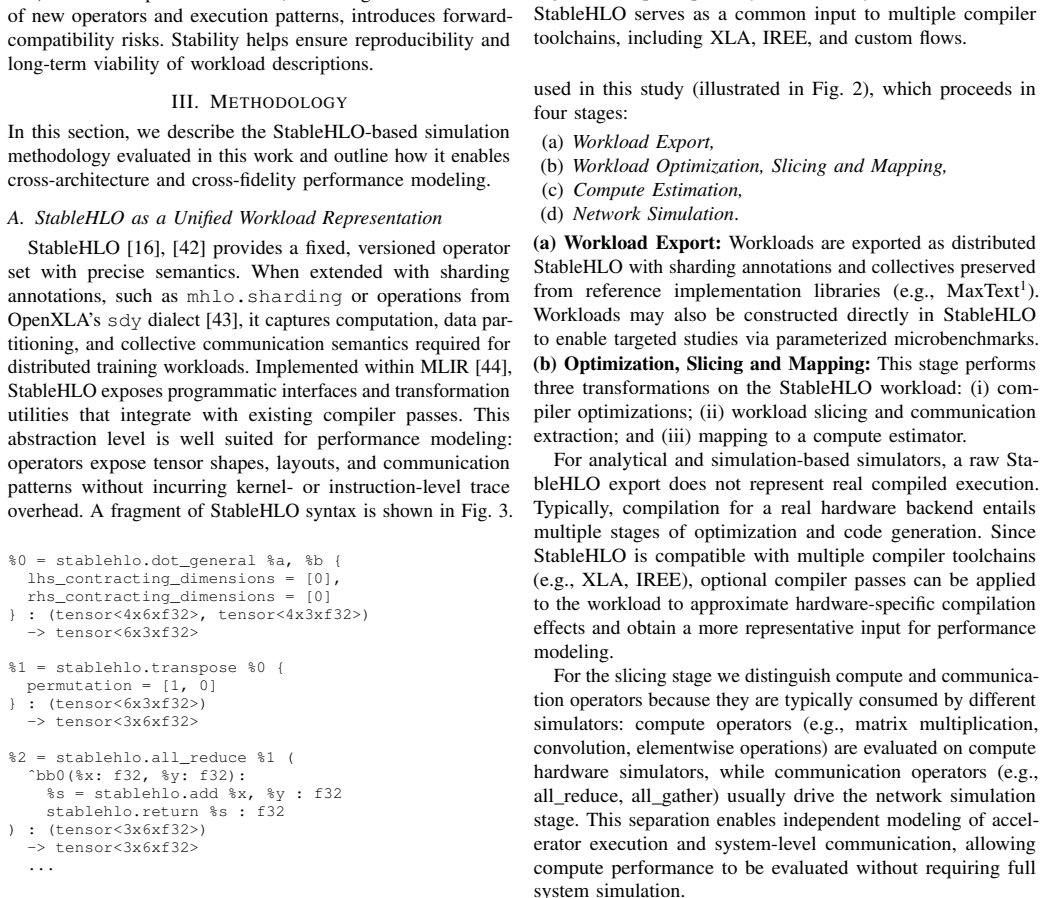

**Figure 3.** Figure 3: Fragment of StableHLO-MLIR illustrating a matrix [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

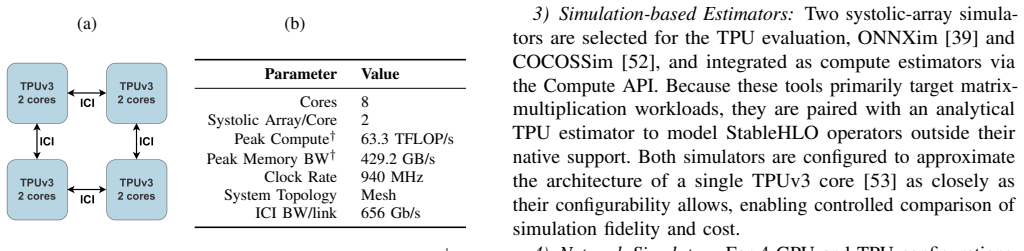

**Figure 5.** Figure 5: TPUv3-8 system diagram and key parameters. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

**Figure 7.** Figure 7: Training-step latency estimate for ResNet variants on a [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

**Figure 6.** Figure 6: Training-step latency estimates of single training [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

**Figure 9.** Figure 9: Llama-2 scale-out simulation results using ASTRA-sim [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

**Figure 10.** Figure 10: Operator-level benchmarking of matrix multiplica [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗

**Figure 12.** Figure 12: IREE–Accel-Sim integration flow used to evaluate [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗

read the original abstract

Predicting the performance of large-scale distributed machine learning (ML) workloads across multiple accelerator architectures remains a central challenge in ML system design. Existing GPU and TPU focused simulators are typically architecture-specific, while distributed training simulators rely on workload-specific analytical models or costly post-execution traces, limiting portability and cross-platform comparison. This work evaluates whether MLIR's StableHLO dialect can serve as a unified workload representation for cross-architecture and cross-fidelity performance modeling of distributed ML workloads. The study establishes a StableHLO-based simulation methodology that maps a single workload representation onto multiple performance models, spanning analytical, profiling-based, and simulator-driven predictors. Using this methodology, workloads are evaluated across GPUs and TPUs without requiring access to scaled-out physical systems, enabling systematic comparison across modeling fidelities. An empirical evaluation covering distributed GEMM kernels, ResNet, and large language model training workloads demonstrates that StableHLO preserves relative performance trends across architectures and fidelities, while exposing accuracy trade-offs and simulator limitations. Across evaluated scenarios, prediction errors remain within practical bounds for early-stage design exploration, and the methodology reveals fidelity-dependent limitations in existing GPU simulators. These results indicate that StableHLO provides a viable foundation for unified, distributed ML performance modeling across accelerator architectures and simulators, supporting reusable evaluation workflows and cross-validation throughout the ML system design process.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

StableHLO works as a reusable representation for running the same distributed ML workloads through GPU and TPU performance models, with relative trends holding in the tested cases.

read the letter

The paper's main result is that converting workloads to StableHLO lets you drive multiple predictors—analytical, profiling, and simulator-based—across architectures without rewriting the workload each time. Their tests on distributed GEMM, ResNet, and LLM training show that relative performance orderings stay consistent between GPU and TPU models, and absolute errors stay small enough for early design decisions. This is useful because it reduces the need to touch physical hardware or rebuild traces for every architecture comparison early on. The approach reuses an existing MLIR dialect rather than inventing a new one, which keeps the contribution focused and incremental. They also surface some practical limits in current GPU simulators when run at different fidelities. The evaluation covers real workloads and reports concrete error ranges, which gives the claims some grounding. The soft spot is the assumption that StableHLO mappings retain the distributed details that actually drive performance differences, such as collective communication costs and scaling behavior. If the dialect's abstractions hide architecture-specific costs, the preserved trends could be specific to the kernels and simulators they chose rather than a general property. The abstract does not spell out how collectives or tensor layouts are represented in the mappings, so it is hard to judge how far the result extends beyond the reported cases. This is the kind of paper that fits a systems reading group focused on ML infrastructure and performance tools. It has enough empirical content and a clear methodology to deserve peer review, even if reviewers will likely press on the generality of the StableHLO abstraction.

Referee Report

2 major / 2 minor

Summary. The paper evaluates MLIR's StableHLO dialect as a unified representation for cross-architecture performance modeling of distributed ML workloads. It maps workloads (distributed GEMM, ResNet, LLM training) to StableHLO and applies them to analytical, profiling-based, and simulator-driven predictors spanning GPUs and TPUs. Empirical results show preserved relative performance trends across architectures and modeling fidelities, with prediction errors within practical bounds for early design, while exposing limitations in existing GPU simulators. The authors conclude that StableHLO enables reusable evaluation workflows and cross-validation in ML system design.

Significance. If substantiated, this provides a meaningful advance for portable performance modeling in distributed ML systems by reducing reliance on architecture-specific tools. The empirical breadth across workloads and fidelities, plus identification of simulator limitations, offers practical value for early-stage design exploration. The use of a standard dialect supports reproducibility and could standardize cross-architecture comparisons in the ML systems community.

major comments (2)

[Methodology] The central claim that StableHLO mappings preserve relative performance trends without losing distributed execution details (communication patterns, memory hierarchies, scaling) is load-bearing for the viability conclusion. The methodology section must explicitly describe how StableHLO represents collectives and tensor layouts, with direct comparisons to native simulator inputs, to demonstrate that observed trend preservation is not an artifact of the selected workloads.
[Empirical Evaluation] The abstract states that prediction errors remain within practical bounds, but the evaluation section must report concrete error metrics (e.g., MAPE or absolute relative error per workload), simulator configurations, data exclusion rules, and per-scenario results (including any tables comparing predictions to ground truth). Without these, the support for the 'practical bounds for early-stage design' claim cannot be verified.

minor comments (2)

Define all performance predictor notations and fidelity levels in a dedicated table or glossary for clarity across the results.
Include an appendix with full simulator versions, StableHLO dialect commit, and workload mapping scripts to support reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to revise our manuscript based on the referee's insightful comments. We address each major comment below and have made revisions to improve clarity and substantiation of our claims.

read point-by-point responses

Referee: [Methodology] The central claim that StableHLO mappings preserve relative performance trends without losing distributed execution details (communication patterns, memory hierarchies, scaling) is load-bearing for the viability conclusion. The methodology section must explicitly describe how StableHLO represents collectives and tensor layouts, with direct comparisons to native simulator inputs, to demonstrate that observed trend preservation is not an artifact of the selected workloads.

Authors: We agree with this assessment and have revised the Methodology section to provide a detailed description of StableHLO's representation of collectives and tensor layouts. Specifically, we now include explanations of how operations like AllReduce and AllGather are mapped, along with tensor sharding and layout specifications. We also added direct comparisons between StableHLO-derived inputs and native simulator configurations for the GPU and TPU models, using the distributed GEMM and ResNet workloads as examples. These additions confirm that the trend preservation is not an artifact but stems from faithful representation of distributed aspects. revision: yes
Referee: [Empirical Evaluation] The abstract states that prediction errors remain within practical bounds, but the evaluation section must report concrete error metrics (e.g., MAPE or absolute relative error per workload), simulator configurations, data exclusion rules, and per-scenario results (including any tables comparing predictions to ground truth). Without these, the support for the 'practical bounds for early-stage design' claim cannot be verified.

Authors: We have updated the Empirical Evaluation section to include the requested details. Concrete metrics such as Mean Absolute Percentage Error (MAPE) are now reported for each workload (distributed GEMM, ResNet, LLM training) across architectures and modeling fidelities. Simulator configurations, including versions and key parameters, are specified, along with data exclusion rules (e.g., outlier handling). New tables have been added showing per-scenario prediction vs. ground truth comparisons. These revisions provide verifiable support for the practical bounds claim. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical evaluation of StableHLO mappings

full rationale

The paper presents an empirical methodology that maps distributed ML workloads (GEMM, ResNet, LLM training) to StableHLO and evaluates preservation of relative performance trends across GPU/TPU simulators and analytical models. Claims rest on direct experimental comparisons of prediction errors and trend fidelity against external benchmarks, without any derivations, equations, fitted parameters redefined as predictions, or self-citation chains that reduce the central viability conclusion to its own inputs by construction. The evaluation is self-contained against measured data and cross-fidelity checks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper rests on standard assumptions about workload representability in StableHLO and the fidelity of existing performance models; no new free parameters, axioms, or invented entities are introduced in the abstract.
