arxiv: 2604.12753 · v1 · submitted 2026-04-14 · 💻 cs.RO

Recognition: unknown

Reliability-Guided Depth Fusion for Glare-Resilient Navigation Costmaps

Shang-En Tsai (1) , Wei-Cheng Sun (1) ((1) Department of Computer Science , Information Engineering , Chang Jung Christian University)

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:57 UTC · model grok-4.3

classification 💻 cs.RO

keywords depth reliability mapglare resilient navigationRGB-D fusionoccupancy costmapsspecular interferencerobot navigationfree space preservationphantom obstacles

0 comments

The pith

A depth reliability estimator lets robots build costmaps that ignore glare from reflective floors and glass.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper seeks to prevent glare on shiny floors and glass from creating false obstacles in the maps robots use to navigate. It does so by training a model to judge how reliable each depth measurement is and then only trusting the good ones when updating the occupancy grid. Readers should care because indoor robots often fail or take bad paths when their maps fill with phantom barriers from bad sensor data. The method keeps the computation light enough for small onboard computers while showing better map accuracy in real tests.

Core claim

The authors claim that by explicitly estimating a per-pixel Depth Reliability Map for RGB-D measurements under specular interference and applying Reliability-Guided Fusion to occupancy updates, the system substantially reduces false obstacle insertion and improves free-space preservation in navigation costmaps, as validated on a real mobile platform with an Intel RealSense D435 and Jetson Orin Nano.

What carries the argument

The Depth Reliability Map estimator that predicts measurement trustworthiness per pixel, combined with the Reliability-Guided Fusion mechanism that modulates how updates enter the costmap.

Load-bearing premise

The Depth Reliability Map estimator can accurately predict per-pixel measurement trustworthiness under specular interference.

What would settle it

A direct comparison showing that the proposed fusion still produces as many phantom obstacles as standard methods in controlled tests with known glare sources would disprove the effectiveness of the reliability guidance.

Figures

Figures reproduced from arXiv: 2604.12753 by Chang Jung Christian University), Information Engineering, Shang-En Tsai (1), Wei-Cheng Sun (1) ((1) Department of Computer Science.

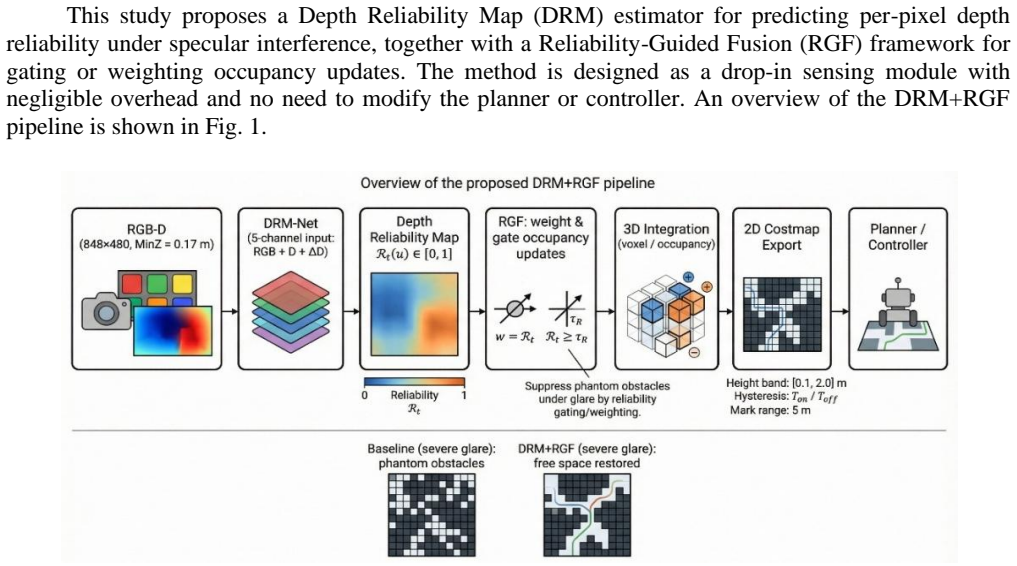

**Figure 1.** Figure 1: Overview of the proposed DRM+RGF framework for glare-resilient navigation costmaps. DRMNet predicts a per-pixel depth reliability map from RGB-D input, and reliability-guided fusion suppresses glare-induced phantom obstacles before generating the 2-D costmap for navigation. Contributions: 1. A glare-aware DRM estimator that quantifies per-pixel depth reliability in the presence of specular interference; 2… view at source ↗

**Figure 4.** Figure 4: Trajectory detour analysis under severe glare (L2). (a) Top-down view of the reflective corridor. (b) Baseline fusion produces a large detour due to glare-induced phantom obstacles. (c) DRM+RGF preserves a near-straight trajectory through the reflective region.Discussion Why reliability-guided fusion instead of full depth completion? Depth completion methods achieve strong reconstruction performance on tra… view at source ↗

read the original abstract

Specular glare on reflective floors and glass surfaces frequently corrupts RGB-D depth measurements, producing holes and spikes that accumulate as persistent phantom obstacles in occupancy-grid costmaps. This paper proposes a glare-resilient costmap construction method based on explicit depth-reliability modeling. A lightweight Depth Reliability Map (DRM) estimator predicts per-pixel measurement trustworthiness under specular interference, and a Reliability-Guided Fusion (RGF) mechanism uses this signal to modulate occupancy updates before corrupted measurements are accumulated into the map. Experiments on a real mobile robotic platform equipped with an Intel RealSense D435 and a Jetson Orin Nano show that the proposed method substantially reduces false obstacle insertion and improves free-space preservation under real reflective-floor and glass-surface conditions, while introducing only modest computational overhead. These results indicate that treating glare as a measurement-reliability problem provides a practical and lightweight solution for improving costmap correctness and navigation robustness in safety-critical indoor environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a practical, lightweight way to handle glare-induced depth errors in indoor robot costmaps but leaves the core DRM predictor without direct accuracy checks.

read the letter

The useful bit is the explicit modeling of per-pixel depth reliability for specular glare on floors and glass. They build a DRM estimator that scores trustworthiness, then feed it into RGF to modulate updates into the occupancy grid before bad readings turn into persistent phantom obstacles. This is a targeted application rather than a general fusion overhaul, and it runs light enough for a Jetson Orin Nano with a RealSense D435. Real-robot tests are claimed to cut false obstacles and keep more free space under reflective conditions, which matches a recurring deployment pain point.

Referee Report

2 major / 2 minor

Summary. The paper proposes a glare-resilient costmap construction method for RGB-D sensors that uses a lightweight Depth Reliability Map (DRM) estimator to predict per-pixel measurement trustworthiness under specular interference from reflective floors and glass, combined with a Reliability-Guided Fusion (RGF) mechanism to modulate occupancy updates and prevent accumulation of corrupted depth values as phantom obstacles. Real-robot experiments on a platform with an Intel RealSense D435 and Jetson Orin Nano are claimed to show substantial reductions in false obstacle insertion, improved free-space preservation, and only modest computational overhead.

Significance. If the central claim holds, this provides a practical, low-overhead approach to a persistent problem in indoor mobile robotics navigation, where specular reflections commonly degrade depth data and occupancy grids. Explicit reliability modeling could enhance safety-critical performance without requiring heavy sensor fusion or post-processing, and the real-robot validation (if quantified) would strengthen its applicability.

major comments (2)

[Experiments] Experiments section: the central claim of 'substantially reduces false obstacle insertion and improves free-space preservation' is presented without any quantitative metrics, baselines, error bars, statistical tests, or data exclusion criteria. This leaves the reported improvements unverifiable and prevents assessment of whether gains are attributable to DRM/RGF or generic filtering.
[Method] Method section (DRM estimator description): no standalone quantitative validation of the Depth Reliability Map is reported (e.g., pixel-wise precision, recall, or correlation against ground-truth reliability labels from multi-view consistency, controlled glare tests, or secondary sensors). Without this, the assumption that DRM correctly flags specular corruption remains untested, undermining attribution of costmap improvements to reliability guidance.

minor comments (2)

[Method] The abstract and method descriptions treat DRM and RGF as novel constructions but provide no pseudocode, parameter values, or implementation details that would aid reproducibility.
[Experiments] Figure captions and experimental setup descriptions could more explicitly state sensor parameters (e.g., depth range, exposure settings) and environmental conditions to contextualize the glare scenarios.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that the current presentation of results would benefit from additional quantitative support and will revise the manuscript to strengthen the experimental and method sections accordingly.

read point-by-point responses

Referee: [Experiments] Experiments section: the central claim of 'substantially reduces false obstacle insertion and improves free-space preservation' is presented without any quantitative metrics, baselines, error bars, statistical tests, or data exclusion criteria. This leaves the reported improvements unverifiable and prevents assessment of whether gains are attributable to DRM/RGF or generic filtering.

Authors: We acknowledge that the experiments section currently emphasizes qualitative real-robot demonstrations without accompanying quantitative metrics. In the revised manuscript we will add explicit quantitative evaluations, including false-obstacle insertion rates, free-space preservation percentages, and direct comparisons against baselines (standard occupancy-grid mapping and simple depth filtering). Multiple independent trials will be reported with error bars and basic statistical tests to allow verification and clearer attribution of gains to the DRM/RGF components. revision: yes
Referee: [Method] Method section (DRM estimator description): no standalone quantitative validation of the Depth Reliability Map is reported (e.g., pixel-wise precision, recall, or correlation against ground-truth reliability labels from multi-view consistency, controlled glare tests, or secondary sensors). Without this, the assumption that DRM correctly flags specular corruption remains untested, undermining attribution of costmap improvements to reliability guidance.

Authors: We agree that a dedicated quantitative validation of the DRM estimator is currently absent and would strengthen the attribution of results. The revised manuscript will include a new evaluation subsection reporting pixel-wise precision, recall, and correlation metrics for the DRM. Ground-truth reliability labels will be derived from multi-view consistency checks performed under controlled glare conditions on reflective surfaces, directly testing the estimator's ability to identify specular corruption. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation or claims

full rationale

The paper introduces a new construction (DRM estimator + RGF fusion) for handling specular glare in RGB-D costmaps. No equations, parameter fits, or derivations are presented that reduce any prediction or result to its own inputs by construction. Central claims rest on external real-robot experiments rather than self-referential definitions, self-citation chains, or renamed known results. This is the normal case of a self-contained engineering method paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claim rests on the unverified effectiveness of two newly introduced components whose internal design, training data, and failure modes are not detailed in the abstract; no free parameters or external axioms are explicitly stated.

axioms (1)

domain assumption Depth measurements under specular glare can be usefully modeled by a per-pixel reliability score that is predictable by a lightweight estimator
Invoked by the proposal of the DRM estimator as the basis for modulating occupancy updates.

invented entities (2)

Depth Reliability Map (DRM) no independent evidence
purpose: Predicts per-pixel trustworthiness of depth measurements under specular interference
Newly introduced estimator whose accuracy is central to the fusion step but lacks independent evidence in the abstract.
Reliability-Guided Fusion (RGF) no independent evidence
purpose: Modulates occupancy-grid updates to prevent accumulation of corrupted depth data
New fusion mechanism whose behavior depends on the DRM output and is not shown to reduce to prior methods.

pith-pipeline@v0.9.0 · 5474 in / 1478 out tokens · 87956 ms · 2026-05-10T14:57:09.933554+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

28 extracted references · 19 canonical work pages · 1 internal anchor

[1]

URL https://doi.org/10.1109/ICRA48891.2023.10160591

P. Foster, C. Johnson, and B. Kuipers, “The reflectance field map: Mapping glass and specular surfaces in dynamic environments,” in Proc. IEEE Int. Conf. Robot. Autom. (ICRA), London, U.K., 2023, pp. 8393–8399, doi: 10.1109/ICRA48891.2023.10161520

work page doi:10.1109/icra48891.2023.10161520 2023
[2]

A Multiscale Anisotropic Thermal Model of Chiplet Heterogeneous Integration System,

A. Mora, R. Barber, and L. Moreno, “Leveraging 3-D data for whole object shape and reflection - aware 2-D map building,” IEEE Sensors Journal, vol. 24, no. 14, pp. 21941–21948, Jul. 15, 2024, doi: 10.1109/JSEN.2023.3321936

work page doi:10.1109/jsen.2023.3321936 2024
[3]

A robust RGB -D SLAM system for indoor environments with reflective ground,

N. Zhou, H. Yao, C. Zhai, Z. Zhao, and X. Zhu, “A robust RGB -D SLAM system for indoor environments with reflective ground,” IEEE Sensors Journal, vol. 25, no. 20, pp. 38258 –38270, Oct. 15, 2025, doi: 10.1109/JSEN.2025.3600569

work page doi:10.1109/jsen.2025.3600569 2025
[4]

Accurate intrinsic and extrinsic calibration of RGB- D cameras with GP-based depth correction,

G. Chen, G. Cui, Z. Jin, F. Wu, and X. Chen, “Accurate intrinsic and extrinsic calibration of RGB- D cameras with GP-based depth correction,” IEEE Sensors Journal, vol. 19, no. 7, pp. 2685–2694, 2019, doi: 10.1109/JSEN.2018.2889805

work page doi:10.1109/jsen.2018.2889805 2019
[5]

3DRef: 3D dataset and benchmark for reflection detection in RGB and LiDAR data,

X. Zhao and S. Schwertfeger, “3DRef: 3D dataset and benchmark for reflection detection in RGB and LiDAR data,” arXiv preprint arXiv:2403.06538, 2024, doi: 10.48550/arXiv.2403.06538

work page doi:10.48550/arxiv.2403.06538 2024
[6]

Ev-flying: An event-based dataset for in-the-wild recognition of flying objects

P. Z. Ramirez et al., “NTIRE 2025 challenge on HR depth from images of specular and transparent surfaces,” in Proc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit. Workshops (CVPRW) , Nashville, TN, USA, 2025, pp. 978–992, doi: 10.1109/CVPRW67362.2025.00098

work page doi:10.1109/cvprw67362.2025.00098 2025
[7]

Glass recognition and map optimization method for mobile robot based on boundary guidance,

C. He, H. Zhao, X. Zhang, J. Li, and Z. Dong, “Glass recognition and map optimization method for mobile robot based on boundary guidance,” Chin. J. Mech. Eng., vol. 36, Art. no. 88, Jun. 2023, doi: 10.1186/s10033-023-00902-9

work page doi:10.1186/s10033-023-00902-9 2023
[8]

TDCNet: Transparent objects depth completion with CNN-transformer dual-branch parallel network,

X. Fan et al., “TDCNet: Transparent objects depth completion with CNN-transformer dual-branch parallel network,” IEEE Sensors Journal , vol. 25, no. 19, pp. 36629 –36641, Oct. 1, 2025, doi: 10.1109/JSEN.2025.3599381

work page doi:10.1109/jsen.2025.3599381 2025
[9]

HDCNet: A hybrid depth completion network for grasping transparent and reflective objects,

G. Xie et al., “HDCNet: A hybrid depth completion network for grasping transparent and reflective objects,” arXiv preprint arXiv:2511.07081, Nov. 10, 2025. [Online]. Available: https://arxiv.org/abs/2511.07081

work page arXiv 2025
[10]

Geometry-aware sparse depth sampling for high-fidelity RGB- D depth completion in robotic systems,

T. Salloom, D. Zhou, and X. Sun, “Geometry-aware sparse depth sampling for high-fidelity RGB- D depth completion in robotic systems,” arXiv preprint arXiv:2512.08229, Dec. 9, 2025. [Online]. Available: https://arxiv.org/abs/2512.08229

work page arXiv 2025
[11]

TRICKY 2025 challenge on monocular depth from images of specular and transparent surfaces,

P. Z. Ramirez, A. Costanzino, F. Tosi, M. Poggi, L. Di Stefano, J.-B. Weibel, D. Antensteiner, M. Vincze, B. Busam, G. Zhai, W. Li, J. Huang, H. Jung, M. Lavreniuk, P. Sun, Y . Luo, H. Wang, M. Gao, K. Jiang, and J. Jiang, “TRICKY 2025 challenge on monocular depth from images of specular and transparent surfaces,” in Proc. IEEE/CVF Int. Conf. Comput. Vis....

2025
[12]

Seeing and seeing through the glass: Real and synthetic data for multi-layer depth estimation,

H. Wen, X. Yan, W. Tian, and J. Deng, “Seeing and seeing through the glass: Real and synthetic data for multi-layer depth estimation,” arXiv preprint arXiv:2503.11633, Mar. 14, 2025. [Online]. Available: https://arxiv.org/abs/2503.11633

work page arXiv 2025
[13]

BAD SLAM: Bundle adjusted direct RGB-D SLAM,

T. Schöps, T. Sattler, and M. Pollefeys, “BAD SLAM: Bundle adjusted direct RGB-D SLAM,” in Proc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit. (CVPR), Long Beach, CA, USA, 2019, pp. 134–144, doi: 10.1109/CVPR.2019.00022

work page doi:10.1109/cvpr.2019.00022 2019
[14]

Stereo-GS: Online 3D Gaussian splatting mapping using stereo depth estimation,

J. Park, B. Lee, S. Lee, and S. Son, “Stereo-GS: Online 3D Gaussian splatting mapping using stereo depth estimation,” Electronics, vol. 14, no. 22, Art. no. 4436, 2025, doi: 10.3390/electronics14224436

work page doi:10.3390/electronics14224436 2025
[15]

Transformer-based sensor fusion for autonomous vehicles: A comprehensive review,

A. Abdulmaksoud and R. Ahmed, “Transformer-based sensor fusion for autonomous vehicles: A comprehensive review,” IEEE Access , vol. 13, pp. 41822 –41838, 2025, doi: 10.1109/ACCESS.2025.3545032

work page doi:10.1109/access.2025.3545032 2025
[16]

RGB-D video mirror detection,

M. Xu, P. Herbert, Y .-K. Lai, Z. Ji, and J. Wu, “RGB-D video mirror detection,” in Proc. IEEE/CVF Winter Conf. Appl. Comput. Vis. (WACV) , 2025, pp. 9622 –9631. [Online]. Available: https://github.com/UpChenF/DVMDNet. Accessed: Feb. 2, 2026

2025
[17]

Accuracy and resolution of Kinect depth data for indoor mapping applications,

K. Khoshelham and S. O. Elberink, “Accuracy and resolution of Kinect depth data for indoor mapping applications,” Sensors, vol. 12, no. 2, pp. 1437–1454, 2012

2012
[18]

High resolution maps from wide angle sonar,

H. Moravec and A. Elfes, “High resolution maps from wide angle sonar,” in Proc. 1985 IEEE Int. Conf. Robot. Autom. , St. Louis, MO, USA, 1985, pp. 116 –121, doi: 10.1109/ROBOT.1985.1087316

work page doi:10.1109/robot.1985.1087316 1985
[19]

Using occupancy grids for mobile robot perception and navigation,

A. Elfes, “Using occupancy grids for mobile robot perception and navigation,” Computer, vol. 22, no. 6, pp. 46–57, Jun. 1989, doi: 10.1109/2.30720

work page doi:10.1109/2.30720 1989
[20]

Intel RealSense D400 series product family datasheet,

Intel Corp., “Intel RealSense D400 series product family datasheet,” Doc. 337029 -005. [Online]. Available: https://www.intelrealsense.com/wp- content/uploads/2019/09/Intel_RealSense_D400_Series_Product_Family_Datasheet. Accessed: Feb. 2, 2026

2019
[21]

Polarization structured light 3D depth image sensor for scenes with reflective surfaces,

X. Huang, C. Wu, X. Xu, B. Wang, S. Zhang, C. Shen, C. Yu, J. Wang, N. Chi, S. Yu, and C. J. Chang-Hasnain, “Polarization structured light 3D depth image sensor for scenes with reflective surfaces,” Nat. Commun., vol. 14, Art. no. 6855, 2023, doi: 10.1038/s41467-023-42678-5

work page doi:10.1038/s41467-023-42678-5 2023
[22]

In: IEEE International Conference on Robotics and Automation, ICRA 2024, Yokohama, Japan, May 13-17, 2024

A. Millane, H. Oleynikova, E. Wirbel, R. Steiner, V . Ramasamy, D. Tingdahl, and R. Siegwart, “nvblox: GPU-accelerated incremental signed distance field mapping,” in Proc. IEEE Int. Conf. Robot. Autom. (ICRA) , Yokohama, Japan, May 2024, pp. 2698 –2705, doi: 10.1109/ICRA57147.2024.10611532

work page doi:10.1109/icra57147.2024.10611532 2024
[23]

Costmap 2D,

Navigation2, “Costmap 2D,” Navigation2 Documentation . [Online]. Available: https://docs.nav2.org/configuration/packages/configuring-costmaps.html. Accessed: Feb. 2, 2026

2026
[24]

costmap_2d/Inflation

ROS Wiki, “costmap_2d/Inflation.” [Online]. Available: https://wiki.ros.org/costmap_2d/hydro/inflation. Accessed: Feb. 2, 2026

2026
[25]

Comparison of Kinect v1 and v2 depth images in terms of accuracy and precision,

O. Wasenmüller and D. Stricker, “Comparison of Kinect v1 and v2 depth images in terms of accuracy and precision,” in Proc. Asian Conf. Comput. Vis. Workshops (ACCV Workshops), 2016, pp. 34–45

2016
[26]

Camera sensors,

NVIDIA, “Camera sensors,” Isaac Sim Documentation . [Online]. Available: https://docs.isaacsim.omniverse.nvidia.com/latest/sensors/isaacsim_sensors_camera.html. Accessed: Feb. 2, 2026

2026
[27]

Isaac Lab: A GPU-Accelerated Simulation Framework for Multi-Modal Robot Learning

NVIDIA, “Isaac Lab: A GPU-accelerated simulation framework for multi-modal robot learning,” arXiv preprint arXiv:2511.04831, Nov. 2025. [Online]. Available: https://doi.org/10.48550/arXiv.2511.04831. Accessed: Feb. 9, 2026

work page internal anchor Pith review doi:10.48550/arxiv.2511.04831 2025
[28]

Out-of-distribution detection for monocular depth estimation,

J. Hornauer, A. Holzbock, and V . Belagiannis, “Out-of-distribution detection for monocular depth estimation,” in Proc. IEEE/CVF Int. Conf. Comput. Vis. (ICCV), 2023, pp. 1911–1921. Shang-En Tsai is with Department of Computer Science and Information Engineering, Chang Jung Christian University, Taiwan. His research interests include RGB-D perception, rob...

2023
