Joint Semantic Coding and Routing for Multi-Hop Semantic Transmission in LEO Satellite Networks

Hong Zeng , Jiangtao Luo , Yongyi Ran This is my paper

Pith reviewed 2026-05-10 13:37 UTC · model grok-4.3

classification 💻 cs.NI
keywords semantic communicationLEO satellite networksjoint routing and codinggraph representation learningmulti-hop transmissionpartially observable decisionssemantic coding
0
0 comments X

The pith

GraphJSCR uses graph learning to jointly optimize routing and semantic coding for better multi-hop performance in dynamic LEO satellite networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper aims to solve the problem of multi-hop semantic transmission in Low Earth Orbit satellite networks, where changing topology and local information make separate routing and coding optimizations inadequate. It introduces GraphJSCR, which models the network as a time-varying graph and employs a graph representation learning module to capture relevant states for making combined decisions on routing, processing, and semantic transmission. The method formulates the forwarding as a sequential decision problem under partial observability and trains a decision network to balance semantic quality and delay. Simulations show faster convergence and superior tradeoffs, suggesting potential for more efficient satellite communications if the joint approach holds in practice.

Core claim

The paper claims that by modeling the LEO satellite constellation as a time-varying directed graph and formulating the forwarding process as a partially observable sequential decision problem, a graph representation learning module can encode local topology, link status, queue conditions, packet context, and semantic transmission states. Based on this, the decision network jointly determines next-hop selection, relay processing level, and semantic transmission budget, achieving a better tradeoff between end-to-end semantic quality and transmission delay than benchmark methods that optimize separately.

What carries the argument

Graph representation learning module combined with a joint decision network for next-hop selection, relay processing, and semantic budget allocation in a partially observable Markov decision process on time-varying graphs.

If this is right

  • Achieves faster convergence during training compared to benchmark methods.
  • Provides a superior balance between semantic fidelity and transmission efficiency in simulated dynamic LEO environments.
  • Enables effective operation under partial observability where only local information is available.
  • Integrates semantic encoding-decoding inspired by SwinJSCC to support the joint optimization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach might generalize to other time-varying wireless networks with similar dynamics and partial information constraints.
  • If the graph encoding proves robust, it could inform designs for semantic-aware routing protocols in next-generation satellite systems.
  • The simulation-based validation leaves open questions about performance in actual orbital deployments with real propagation effects.

Load-bearing premise

The graph representation learning module can adequately capture and represent the local network states needed for effective joint decision-making despite the partial observability and rapid changes in the satellite topology.

What would settle it

Running the GraphJSCR algorithm against separate optimization baselines in a simulated time-varying LEO network and finding no statistically significant improvement in the semantic fidelity versus delay tradeoff curve.

Figures

Figures reproduced from arXiv: 2604.13361 by Hong Zeng, Jiangtao Luo, Yongyi Ran.

Figure 1
Figure 1. Figure 1: Overall framework of the proposed GraphJSCR method. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

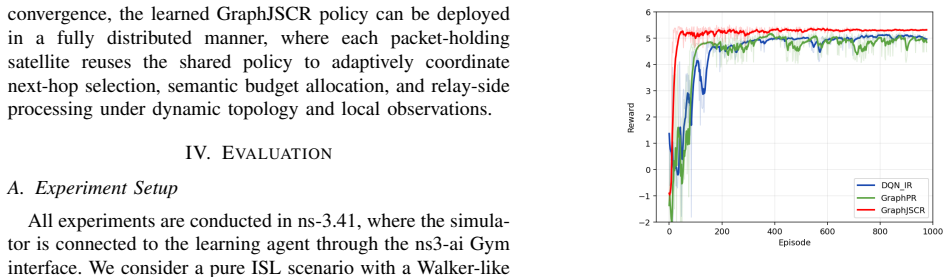

Figure 2. Figure 2: Convergence Analysis [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

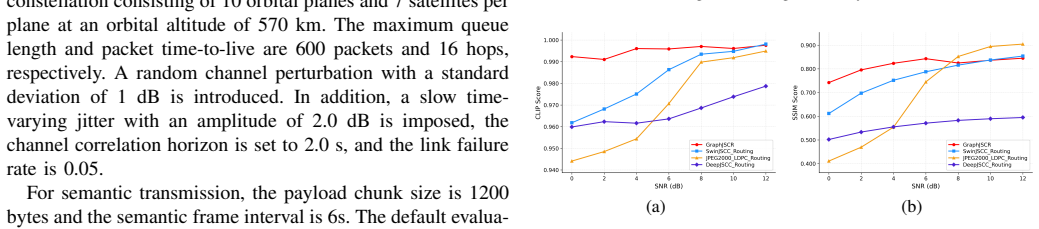

Figure 3. Figure 3: Semantic quality comparison of different schemes under varying SNR [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

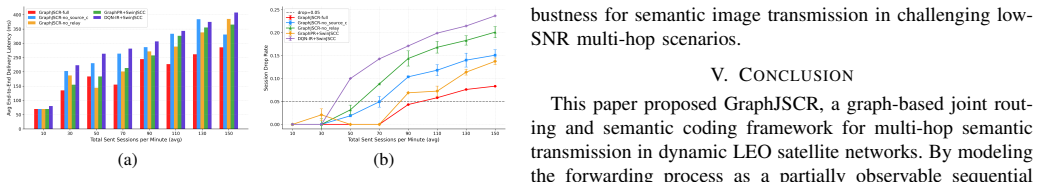

Figure 4. Figure 4: Load sensitivity comparison under different semantic session loads. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Qualitative reconstruction comparison at [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

Low Earth Orbit satellite networks pose significant challenges to multi-hop semantic transmission because rapidly changing topology, link variability, and queue dynamics make end-to-end performance jointly depend on routing, relay processing, and semantic payload adaptation. Existing studies usually optimize routing or semantic transmission separately and are therefore not well suited to dynamic satellite scenarios under local observations. To address this issue, this paper proposes GraphJSCR, a graph-based joint routing and semantic coding method for multi-hop semantic transmission in dynamic Low Earth Orbit satellite networks. The satellite constellation is modeled as a time-varying directed graph, and the forwarding process is formulated as a partially observable sequential decision problem. A graph representation learning module is designed to encode local topology, link status, queue conditions, packet context, and semantic transmission states. Based on the learned representation, the proposed decision network jointly determines next-hop selection, relay processing level, and semantic transmission budget to balance end-to-end semantic quality and transmission delay. The semantic encoder-decoder is developed with reference to the SwinJSCC framework. Simulation results demonstrate that GraphJSCR achieves faster convergence and a better tradeoff between semantic fidelity and transmission efficiency than benchmark methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes GraphJSCR, a graph-based joint semantic coding and routing method for multi-hop semantic transmission in dynamic LEO satellite networks. The constellation is modeled as a time-varying directed graph; forwarding is cast as a POMDP under partial observability. A graph representation learning module encodes local topology, link status, queue conditions, packet context, and semantic states; a decision network then jointly selects next-hop, relay processing level, and semantic transmission budget. The semantic codec follows the SwinJSCC framework. Simulations are reported to show faster convergence and a superior semantic-fidelity versus transmission-efficiency tradeoff relative to benchmark methods.

Significance. If the reported performance gains hold under rigorous evaluation, the work offers a practical integration of semantic communications with routing decisions in highly dynamic satellite environments. The POMDP formulation with local graph encoding is a natural fit for the partial-observability setting, and the joint action space (routing + relay level + semantic budget) directly targets the end-to-end tradeoff that separate optimization approaches cannot capture. Simulation-only validation is appropriate for this contribution type.

major comments (1)
  1. [Simulation results] Simulation results section: the central claim that GraphJSCR 'achieves faster convergence and a better tradeoff' is load-bearing for the paper's contribution, yet the abstract (and presumably the results section) provides no information on network size, orbital/mobility model, traffic generation, number of independent trials, statistical tests, or exact re-implementations of the benchmark algorithms. This absence prevents assessment of reproducibility and effect-size reliability.
minor comments (2)
  1. [Abstract] Abstract: the evaluation metrics for 'semantic fidelity' and 'transmission efficiency' are not named (e.g., semantic similarity score, end-to-end delay, or energy). Explicitly stating the primary metrics would improve clarity.
  2. [Method] Method description: the precise definition of the 'relay processing level' and 'semantic transmission budget' actions should be given with equations or pseudocode in the POMDP formulation section to allow readers to replicate the action space.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that additional simulation details are required to support reproducibility and to allow readers to evaluate the reliability of the reported performance gains. We address the comment below and will incorporate the necessary revisions.

read point-by-point responses

  1. Referee: Simulation results section: the central claim that GraphJSCR 'achieves faster convergence and a better tradeoff' is load-bearing for the paper's contribution, yet the abstract (and presumably the results section) provides no information on network size, orbital/mobility model, traffic generation, number of independent trials, statistical tests, or exact re-implementations of the benchmark algorithms. This absence prevents assessment of reproducibility and effect-size reliability.

    Authors: We agree that the current manuscript lacks sufficient detail on the experimental setup, which is essential for reproducibility. In the revised version we will add a new subsection (or expand the existing Simulation Setup subsection) that explicitly reports: (i) network size and constellation parameters (number of satellites, orbital altitude, inclination, and inter-satellite link range), (ii) the orbital/mobility model and how the time-varying directed graph is generated at each time slot, (iii) traffic generation model (packet arrival process, semantic content distribution, and queue dynamics), (iv) number of independent trials (including random seeds), (v) statistical measures (e.g., mean and standard deviation across runs, or confidence intervals), and (vi) precise descriptions, parameter settings, or references for each benchmark algorithm so that they can be re-implemented exactly. These additions will be placed before the performance figures and will not change the core technical claims. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in derivation chain

full rationale

The paper introduces GraphJSCR as a novel graph-based joint optimization for routing and semantic coding in LEO satellite networks. It models the constellation as a time-varying directed graph and formulates forwarding as a POMDP, then applies standard graph representation learning to encode local states and a decision network for joint actions (next-hop, relay level, semantic budget). The semantic codec references the external SwinJSCC framework. All performance claims rest on simulation comparisons against external benchmark methods, with no equations, fitted parameters, or self-citations that reduce the central claims to definitional equivalence or self-referential inputs. The derivation chain is self-contained and externally benchmarked.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract provides insufficient detail to enumerate specific fitted parameters or invented entities; the approach relies on standard modeling assumptions for graphs and decision processes.

axioms (2)
  • domain assumption Satellite constellation modeled as time-varying directed graph
    Explicitly stated as the modeling choice for the network.
  • domain assumption Forwarding formulated as partially observable sequential decision problem
    Used to justify the decision network design.

pith-pipeline@v0.9.0 · 5501 in / 1385 out tokens · 76881 ms · 2026-05-10T13:37:38.368036+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

  1. [1]

    Low-earth orbit satellite constellations for global communication network connectivity,

    E. Lagunas, S. Chatzinotas, and B. Ottersten, “Low-earth orbit satellite constellations for global communication network connectivity,”Nature Reviews Electrical Engineering, vol. 1, no. 10, pp. 656–665, 2024

    work page 2024

  2. [2]

    Deep joint source- channel coding for wireless image transmission,

    E. Bourtsoulatze, D. B. Kurka, and D. G ¨und¨uz, “Deep joint source- channel coding for wireless image transmission,”IEEE Transactions on Cognitive Communications and Networking, vol. 5, no. 3, pp. 567–579, 2019

    work page 2019

  3. [3]

    Fully-distributed dynamic packet routing for LEO satellite networks: A GNN-enhanced multi- agent reinforcement learning approach,

    Y . Ran, Y . Ding, S. Chen, J. Lei, and J. Luo, “Fully-distributed dynamic packet routing for LEO satellite networks: A GNN-enhanced multi- agent reinforcement learning approach,”IEEE Transactions on V ehicular Technology, vol. 74, no. 3, pp. 5229–5234, Mar. 2025

    work page 2025

  4. [4]

    SwinJSCC: Taming swin transformer for deep joint source-channel coding,

    K. Yang, S. Wang, J. Daiet al., “SwinJSCC: Taming swin transformer for deep joint source-channel coding,”IEEE Transactions on Cognitive Communications and Networking, vol. 11, no. 1, pp. 90–104, 2024

    work page 2024

  5. [5]

    Process- and-forward: Deep joint source-channel coding over cooperative relay networks,

    C. Bian, Y . Shao, H. Wu, E. Ozfatura, and D. G”und”uz, “Process- and-forward: Deep joint source-channel coding over cooperative relay networks,”IEEE Journal on Selected Areas in Communications, vol. 43, no. 4, pp. 1118–1134, Apr. 2025

    work page 2025

  6. [6]

    Multi-hop parallel image semantic communication for distortion accumulation mitigation,

    B. Xie, J. Park, Y . Wu, W. Zhang, and T. Quek, “Multi-hop parallel image semantic communication for distortion accumulation mitigation,” arXiv preprint arXiv:2510.26844, 2025

    work page arXiv 2025

  7. [7]

    Semantic forwarding for next gener- ation relay networks,

    E. Arda, E. Kutay, and A. Yener, “Semantic forwarding for next gener- ation relay networks,” in2024 58th Annual Conference on Information Sciences and Systems (CISS), 2024, pp. 1–6

    work page 2024

  8. [8]

    Semantic-forward relaying: A novel frame- work toward 6G cooperative communications,

    W. Lin, Y . Yan, L. Liet al., “Semantic-forward relaying: A novel frame- work toward 6G cooperative communications,”IEEE Communications Letters, vol. 28, no. 3, pp. 518–522, 2024

    work page 2024

  9. [9]

    SemFusion: Multi-source semantic information fusion and communication,

    J. Chen, S. Yang, T. T. Chanet al., “SemFusion: Multi-source semantic information fusion and communication,” in2024 International Wireless Communications and Mobile Computing (IWCMC). IEEE, 2024, pp. 1740–1745

    work page 2024

  10. [10]

    Semantic communication-aware end-to-end routing in large-scale LEO satellite networks,

    B. Guo, Z. Xiong, B. Wanget al., “Semantic communication-aware end-to-end routing in large-scale LEO satellite networks,” in2024 IEEE International Conference on Metaverse Computing, Networking, and Applications (MetaCom). IEEE, 2024, pp. 137–142

    work page 2024

  11. [11]

    Task-oriented seman- tic delivery in large-scale heterogeneous satellite networks: A local- topological-information-dependable deep learning approach,

    R. Gao, B. Zhang, Q. Zhang, and Z. Yang, “Task-oriented seman- tic delivery in large-scale heterogeneous satellite networks: A local- topological-information-dependable deep learning approach,”IEEE In- ternet of Things Journal, vol. 12, no. 21, pp. 45 895–45 908, Nov. 2025

    work page 2025

  12. [12]

    A deep joint source-channel coding scheme for hybrid mobile multi-hop networks,

    C. Bian, Y . Shao, and D. G”und”uz, “A deep joint source-channel coding scheme for hybrid mobile multi-hop networks,”IEEE Journal on Selected Areas in Communications, vol. 43, no. 7, pp. 2543–2559, Jul. 2025

    work page 2025

  13. [13]

    Learning transferable visual models from natural language supervi- sion,

    A. Radford, J. W. Kim, C. Hallacy, A. Ramesh, G. Goh, S. Agarwal, G. Sastry, A. Askell, P. Mishkin, J. Clark, G. Krueger, and I. Sutskever, “Learning transferable visual models from natural language supervi- sion,” inProceedings of the 38th International Conference on Machine Learning, vol. 139, Jul. 2021, pp. 8748–8763

    work page 2021

  14. [14]

    An intelligent routing algorithm for LEO satellites based on deep reinforcement learning,

    P. Zuo, C. Wang, Z. Yao, S. Hou, and H. Jiang, “An intelligent routing algorithm for LEO satellites based on deep reinforcement learning,” inProc. IEEE 94th V ehicular Technology Conference (VTC2021-Fall), 2021, pp. 1–5

    work page 2021
