arxiv: 2604.13405 · v1 · submitted 2026-04-15 · 💻 cs.RO

Singularity Avoidance in Inverse Kinematics: A Unified Treatment of Classical and Learning-based Methods

Vishnu Rudrasamudram , Hariharasudan Malaichamee This is my paper

Pith reviewed 2026-05-10 13:37 UTC · model grok-4.3

classification 💻 cs.RO
keywords inverse kinematicssingularity avoidancelearning-based methodshybrid IK solversrobot manipulatorsbenchmarkingdamped least squaresFranka Panda
0
0 comments X

The pith

Learning-based inverse kinematics solvers fail even on well-conditioned targets, but hybrid methods pairing them with classical refinement achieve high robustness to singularities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper unifies classical singularity-robust techniques such as Jacobian regularization and constrained optimization with modern learning-based inverse kinematics approaches. It introduces a taxonomy that groups methods according to retained geometric structure and the strength of their robustness guarantees. Experiments on the Franka Panda across four panels reveal that standalone neural networks produce zero success rates and large errors, while warm-start hybrids recover to near-perfect success by feeding learned initial guesses into iterative classical solvers. These findings matter because singularities cause loss of mobility and unbounded velocities that break robot control in real tasks. The work also flags the need for deeper singularity-specific testing as immediate next steps.

Core claim

The central claim is that pure learning-based inverse kinematics methods lack singularity robustness, as shown by an MLP reaching only 0% success with roughly 10 mm mean error even on well-conditioned targets, while hybrid warm-start architectures such as IKFlow, CycleIK, and GGIK raise success from 0-59% to 98.6-100% through classical refinement, and the damped least-squares solver converges from initial errors up to 207 mm.

What carries the argument

The four-panel benchmarking protocol that measures error degradation by condition number, velocity amplification, out-of-distribution robustness, and computational cost on position-only IK tasks for the Franka Panda.

If this is right

  • Hybrid warm-start designs can turn unreliable learned solvers into practical ones by supplying initial guesses that classical iteration can refine.
  • The damped least-squares method remains effective for recovering from large initial errors when given a learned warm start.
  • Methods retaining more geometric structure tend to preserve formal robustness guarantees that pure data-driven approaches lack.
  • Computational cost and velocity amplification trade-offs must be evaluated explicitly when selecting solvers for real-time control.
  • Future solvers should be tested more systematically inside singular regimes rather than only on random well-conditioned targets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Learning components may be most useful for fast initialization while classical refinement supplies the precision and guarantees needed near singularities.
  • Similar hybrid patterns could prove effective for other ill-conditioned optimization problems in robotics such as motion planning or force control.
  • The results motivate testing the same hybrids on velocity-level or six-degree-of-freedom tasks to check whether the observed rescue effect generalizes.
  • A follow-up study could measure how much the performance gap shrinks when the training distribution is explicitly enriched with near-singular examples.

Load-bearing premise

The four evaluation panels and Franka Panda position-only tests are representative of singularity robustness across manipulators and task types.

What would settle it

A pure learning-based solver that achieves greater than 90% success on singular configurations without classical post-processing, or a hybrid method that fails to converge on a different serial manipulator under comparable condition numbers.

Figures

Figures reproduced from arXiv: 2604.13405 by Hariharasudan Malaichamee, Vishnu Rudrasamudram.

Figure 1
Figure 1. Figure 1: Measured Riemannian vs. Euclidean interpolation of manipulability [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

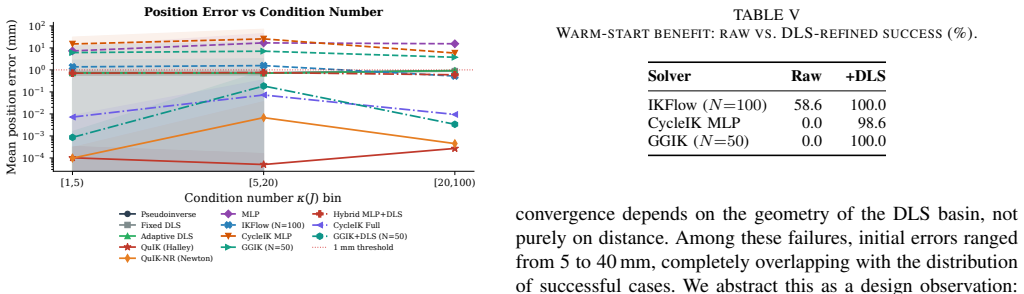

Figure 2. Figure 2: Position error vs. condition number: mean position error (mm, log [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

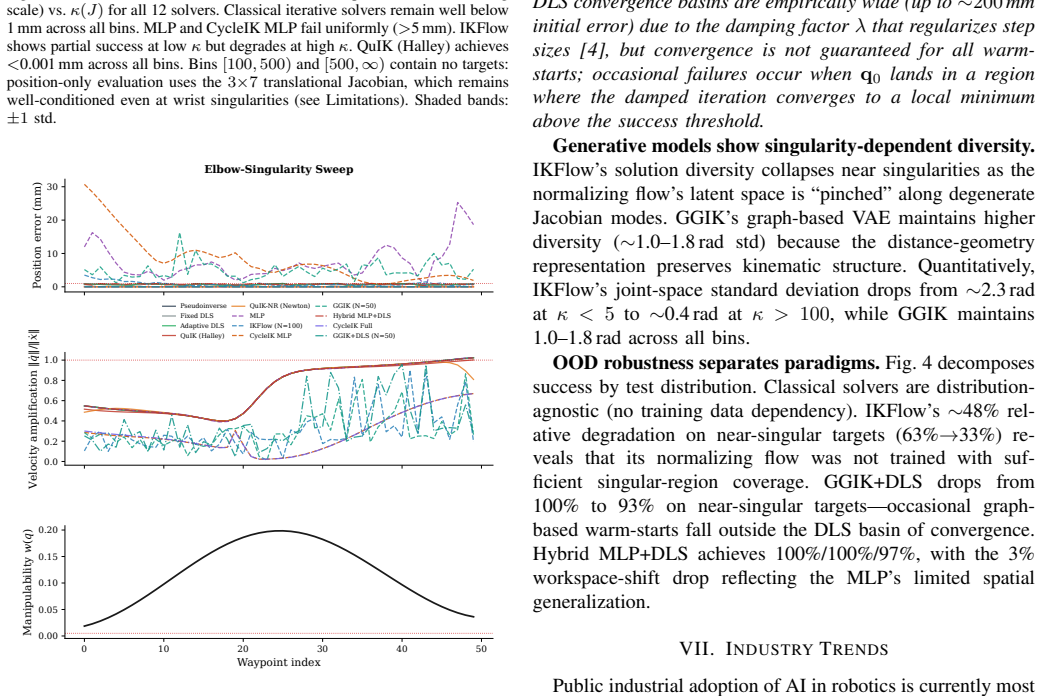

Figure 3. Figure 3: Elbow-singularity sweep (300 waypoints, joint 4). [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: OOD robustness decomposed by solver family. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

Singular configurations cause loss of task-space mobility, unbounded joint velocities, and solver divergence in inverse kinematics (IK) for serial manipulators. No existing survey bridges classical singularity-robust IK with rapidly growing learning-based approaches. We provide a unified treatment spanning Jacobian regularization, Riemannian manipulability tracking, constrained optimization, and modern data-driven paradigms. A systematic taxonomy classifies methods by retained geometric structure and robustness guarantees (formal vs. empirical). We address a critical evaluation gap by proposing a benchmarking protocol and presenting experimental results: 12 IK solvers are evaluated on the Franka Panda under position-only IK across four complementary panels measuring error degradation by condition number, velocity amplification, out-of-distribution robustness, and computational cost. Results show that pure learning methods fail even on well-conditioned targets (MLP: 0% success, approx. 10 mm mean error), while hybrid warm-start architectures - IKFlow (59% to 100%), CycleIK(0% to 98.6%), GGIK (0% to 100%) - rescue learned solvers via classical refinement, with DLS converging from initial errors up to 207 mm. Deeper singularity-regime evaluation is identified as immediate future work.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper provides a unified survey and taxonomy of classical (Jacobian regularization, manipulability tracking, constrained optimization) and learning-based singularity avoidance methods for inverse kinematics in serial manipulators. It introduces a benchmarking protocol and reports quantitative results from evaluating 12 solvers on the Franka Panda under position-only IK across four panels: error degradation by condition number, velocity amplification, out-of-distribution robustness, and computational cost. Central empirical claims are that pure learning methods fail even on well-conditioned targets (MLP: 0% success, ~10 mm mean error) while hybrid warm-start architectures are rescued by classical refinement (e.g., DLS converging from up to 207 mm initial error).

Significance. If the results hold, the work is significant for bridging classical geometric IK techniques with data-driven methods via a formal taxonomy distinguishing retained structure and robustness guarantees. The new benchmarking protocol and reproducible quantitative metrics (success rates, error values, convergence distances across 12 solvers) address an evaluation gap and offer concrete comparisons, including the observation that hybrids improve from 0% to 98-100% success. These elements provide a foundation for future singularity-regime studies.

major comments (1)
  1. [Experimental results and benchmarking protocol] Evaluation panels (error degradation by condition number, velocity amplification, OOD robustness, computational cost): all results and the headline claim that pure learning methods inherently fail even on well-conditioned targets rest exclusively on position-only IK for the single 7-DOF Franka Panda. This setup does not test 6-DOF arms, manipulators with different null-space dimensions, or tasks including orientation; the observed MLP failure (0% success) may therefore be an artifact of Panda-specific data distribution or Jacobian conditioning rather than a general property of pure learning methods.
minor comments (1)
  1. The abstract and evaluation description should explicitly state the exact ranges of condition numbers tested, training/validation data splits, and statistical measures (e.g., standard deviations on success rates) to allow full reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and constructive feedback. We address the major comment on the scope of the experimental evaluation below, providing a point-by-point response while maintaining the integrity of the manuscript's contributions.

read point-by-point responses

  1. Referee: [Experimental results and benchmarking protocol] Evaluation panels (error degradation by condition number, velocity amplification, OOD robustness, computational cost): all results and the headline claim that pure learning methods inherently fail even on well-conditioned targets rest exclusively on position-only IK for the single 7-DOF Franka Panda. This setup does not test 6-DOF arms, manipulators with different null-space dimensions, or tasks including orientation; the observed MLP failure (0% success) may therefore be an artifact of Panda-specific data distribution or Jacobian conditioning rather than a general property of pure learning methods.

    Authors: We acknowledge that the reported benchmarking results, including the MLP's 0% success rate on well-conditioned targets, are obtained exclusively from position-only IK tasks on the 7-DOF Franka Panda. This platform was chosen for its widespread use, standardized kinematic model, and ability to support controlled, reproducible comparisons across the 12 solvers under the four evaluation panels. The manuscript text and abstract explicitly describe the setup as position-only IK on the Franka Panda, and the headline empirical observations are framed as results from this protocol rather than universal proofs. The taxonomy itself, which classifies methods according to retained geometric structure and robustness guarantees (formal vs. empirical), is formulated independently of any specific robot or task dimension. We agree that testing on 6-DOF arms, manipulators with varying null-space dimensions, and tasks that include orientation would provide additional evidence of generality and could reveal whether the observed pure-learning failures are partly influenced by Panda-specific Jacobian conditioning or training data. In the revised manuscript we will (i) qualify the empirical claims more explicitly as Panda-specific observations, (ii) expand the discussion section to address potential robot- and task-dependent factors, and (iii) present the benchmarking protocol as an extensible template for future studies on other platforms. No new experiments on additional robots are feasible within the current revision timeline, but the suggested extensions are noted as immediate future work. revision: partial

Circularity Check

0 steps flagged

No circularity; survey and empirical benchmarking with external measurements

full rationale

The paper is a survey providing taxonomy of classical and learning-based IK methods plus a benchmarking protocol with direct experimental results on Franka Panda hardware. Reported metrics (success rates, mean errors, convergence from initial errors) are measured against physical robot data and standard baselines rather than derived from fitted parameters or self-referential equations. No load-bearing derivations, predictions, or uniqueness claims reduce to self-definition or self-citation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard serial-manipulator kinematics without introducing new free parameters, axioms beyond domain conventions, or invented entities.

axioms (1)
  • domain assumption Standard assumptions of serial manipulator forward kinematics and Jacobian-based inverse kinematics formulations hold for the evaluated methods.
    Invoked implicitly when classifying classical methods and when running the Franka Panda experiments.
