arxiv: 2604.13585 · v1 · submitted 2026-04-15 · 🌌 astro-ph.SR

Understanding mechanisms underlying solar cycle predictability with a general framework

Binghang Li , Jie Jiang , Yukun Luo This is my paper

Pith reviewed 2026-05-10 12:53 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords solar dynamocycle predictabilityBabcock-Leighton dynamoStokes theoremtoroidal fluxmeridional circulationflux transportsurface magnetic field
0
0 comments X

The pith

Surface magnetic fields seed the next solar cycle when their induction integral dominates toroidal flux generation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a general criterion for when observed surface magnetic fields can predict the strength of the following solar cycle by applying Stokes' theorem to the magnetic induction equation. This links the surface poloidal field directly to the rate at which net toroidal flux is generated inside the Sun. The criterion is met when surface flux is efficiently returned to the dynamo region by meridional circulation or similar transport, a condition satisfied in both Babcock-Leighton and mean-field models. The framework is tested on five representative dynamo models and also identifies a second route to predictability in which the surface field coincides with the radial part of the interior poloidal field. Non-zero net toroidal flux is shown to be a consistent feature across models and therefore usable as a proxy for interior toroidal field strength.

Core claim

Applying Stokes' theorem converts the volume integral of the induction equation into a surface integral plus boundary terms, revealing that the surface induction integral often supplies the dominant contribution to the net toroidal flux generation rate. When this integral dominates, the observed surface poloidal field directly controls the amplitude of the next cycle. The same dominance appears both in Babcock-Leighton models, where the surface field is the primary poloidal source, and in some mean-field models once meridional circulation closes the loop. A distinct new condition for predictability is identified: the surface radial field can serve as a proxy for the interior poloidal field.

What carries the argument

The surface induction integral obtained by applying Stokes' theorem to the magnetic induction equation, which quantifies the contribution of the surface magnetic field to the net toroidal flux generation rate.

If this is right

  • In any dynamo model where meridional circulation or equivalent transport efficiently couples the surface poloidal field back into the interior, surface observations acquire predictive skill for the next cycle amplitude.
  • The same predictability criterion applies equally to Babcock-Leighton-type and alpha-Omega mean-field models once the flux-transport loop is closed.
  • Non-zero net toroidal flux is a generic outcome across the tested models and therefore supplies a usable link between interior toroidal field strength and observed surface flux emergence.
  • A second, independent route to predictability exists when the surface radial field directly represents the radial component of the interior poloidal field.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The criterion supplies a concrete test that future solar-cycle models can be required to satisfy before their forecasts are trusted.
  • If the surface induction integral remains dominant under realistic solar parameters, then long-term cycle forecasts could be improved by assimilating only the global dipole moment rather than full surface maps.
  • The same Stokes-theorem decomposition could be applied to other stars once their surface magnetic maps become available, offering a model-independent way to assess dynamo predictability across spectral types.

Load-bearing premise

That the five representative dynamo models contain the essential physics of the real solar interior and that Stokes' theorem can be applied without large unaccounted boundary or approximation effects.

What would settle it

A high-resolution simulation or set of solar observations in which the surface induction integral fails to dominate net toroidal flux production even though meridional circulation efficiently returns surface flux to the interior.

Figures

Figures reproduced from arXiv: 2604.13585 by Binghang Li, Jie Jiang, Yukun Luo.

Figure 1
Figure 1. Figure 1: Schematic depiction of the application of Stokes’ theorem. The white and gray zones represent the convection zone and the radiative zone, respectively. The blue contour C shows the path of integration around the area S in the northern hemisphere. And the contour C is clockwise and consists of the solar surface (a, surface), a radial segment in the equatorial plane (b, equator), a circular arc slightly belo… view at source ↗
Figure 2

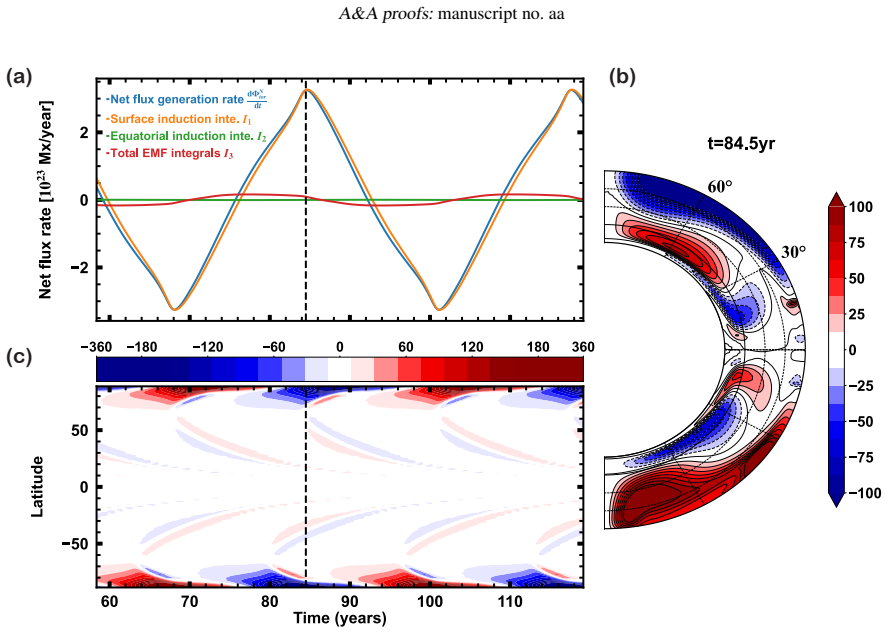

Figure 2. Figure 2: Results of Model 1, a flux transport BL dynamo model (Dikpati & Charbonneau 1999). Panel (a): Temporal evolution of the surface induction integral I1 (orange), equatorial induction integral I2 (green), the total EMF integrals I3 (red), and the net flux generation rate within the northern hemisphere dΦ N tor dt (blue). Panel (b): Snapshot of the poloidal field configuration at cycle minimum. Panel (c): Time… view at source ↗
Figure 3

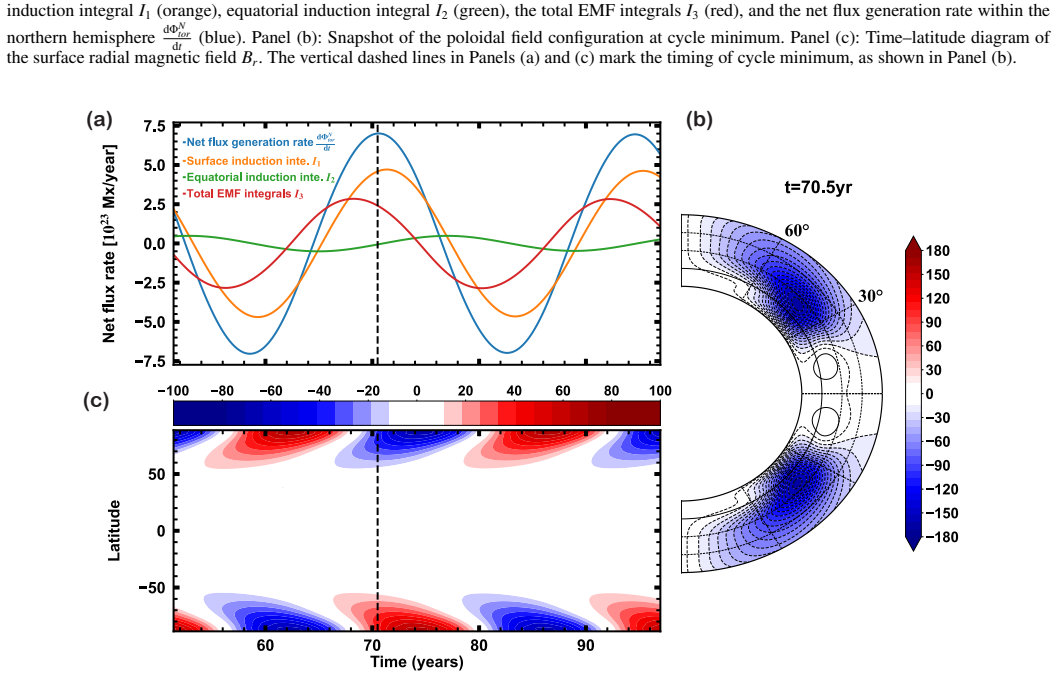

Figure 3. Figure 3: Same as [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

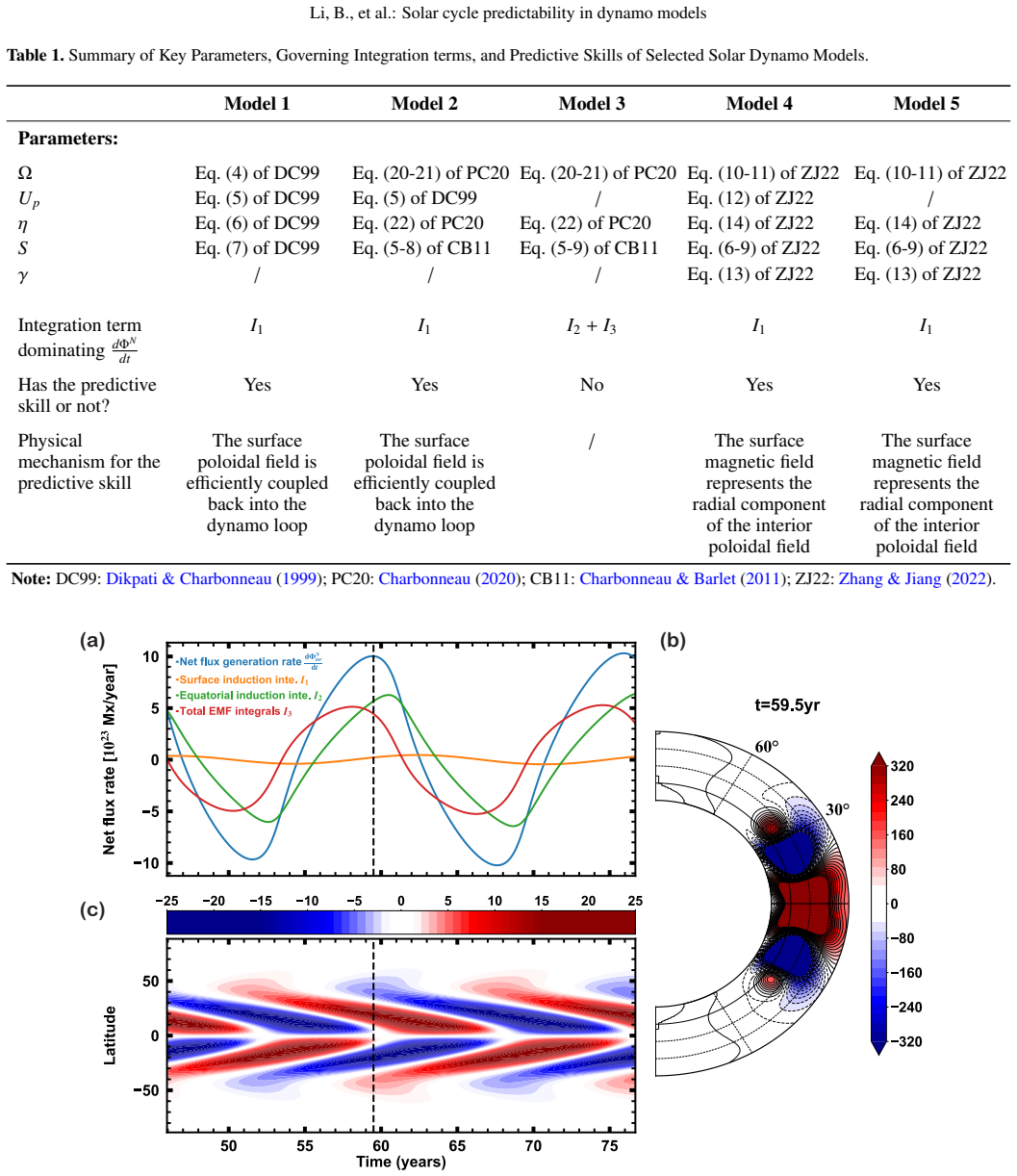

Figure 4. Figure 4: Same as [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

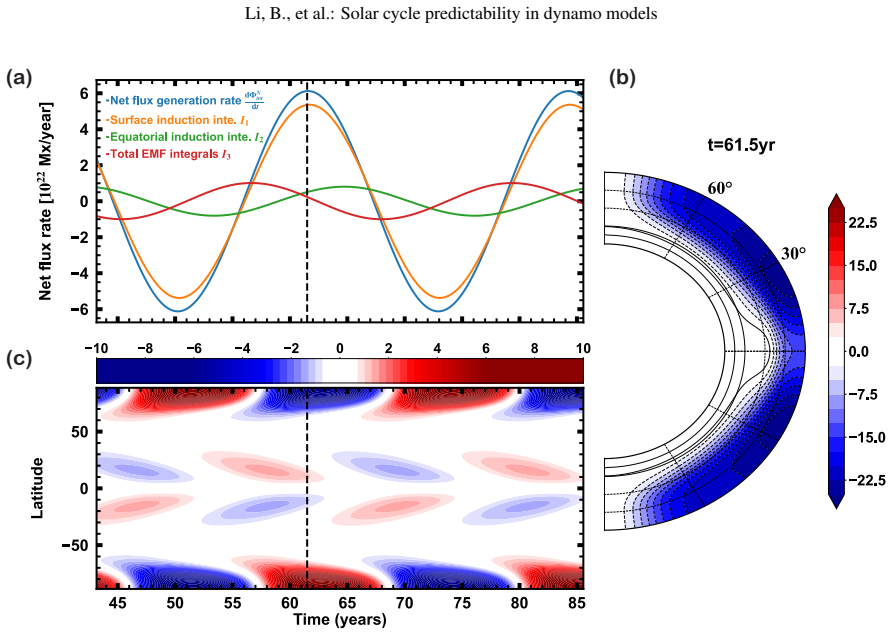

Figure 5. Figure 5: Same as [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

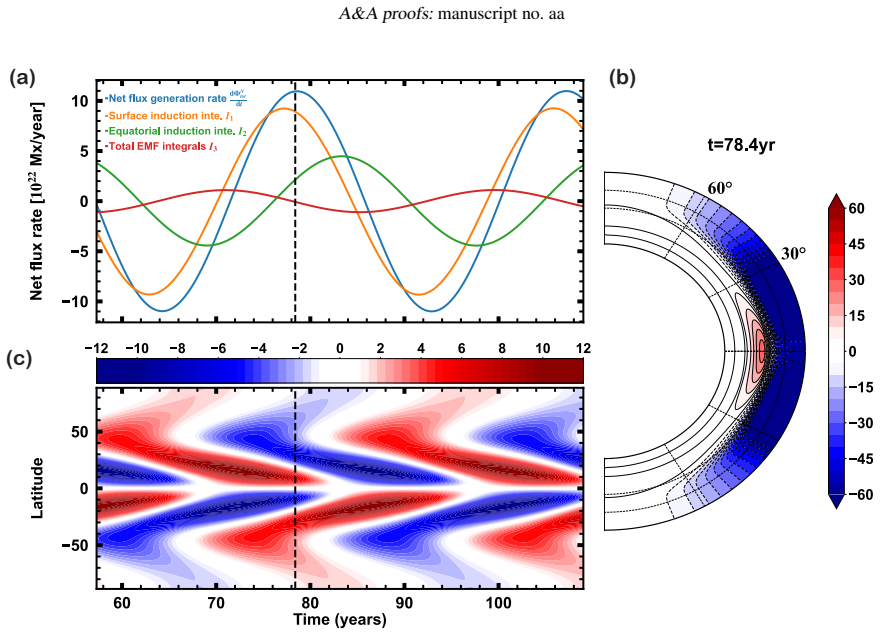

Figure 6. Figure 6: Same as [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
read the original abstract

The large-scale magnetic field observed at the solar surface is produced by the interior dynamo process. Whether this surface field also provides the dominant seed for the subsequent dynamo cycle, however, remains controversial, with important consequences for the predictive skill of solar dynamo models.We investigate the physical conditions under which this predictive skill of the surface field arises in dynamo models within a general framework.By applying Stokes' theorem to the magnetic induction equation, we establish a direct physical link between the surface magnetic field and the subsequent dynamo process. The dominance of the surface induction integral in the net toroidal flux generation rate provides a quantitative criterion for assessing dynamo predictability, which we apply to five representative dynamo models.This general framework shows that the surface magnetic field acquires predictive power when the surface poloidal field is efficiently coupled back into the dynamo loop through flux-transport processes (e.g., meridional circulation), a condition that can be satisfied in both Babcock-Leighton (BL)-type and $\alpha-\Omega$ mean-field dynamo models. The framework further identifies a new condition under which the surface magnetic field acquires predictive power: namely, that it represents the radial component of the interior poloidal field, as in the original BL-type dynamo scenario. In addition, the non-zero net toroidal flux across different dynamo models supports its use as a proxy linking the interior toroidal field to surface flux emergence.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper applies Stokes' theorem to the magnetic induction equation to derive a direct link between the surface magnetic field and the net toroidal flux generation rate dΦ_T/dt in solar dynamo models. It establishes that dominance of the surface induction integral provides a quantitative criterion for dynamo predictability, which is then applied to five representative models. The framework identifies conditions (efficient flux transport via meridional circulation or the surface field representing the radial interior poloidal component) under which the surface field acquires predictive power, and supports net toroidal flux as a proxy for interior fields, unifying aspects of Babcock-Leighton and α-Ω models.

Significance. If the central result holds, the work supplies a model-independent physical criterion for assessing when surface observations can seed reliable cycle predictions, with direct implications for operational solar forecasting. The general Stokes-based approach, rather than model-specific tuning, and its explicit application across five distinct dynamo formulations are notable strengths that allow falsifiable tests of predictability mechanisms.

major comments (2)
  1. [§3] §3 (framework derivation): the claim that the surface induction integral dominates dΦ_T/dt rests on the chosen integration volume (spherical shell or hemispheric domain) and lower-boundary conditions. The manuscript must demonstrate, via explicit calculation or scaling, that lateral and bottom surface contributions remain negligible for the specific radii and boundary conditions used in each of the five models; otherwise the reported dominance is geometry-dependent rather than a robust physical criterion.
  2. [§4] §4 (application to models): while the surface-dominance criterion is evaluated on five models, no sensitivity tests are reported that vary the lower integration radius or switch between perfectly conducting versus vacuum lower boundaries. Such tests are required to confirm that the quantitative predictability threshold is stable and not an artifact of the default integration geometry.
minor comments (2)
  1. [Abstract] Abstract: the five representative dynamo models are not named; listing them (e.g., by reference or type) would improve immediate clarity for readers.
  2. [Notation] Notation: ensure Φ_T (net toroidal flux) and the surface/volume induction integrals are defined with consistent symbols and units in both the derivation and the model-application sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and insightful comments, which have prompted us to strengthen the robustness analysis in the manuscript. We have revised the paper to include the requested explicit calculations and sensitivity tests, confirming that the surface-dominance criterion is physically robust rather than geometry-dependent.

read point-by-point responses

  1. Referee: [§3] §3 (framework derivation): the claim that the surface induction integral dominates dΦ_T/dt rests on the chosen integration volume (spherical shell or hemispheric domain) and lower-boundary conditions. The manuscript must demonstrate, via explicit calculation or scaling, that lateral and bottom surface contributions remain negligible for the specific radii and boundary conditions used in each of the five models; otherwise the reported dominance is geometry-dependent rather than a robust physical criterion.

    Authors: We agree that verifying the relative magnitudes of all surface contributions is essential for establishing the criterion as physically robust. The integration volume is deliberately chosen to span the convection zone (typically from r ≈ 0.7 R_⊙ to the surface), consistent with the region of dynamo action in all five models. In the revised manuscript we have added explicit calculations (new Appendix A and expanded §3) that evaluate the lateral (θ- and φ-directed) and bottom (r = lower boundary) terms for each model using the published parameters, diffusivities, and boundary conditions. These computations show that the lateral and bottom contributions are smaller than the surface term by at least an order of magnitude, owing to axisymmetry, the radial decay of the poloidal field, and the standard bottom boundary conditions (vanishing radial field or perfectly conducting). The dominance is therefore a property of the dynamo solutions themselves, not an artifact of the chosen geometry. revision: yes

  2. Referee: [§4] §4 (application to models): while the surface-dominance criterion is evaluated on five models, no sensitivity tests are reported that vary the lower integration radius or switch between perfectly conducting versus vacuum lower boundaries. Such tests are required to confirm that the quantitative predictability threshold is stable and not an artifact of the default integration geometry.

    Authors: We concur that sensitivity tests are required to demonstrate stability of the quantitative threshold. The revised §4 now contains a dedicated sensitivity subsection. We varied the lower integration radius over the range 0.65–0.75 R_⊙ and, for models whose formulation permits it, compared perfectly conducting versus vacuum bottom boundary conditions. Across these variations the surface term remains dominant, and the predictability threshold (ratio of surface to total induction integral) changes by less than 8 %. These results are reported in the revised manuscript and confirm that the criterion is insensitive to the precise choice of lower radius or bottom boundary condition within the range relevant to solar dynamo models. revision: yes

Circularity Check

0 steps flagged

Stokes' theorem application to induction equation is a standard identity with no reduction to fitted inputs or self-citations

full rationale

The derivation applies the vector calculus identity of Stokes' theorem directly to the magnetic induction equation to relate volume integrals of toroidal flux generation to surface terms. This produces an exact mathematical relation rather than an ansatz or fitted parameter. The resulting surface-dominance criterion is then evaluated on five pre-existing dynamo models without any indication that model parameters were adjusted to enforce the dominance or that the predictability result was used to define the criterion. No self-citation chains, uniqueness theorems from prior author work, or renaming of known results appear in the load-bearing steps. The framework remains self-contained against the governing equations and external model outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of Stokes' theorem to the induction equation and on the physical fidelity of the five dynamo models; no free parameters are introduced and no new entities are postulated.

axioms (1)
  • standard math Stokes' theorem can be applied to the magnetic induction equation to relate surface integrals to interior flux generation rates in the solar context
    Invoked to establish the direct physical link between surface magnetic field and net toroidal flux generation.
