arxiv: 2604.14402 · v1 · submitted 2026-04-15 · 🌌 astro-ph.HE · physics.plasm-ph

Synchrotron-cooled plasma distribution in the outer magnetosphere of a neutron star

Mikhail V. Medvedev , Anatoly Spitkovsky , Alexander Philippov This is my paper

Pith reviewed 2026-05-10 11:49 UTC · model grok-4.3

classification 🌌 astro-ph.HE physics.plasm-ph
keywords synchrotron coolingloss coneneutron star magnetosphereguiding centermagnetic momentpulsar emissioncooled-loss-cone distributionfunnel distribution
0
0 comments X

The pith

Synchrotron cooling in neutron star magnetospheres drives particles either to rapid precipitation or into energy-dependent cooled loss-cone distributions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives the evolution equation for a relativistic particle's magnetic moment under magnetic mirroring and synchrotron energy loss in an inhomogeneous field. It shows that particles with small initial pitch angles experience runaway cooling near their mirror points and fall into the loss cone, precipitating onto the star, while those with larger pitch angles stay trapped and build a decaying distribution whose density peaks at the loss-cone boundary. The loss-cone angle itself grows with particle energy as the cube root of gamma to the power 3/10. This identifies a narrow radial zone a few hundred to a thousand stellar radii out where cooling is strongest and therefore where most of the synchrotron radiation from the outer magnetosphere originates.

Core claim

Using the guiding-center formalism, the authors obtain a differential equation for the magnetic moment that incorporates both adiabatic invariance and radiative losses. In the neutron-star example, losses are strongest near the turning point; this can trigger catastrophic pitch-angle scattering into the loss cone or, for larger initial angles, produce a gradually decaying 'cooled-loss-cone' or 'funnel' distribution with the maximum phase-space density sitting exactly at the loss-cone edge. The loss-cone half-angle scales as α_c ∝ γ^{3/10}. Under typical pulsar and magnetar parameters the zone of strongest synchrotron emission lies several hundred to a thousand stellar radii from the surface.

What carries the argument

The magnetic-moment evolution equation obtained by combining the guiding-center drift with the synchrotron power loss term.

If this is right

  • Particles with pitch angles below a critical value precipitate onto the star on a cooling timescale.
  • Particles above that threshold form a time-decaying funnel distribution peaked at the loss-cone edge.
  • The loss-cone opening angle grows with Lorentz factor as γ^{3/10}.
  • Synchrotron losses concentrate in a narrow radial zone a few hundred to a thousand stellar radii from the surface.
  • This zone is a candidate source for outer-magnetosphere synchrotron radiation and possibly for non-polar coherent pulsar emission or weak fast radio bursts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The funnel distribution may imprint a characteristic angular or spectral signature on the escaping radiation.
  • Models of pulsar pair cascades or wind launching may need to account for this energy-dependent precipitation filter.
  • High-resolution radio or X-ray imaging of nearby pulsars could test whether the brightest outer-magnetosphere emission is indeed confined to the predicted radial shell.

Load-bearing premise

The guiding-center approximation continues to hold while the particle is losing energy rapidly in a strongly varying magnetic field.

What would settle it

Observation of synchrotron emission originating from a localized shell at 100–1000 stellar radii, together with a measured loss-cone angle that increases with particle energy roughly as γ to the 0.3 power.

Figures

Figures reproduced from arXiv: 2604.14402 by Alexander Philippov, Anatoly Spitkovsky, Mikhail V. Medvedev.

Figure 1

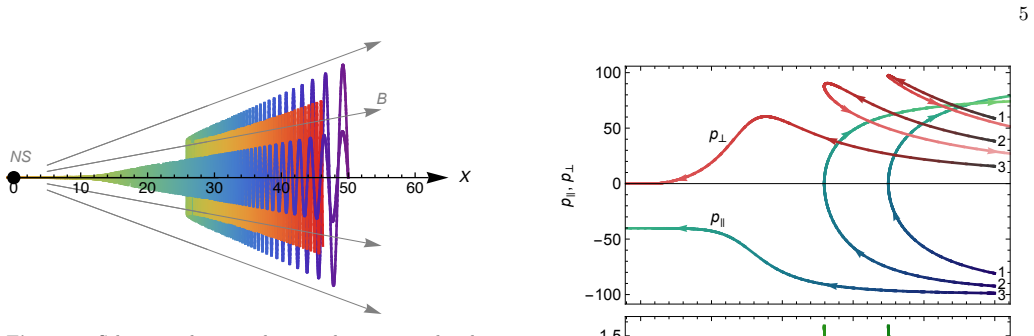

Figure 1. Figure 1: Schematic diagram showing the magnetic bottle. A neutron star (size is not to scale) is located at x = 0 where the magnetic field is the strongest. Two particle trajectories starting at the same location, x = 50, but with different pitch angles are shown for illustration. The vertical scale is arbitrary. Color gradient (blue-green-red) indicates time since the start, with the green color roughly correspond… view at source ↗
Figure 2

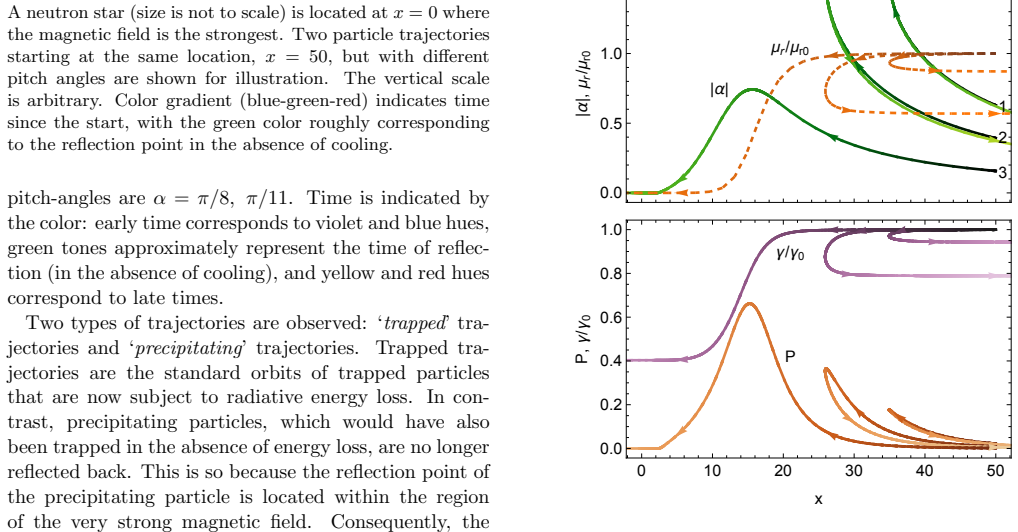

Figure 2. Figure 2: illustrates the temporal evolution of various parameters for three particles. As before, the particles begin their motion at x = 50 and move inward, hence their parallel momenta are initially negative. Time is represented by arrows and color gradients, transitioning from dark tones indicative of early times to lighter tones representing late times. The particle trajectories are la￾beled by numbers at the b… view at source ↗
Figure 3

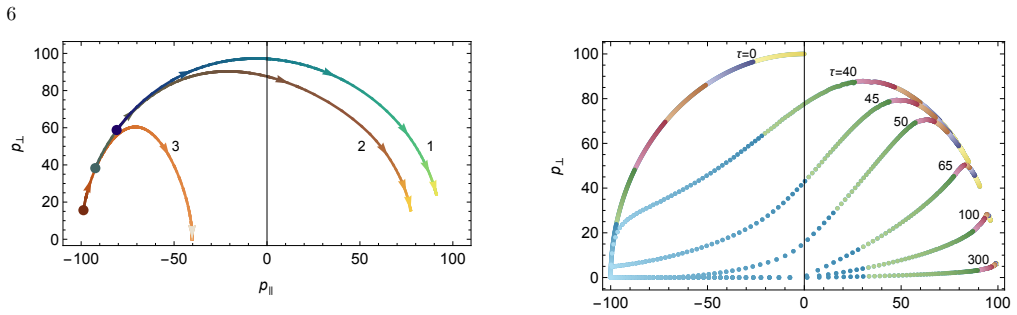

Figure 3. Figure 3: Evolution of the momenta of the same particles as in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5

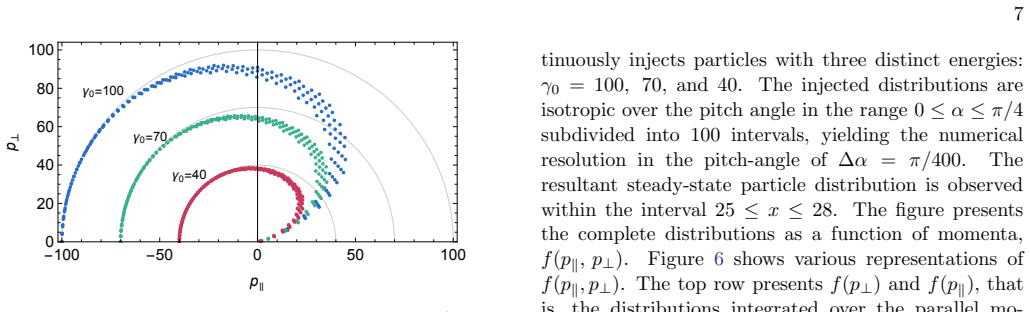

Figure 5. Figure 5: Steady-state p∥–p⊥-momenta distributions (each point represents a particle), being injected with isotropic pitch angles at x = 50 and with γ0 = 100, 70, 40, and measured in the interval 25 ≤ x ≤ 28. Thin semi-circles are the lines of constant γ, to guide the eye. at x = 50. The particles are uniformly distributed over the pitch angle along a quarter-circle, with p⊥ > 0 and p∥ < 0 (indicating motion to the … view at source ↗
Figure 6

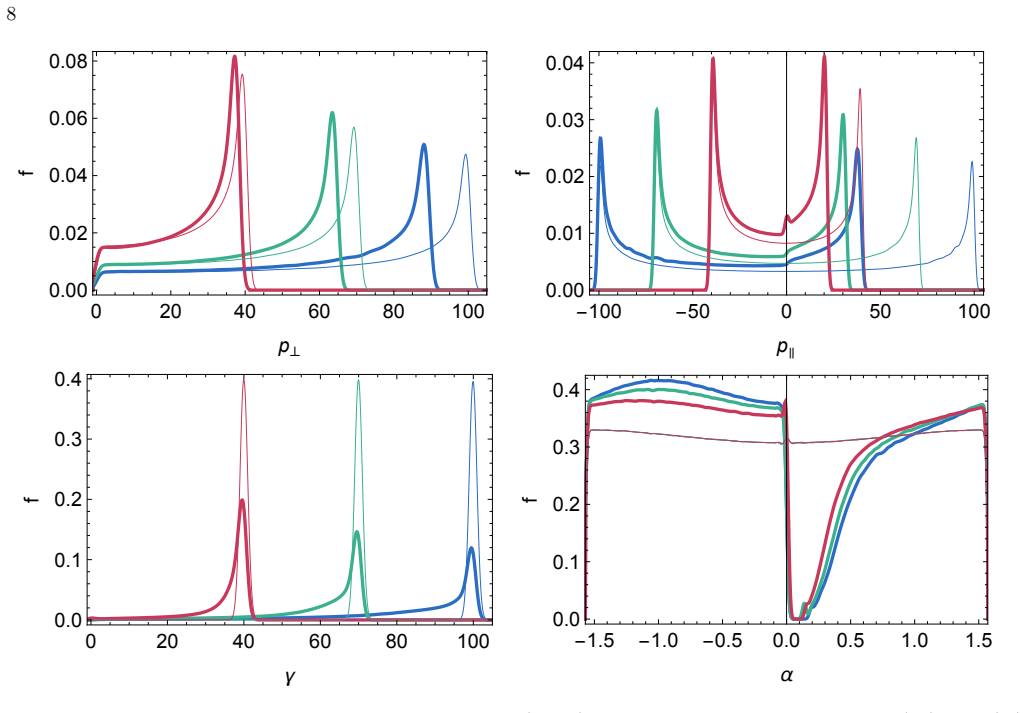

Figure 6. Figure 6: Various representations of the same distributions, f(p∥, p⊥), as in [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8

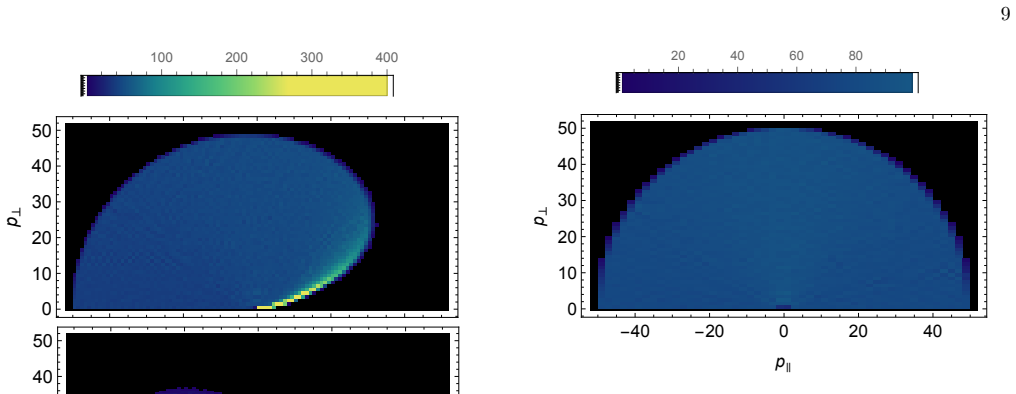

Figure 8. Figure 8: Steady-state particle distribution function as in [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 7

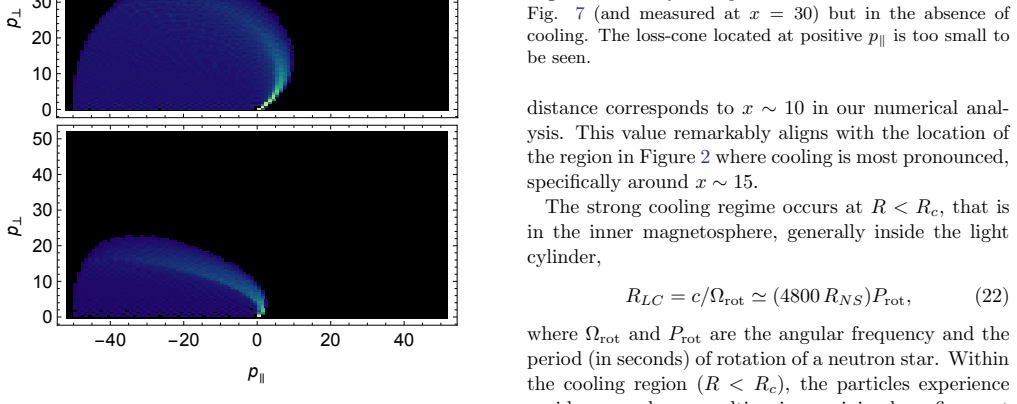

Figure 7. Figure 7: Steady-state particle distribution function of a top-hat distribution being injected at x = 50 with γmax = 50, and measured at x = 30, 15, 10. Color coding is arbitrary, but brighter colors indicate a higher particle density. where B is in gauss. The condition for strong cooling tcool ≪ tmirr takes the form β∥γB2L ≫ πmc2 /σT ≈ 3.87 × 1018 (cgs units). (20) At the critical “cooling” radius, tcool ≃ tmirr. U… view at source ↗
Figure 9

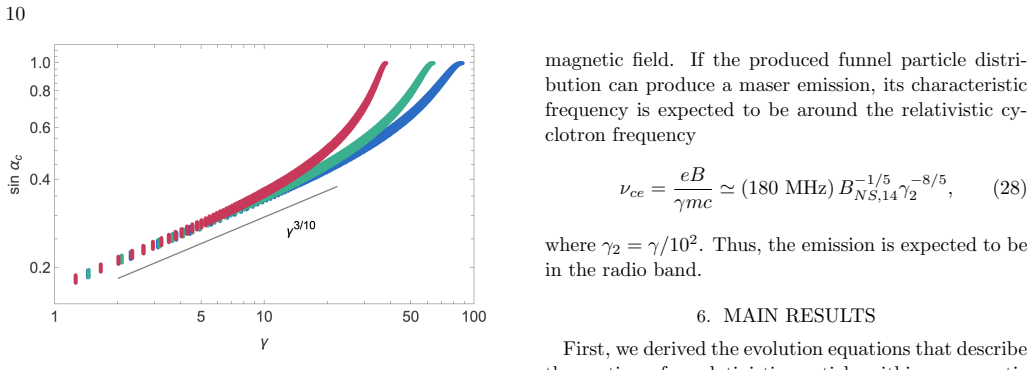

Figure 9. Figure 9: Logarithmic plot of the sine of the pitch angle at x = 25 versus the particle’s Lorentz factor, for the same dis￾tributions as in [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
read the original abstract

The guiding center formalism is employed to analyze the motion of a charged relativistic particle in an inhomogeneous magnetic field, subject to magnetic mirroring and energy loss due to cooling. The governing equation for the evolution of the magnetic moment is derived. An example representing a neutron star (pulsar or magnetar) magnetosphere is presented to illustrate typical particle orbits. Notably, radiative losses are most pronounced near a trapped particle's turning point. Depending on the initial particle's pitch angle, energy loss can become catastrophic, resulting in the rapid migration of the particle into the loss cone and subsequent precipitation onto a neutron star. Conversely, particles with a larger pitch angle remain temporarily trapped and form a gradually decaying "cooled-loss-cone" or "funnel'' distribution, characterized by the maximum momentum space particle density being located at the edge of the loss cone. The size of the loss cone is energy-dependent and scales as $\alpha_{c} \propto \gamma^{3/10}$. Synchrotron losses are strongest in a well-localized region of the magnetosphere, about a few hundred to a thousand star radii under typical pulsar and magnetar conditions. This region is a plausible site for synchrotron radiation originating in the outer magnetosphere, and could also be responsible for non-polar coherent pulsar emission, as well as weak fast radio bursts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper employs the guiding-center formalism for a relativistic charged particle in an inhomogeneous magnetic field, augmented by a synchrotron-loss term, to derive a governing ODE for the evolution of the magnetic moment μ(t). An illustrative neutron-star magnetosphere example is used to show that, depending on initial pitch angle, energy loss near the turning point can be catastrophic (leading to rapid migration into the loss cone and precipitation) or allow temporary trapping in a decaying cooled-loss-cone/funnel distribution with maximum density at the loss-cone edge. The loss-cone angle scales as α_c ∝ γ^{3/10}, and synchrotron losses are localized a few hundred to a thousand stellar radii from the surface, proposed as a site for outer-magnetosphere synchrotron radiation and possibly non-polar coherent emission or weak FRBs.

Significance. If the central derivation holds, the work supplies a parameter-free, first-principles mechanism for energy-dependent loss-cone formation and particle precipitation in neutron-star magnetospheres. The explicit scaling prediction and the distinction between precipitating and trapped orbits constitute falsifiable outputs that could be tested against pulsar timing or radio-emission models. The localization of losses in the outer magnetosphere offers a concrete physical site for observed synchrotron and coherent emission without ad-hoc assumptions.

major comments (1)
  1. [derivation of the governing equation for μ(t)] The derivation of the magnetic-moment evolution equation (from the guiding-center equations plus the synchrotron-loss term) presupposes that the guiding-center ordering remains valid throughout the orbit. However, the manuscript notes that radiative losses peak near the turning point; there the synchrotron cooling time can become comparable to or shorter than the gyro-period, violating the slow-variation assumption required for the guiding-center reduction. This directly undermines the validity of the derived ODE and the subsequent classification of orbits into “catastrophic precipitation” versus “cooled-loss-cone” regimes. A quantitative verification—comparing τ_sync to the local gyro-period along the example trajectories—is needed before the central claims can be accepted.
minor comments (2)
  1. [abstract and results section] The abstract states the scaling α_c ∝ γ^{3/10} but does not indicate whether it follows analytically from the μ-equation or is measured from the numerical example; the main text should make the origin explicit.
  2. [illustrative example] The neutron-star example would benefit from a table or figure listing the adopted magnetic-field strength, spin period, and initial particle energies so that the localization “a few hundred to a thousand star radii” can be reproduced.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and constructive review. The concern about the validity of the guiding-center ordering is substantive and we address it directly below, outlining the revisions that will be made to the manuscript.

read point-by-point responses

  1. Referee: [derivation of the governing equation for μ(t)] The derivation of the magnetic-moment evolution equation (from the guiding-center equations plus the synchrotron-loss term) presupposes that the guiding-center ordering remains valid throughout the orbit. However, the manuscript notes that radiative losses peak near the turning point; there the synchrotron cooling time can become comparable to or shorter than the gyro-period, violating the slow-variation assumption required for the guiding-center reduction. This directly undermines the validity of the derived ODE and the subsequent classification of orbits into “catastrophic precipitation” versus “cooled-loss-cone” regimes. A quantitative verification—comparing τ_sync to the local gyro-period along the example trajectories—is needed before the central claims can be accepted.

    Authors: We agree that the guiding-center reduction assumes slow variation relative to the gyro-motion and that the manuscript highlights the concentration of synchrotron losses near turning points. The governing ODE for μ(t) is obtained by augmenting the standard relativistic guiding-center drift equations with the synchrotron power-loss term treated as a perturbative force. To verify the approximation holds for the illustrative neutron-star trajectories, the revised manuscript will include an explicit comparison of the local synchrotron cooling time τ_sync = E / |dE/dt| against the gyro-period T_gyro = 2π γ m c / (e B) evaluated along those same orbits. This comparison will be added as a new panel or supplementary figure. If the ratio remains ≫ 1 everywhere, the orbit classification and loss-cone scaling remain robust; any localized marginal violations will be discussed and their effect on the overall results quantified. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation proceeds from standard guiding-center equations plus explicit loss term

full rationale

The paper starts from the established guiding-center equations for a relativistic particle in an inhomogeneous field, augments them with a synchrotron energy-loss term, and derives an ODE for the magnetic moment μ(t). The subsequent classification of orbits into precipitating versus cooled-loss-cone families follows directly from integrating that ODE for different initial pitch angles; the reported loss-cone scaling α_c ∝ γ^{3/10} is obtained as an output of the same integration rather than being inserted by definition or fit. No self-citations, fitted parameters renamed as predictions, or ansatzes smuggled via prior work appear as load-bearing steps in the derivation chain. The analysis therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the guiding-center approximation for relativistic particles subject to synchrotron losses in an inhomogeneous magnetic field; no free parameters, new entities, or additional axioms are introduced in the abstract.

axioms (1)
  • domain assumption The guiding center formalism applies to the motion of a charged relativistic particle in an inhomogeneous magnetic field subject to magnetic mirroring and synchrotron energy loss.
    Invoked as the starting point for deriving the governing equation for the evolution of the magnetic moment.
