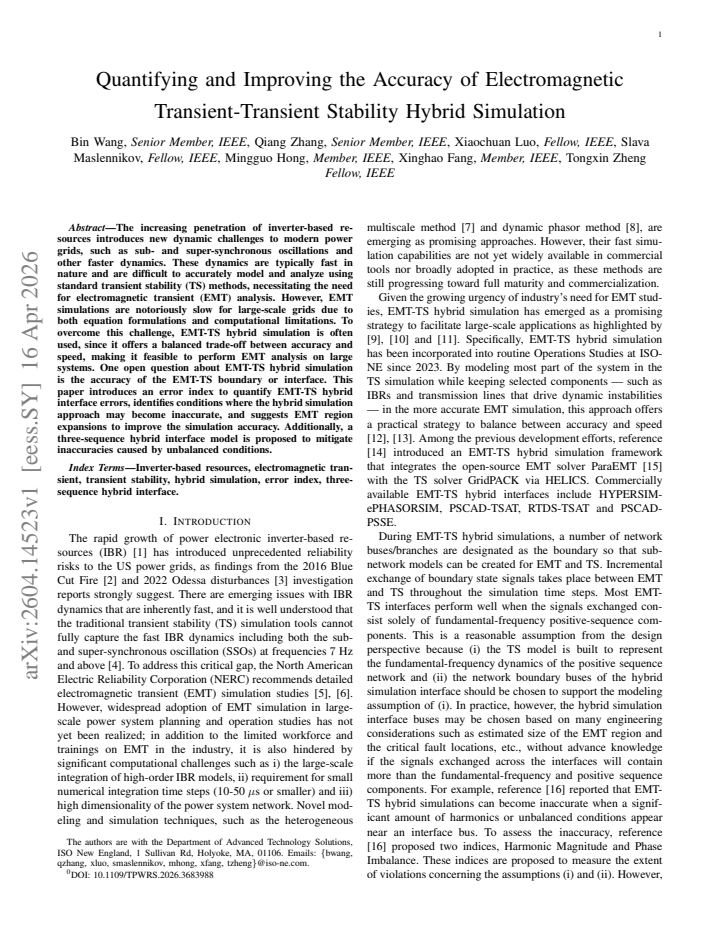

Quantifying and Improving the Accuracy of Electromagnetic Transient-Transient Stability Hybrid Simulation

Bin Wang , Qiang Zhang , Xiaochuan Luo , Slava Maslennikov , Mingguo Hong , Xinghao Fang , Tongxin Zheng This is my paper

Pith reviewed 2026-05-10 11:27 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords EMT-TS hybrid simulationinterface error indexunbalanced conditionsthree-sequence modelelectromagnetic transienttransient stabilitypower system simulationinverter-based resources
0
0 comments X

The pith

An error index measures inaccuracies at EMT-TS hybrid simulation interfaces and identifies fixes for them.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper defines a new error index to quantify how the boundary between detailed electromagnetic transient models and faster transient stability models distorts results in power grid simulations. It identifies that unbalanced conditions and fast inverter dynamics increase these interface errors. The authors propose expanding the electromagnetic transient region and switching to a three-sequence interface model as practical ways to reduce the errors while keeping computation feasible for large systems.

Core claim

This paper introduces an error index to quantify EMT-TS hybrid interface errors, identifies conditions where the hybrid simulation approach may become inaccurate, and suggests EMT region expansions to improve the simulation accuracy. Additionally, a three-sequence hybrid interface model is proposed to mitigate inaccuracies caused by unbalanced conditions.

What carries the argument

The error index that quantifies EMT-TS interface errors, along with EMT region expansion and the three-sequence hybrid interface model.

If this is right

  • Hybrid simulations become reliable for studying fast dynamics from inverter-based resources without requiring full-system EMT computation.
  • Engineers can identify and avoid conditions that make the hybrid approach inaccurate before running large studies.
  • Switching to a three-sequence model reduces errors specifically in unbalanced fault scenarios common in real grids.
  • Enlarging the EMT region trades some computational speed for higher overall accuracy at the interface.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The error index could be used to automatically decide the optimal size of the EMT region in different operating scenarios.
  • Similar interface metrics might apply to other hybrid simulation pairings beyond EMT and TS.
  • The three-sequence approach may extend naturally to include more sequence components for even more complex unbalanced events.

Load-bearing premise

The error index correctly identifies the dominant sources of inaccuracy at the hybrid interface.

What would settle it

Running the hybrid simulation with and without the proposed fixes on a test system with known unbalanced faults and comparing the error index values against the difference from a full EMT reference simulation.

Figures

Figures reproduced from arXiv: 2604.14523 by Bin Wang, Mingguo Hong, Qiang Zhang, Slava Maslennikov, Tongxin Zheng, Xiaochuan Luo, Xinghao Fang.

Figure 1
Figure 1. Figure 1: Boundary bus and measured quantities time window is used consistently across all cases. III. PROPOSED ERROR INDEX The proposed error index is defined below, utilizing only information available within a hybrid simulation: eidx = Z tend tstart ∆Vdiff(t)dt (2a) ∆Vdiff(t) = 1 √ 6VB sX i kVi,h emt(t) − Vi,h ts(t)k 2. (2b) where i ∈ {a, b, c}, Vi,h emt(t) represents the three-phase waveforms in physical unit di… view at source ↗
Figure 2
Figure 2. Figure 2: Four-bus test system TABLE I: Power Flow Bus Bus Pinj Qinj Vm θ # Type in MW in Mvar in pu deg 1 Slack - - 1.02 0.0 2 PQ -150 -40 - - 3 PQ 0 0 - - 4 PV 100 - 1.04450 - TABLE II: Static and Dynamic Data Static Data MVAIBR = 100, MVASG = 555, Base kV = 34.5 except for 0.6 for Bus 1, Z12 = 0.006+j0.06 pu, Turn ratio k12 = 1.025, Z = 0.002+j0.02 pu, X/R ratio= 10 for lines 2-3 and 3-4, SCRBus2 = 5, α = 0.1 Dyn… view at source ↗
Figure 8
Figure 8. Figure 8: True error of hybrid simulation in example 2 [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 4
Figure 4. Figure 4: Boundary bus voltage in example 2 0 0.5 1 1.5 2 Time sec -40 -20 0 20 40 3-ph volt waveforms kV Vabc,h_ts [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Three-phase waveforms of boundary bus re-construct [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Voltage difference between EMT side and TS side of [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Positive-sequence voltage magnitude of boundary bu [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 13
Figure 13. Figure 13: Error vs. location of hybrid boundary for a balanced [PITH_FULL_IMAGE:figures/full_fig_p007_13.png] view at source ↗
Figure 10
Figure 10. Figure 10: Boundary bus voltage in example 3 0 0.5 1 1.5 2 Time sec 0 0.5 1 Vm pu Full EMT Hybrid [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: EMT-side positive-sequence voltage magnitude of [PITH_FULL_IMAGE:figures/full_fig_p007_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: True error of hybrid simulation in example 3 [PITH_FULL_IMAGE:figures/full_fig_p007_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: Error vs. location of hybrid boundary for an unbal [PITH_FULL_IMAGE:figures/full_fig_p008_15.png] view at source ↗
Figure 21
Figure 21. Figure 21: Error vs. frequency in case of MFOs 0 0.2 0.4 0.6 0.8 1 -40 -20 0 20 40 3-ph volt waveforms kV Vabc,h_emt 0 0.2 0.4 0.6 0.8 1 Time sec -40 -20 0 20 40 3-ph volt waveforms kV Vabc,h_ts 1.7 rad [PITH_FULL_IMAGE:figures/full_fig_p009_21.png] view at source ↗
Figure 24
Figure 24. Figure 24: Three-phase waveforms with 9-Hz SFO: measured from EMT side vs. constructed from TS side any dynamic components in the TS region that participate in the oscillations studied by the hybrid simulation, it is recommended to expand the EMT region to include these dynamic components. However, the proposed error index is not intended to determine whether a component significantly participates in a given oscilla… view at source ↗
Figure 25
Figure 25. Figure 25: Three-sequence voltage magnitude of boundary bus [PITH_FULL_IMAGE:figures/full_fig_p011_25.png] view at source ↗
read the original abstract

The increasing penetration of inverter-based resources introduces new dynamic challenges to modern power grids, such as sub- and super-synchronous oscillations and other faster dynamics. These dynamics are typically fast in nature and are difficult to accurately model and analyze using standard transient stability (TS) methods, necessitating the need for electromagnetic transient (EMT) analysis. However, EMT simulations are notoriously slow for large-scale grids due to both equation formulations and computational limitations. To overcome this challenge, EMT-TS hybrid simulation is often used, since it offers a balanced trade-off between accuracy and speed, making it feasible to perform EMT analysis on large systems. One open question about EMT-TS hybrid simulation is the accuracy of the EMT-TS boundary or interface. This paper introduces an error index to quantify EMT-TS hybrid interface errors, identifies conditions where the hybrid simulation approach may become inaccurate, and suggests EMT region expansions to improve the simulation accuracy. Additionally, a three-sequence hybrid interface model is proposed to mitigate inaccuracies caused by unbalanced conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper introduces an error index to quantify EMT-TS hybrid interface errors, identifies conditions where the hybrid simulation approach may become inaccurate, suggests EMT region expansions to improve the simulation accuracy, and proposes a three-sequence hybrid interface model to mitigate inaccuracies caused by unbalanced conditions.

Significance. If validated, the error index and three-sequence interface model could meaningfully improve the practical utility of EMT-TS hybrid simulations for large grids with inverter-based resources by better handling interface errors and unbalanced conditions. The direct framing as responses to identified interface limitations is a positive aspect.

major comments (1)
  1. The manuscript provides no side-by-side quantitative metrics (e.g., waveform error, stability metrics) comparing the proposed error index or three-sequence model against full-EMT reference solutions or existing interface methods (Thevenin, frequency-dependent equivalents) on reproducible benchmark networks. This validation step is load-bearing for the central claims of improved accuracy and practical utility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript. The concern regarding quantitative validation is well-taken, and we will strengthen the paper accordingly while preserving its focus on the error index and three-sequence model.

read point-by-point responses

  1. Referee: The manuscript provides no side-by-side quantitative metrics (e.g., waveform error, stability metrics) comparing the proposed error index or three-sequence model against full-EMT reference solutions or existing interface methods (Thevenin, frequency-dependent equivalents) on reproducible benchmark networks. This validation step is load-bearing for the central claims of improved accuracy and practical utility.

    Authors: We agree that direct quantitative validation against full-EMT references and established interface methods is necessary to substantiate the claims of improved accuracy and utility. The present manuscript derives the error index, identifies inaccuracy conditions (including those arising from unbalanced operation), recommends EMT-region expansions, and introduces the three-sequence interface model, supported by illustrative case studies. However, these examples do not include the systematic side-by-side metrics requested. In the revised manuscript we will add such comparisons on reproducible benchmark networks (e.g., a modified IEEE 39-bus system augmented with unbalanced loads and inverter-based resources). We will report waveform-level errors (RMSE and peak deviations on voltages/currents), stability metrics (e.g., critical clearing time and oscillation damping), and direct comparisons against full-EMT solutions as well as conventional Thevenin and frequency-dependent equivalent interfaces. These additions will quantify the accuracy gains achieved by the proposed error-index-guided EMT expansions and the three-sequence model under the identified unbalanced and fast-dynamic conditions. revision: yes

Circularity Check

0 steps flagged

No circularity: new error index and three-sequence model introduced as direct responses to interface limitations

full rationale

The paper defines a new error index to quantify EMT-TS hybrid interface errors and proposes EMT region expansions plus a three-sequence interface model to mitigate inaccuracies. These steps are presented as novel analytical and modeling contributions based on identified limitations in standard hybrid simulation, without any reduction of predictions to fitted inputs by construction, self-definitional loops, or load-bearing self-citations. The central claims rest on the explicit introduction and application of the new index and model rather than re-deriving existing quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The central claims rest on standard power-system modeling assumptions and on the new error index and three-sequence model introduced by the authors. No free parameters or invented physical entities are mentioned in the abstract.

axioms (1)
  • domain assumption Standard assumptions of network topology, component models, and interface coupling used in EMT-TS hybrid simulation.
    Implicit background for any hybrid simulation study; not derived in the abstract.
invented entities (2)
  • EMT-TS hybrid interface error index no independent evidence
    purpose: Quantify inaccuracies at the EMT-TS boundary
    Newly defined quantity introduced to measure interface performance.
  • Three-sequence hybrid interface model no independent evidence
    purpose: Mitigate errors under unbalanced conditions
    New formulation proposed to replace conventional interface handling.
