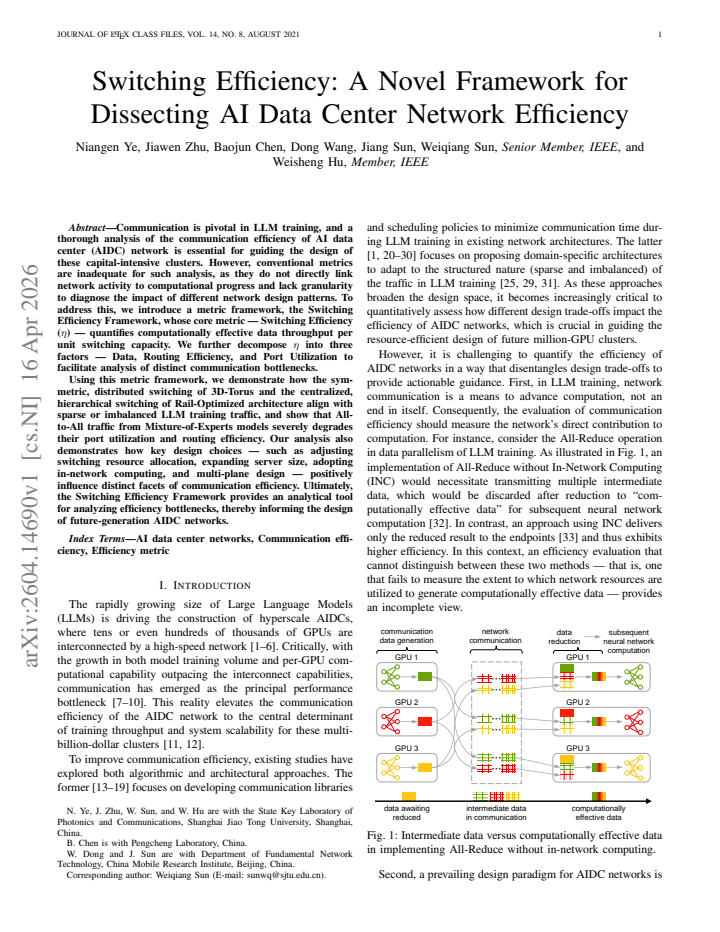

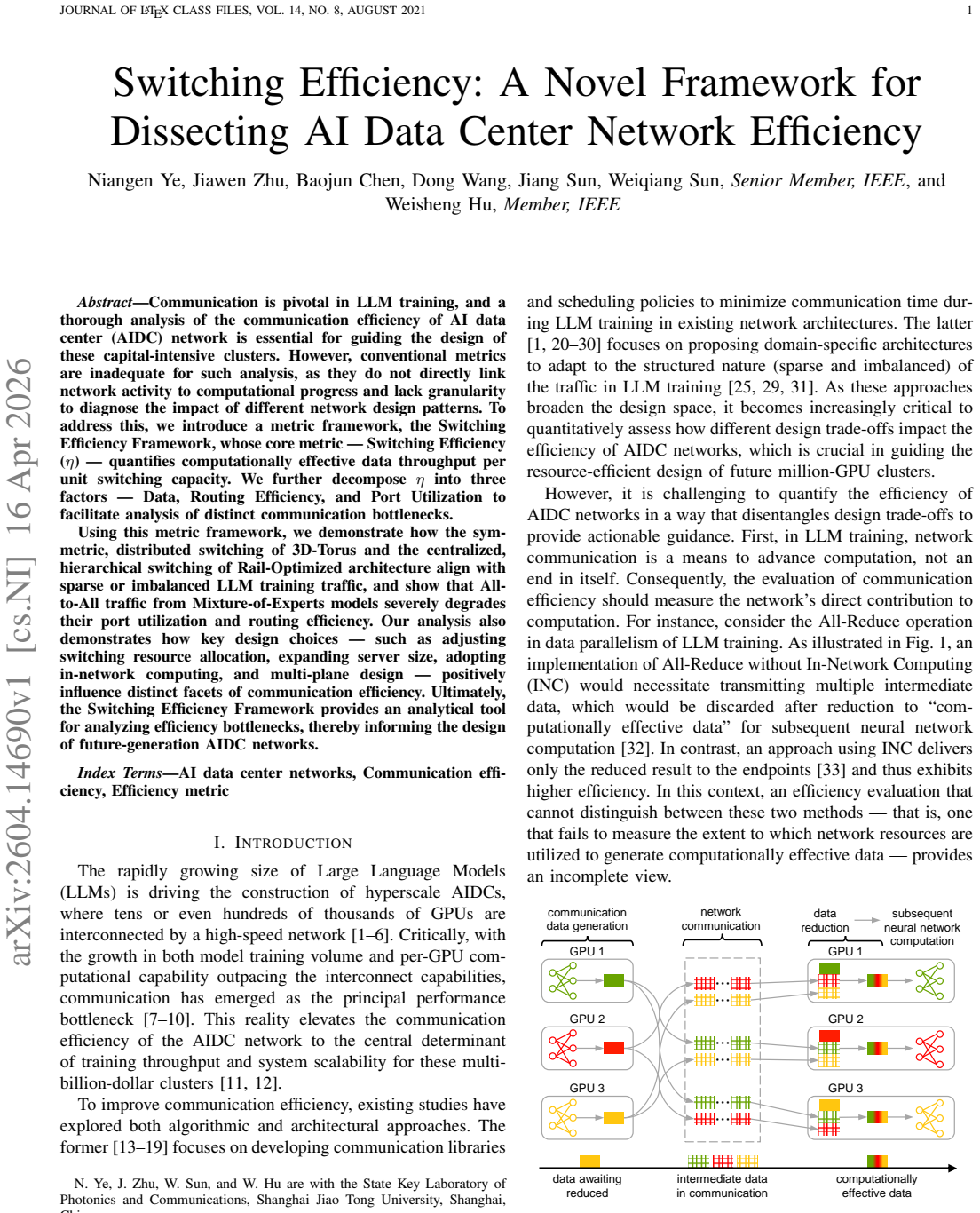

arxiv: 2604.14690 · v1 · submitted 2026-04-16 · 💻 cs.NI

Recognition: unknown

Switching Efficiency: A Novel Framework for Dissecting AI Data Center Network Efficiency

Niangen Ye , Jiawen Zhu , Baojun Chen , Dong Wang , Jiang Sun , Weiqiang Sun , Weisheng Hu

Authors on Pith no claims yet

Pith reviewed 2026-05-10 10:25 UTC · model grok-4.3

classification 💻 cs.NI

keywords switching efficiencyAI data center networksLLM training communicationnetwork efficiency metrics3D-Torus architectureRail-Optimized designMixture-of-Experts trafficcommunication bottlenecks

0 comments

The pith

Switching Efficiency Framework quantifies effective data throughput per unit switching capacity to identify bottlenecks in AI data center networks for LLM training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes the Switching Efficiency Framework to measure communication performance in networks that support large language model training. Its central metric tracks useful data movement relative to the total switching capacity available in the cluster. Breaking the metric into Data, Routing Efficiency, and Port Utilization factors lets analysts isolate which part of the network is limiting progress under different traffic conditions. The framework shows that 3D-Torus and Rail-Optimized architectures handle sparse or imbalanced traffic better than other patterns, while all-to-all communication from Mixture-of-Experts models reduces utilization and routing performance. Design adjustments such as resource reallocation, larger servers, in-network computing, and multi-plane layouts each improve particular factors, giving concrete guidance for building more efficient clusters.

Core claim

The Switching Efficiency Framework introduces the core metric η, which quantifies computationally effective data throughput per unit switching capacity. It further decomposes η into three factors—Data, Routing Efficiency, and Port Utilization—to isolate distinct communication bottlenecks. Application of the framework shows that the symmetric distributed switching of 3D-Torus and the centralized hierarchical switching of Rail-Optimized architectures align with sparse or imbalanced LLM training traffic, whereas All-to-All traffic from Mixture-of-Experts models severely degrades port utilization and routing efficiency. The analysis further demonstrates that design choices such as adjusting the

What carries the argument

Switching Efficiency metric η, defined as computationally effective data throughput per unit switching capacity and decomposed into Data, Routing Efficiency, and Port Utilization factors that isolate distinct communication bottlenecks.

If this is right

3D-Torus symmetric distributed switching aligns with sparse LLM training traffic patterns.
Rail-Optimized centralized hierarchical switching suits imbalanced traffic patterns.
All-to-All traffic from Mixture-of-Experts models reduces port utilization and routing efficiency.
Adjusting switching resource allocation, expanding server size, adopting in-network computing, and using multi-plane designs each improve specific efficiency factors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The framework could be applied during early simulation stages to compare proposed network topologies before physical construction.
Training software could incorporate monitoring of the three factors to dynamically adjust job placement and reduce specific bottlenecks.
The same decomposition might apply to other collective communication patterns beyond training, such as distributed inference serving.
Collecting traces from production AI clusters would allow direct calibration of how closely the three factors predict observed slowdowns.

Load-bearing premise

The decomposition of switching efficiency into Data, Routing Efficiency, and Port Utilization factors accurately isolates independent communication bottlenecks that match real LLM training traffic patterns.

What would settle it

Measurements from actual LLM training runs on different network architectures in which predicted gains from changes in one factor do not appear in measured effective throughput would show the decomposition fails to capture real bottlenecks.

Figures

Figures reproduced from arXiv: 2604.14690 by Baojun Chen, Dong Wang, Jiang Sun, Jiawen Zhu, Niangen Ye, Weiqiang Sun, Weisheng Hu.

**Figure 2.** Figure 2: Selective alignment of topology with different LLM [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

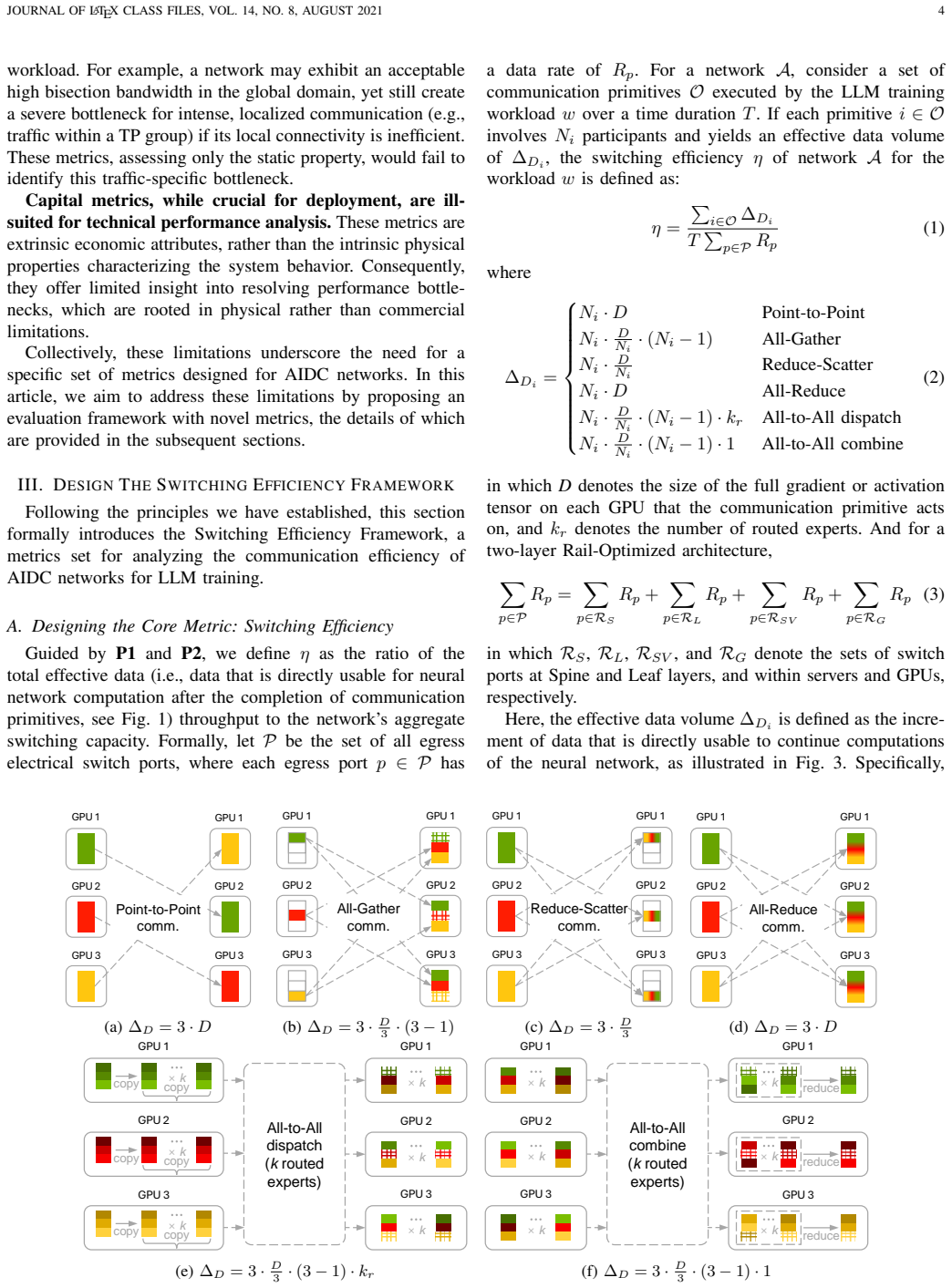

**Figure 3.** Figure 3: The effective data volume (∆D) for each communication primitive. Assuming uniform token distribution for All-to-All dispatch and All-to-All combine. Grid-shaped shards represent the data that did not undergo network communication [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: In a two-layer AIDC network, switching resources are [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: Efficiency dissection of 3D-Torus vs. Rail-Optimized for (a) dense and (b) MoE workloads on a 4096-GPU cluster. The [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

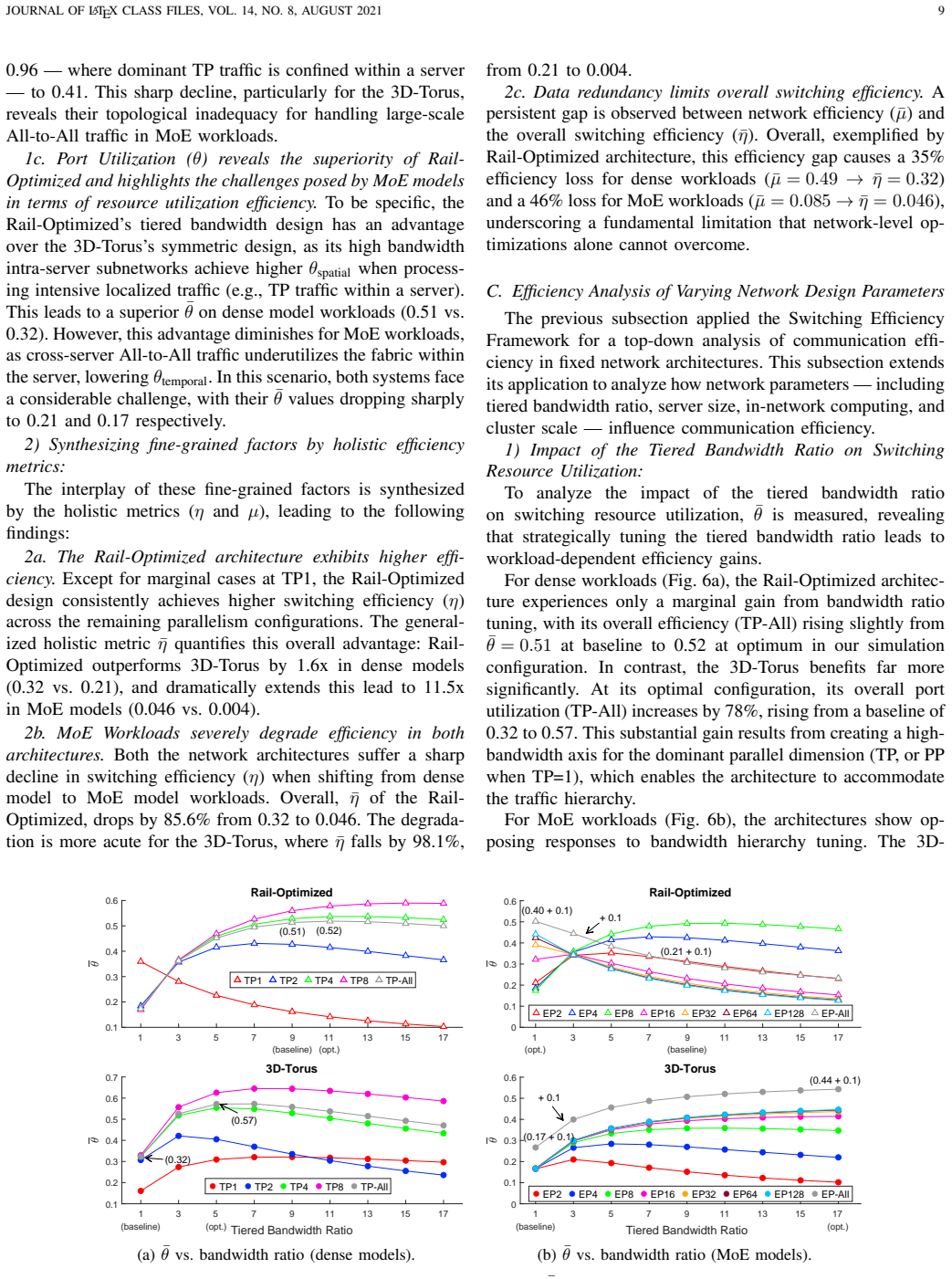

**Figure 6.** Figure 6: Impact of tiered bandwidth ratio on generalized Port Utilization ( [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

**Figure 7.** Figure 7: Influence of server size on communication efficiency under MoE training workload, with trends for generalized (a) [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

**Figure 8.** Figure 8: Efficiency improvement from the In-network com [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗

**Figure 9.** Figure 9: Generalized Switching Efficiency (η¯) of 3D-Torus and Rail-Optimized architectures as cluster scales from 512 to 65,536 GPUs under (a) dense and (b) MoE model training workloads. its symmetric fabric imposes a uniform bandwidth allocation, which is ill-suited to the imbalanced LLM training traffic. In contrast, while Rail-Optimized architectures exhibit a stepwise decline in efficiency, multi-plane designs… view at source ↗

read the original abstract

Communication is pivotal in LLM training, and a thorough analysis of the communication efficiency of AI data center (AIDC) network is essential for guiding the design of these capital-intensive clusters. However, conventional metrics are inadequate for such analysis, as they do not directly link network activity to computational progress and lack granularity to diagnose the impact of different network design patterns. To address this, we introduce a metric framework, the Switching Efficiency Framework, whose core metric - Switching Efficiency ($\eta$) - quantifies computationally effective data throughput per unit switching capacity. We further decompose $\eta$ into three factors - Data, Routing Efficiency, and Port Utilization to facilitate analysis of distinct communication bottlenecks. Using this metric framework, we demonstrate how the symmetric, distributed switching of 3D-Torus and the centralized, hierarchical switching of Rail-Optimized architecture align with sparse or imbalanced LLM training traffic, and show that All-to-All traffic from Mixture-of-Experts models severely degrades their port utilization and routing efficiency. Our analysis also demonstrates how key design choices - such as adjusting switching resource allocation, expanding server size, adopting in-network computing, and multi-plane design - positively influence distinct facets of communication efficiency. Ultimately, the Switching Efficiency Framework provides an analytical tool for analyzing efficiency bottlenecks, thereby informing the design of future-generation AIDC networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper introduces a Switching Efficiency metric with a three-factor breakdown to link AIDC networks to LLM progress, but the factors need real traffic validation to be more than an algebraic split.

read the letter

The main takeaway is that this work defines Switching Efficiency η as effective data throughput per unit switching capacity and splits it into Data, Routing Efficiency, and Port Utilization factors. That decomposition is the fresh element, letting them map network designs to computational outcomes instead of stopping at raw utilization numbers. They apply it to show 3D-Torus handling sparse or imbalanced training traffic better than hierarchical Rail-Optimized setups, and they flag how MoE All-to-All traffic tanks port utilization and routing. Design moves like multi-plane layouts, larger servers, or in-network compute get tied to specific factor improvements. This is useful because it gives architects a structured way to talk about why one topology might suit LLM workloads over another. The analysis stays grounded in the kinds of traffic patterns that actually show up in training clusters. The soft spot is the lack of clear evidence that the three factors stay independent and map directly to measurable effects in packet traces or collective operations. If the split is mostly definitional without calibration against real LLM runs, then statements about architectures aligning or degrading particular factors stay interpretive. The paper would benefit from side-by-side comparisons to existing traces or sensitivity checks on the decomposition. This is aimed at network designers and researchers focused on AI data center infrastructure who already work with these topologies. Someone building or evaluating next-gen clusters could pick up the framework and test it on their own traffic. It deserves peer review because the angle is timely and the metric could become practical once the empirical links are tightened.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the Switching Efficiency Framework for AI data center (AIDC) networks. Its core metric η quantifies computationally effective data throughput per unit switching capacity and is decomposed into three factors (Data, Routing Efficiency, and Port Utilization) to diagnose communication bottlenecks. The paper claims this framework shows how symmetric 3D-Torus and hierarchical Rail-Optimized architectures align with sparse/imbalanced LLM training traffic, how MoE All-to-All traffic degrades port utilization and routing efficiency, and how design choices (switching allocation, server scaling, in-network compute, multi-plane) positively affect distinct efficiency facets, ultimately providing an analytical tool to inform future AIDC network design.

Significance. If the decomposition isolates distinct, measurable bottlenecks that align with real LLM collective patterns without additional calibration, the framework could address gaps in conventional metrics by directly linking network activity to computational progress and guiding architecture choices such as torus vs. rail-optimized or in-network compute. No machine-checked proofs, reproducible code, or falsifiable predictions are present to strengthen the assessment.

major comments (2)

[Abstract and decomposition of η] Abstract and decomposition section: the central claim that the three-factor decomposition of η accurately isolates distinct communication bottlenecks and aligns with real LLM training traffic (sparse/imbalanced vs. MoE All-to-All) lacks any derivations, packet-trace validation, error analysis, or empirical calibration; without this, demonstrations of architectural alignment or degradation remain interpretive rather than predictive, directly undermining the utility as a design-guiding analytical tool.
[Analysis of design choices] Claims on design choices (e.g., multi-plane, server-size scaling, in-network compute): these are asserted to positively influence distinct facets of η, but no quantitative results, sensitivity analysis, or comparison against baselines are supplied to show the factors are orthogonal and load-bearing for the efficiency conclusions.

minor comments (2)

[Introduction] Notation for η and its factors should be defined with explicit equations early in the manuscript to avoid ambiguity in how 'computationally effective data throughput' is computed from switching capacity.
[Conclusion] The manuscript would benefit from a clear statement of assumptions (e.g., traffic model parameters) and limitations of the framework to set reader expectations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments correctly identify areas where additional rigor would strengthen the presentation of the Switching Efficiency Framework. We address each major comment below and outline the revisions we will incorporate.

read point-by-point responses

Referee: [Abstract and decomposition of η] Abstract and decomposition section: the central claim that the three-factor decomposition of η accurately isolates distinct communication bottlenecks and aligns with real LLM training traffic (sparse/imbalanced vs. MoE All-to-All) lacks any derivations, packet-trace validation, error analysis, or empirical calibration; without this, demonstrations of architectural alignment or degradation remain interpretive rather than predictive, directly undermining the utility as a design-guiding analytical tool.

Authors: We agree that the current manuscript presents the decomposition at a conceptual level without explicit step-by-step derivations or new empirical calibration. The three factors follow directly from rewriting η = (computationally effective throughput) / (switching capacity) by separating the numerator into data volume transferred, the fraction of traffic that follows efficient routes, and the fraction of ports actively carrying useful traffic. In the revised version we will add a dedicated subsection that derives each factor algebraically from the definition of η and maps them to observable quantities (e.g., bytes of model gradients versus total bytes on the wire). The alignment claims rest on standard traffic patterns reported in the LLM-training literature rather than new packet traces; we will cite those sources explicitly and note that the framework is intended as an analytical lens that can be validated against traces in follow-on work. This revision will make the demonstrations less purely interpretive while preserving the paper’s scope as a framework introduction. revision: partial
Referee: [Analysis of design choices] Claims on design choices (e.g., multi-plane, server-size scaling, in-network compute): these are asserted to positively influence distinct facets of η, but no quantitative results, sensitivity analysis, or comparison against baselines are supplied to show the factors are orthogonal and load-bearing for the efficiency conclusions.

Authors: The design-choice analysis is currently qualitative, showing directional effects on individual factors (for example, multi-plane topologies increase the routing-efficiency term by providing additional low-diameter paths). We accept that quantitative support and explicit checks for orthogonality would improve the claims. In revision we will add a short analytical section containing simplified closed-form expressions and numerical sensitivity examples that quantify the impact of each design choice on its target factor while holding the others constant. We will also compare the resulting η values against a single-plane baseline under the same traffic matrices. These additions will demonstrate that the factors are separable in the model and that the conclusions rest on the decomposition rather than on unexamined interactions. revision: partial

Circularity Check

0 steps flagged

Switching Efficiency Framework introduced as novel definition with no circular derivation steps

full rationale

The paper presents the Switching Efficiency metric η and its decomposition into Data, Routing Efficiency, and Port Utilization as an original definitional framework for analyzing AIDC networks. No load-bearing equations, predictions, or uniqueness claims reduce to fitted inputs, self-citations, or prior ansatzes by construction. The abstract and described structure treat the decomposition as an algebraic partitioning introduced to diagnose bottlenecks, with all demonstrations following from this new definition rather than circularly presupposing the target results. This is a self-contained definitional contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the definition of a new metric and assumptions about LLM traffic patterns; limited information available from abstract prevents exhaustive enumeration of free parameters or axioms.

axioms (1)

domain assumption Conventional metrics are inadequate because they do not directly link network activity to computational progress and lack granularity for different design patterns.
Stated explicitly in the abstract as the motivation for the new framework.

invented entities (1)

Switching Efficiency (η) no independent evidence
purpose: Quantifies computationally effective data throughput per unit switching capacity
Newly defined core metric of the framework; no independent evidence or external validation provided in abstract.
