arxiv: 2604.14728 · v1 · submitted 2026-04-16 · ⚛️ physics.optics

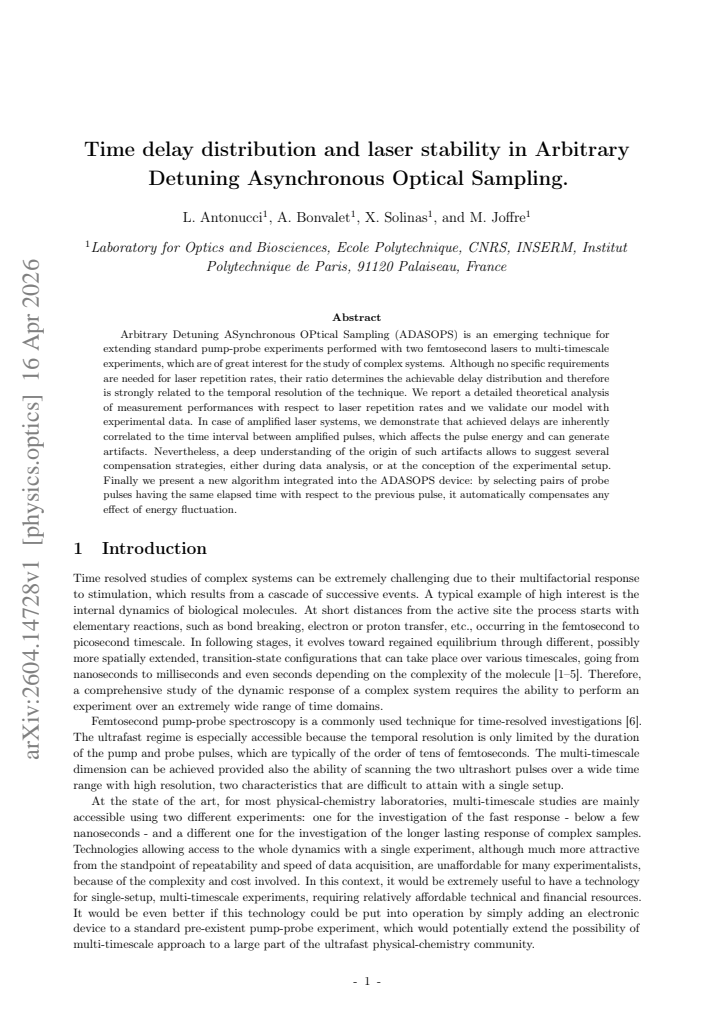

Time Delay Distribution and Laser Stability in Arbitrary Detuning Asynchronous Optical Sampling

Laura Antonucci (LOB , LOB) , A. Bonvalet (LOB , X. Solinas (LOB) , M. Joffre (LOB) This is my paper

Pith reviewed 2026-05-10 10:38 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords ADA-SOPSasynchronous optical samplingtime delay distributionlaser energy fluctuationsamplified laserscompensation algorithmpump-probe spectroscopytemporal resolution
0
0 comments X

The pith

Selecting probe pairs with identical elapsed times to the prior pulse compensates energy fluctuations in ADA-SOPS for amplified lasers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ADA-SOPS extends pump-probe experiments to multitimescale studies using two femtosecond lasers whose repetition rates need not match exactly. The ratio of those rates sets the distribution of sampled time delays and thus the temporal resolution. In amplified laser systems the achieved delays correlate with the interval since the last amplified pulse, which in turn modulates pulse energy and introduces artifacts. The paper derives this correlation theoretically, validates it experimentally, and introduces a new algorithm that selects only those probe pulse pairs sharing the same elapsed time since the previous pulse. This filter automatically equalizes energy conditions across compared measurements.

Core claim

In ADA-SOPS the time delays realized between pump and probe are inherently linked to the time interval between successive amplified pulses. Because pulse energy fluctuates with that interval, the correlation produces artifacts in the measured signals. The authors show that selecting only probe pulses whose elapsed time since the preceding amplified pulse is identical removes the energy variation from the comparison, thereby canceling the artifacts without hardware changes or loss of the arbitrary-detuning capability.

What carries the argument

The selection algorithm that retains only probe pulse pairs having the same elapsed time with respect to the previous amplified pulse.

If this is right

  • The delay distribution and achievable resolution are fully determined by the ratio of the two laser repetition rates and can be predicted in advance.
  • Compensation can be performed either by post-processing selection or by designing the optical setup to enforce constant elapsed times.
  • The method works for any repetition rate ratio and therefore removes the need to match laser oscillators precisely.
  • Experimental validation confirms that the theoretical model matches observed delay histograms and artifact patterns.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same elapsed-time filter could be tested in other asynchronous sampling schemes where pulse energy varies with repetition interval.
  • Optimizing the repetition rate ratio while applying the filter may increase effective sampling density without sacrificing stability.
  • The approach suggests that laser systems for ADA-SOPS need not be engineered for extreme pulse-to-pulse energy stability if the selection is used.

Load-bearing premise

Energy fluctuations are dominated by the time since the last amplified pulse, and restricting analysis to equal elapsed times removes this correlation without introducing new biases or substantially reducing the number of usable delay points.

What would settle it

Apply the elapsed-time selection filter to experimental data and check whether the amplitude of energy-related artifacts drops to the noise floor only for the retained pairs while remaining visible in the unselected set.

Figures

Figures reproduced from arXiv: 2604.14728 by A. Bonvalet (LOB, Laura Antonucci (LOB, LOB), M. Joffre (LOB), X. Solinas (LOB).

Figure 1
Figure 1. Figure 1: Scheme of multi-timescale pump-probe experiment obtained by simply adding the ADASOPS [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Delay evolution due to asynchronous optical scanning in case of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Simulations of delay evolution between two oscillators with [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Setup for TDC measurement of time delay between pulses from fiber-based oscillator (Laser 1) and [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Error between TDC measurements and theoretically calculated delays for fiber-based oscillator ( [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Scheme of selection process in the case of [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: (a) Delay distribution in the shooting window. (b) Zoom of the delay distribution plotted in (a) [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Delay distribution for 1500 amplified pulse pairs for two laser systems having [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Histogram of delay distribution in the interval [-0.1,0.1] ns for 5 (a) or 150 (b) subsequent shooting [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Delay distribution for 1500 amplified pulse pairs for two laser systems having a small relative [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Simulation of elapsed time for two laser systems having [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: a) Correlation between spectral energy variation and elapsed time with respect to the last amplified [PITH_FULL_IMAGE:figures/full_fig_p015_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Histogram of achieved delays. a) Graph reporting all the achieved delays aiming continuously [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Differential mid-infrared spectra of HbCO. a) Straightforward application of ADASOPS method. [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Differential mid-infrared spectra acquired without sample for noise characterization. a) Mea [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
read the original abstract

Arbitrary Detuning ASynchronous OPtical Sampling (ADA-SOPS) is an emerging technique for extending standard pump--probe experiments performed with two femtosecond lasers to multitimescale experiments, which are of great interest for the study of complex systems. Although no specific requirements are needed for laser repetition rates, their ratio determines the achievable delay distribution and therefore is strongly related to the temporal resolution of the technique. We report a detailed theoretical analysis of measurement performances with respect to laser repetition rates, and we validate our model with experimental data. In the case of amplified laser systems, we demonstrate that achieved delays are inherently correlated to the time interval between amplified pulses, which affects the pulse energy and can generate artifacts. Nevertheless, a deep understanding of the origin of such artifacts allows to suggest several compensation strategies, either during data analysis or at the conception of the experimental setup. Finally we present a new algorithm integrated into the ADASOPS device: by selecting pairs of probe pulses having the same elapsed time with respect to the previous pulse, it automatically compensates any effect of energy fluctuation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a theoretical model for the time delay distribution in Arbitrary Detuning Asynchronous Optical Sampling (ADA-SOPS), deriving how the laser repetition-rate ratio governs the achievable delays and temporal resolution. It validates the model with experimental data, identifies inherent correlations between achieved delays and pulse energy in amplified systems (arising from the time interval since the previous amplified pulse), and proposes compensation strategies. A central practical contribution is a new algorithm integrated into the ADASOPS device that selects probe-pulse pairs having identical elapsed times with respect to the previous pulse, claimed to automatically compensate energy-fluctuation effects.

Significance. If the compensation algorithm is shown to preserve the derived delay distribution without introducing selection biases or nonuniform density loss, the work would strengthen the reliability of ADA-SOPS for multitimescale pump-probe studies with amplified lasers. The repetition-rate-ratio dependence of the delay distribution is a clean, directly usable result for experimental design. The explicit link between delay and energy via inter-pulse timing provides a concrete handle on artifacts that is useful to the community.

major comments (2)
  1. [Compensation strategies and new algorithm description] The central claim that the new selection algorithm 'automatically compensates any effect of energy fluctuation' (abstract and final section) rests on the unverified assumption that filtering on identical elapsed times commutes with the arbitrary-detuning delay map. No histogram of retained delays, effective sampling density per bin, or post-filter residual energy-delay correlation is reported, leaving open the possibility that the filter reduces effective N nonuniformly or correlates with the detuning parameter, undermining the temporal-resolution guarantee derived earlier.
  2. [Experimental validation] Experimental validation of the theoretical delay-distribution model is stated but lacks quantitative support: the abstract and validation section provide no error bars, RMS deviation between model and data, number of independent datasets, or exclusion criteria. This leaves the performance claims (temporal resolution vs. repetition-rate ratio) only partially substantiated.
minor comments (2)
  1. [Abstract] Abstract: include at least one quantitative metric (e.g., average deviation or R² between predicted and measured delay histograms) to make the validation statement concrete.
  2. [Theoretical analysis] Notation for the repetition-rate ratio and the resulting delay map should be introduced once with a clear equation reference and then used consistently; occasional redefinition risks confusion in the compensation discussion.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful review and constructive feedback on our manuscript. We address each of the major comments below.

read point-by-point responses

  1. Referee: [Compensation strategies and new algorithm description] The central claim that the new selection algorithm 'automatically compensates any effect of energy fluctuation' (abstract and final section) rests on the unverified assumption that filtering on identical elapsed times commutes with the arbitrary-detuning delay map. No histogram of retained delays, effective sampling density per bin, or post-filter residual energy-delay correlation is reported, leaving open the possibility that the filter reduces effective N nonuniformly or correlates with the detuning parameter, undermining the temporal-resolution guarantee derived earlier.

    Authors: We acknowledge the validity of this concern. The algorithm selects probe-pulse pairs based on identical elapsed times since the previous pulse to eliminate energy fluctuations arising from varying inter-pulse intervals in amplified systems. However, to rigorously demonstrate that this selection does not introduce biases in the delay distribution or sampling density, we will include in the revised manuscript histograms of the retained delays, plots of effective sampling density per bin, and analysis of any residual energy-delay correlations after filtering. This will confirm that the temporal resolution guarantees remain intact. revision: yes

  2. Referee: [Experimental validation] Experimental validation of the theoretical delay-distribution model is stated but lacks quantitative support: the abstract and validation section provide no error bars, RMS deviation between model and data, number of independent datasets, or exclusion criteria. This leaves the performance claims (temporal resolution vs. repetition-rate ratio) only partially substantiated.

    Authors: We agree that additional quantitative details are needed to fully substantiate the experimental validation. In the revised manuscript, we will add error bars to the experimental data in the relevant figures, report the RMS deviation between the theoretical model and experimental results, specify the number of independent datasets acquired, and detail the exclusion criteria applied during data processing. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained from sampling definition and independent validation

full rationale

The paper's core theoretical analysis derives the achievable delay distribution directly from the repetition-rate ratio in asynchronous optical sampling, which is a definitional property of the technique rather than a fitted or self-referential result. The compensation strategy for energy fluctuations is introduced as an explicit data-selection algorithm (selecting probe pairs with identical elapsed times), presented as a practical mitigation based on observed correlations and not reducing to any input parameter or prior self-citation chain. Experimental validation is cited separately, and no load-bearing steps equate predictions to inputs by construction. This matches the default case of an honest, non-circular derivation.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The analysis rests on standard laser-physics assumptions about pulse timing and energy dependence on pump history; no new entities are postulated and only the repetition-rate ratio enters as an input parameter.

free parameters (1)
  • repetition rate ratio
    Chosen by the experimenter; determines the exact set of sampled delays but is not fitted to data.
axioms (1)
  • domain assumption Pulse energy in amplified systems depends on the time elapsed since the previous amplified pulse.
    Invoked to explain the origin of artifacts; treated as an established property of regenerative amplifiers.
