Democratization of Real-time Multi-Spectral Photoacoustic Imaging: Open-Sourced System Architecture for OPOTEK Phocus & Verasonics Vantage Combination

Ryo Murakami , Yichuan Tang , Haichong K. Zhang This is my paper

Pith reviewed 2026-05-10 09:33 UTC · model grok-4.3

classification 💻 cs.AR cs.SYeess.SY
keywords photoacoustic imagingreal-time imagingmulti-spectralopen-source systemmicrocontroller synchronizationdata streaminglaser triggersystem architecture
0
0 comments X

The pith

An open-source architecture using a microcontroller for laser trigger counting and decoupled data streaming enables stable real-time multi-spectral photoacoustic imaging.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents an open-source hardware and software system designed to make real-time multi-spectral photoacoustic imaging more accessible. It addresses synchronization problems that arise when connecting fast-tuning lasers to data acquisition systems running on ordinary operating systems. The solution relies on a separate microcontroller to accurately count and manage laser triggers and a client-server setup to handle data streaming without relying on local storage. This approach reduces timing errors and storage constraints, allowing more researchers to use the technology without high costs or specialized setups. By releasing the code openly, the work aims to build a community for further development and sharing of improvements.

Core claim

By employing an independent micro-controller for deterministic laser trigger counting alongside a decoupled client-server data streaming framework, the proposed system circumvents OS-induced timing deviations and local storage bottlenecks in real-time multi-spectral photoacoustic imaging.

What carries the argument

Independent microcontroller for deterministic laser trigger counting and decoupled client-server data streaming framework that ensures precise synchronization and efficient data transfer without operating system interference.

Load-bearing premise

The microcontroller trigger counting and client-server streaming integrate reliably with the target laser and acquisition hardware without causing new synchronization problems or data loss in actual experiments.

What would settle it

Running the system during a multi-spectral imaging session with high pulse repetition rates and large data volumes while monitoring for any missed triggers, timing jitter, or dropped data packets.

Figures

Figures reproduced from arXiv: 2604.15255 by Haichong K. Zhang, Ryo Murakami, Yichuan Tang.

Figure 1

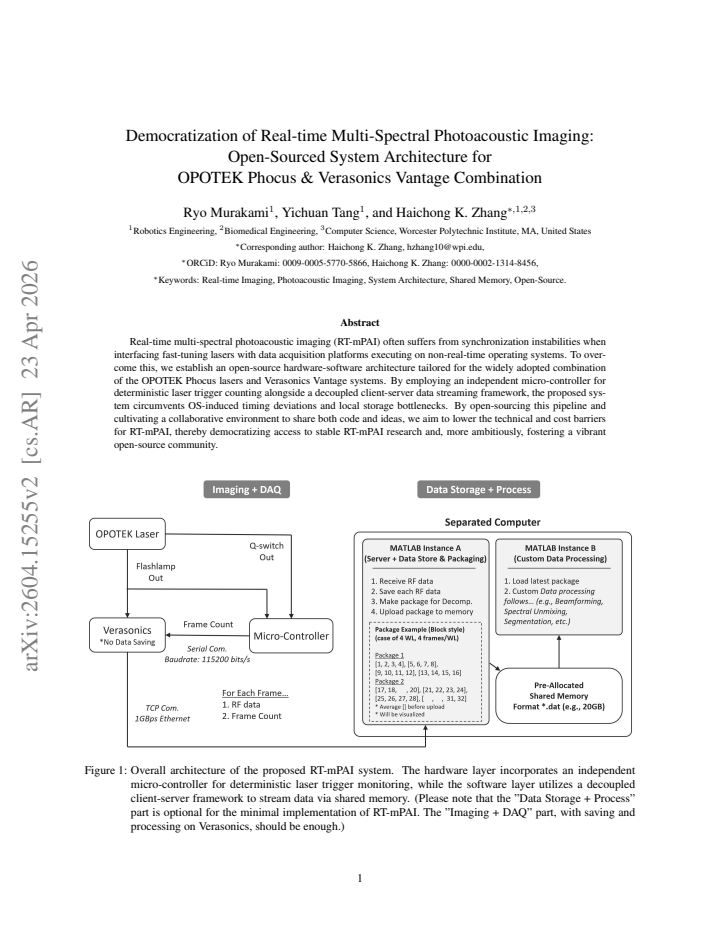

Figure 1. Figure 1: Overall architecture of the proposed RT-mPAI system. The hardware layer incorporates an independent [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Timing and sequence diagram of the entire imaging system. The micro-controller deterministically counts [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Schematics of data packaging performed by the server instance. Both block and cyclic scanning schemes [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematic of the validation setup. Blue and black wires are utilized as point targets. Calculating the signal [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Validation of the real-time wavelength identification pipeline. The spectrum acquired via the proposed [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

Real-time multi-spectral photoacoustic imaging (RT-mPAI) often suffers from synchronization instabilities when interfacing fast-tuning lasers with data acquisition platforms executing on non-real-time operating systems. To overcome this, we establish an open-source hardware-software architecture tailored for the widely adopted combination of the OPOTEK Phocus lasers and Verasonics Vantage systems. By employing an independent micro-controller for deterministic laser trigger counting alongside a decoupled client-server data streaming framework, the proposed system circumvents OS-induced timing deviations and local storage bottlenecks. By open-sourcing this pipeline and cultivating a collaborative environment to share both code and ideas, we aim to lower the technical and cost barriers for RT-mPAI, thereby democratizing access to stable RT-mPAI research and, more ambitiously, fostering a vibrant open-source community.
