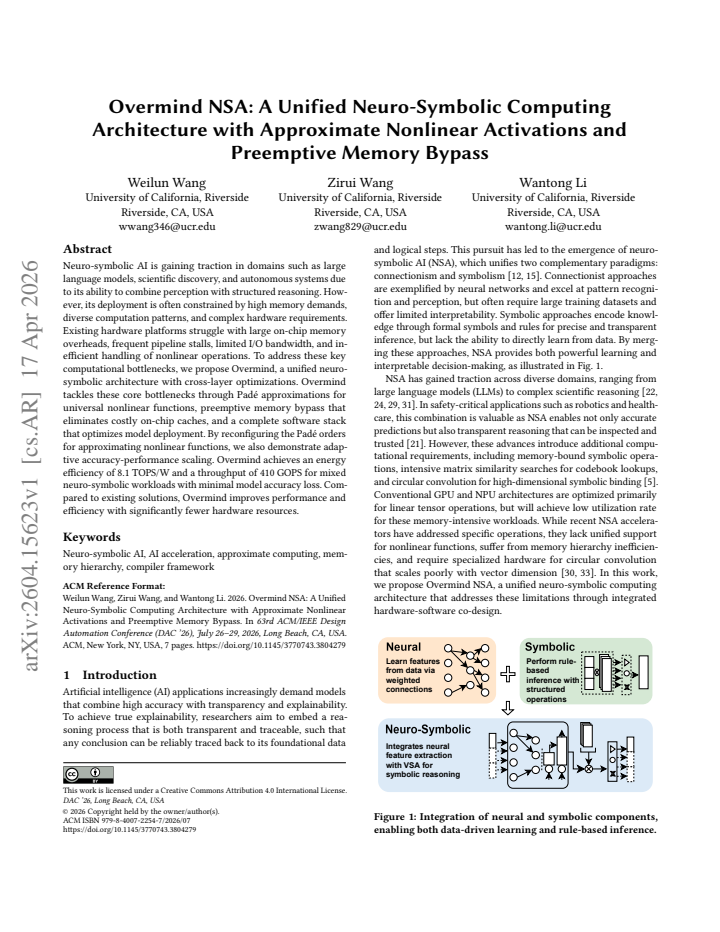

Overmind NSA: A Unified Neuro-Symbolic Computing Architecture with Approximate Nonlinear Activations and Preemptive Memory Bypass

Weilun Wang , Zirui Wang , Wantong Li
Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:06 UTC · model grok-4.3

classification 💻 cs.AR
keywords neuro-symbolic AIhardware architecturePadé approximationpreemptive memory bypassenergy efficiencyapproximate computingneural networkssymbolic reasoning
0
0 comments X

The pith

Overmind architecture uses Padé approximations and preemptive memory bypass to run neuro-symbolic AI at 8.1 TOPS/W with minimal accuracy loss.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Neuro-symbolic AI merges neural perception with structured reasoning but creates heavy demands on memory, computation variety, and nonlinear operations. Existing hardware platforms suffer from large on-chip memory overheads, pipeline stalls, limited bandwidth, and inefficient nonlinear handling. The paper introduces Overmind, a unified architecture that applies Padé approximations to nonlinear functions and uses preemptive memory bypass to remove traditional caches, backed by a full software stack for model deployment. This yields 8.1 TOPS/W energy efficiency and 410 GOPS throughput on mixed workloads while keeping accuracy loss small. The design also supports adaptive scaling via Padé order changes and requires fewer hardware resources than prior platforms.

Core claim

Overmind NSA is a unified neuro-symbolic computing architecture that integrates Padé approximations for universal nonlinear functions with preemptive memory bypass to eliminate costly on-chip caches, plus a complete software stack for optimized deployment. These cross-layer optimizations address memory overheads, computation pattern diversity, and nonlinear operation costs, delivering 8.1 TOPS/W energy efficiency and 410 GOPS throughput for mixed neuro-symbolic workloads with minimal model accuracy loss and significantly lower hardware resource usage than existing solutions.

What carries the argument

Padé approximations for nonlinear activations combined with preemptive memory bypass that eliminates on-chip caches, enabling efficient cross-layer handling of diverse neuro-symbolic computation patterns.

If this is right

  • Reconfiguring Padé approximation orders enables adaptive accuracy-performance scaling for deployed models.
  • The complete software stack supports optimized deployment of neuro-symbolic models on the architecture.
  • Cross-layer optimizations reduce pipeline stalls, I/O bandwidth limits, and overall hardware resource requirements.
  • Mixed neuro-symbolic workloads run at higher efficiency than on existing platforms while preserving near-original accuracy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same approximation and bypass techniques could reduce overheads in other hybrid AI systems that mix perception with reasoning.
  • Hardware designs following this pattern might support larger neuro-symbolic models in power-constrained settings such as autonomous systems.
  • This co-design of approximations, memory bypass, and software could guide future accelerators for scientific discovery workloads that require both neural and symbolic steps.

Load-bearing premise

Padé approximations for nonlinear functions together with preemptive memory bypass can deliver the stated efficiency and throughput gains while maintaining only minimal accuracy loss across real workloads without hidden hardware costs or implementation issues.

What would settle it

Fabricating the Overmind hardware and measuring its actual power draw, sustained throughput, and model accuracy on standard mixed neuro-symbolic benchmarks would directly confirm or refute the 8.1 TOPS/W, 410 GOPS, and minimal-loss claims.

Figures

Figures reproduced from arXiv: 2604.15623 by Wantong Li, Weilun Wang, Zirui Wang.

Figure 1
Figure 1. Figure 1: Integration of neural and symbolic components, [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

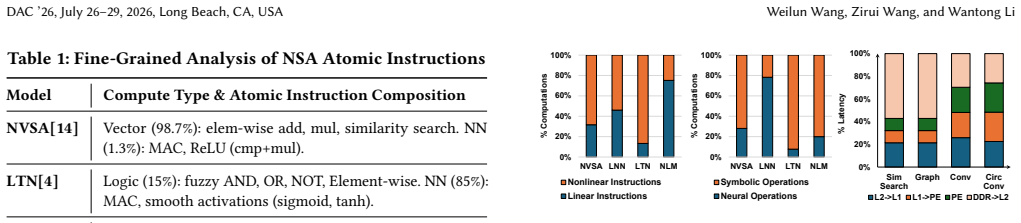

Figure 2
Figure 2. Figure 2: NSA workload profiling on (a) linear vs. nonlinear [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

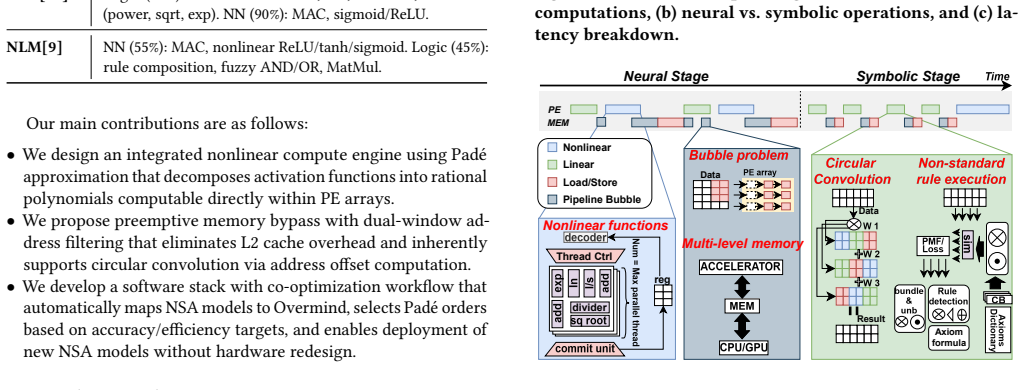

Figure 3
Figure 3. Figure 3: Summary of key computational bottlenecks in neu [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The Overmind NSA hardware architecture. Iterative methods introduce variable latency that disrupts pipelin￾ing [3]. These methods all share a fundamental limitation of treating nonlinear computation as a post-processing step. To maintain both high hardware utilization and low latency, nonlinear computations must be directly enabled within the PE array. Memory hierarchy inefficiency for symbolic operations.… view at source ↗
Figure 5
Figure 5. Figure 5: Reconfigurability of Overmind PE array across neural and symbolic operations. Divider arrays are enabled for [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: (a) Conventional PE policy and memory hierarchy with L2 [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Software stack with hardware co-optimization. [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: Scalability analyses: (a) Overmind requires fewer [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
read the original abstract

Neuro-symbolic AI is gaining traction in domains such as large language models, scientific discovery, and autonomous systems due to its ability to combine perception with structured reasoning. However, its deployment is often constrained by high memory demands, diverse computation patterns, and complex hardware requirements. Existing hardware platforms struggle with large on-chip memory overheads, frequent pipeline stalls, limited I/O bandwidth, and inefficient handling of nonlinear operations. To address these key computational bottlenecks, we propose Overmind, a unified neuro-symbolic architecture with cross-layer optimizations. Overmind tackles these core bottlenecks through Pad\'e approximations for universal nonlinear functions, preemptive memory bypass that eliminates costly on-chip caches, and a complete software stack that optimizes model deployment. By reconfiguring the Pad\'e orders for approximating nonlinear functions, we also demonstrate adaptive accuracy-performance scaling. Overmind achieves an energy efficiency of 8.1 TOPS/W and a throughput of 410 GOPS for mixed neuro-symbolic workloads with minimal model accuracy loss. Compared to existing solutions, Overmind improves performance and efficiency with significantly fewer hardware resources.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes Overmind NSA, a unified neuro-symbolic computing architecture that uses Padé approximations for nonlinear activations, preemptive memory bypass to eliminate on-chip caches, and a supporting software stack. It claims to deliver 8.1 TOPS/W energy efficiency and 410 GOPS throughput on mixed neuro-symbolic workloads with minimal accuracy loss, plus adaptive accuracy-performance scaling via reconfigurable Padé orders and improved performance with fewer hardware resources than prior platforms.

Significance. If the performance and accuracy claims can be substantiated with rigorous experiments, the work would offer a meaningful contribution to hardware architectures for neuro-symbolic AI by addressing memory overhead, pipeline stalls, and nonlinear operations through cross-layer approximations and bypass mechanisms. The reconfigurability of the approximations provides a practical knob for deployment trade-offs.

major comments (2)
  1. [Abstract] Abstract: The headline claims of 8.1 TOPS/W energy efficiency, 410 GOPS throughput, and minimal accuracy loss are presented without any description of workloads, measurement methodology, baselines, error bars, or ablation studies. These omissions are load-bearing because the central contribution rests on the empirical superiority of the proposed optimizations.
  2. [Architecture description] Architecture and results sections: The preemptive memory bypass is asserted to remove cache-related stalls and bandwidth pressure, yet no cycle-accurate analysis, power breakdown, or quantification of off-chip traffic or pipeline bubbles is supplied to confirm that hidden costs do not offset the reported gains.
minor comments (1)
  1. [Abstract] The abstract contains the unrendered LaTeX fragment 'Padé' that should be corrected for readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comments point by point below and will incorporate revisions to improve clarity and substantiation of our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The headline claims of 8.1 TOPS/W energy efficiency, 410 GOPS throughput, and minimal accuracy loss are presented without any description of workloads, measurement methodology, baselines, error bars, or ablation studies. These omissions are load-bearing because the central contribution rests on the empirical superiority of the proposed optimizations.

    Authors: We agree that the abstract would be strengthened by additional context for the headline claims. In the revised manuscript, we will expand the abstract to briefly note the workloads (mixed neuro-symbolic tasks combining perception and structured reasoning), the measurement methodology (post-synthesis estimation on a 28 nm process), and direct references to the baselines, ablation studies, and accuracy results presented in Sections 4 and 5. This will make the claims more self-contained while remaining within abstract length guidelines. revision: yes

  2. Referee: [Architecture description] Architecture and results sections: The preemptive memory bypass is asserted to remove cache-related stalls and bandwidth pressure, yet no cycle-accurate analysis, power breakdown, or quantification of off-chip traffic or pipeline bubbles is supplied to confirm that hidden costs do not offset the reported gains.

    Authors: We acknowledge that the current description of the preemptive memory bypass in Section 3.2 focuses on the mechanism and its qualitative benefits without sufficient quantitative validation. In the revised manuscript, we will add cycle-accurate simulation results, a power breakdown isolating cache-related savings, and explicit quantification of reduced off-chip traffic and pipeline bubbles in the results section to demonstrate that the reported efficiency and throughput gains are not offset by hidden costs. revision: yes

Circularity Check

0 steps flagged

No circularity; claims are empirical performance assertions without derivation chain or self-referential reductions

full rationale

The provided abstract and description introduce Overmind as a proposed architecture using Padé approximations for nonlinear functions and preemptive memory bypass, then state measured outcomes (8.1 TOPS/W, 410 GOPS, minimal accuracy loss). No equations, fitted parameters, uniqueness theorems, or self-citations appear that could reduce a claimed result to its own inputs by construction. The performance numbers are presented as direct outcomes of the hardware optimizations rather than derived quantities that presuppose the same results. This matches the default expectation for non-circular papers and the reader's assessment of no visible circular reasoning.

Axiom & Free-Parameter Ledger

1 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the ledger is minimal. The reconfigurable Padé orders function as a tunable parameter for accuracy-performance scaling; no other free parameters, axioms, or invented entities are identifiable.

free parameters (1)
  • Padé approximation order
    The abstract states that reconfiguring Padé orders enables adaptive accuracy-performance scaling, indicating these orders are chosen or fitted parameters.
