The pith

Under equal physical aperture, 15 GHz FR3 measurements show higher spectral efficiency than 8 GHz due to more antenna elements overcoming increased sparsity, despite a 3 dB coverage deficit.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Future 6G networks want to use new frequency bands around 8 GHz and 15 GHz for better coverage and speed. The challenge is that base station antennas have a fixed physical size, so at higher frequencies you can pack more small antennas into the same space. Researchers built a dual-band test system and took real measurements in city environments. They found the 15 GHz signals spread out less in time and space, making the channel simpler but weaker overall. By using 128 antennas instead of 32, the system gained enough extra signal strength to beat the 8 GHz version in data rate per unit bandwidth. However, at the far edges of a cell the 15 GHz link still fell short by about 3 decibels. Changing how the antennas were arranged inside the same box did not change performance much. The main lesson is that engineers must balance the natural loss of higher frequencies against the extra antennas they can fit.

Core claim

Empirical data reveals a residual coverage deficit of approximately 3.0 dB at cell edges for the 15 GHz band compared to the 8 GHz baseline, while spectral efficiency significantly outperforms the 8 GHz band due to increased element count overcoming channel sparsity.

Load-bearing premise

The measurements assume that the dual-band sounding platform accurately captures real-world propagation without significant calibration errors or site-specific biases that would alter the reported 3 dB deficit and SE gains.

Figures

Figures reproduced from arXiv: 2604.15680 by Enrui Liu, Haiyang Miao, Jianhua Zhang, Pan Tang, Qi Zhen.

Figure 1
Figure 1. Figure 1: Schematic diagram of measurement platform. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Measurement setup in the UMa scenario, including the [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Measured PDP across 8 GHz and 15 GHz bands. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the fixed-aperture array configuration for [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 5

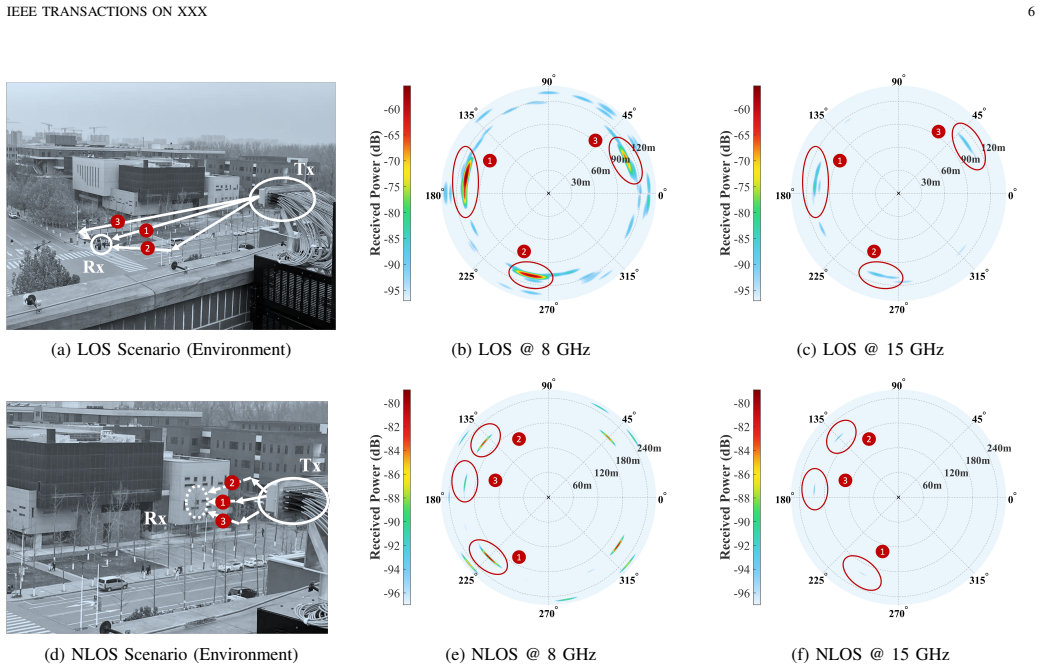

Figure 5. Figure 5: DAPSs under equal physical aperture. The first column shows the measurement environments for LOS and NLOS [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

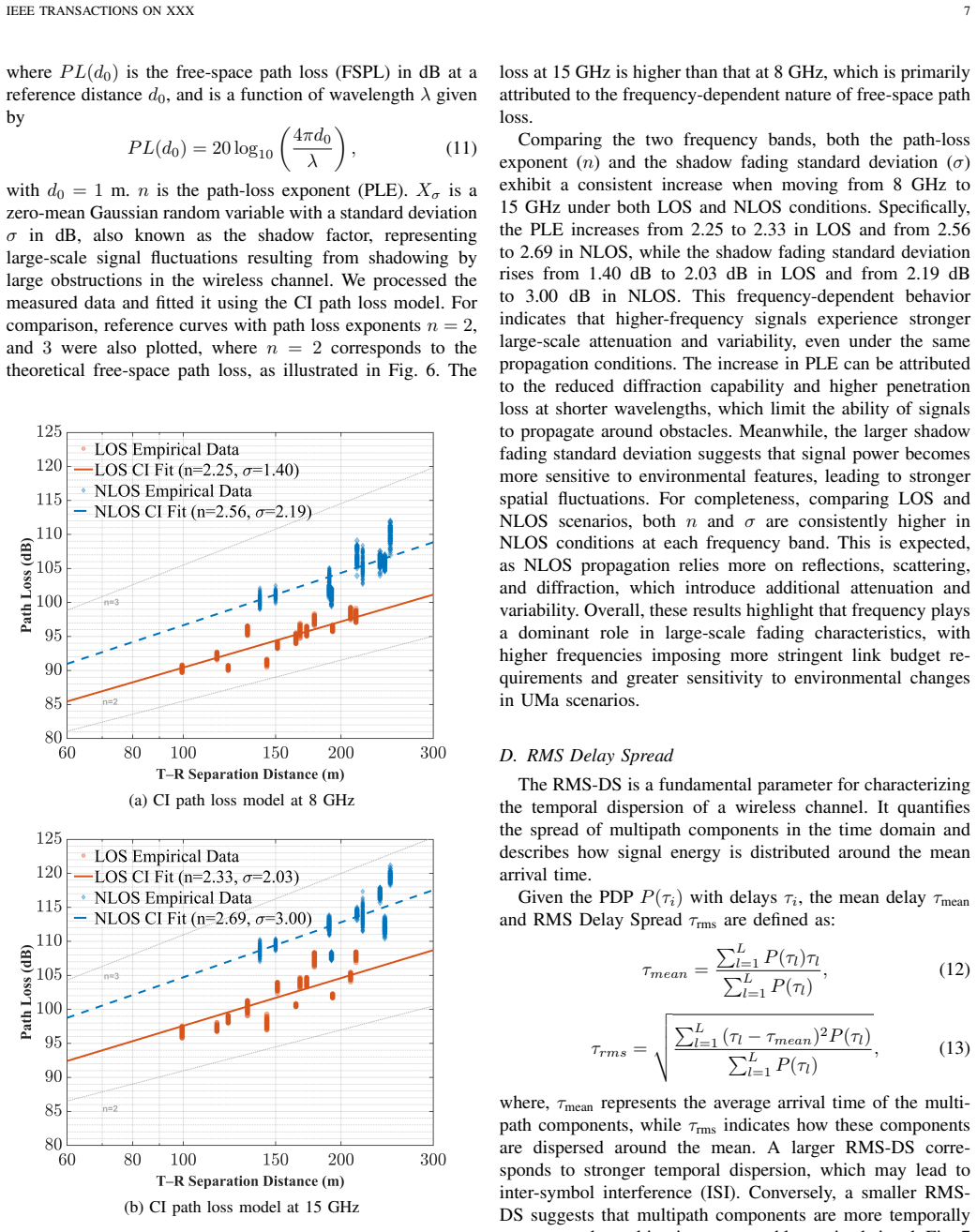

Figure 6. Figure 6: CI path loss model fitted to measured data at 8 GHz [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: RMS delay spread results under same array aperture. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Fig.8 [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 8

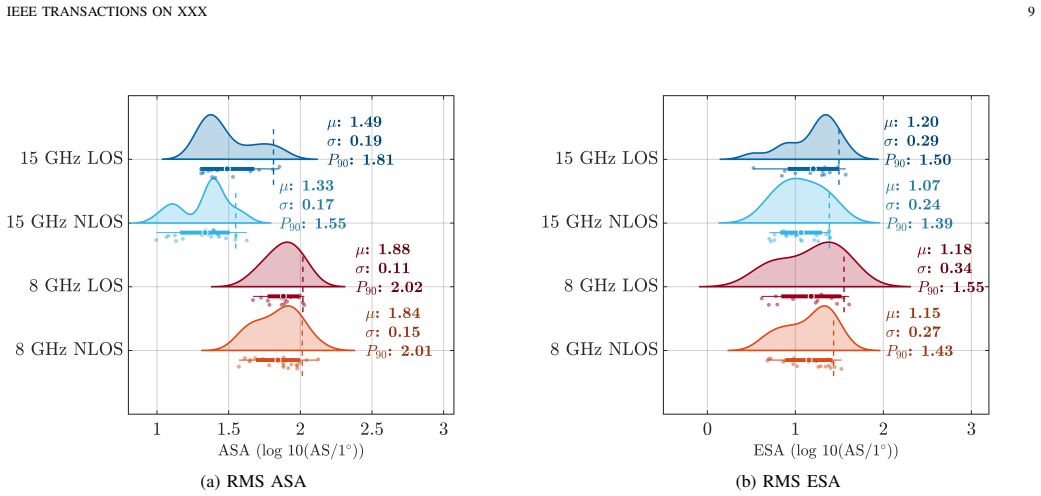

Figure 8. Figure 8: Raincloud plots of the measured RMS angular spreads for 8 GHz and 15 GHz bands under equal physical aperture [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

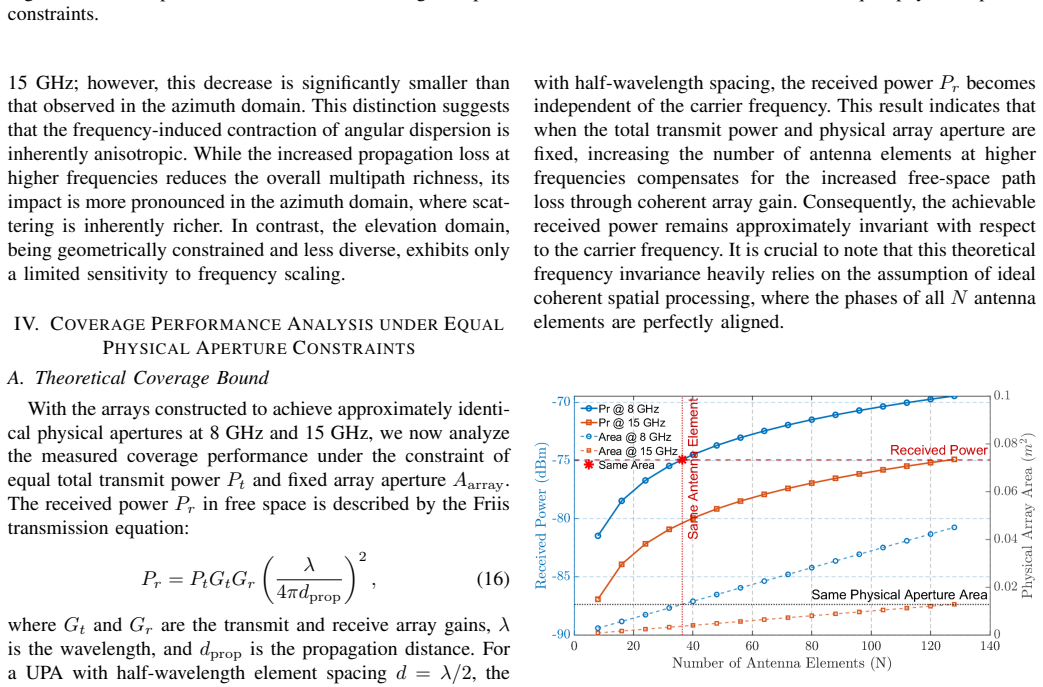

Figure 9. Figure 9: Numerical relationship of theoretical received power [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: CDF of the receive power (non-coherent combining), [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 12
Figure 12. Figure 12: Illustration of array topologies reconstructed from the [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Empirical CDF of received power for different array [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Numerical relationship of theoretical received power [PITH_FULL_IMAGE:figures/full_fig_p012_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Measured spectral efficiency CDFs for 8GHz ( [PITH_FULL_IMAGE:figures/full_fig_p012_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Empirical CDF of real spectral efficiency for different [PITH_FULL_IMAGE:figures/full_fig_p013_16.png] view at source ↗
read the original abstract

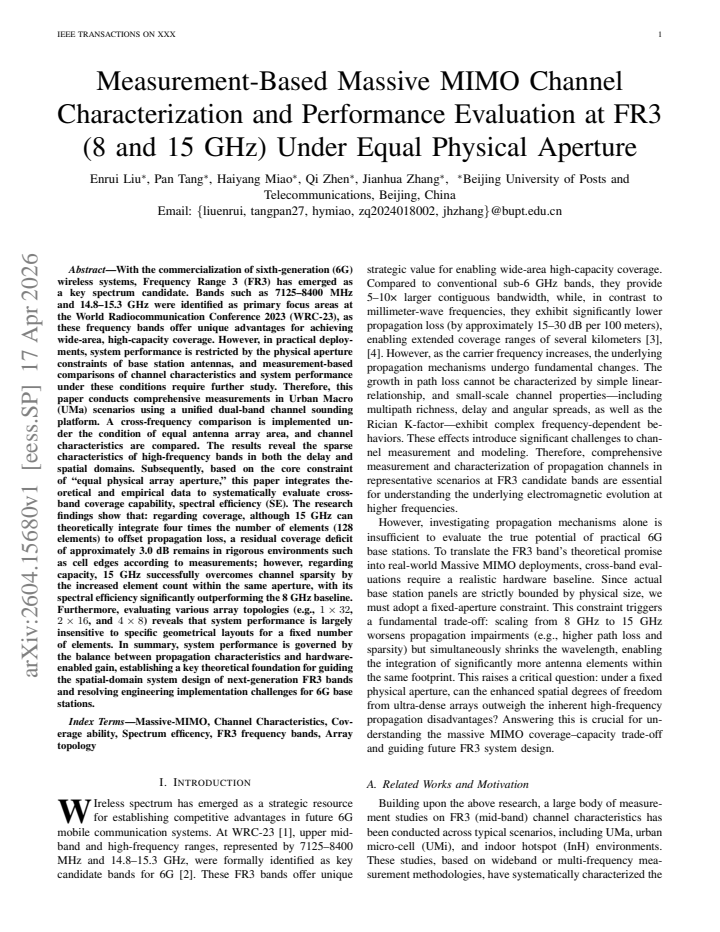

With the push toward 6G commercialization, Frequency Range 3 (FR3) bands, specifically 7.125-8.4 GHz and 14.8-15.3 GHz, have become focal points for achieving wide-area, high-capacity coverage. However, practical deployment is often limited by the physical aperture constraints of base station antennas. This study conducts comprehensive measurements in Urban Macro (UMa) scenarios using a unified dual-band sounding platform to evaluate channel characteristics and system performance under the strict constraint of "equal physical array aperture." The results indicate that higher frequency bands exhibit increased sparsity in both delay and spatial domains. Regarding coverage, while the 15 GHz band can theoretically accommodate four times the number of antenna elements (128 elements) within the same area to compensate for path loss, empirical data reveals a residual coverage deficit of approximately 3.0 dB at cell edges compared to the 8 GHz baseline. In contrast, the 15 GHz band excels in capacity; the increased element count effectively overcomes channel sparsity, resulting in spectral efficiency (SE) that significantly outperforms the 8 GHz band. Furthermore, the research demonstrates that for a fixed number of elements, system performance remains largely insensitive to specific array topologies (e.g., 1x32, 2x16, or 4x8). Ultimately, FR3 system performance is dictated by the trade-off between propagation characteristics and hardware-enabled gain. These findings provide a theoretical foundation for spatial-domain design and help address engineering challenges for 6G base station implementation
