arxiv: 2604.15781 · v1 · submitted 2026-04-17 · 💻 cs.HC

Recognition: unknown

ReVis: Towards Reusable Image-Based Visualizations with MLLMs

Xiaolin Wen , Changlin Li , Manusha Karunathilaka , Can Liu , Fangzhuo Jin , Yong Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:13 UTC · model grok-4.3

classification 💻 cs.HC
keywords image-based visualization reusemultimodal large language modelsdomain-specific languagehuman-AI collaborationvisualization reproductioninteractive customizationvisual encoding extraction
0
0 comments X

The pith

ReVis turns static bitmap visualizations into editable reusable designs by parsing them into a generic language with multimodal AI.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Many visualizations are shared only as images, so reusing or adapting them to new data requires starting over with significant effort and expertise. ReVis defines a generic domain-specific language that captures the visual structures and data mappings inside a chart. An MLLM pipeline reads the image and populates this language, then the system redraws the visualization from the resulting description. An interactive interface lets users check the output, replace the data, and adjust encodings. The goal is to make image-based visualizations practical to reuse without rebuilding them manually.

Core claim

ReVis introduces a generic DSL that models complex visualizations to support both decomposition and reproduction. An MLLM-based pipeline parses an input image into the DSL by extracting core visual structures and data-to-encoding mappings, then reproduces the visualization from the DSL. An interactive interface allows users to upload images, inspect the reproduced result, update the underlying data, and customize visual encodings. A gallery of 40 visualizations demonstrates the DSL's expressiveness, a quantitative study evaluates reproduction quality, and usage scenarios with interviews of 16 practitioners show the system's effectiveness for flexible reuse.

What carries the argument

The generic Domain-Specific Language (DSL) that represents visualizations through their core visual structures and data-to-encoding mappings, which the MLLM pipeline populates from images and the interface uses for reproduction and edits.

If this is right

  • The DSL can express a wide variety of complex visualizations, as shown by successful modeling of a 40-example gallery.
  • An MLLM pipeline can parse images into the DSL well enough to support accurate reproduction of the original visuals.
  • Users can update the data driving a visualization and customize its encodings through an interactive interface without redrawing from scratch.
  • Human-AI collaboration via this pipeline and interface reduces the time and expertise needed to reuse image-based visualizations compared with prior SVG or specification-based tools.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The parsed DSL could serve as an intermediate representation for automatically refreshing published charts when source data changes.
  • Collecting many parsed examples might reveal common design patterns that could inform visualization recommendation systems.
  • Extending the DSL and pipeline to handle animated or multi-view visualizations would increase the range of reusable images.

Load-bearing premise

Multimodal large language models can reliably extract complex visual structures, data mappings, and hierarchies from arbitrary visualization images with little manual correction.

What would settle it

A test collection of visualization images that include dense hierarchies, unusual encodings, or edge-case layouts where the MLLM pipeline produces incorrect DSL structures or failed reproductions in more than a small fraction of cases.

Figures

Figures reproduced from arXiv: 2604.15781 by Can Liu, Changlin Li, Fangzhuo Jin, Manusha Karunathilaka, Xiaolin Wen, Yong Wang.

Figure 1
Figure 1. Figure 1: The details of our proposed DSL are described below. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 1
Figure 1. Figure 1: The domain-specific language (DSL) adopts a hierarchical container model, in which each container has its unique identifier and coordinates. Leaf [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The MLLM-based pipeline for visualization reproduction first parses an input visualization image into a structured DSL representation using a DSL [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The ReVis interface consists of five panels: (A) the Image Preview Panel, which allows users to upload and preview visualization images; (B) the DSL Visualization Panel, which provides an overview of how the DSL decomposes the visual design into hierarchical containers; (C) the DSL Editor, which enables users to edit the DSL to modify the visual design; (D) the Visualization Result Panel, which displays th… view at source ↗
Figure 4
Figure 4. Figure 4: With ReVis, a visualization designer can redesign a visualization from a static image. She first uploads a reference image (A4) to obtain the extracted DSL and the regenerated visualization (A). By interactively editing the DSL in the DSL Editor (B-E), she explores different design variations, creates a customized design, and finally applies her own data to it. the specified mark types, where the drawing f… view at source ↗
Figure 5
Figure 5. Figure 5: With ReVis, a data analyst can flexibly restructure an existing image-based visualization (A) and apply his own data to the redesigned result. By editing the data specification of the template container, he modifies the structure and layout of the repetitive bar–line components (D-F), and by following the exemplar data format, he interactively customizes bar colors and curve linking patterns (G). as the pr… view at source ↗
Figure 6
Figure 6. Figure 6: The user interview questionnaire results. Q1-Q12 are closed-ended questions rated on a 7-point Likert scale. Q13, Q14 are open-ended questions to [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

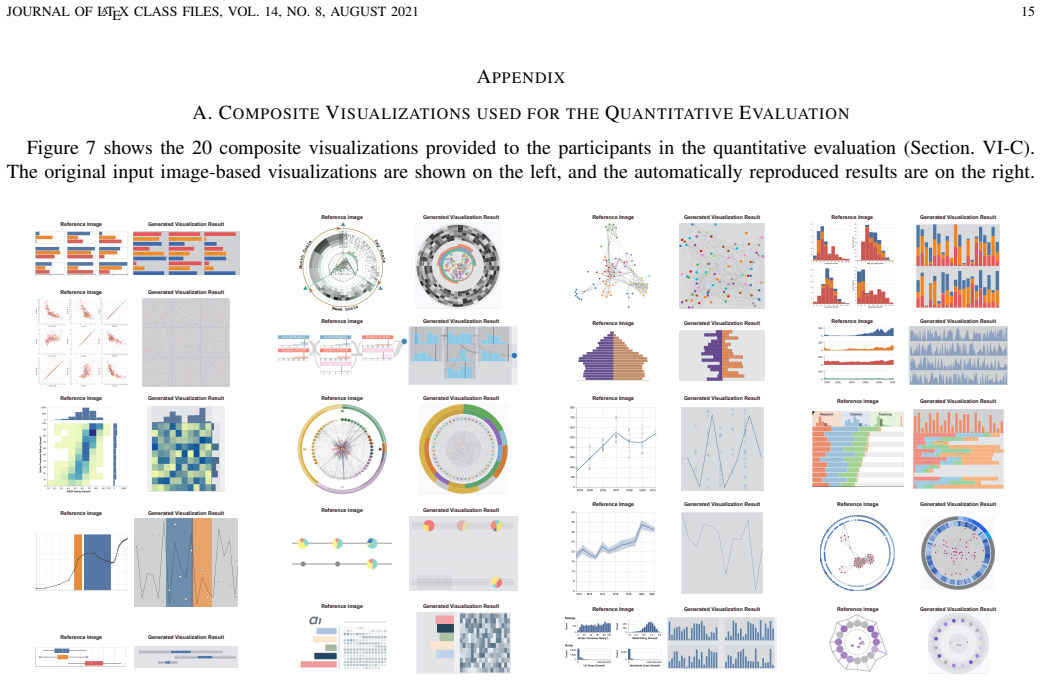

Figure 7. Figure 7: The 20 composite visualizations were used for the Quantitative Evaluation. The original input image-based visualizations are shown on the left, and [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
read the original abstract

Many expressive visualizations are shared online only as bitmap images, making them difficult to redesign or adapt to new data. Reusing such image-based visualizations requires substantial expertise and is often time-consuming, even for experienced visualization practitioners. Existing work on reproducing visualizations often relies on structured SVG or specifications, supports limited visualization types, and offers limited flexibility for customization. To address these challenges, we present ReVis, a human-AI collaboration approach that enables flexible reuse of image-based visualizations. First, a generic Domain-Specific language (DSL) is proposed to model complex visualizations and support both visualization decomposition and reproduction. Then, ReVis employs an MLLM-based pipeline to parse an image-based visualization into the DSL, delineating its core visual structures and data-to-encoding mappings, and further reproduces the visualization from the DSL. Finally, ReVis includes an interactive interface to allow users to upload visualization images, inspect reproduced results, update the underlying data, and customize visual encodings. A gallery of 40 visualizations demonstrates the expressiveness of the DSL, and a quantitative study evaluates the reproduction quality of ReVis on these examples. Two usage scenarios and user interviews with 16 visualization practitioners demonstrate the effectiveness of ReVis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents ReVis, a human-AI collaboration system for reusing bitmap visualization images. It introduces a generic DSL to model complex visualizations, employs an MLLM-based pipeline to parse images into the DSL by extracting visual structures and data-to-encoding mappings, reproduces the visualization from the DSL, and provides an interactive interface for inspection, data updates, and customization. Support comes from a gallery of 40 examples demonstrating DSL expressiveness, a quantitative study of reproduction quality, two usage scenarios, and interviews with 16 visualization practitioners.

Significance. If the MLLM pipeline reliably parses arbitrary images into the DSL with limited manual intervention, ReVis would meaningfully lower barriers to reusing online visualizations, advancing practical human-AI tools in visualization design. The work explicitly credits the breadth of the 40-example gallery for showing DSL coverage and the practitioner interviews for grounding usability claims.

major comments (2)
  1. [Evaluation / Quantitative Study] Quantitative study (evaluation section): the abstract and manuscript describe a 'quantitative study' evaluating reproduction quality on the 40 examples but supply no concrete metrics (e.g., structure extraction accuracy, data-value fidelity, or fraction of cases requiring manual correction), no baselines, and no error analysis or test-set diversity details. This is load-bearing for the central claim because the promise of 'flexible reuse without substantial expertise' rests on the pipeline producing usable DSL outputs for arbitrary images.
  2. [§4 (MLLM Pipeline)] MLLM-based pipeline (§4): the description does not demonstrate systematic mitigation of documented MLLM failure modes (axis misreading, layered-encoding confusion, data hallucination) via an adversarial or diverse test set beyond the curated gallery. If a non-trivial fraction of cases still require substantial human fixes, the 'minimal manual correction' assumption underlying flexible reuse does not hold.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by a one-sentence summary of the quantitative findings (e.g., average reproduction accuracy or correction effort) rather than only listing the study.
  2. [§3 (Generic DSL)] Notation for the generic DSL components could be introduced with a small table or diagram in §3 to improve readability for readers unfamiliar with the specific modeling choices.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. The comments identify key areas where additional rigor in reporting will strengthen the manuscript. We address each major comment below and will revise the paper accordingly.

read point-by-point responses

  1. Referee: [Evaluation / Quantitative Study] Quantitative study (evaluation section): the abstract and manuscript describe a 'quantitative study' evaluating reproduction quality on the 40 examples but supply no concrete metrics (e.g., structure extraction accuracy, data-value fidelity, or fraction of cases requiring manual correction), no baselines, and no error analysis or test-set diversity details. This is load-bearing for the central claim because the promise of 'flexible reuse without substantial expertise' rests on the pipeline producing usable DSL outputs for arbitrary images.

    Authors: We agree that the quantitative study section requires substantially more detail to support the central claims. The current manuscript describes the study at a high level but does not report the specific metrics, baselines, or analyses noted by the referee. In the revised manuscript we will expand the evaluation section to include concrete metrics (structure extraction accuracy, data-value fidelity, fraction of cases requiring manual correction), baselines where feasible, error analysis, and explicit details on test-set diversity and selection criteria. These additions will directly address the load-bearing nature of the evaluation for the flexible-reuse claim. revision: yes

  2. Referee: [§4 (MLLM Pipeline)] MLLM-based pipeline (§4): the description does not demonstrate systematic mitigation of documented MLLM failure modes (axis misreading, layered-encoding confusion, data hallucination) via an adversarial or diverse test set beyond the curated gallery. If a non-trivial fraction of cases still require substantial human fixes, the 'minimal manual correction' assumption underlying flexible reuse does not hold.

    Authors: We acknowledge that §4 currently emphasizes pipeline design and the curated gallery without a dedicated, systematic treatment of MLLM failure modes. While the 40 examples illustrate coverage, they do not constitute an adversarial or explicitly diverse test set for the failure modes listed. In the revision we will augment §4 with an explicit analysis of axis misreading, layered-encoding confusion, and data hallucination, describing the prompting and post-processing steps used to mitigate each, together with observed correction rates from the gallery. We will also note the limitations of the current test set and outline how future work could incorporate a more diverse adversarial set. This will clarify the extent to which minimal manual intervention is achieved. revision: yes

Circularity Check

0 steps flagged

No circularity: system architecture and empirical evaluation are self-contained

full rationale

The paper presents a descriptive system (DSL definition, MLLM parsing pipeline, reproduction, and interactive interface) plus empirical support via a 40-example gallery, quantitative reproduction metrics, usage scenarios, and 16-practitioner interviews. No equations, fitted parameters, or predictions appear in the provided text. Central claims rest on component descriptions and external user-facing evaluations rather than any reduction to self-inputs, self-citations, or ansatzes. The load-bearing assumption (MLLM reliability) is acknowledged as an empirical risk but is not circular within the paper's own logic.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claims rest on the unproven capability of MLLMs to parse visualizations and on the expressiveness of the newly introduced DSL; no numerical free parameters are mentioned.

axioms (1)
  • domain assumption Multimodal LLMs can extract core visual structures and data-to-encoding mappings from bitmap visualization images with sufficient accuracy for reproduction.
    This assumption underpins the entire MLLM-based pipeline described in the abstract.
invented entities (1)
  • Generic Domain-Specific Language (DSL) for modeling visualizations no independent evidence
    purpose: To support decomposition, reproduction, and customization of complex visualizations beyond limited existing formats.
    The DSL is proposed as a new modeling layer; no independent evidence of its expressiveness outside the paper's gallery is provided.
