Convergence Time Distributions for Max-Consensus over Unreliable Networks
Pith reviewed 2026-05-10 07:38 UTC · model grok-4.3
The pith
LiFE-CD computes the full probability distribution of convergence times for max-consensus over networks with random link failures.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
LiFE-CD iteratively reduces the given network topology while accounting for both unicast and broadcast transmissions under geometrically distributed link delays. For acyclic networks the reduction yields the exact convergence-time distribution; for cyclic networks it produces tight upper bounds by replacing the graph with a shortest-path spanning tree. The resulting distribution supports deadline-aware protocol design that meets specified reliability guarantees, and the approach eliminates the variability and cost of Monte Carlo simulation.
What carries the argument
The LiFE-CD algorithm, which reduces network topology step by step using link failure probabilities and transmission modes to obtain the convergence-time distribution.
If this is right
- Designers can compute the probability that consensus finishes by any chosen deadline directly from topology and failure rates.
- Computational effort is deterministic and lower than Monte Carlo simulation while removing run-to-run variability.
- The same reduction rules and bounds apply without change to min-consensus algorithms.
- Numerical validation confirms exactness on acyclic graphs and tightness on cyclic graphs.
Where Pith is reading between the lines
- The reduction technique could be adapted to predict convergence statistics for other distributed coordination tasks that rely on repeated local exchanges.
- In wireless sensor deployments the ability to set precise timeouts with known success probability may reduce unnecessary retransmissions and energy use.
- For cyclic networks, comparing the LiFE-CD bound against full-state simulation on modest-sized graphs would quantify how often the bound is achieved.
Load-bearing premise
The method assumes geometrically distributed link delays and that shortest-path spanning trees produce tight upper bounds on convergence time for networks containing cycles.
What would settle it
Compare the exact distribution produced by LiFE-CD on a small acyclic network against the empirical distribution obtained from repeated direct simulations of max-consensus with the same failure probabilities; any systematic mismatch would falsify the exactness claim.

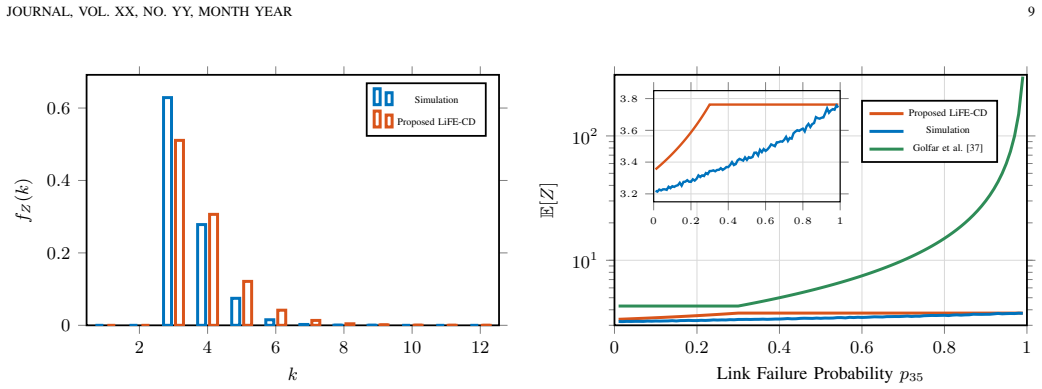

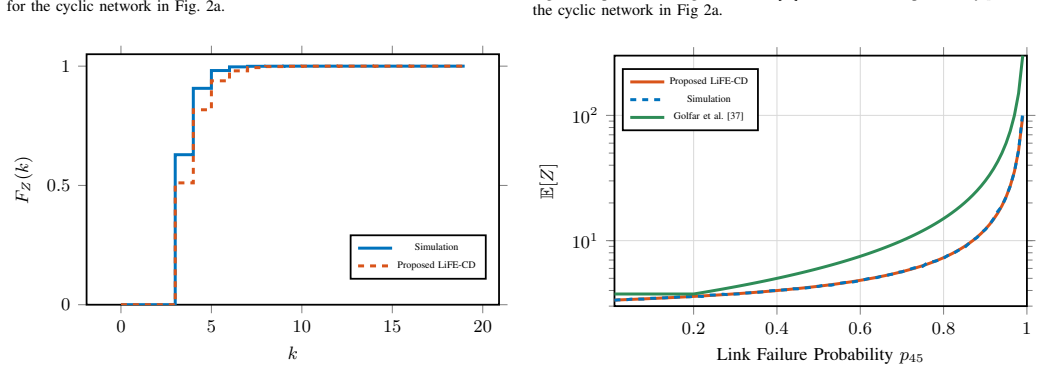

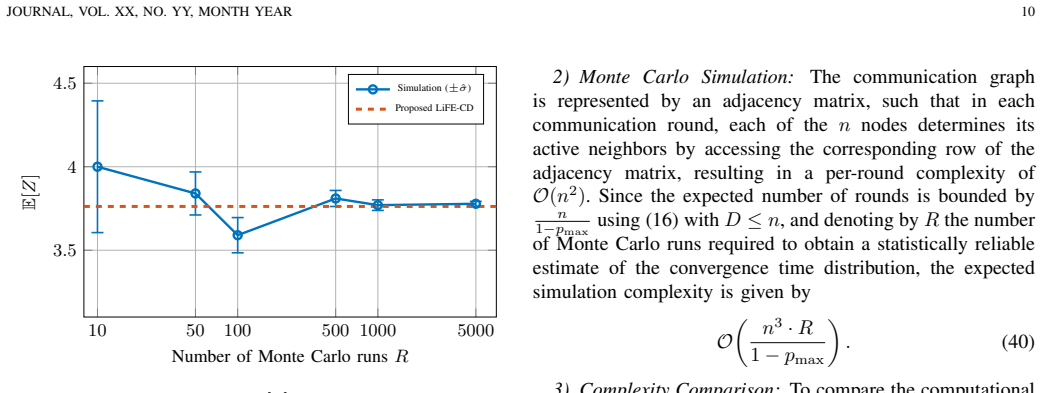

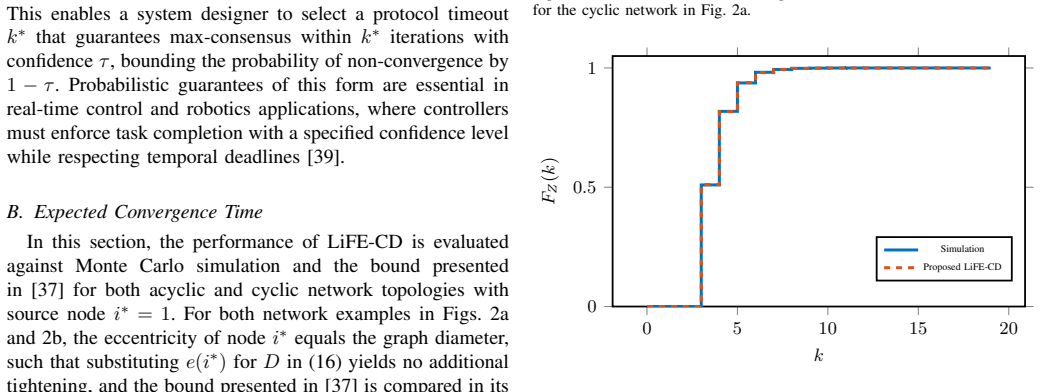

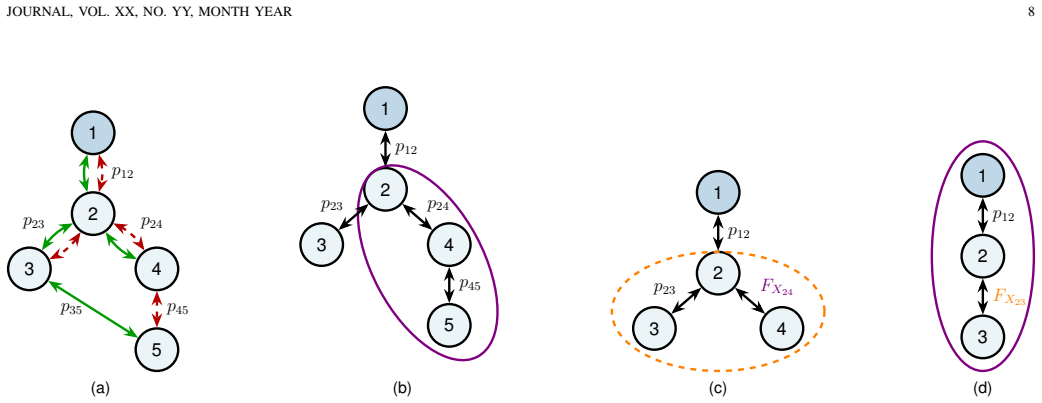

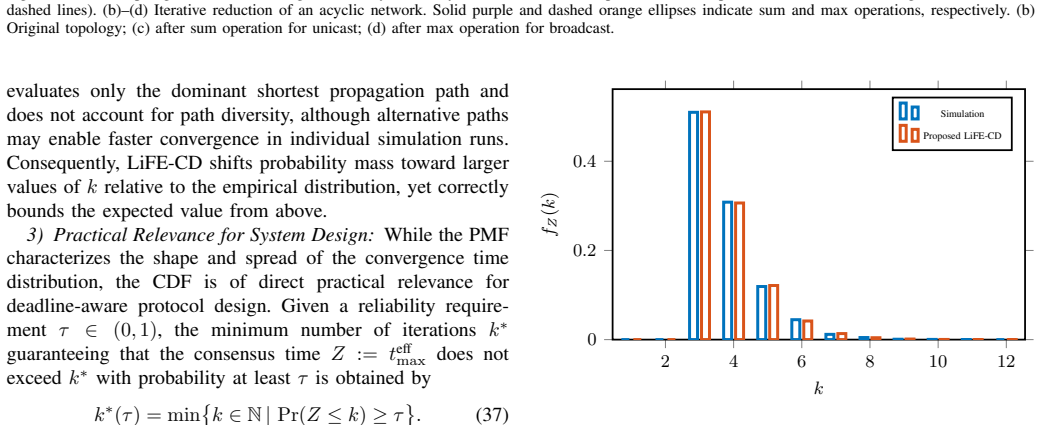

Figures

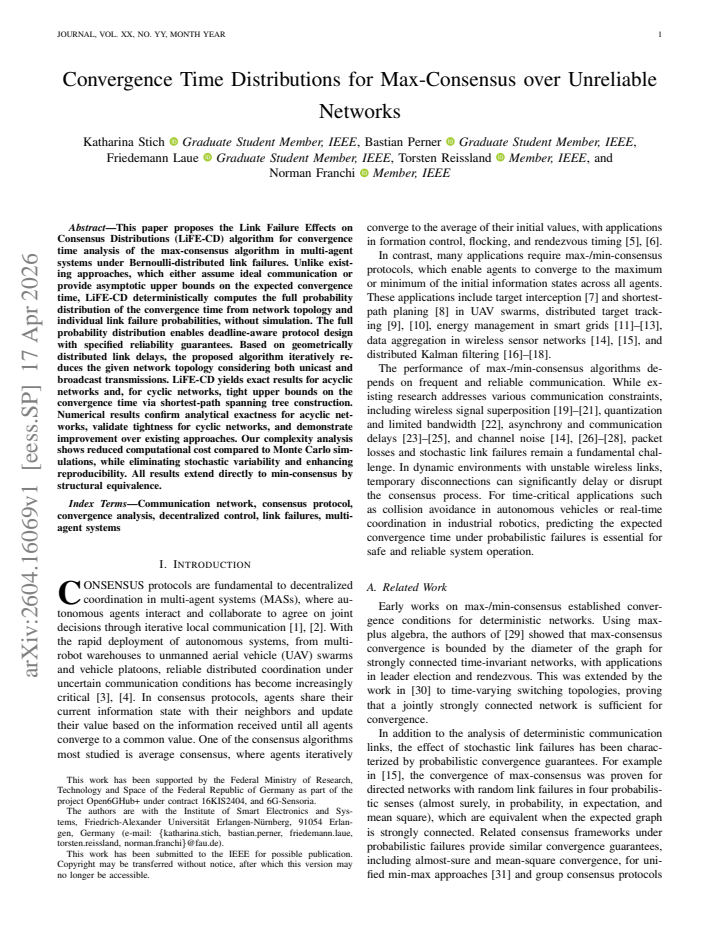

read the original abstract
This paper proposes the LiFE-CD algorithm for convergence time analysis of the max-consensus algorithm in multi-agent systems under Bernoulli-distributed link failures. Unlike existing approaches, which either assume ideal communication or provide asymptotic upper bounds on the expected convergence time, LiFE-CD deterministically computes the full probability distribution of the convergence time from network topology and individual link failure probabilities, without simulation. The full probability distribution enables deadline-aware protocol design with specified reliability guarantees. Based on geometrically distributed link delays, the proposed algorithm iteratively reduces the given network topology considering both unicast and broadcast transmissions. LiFE-CD yields exact results for acyclic networks and, for cyclic networks, tight upper bounds on the convergence time via shortest-path spanning tree construction. Numerical results confirm analytical exactness for acyclic networks, validate tightness for cyclic networks, and demonstrate improvement over existing approaches. Our complexity analysis shows reduced computational cost compared to Monte Carlo simulations, while eliminating stochastic variability and enhancing reproducibility. All results extend directly to min-consensus by structural equivalence.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This manuscript presents the LiFE-CD algorithm, which computes the full probability distribution of the convergence time for the max-consensus algorithm in multi-agent systems subject to Bernoulli-distributed link failures. The algorithm is based on iterative graph reduction considering unicast and broadcast transmissions under geometrically distributed link delays. It provides exact distributions for acyclic networks and tight upper bounds for cyclic networks by constructing a shortest-path spanning tree. Numerical results validate the approach, and complexity analysis shows advantages over Monte Carlo simulations. The results extend to min-consensus.
Significance. The provision of the complete probability distribution, rather than just expected values or asymptotic bounds, is a notable advance that supports deadline-aware protocol design with explicit reliability guarantees. The deterministic computation without simulation improves reproducibility and eliminates variability. If the tightness of the bounds for cyclic networks holds generally, this would be a valuable tool for network protocol analysis in unreliable environments.
major comments (2)
- [Abstract] Abstract: The assertion that shortest-path spanning tree construction yields tight upper bounds on the convergence time distribution for cyclic networks is load-bearing for the central claim but insufficiently justified. In cyclic graphs, max-value propagation occurs over the union of all paths (i.e., the minimum hitting time across parallel routes), whereas the spanning-tree reduction replaces this with a single path per branch and therefore produces a stochastically larger random variable. Tightness is topology- and failure-probability-dependent; numerical confirmation on selected instances does not establish that the bound remains sufficiently tight for the claimed deadline-aware reliability guarantees across arbitrary cases.
- [Section describing the cyclic-network reduction] Section describing the cyclic-network reduction (and associated numerical validation): The iterative graph-reduction procedure and its mapping to a shortest-path spanning tree must be accompanied by an explicit argument showing that the resulting distribution is a valid upper bound and under what conditions it is tight. The geometric-delay assumption is used throughout, yet its interaction with redundant paths in cycles is not analyzed; a counter-example or sensitivity study with varying redundancy levels would be required to support generality.
minor comments (2)
- The pseudocode or step-by-step description of the LiFE-CD algorithm would benefit from an explicit listing of input/output variables and termination conditions to improve reproducibility.
- In the numerical-results figures, ensure that exact versus bound distributions are overlaid with clear legends and that all plotted probabilities sum to one for each parameter set.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on the justification of the cyclic-network bounds in our LiFE-CD algorithm. We address each major comment below and will revise the manuscript to strengthen the presentation with additional formal arguments and analysis.
read point-by-point responses
-
Referee: The assertion that shortest-path spanning tree construction yields tight upper bounds on the convergence time distribution for cyclic networks is load-bearing for the central claim but insufficiently justified. In cyclic graphs, max-value propagation occurs over the union of all paths (i.e., the minimum hitting time across parallel routes), whereas the spanning-tree reduction replaces this with a single path per branch and therefore produces a stochastically larger random variable. Tightness is topology- and failure-probability-dependent; numerical confirmation on selected instances does not establish that the bound remains sufficiently tight for the claimed deadline-aware reliability guarantees across arbitrary cases.
Authors: We agree that the abstract claim requires more explicit support. The shortest-path spanning tree yields a valid upper bound because convergence time in the original graph is determined by the minimum hitting time over all paths, while the tree uses only a subset of paths; additional paths can only decrease (or leave unchanged) the hitting time, so the tree's convergence time stochastically dominates the true one. We will add a formal lemma and proof of this stochastic dominance in the revised cyclic-network section. We also acknowledge that tightness depends on topology and failure probability (tight when redundant paths offer no improvement over the tree paths). We will expand the numerical results with a sensitivity study over varying redundancy levels and failure probabilities to characterize the bound's tightness and support its use for conservative deadline-aware guarantees. revision: yes
-
Referee: The iterative graph-reduction procedure and its mapping to a shortest-path spanning tree must be accompanied by an explicit argument showing that the resulting distribution is a valid upper bound and under what conditions it is tight. The geometric-delay assumption is used throughout, yet its interaction with redundant paths in cycles is not analyzed; a counter-example or sensitivity study with varying redundancy levels would be required to support generality.
Authors: We will revise the cyclic-network reduction section to include an explicit argument and proof that the shortest-path spanning tree distribution is a valid upper bound. Under independent geometric delays, path delays are negative binomial and the node hitting time is the minimum over paths; the tree omits some redundant paths, which can only increase the min hitting time. We will analyze the interaction with cycles by showing that redundant paths strictly reduce the hitting time distribution (or leave it unchanged) and state conditions for tightness (e.g., when the tree captures all minimum-delay paths or when high failure probabilities make extra paths unlikely to help). We will also add a counter-example showing looseness (such as a cycle with low failure probability and high redundancy) and a sensitivity study with varying redundancy levels to demonstrate generality. revision: yes
Circularity Check
No circularity: LiFE-CD is an input-driven iterative graph reduction algorithm
full rationale
The derivation chain consists of an explicit iterative graph-reduction procedure that ingests the network topology and per-link Bernoulli failure probabilities as independent external inputs and produces the convergence-time distribution (exact on trees, upper-bounded on cycles via a shortest-path spanning tree). No equation or step equates the output distribution to a fitted parameter, a self-defined quantity, or a result imported solely via self-citation. Numerical validation on separate instances is cited to support exactness and tightness claims, but the algorithm itself does not presuppose those outcomes. The method therefore remains self-contained against its stated inputs.
Axiom & Free-Parameter Ledger
axioms (3)
- domain assumption Link failures follow independent Bernoulli distributions
- domain assumption Link delays are geometrically distributed
- domain assumption Shortest-path spanning tree yields tight upper bounds for cyclic networks
invented entities (1)
-
LiFE-CD algorithm
no independent evidence
Reference graph
Works this paper leans on
-
[1]
Gossip algorithms for distributed signal processing,
A. G. Dimakis, S. Kar, J. M. F. Moura, M. G. Rabbat, and A. Scaglione, “Gossip algorithms for distributed signal processing,”Proceedings of the IEEE, vol. 98, no. 11, pp. 1847–1864, 2010
work page 2010
-
[2]
Information consensus in multivehicle cooperative control,
W. Ren, R. W. Beard, and E. M. Atkins, “Information consensus in multivehicle cooperative control,”IEEE Control Systems Magazine, vol. 27, no. 2, pp. 71–82, 2007
work page 2007
-
[3]
W. Li, L. Shi, M. Shi, B. Lin, and K. Qin, “Seeking velocity-free consensus for multi-agent systems with nonuniform communication and measurement delays,”IEEE Transactions on Signal and Information Processing over Networks, vol. 9, pp. 295–303, 2023
work page 2023
-
[4]
An overview of recent progress in the study of distributed multi-agent coordination,
Y . Cao, W. Yu, W. Ren, and G. Chen, “An overview of recent progress in the study of distributed multi-agent coordination,”IEEE Transactions on Industrial Informatics, vol. 9, no. 1, pp. 427–438, 2013
work page 2013
-
[5]
Consensus and coop- eration in networked multi-agent systems,
R. Olfati-Saber, J. A. Fax, and R. M. Murray, “Consensus and coop- eration in networked multi-agent systems,”Proceedings of the IEEE, vol. 95, no. 1, pp. 215–233, 2007
work page 2007
-
[6]
Consensus problems in networks of agents with switching topology and time-delays,
R. Olfati-Saber and R. Murray, “Consensus problems in networks of agents with switching topology and time-delays,”IEEE Transactions on Automatic Control, vol. 49, no. 9, pp. 1520–1533, 2004
work page 2004
-
[7]
Finite-time max-consensus for simultaneous target interception in switching graph topologies,
K. P. Singh, A. K. Rao, and T. Tripathy, “Finite-time max-consensus for simultaneous target interception in switching graph topologies,”IEEE Transactions on Control of Network Systems, vol. 12, no. 3, pp. 2350– 2360, 2025
work page 2025
-
[8]
Distributed biased min-consensus with applications to shortest path planning,
Y . Zhang and S. Li, “Distributed biased min-consensus with applications to shortest path planning,”IEEE Transactions on Automatic Control, vol. 62, no. 10, pp. 5429–5436, 2017
work page 2017
-
[9]
Consensus-based distributed estimation for target tracking in heterogeneous sensor net- works,
A. Petitti, D. Di Paola, A. Rizzo, and G. Cicirelli, “Consensus-based distributed estimation for target tracking in heterogeneous sensor net- works,” in2011 50th IEEE Conference on Decision and Control and European Control Conference, 2011, pp. 6648–6653
work page 2011
-
[10]
Set-membership constrained particle filter: Distributed adaptation for sensor networks,
S. Farahmand, S. I. Roumeliotis, and G. B. Giannakis, “Set-membership constrained particle filter: Distributed adaptation for sensor networks,” IEEE Transactions on Signal Processing, vol. 59, no. 9, pp. 4122–4138, 2011
work page 2011
-
[11]
Max-consensus protocol to determine the regulated node in distributed voltage regulation,
D. Danner and H. Meer, “Max-consensus protocol to determine the regulated node in distributed voltage regulation,”Energy Informatics, vol. 5, 09 2022
work page 2022
-
[12]
A biased min-consensus-based approach for optimal power transaction in multi-energy-router systems,
X. Shi, Y . Xu, and H. Sun, “A biased min-consensus-based approach for optimal power transaction in multi-energy-router systems,”IEEE Transactions on Sustainable Energy, vol. 11, no. 1, pp. 217–228, 2020
work page 2020
-
[13]
X. Shi, Y . Xu, Q. Guo, H. Sun, and W. Gu, “A distributed ev navigation strategy considering the interaction between power system and traffic network,”IEEE Transactions on Smart Grid, vol. 11, no. 4, pp. 3545– 3557, 2020
work page 2020
-
[14]
Analysis and design of robust max consensus for wireless sensor networks,
G. Muniraju, C. Tepedelenlioglu, and A. Spanias, “Analysis and design of robust max consensus for wireless sensor networks,”IEEE Transac- tions on Signal and Information Processing over Networks, vol. 5, no. 4, pp. 779–791, 2019
work page 2019
-
[15]
Max-consensus of multi- agent systems in random networks,
J. Yang, L. Zhou, B. Wang, and Y . Zheng, “Max-consensus of multi- agent systems in random networks,”Journal of the Franklin Institute, vol. 361, no. 6, p. 106712, 2024
work page 2024
-
[16]
Distributed kalman filtering via node selection in heterogeneous sensor networks,
D. Di Paola, A. Petitti, and A. Rizzo, “Distributed kalman filtering via node selection in heterogeneous sensor networks,”International Journal of Systems Science, vol. 46, pp. 1–12, 12 2014
work page 2014
-
[17]
Distributed kalman filtering with finite- time max-consensus protocol,
P. Liu, Y .-P. Tian, and Y . Zhang, “Distributed kalman filtering with finite- time max-consensus protocol,”IEEE Access, vol. 6, pp. 10 795–10 802, 2018
work page 2018
-
[18]
X. Qing, H. R. Karimi, Y . Niu, and X. Wang, “Decentralized unscented kalman filter based on a consensus algorithm for multi-area dynamic state estimation in power systems,”International Journal of Electrical Power & Energy Systems, vol. 65, pp. 26–33, 2015
work page 2015
-
[19]
F. Molinari, S. Sta ´nczak, and J. Raisch, “Exploiting the superposition property of wireless communication for max-consensus problems in multi-agent systems,”IFAC-PapersOnLine, vol. 51, no. 23, pp. 176–181, 2018
work page 2018
-
[20]
Max-consensus over fading wireless channels,
F. Molinari, N. Agrawal, S. Sta ´nczak, and J. Raisch, “Max-consensus over fading wireless channels,”IEEE Transactions on Control of Net- work Systems, vol. 8, no. 2, pp. 791–802, 2021
work page 2021
-
[21]
Over-the-air max- consensus in clustered networks adopting half-duplex communication technology,
F. Molinari, N.Agrawal, S.Sta ´nczak and J. Raisch, “Over-the-air max- consensus in clustered networks adopting half-duplex communication technology,”IEEE Transactions on Control of Network Systems, vol. 10, no. 2, pp. 983–992, 2023
work page 2023
-
[22]
Finite-level quantized min- consensus control based on encoding-decoding,
X. Lu, Y . Jia, Y . Fu, and F. Matsuno, “Finite-level quantized min- consensus control based on encoding-decoding,”IEEE Transactions on Cybernetics, vol. 53, no. 11, pp. 6788–6802, 2023
work page 2023
-
[23]
Asynchronous max-consensus protocol with time delays: Convergence results and applications,
S. Giannini, A. Petitti, D. Di Paola, and A. Rizzo, “Asynchronous max-consensus protocol with time delays: Convergence results and applications,”IEEE Transactions on Circuits and Systems I: Regular Papers, vol. 63, no. 2, pp. 256–264, 2016
work page 2016
-
[24]
On the convergence of the max-consensus protocol with asynchronous updates,
S. Giannini, D. Di Paola, A. Petitti, and A. Rizzo, “On the convergence of the max-consensus protocol with asynchronous updates,” in52nd IEEE Conference on Decision and Control, 2013, pp. 2605–2610
work page 2013
-
[25]
Y . Zhang and S. Li, “Perturbing consensus for complexity: A finite- time discrete biased min-consensus under time-delay and asynchronism,” Automatica, vol. 85, pp. 441–447, 2017
work page 2017
-
[26]
Max consensus in sensor networks: Non-linear bounded transmission and additive noise,
S. Zhang, C. Tepedelenlio ˇglu, M. K. Banavar, and A. Spanias, “Max consensus in sensor networks: Non-linear bounded transmission and additive noise,”IEEE Sensors Journal, vol. 16, no. 24, pp. 9089–9098, 2016
work page 2016
-
[27]
Max consensus in the presence of additive noise,
G. Muniraju, C. Tepedelenlioglu, A. Spanias, S. Zhang, and M. K. Banavar, “Max consensus in the presence of additive noise,” in2018 52nd Asilomar Conference on Signals, Systems, and Computers, 2018, pp. 1408–1412
work page 2018
-
[28]
Dis- tributed maximum consensus over noisy links,
E. Lari, R. Arablouei, N. K. D. Venkategowda, and S. Werner, “Dis- tributed maximum consensus over noisy links,”2024 32nd European Signal Processing Conference (EUSIPCO), pp. 2247–2251, 2024
work page 2024
-
[29]
Max-consensus in a max- plus algebraic setting: The case of fixed communication topologies,
B. M. Nejad, S. A. Attia, and J. Raisch, “Max-consensus in a max- plus algebraic setting: The case of fixed communication topologies,” in2009 XXII International Symposium on Information, Communication and Automation Technologies, 2009, pp. 1–7
work page 2009
-
[30]
Max-consensus in a max- plus algebraic setting: The case of switching communication topologies,
B. Monajemi Nejad, S. Attia, and J. Raisch, “Max-consensus in a max- plus algebraic setting: The case of switching communication topologies,” IFAC Proceedings Volumes (IFAC-PapersOnline), vol. 10, 01 2010. JOURNAL, VOL. XX, NO. YY , MONTH YEAR 12
work page 2010
-
[31]
Min–max con- sensus of multi-agent systems in random networks,
H. Li, J. Yang, Z. Yin, L. Zhou, J. Xi, and Y . Zheng, “Min–max con- sensus of multi-agent systems in random networks,”Neurocomputing, vol. 600, p. 128148, 2024
work page 2024
-
[32]
Min–max group consensus of discrete-time multi-agent systems under directed random networks,
J. Yang, L. Zhou, J. Liu, J. Xi, and Y . Zheng, “Min–max group consensus of discrete-time multi-agent systems under directed random networks,” Systems & Control Letters, vol. 193, p. 105938, 2024
work page 2024
-
[33]
A. I. Rikos, J. Hu, T. Charalambous, and K. H. Johannson, “Max- consensus with deterministic convergence in directed graphs with unreliable communication links,” 2026, preprint, arXiv:2402.18719 [eess.SY]. [Online]. Available: https://arxiv.org/abs/2402.18719
-
[34]
Analysis of max-consensus algorithms in wireless channels,
F. Iutzeler, P. Ciblat, and J. Jakubowicz, “Analysis of max-consensus algorithms in wireless channels,”IEEE Transactions on Signal Process- ing, vol. 60, no. 11, pp. 6103–6107, 2012
work page 2012
-
[35]
Improved bounds for max consensus in wireless networks,
A. Nowzari and M. G. Rabbat, “Improved bounds for max consensus in wireless networks,”IEEE Transactions on Signal and Information Processing over Networks, vol. 5, no. 2, pp. 305–319, 2019
work page 2019
-
[36]
K. Stich, T. Reissland, and N. Franchi, “Impact of packet errors on the min-consensus protocol: General analysis and application to an industrial use case,” in2025 International Conference on Control, Automation and Diagnosis (ICCAD), 2025, pp. 1–6
work page 2025
-
[37]
A. Golfar and J. Ghaisari, “Convergence analysis of max-consensus algorithm in probabilistic communication networks with bernoulli dropouts,”International Journal of Systems Science, vol. 50, no. 7, pp. 1313–1326, 2019
work page 2019
-
[38]
T. H. Cormen, C. E. Leiserson, R. L. Rivest, and C. Stein,Introduction to Algorithms, 3rd ed. Cambridge, MA, USA: MIT Press, 2009
work page 2009
-
[39]
An analytical solution for probabilistic guarantees of reservation based soft real-time systems,
L. Palopoli, D. Fontanelli, L. Abeni, and B. V . Frias, “An analytical solution for probabilistic guarantees of reservation based soft real-time systems,”IEEE Trans. Parallel Distrib. Syst., vol. 27, no. 3, p. 640–653, Mar. 2016
work page 2016
-
[40]
Niederreiter,Random Number Generation and Quasi-Monte Carlo Methods
H. Niederreiter,Random Number Generation and Quasi-Monte Carlo Methods. Society for Industrial and Applied Mathematics, 1992
work page 1992
-
[41]
Multilevel monte carlo path simulation,
M. Giles, “Multilevel monte carlo path simulation,”Operations Re- search, vol. 56, pp. 607–617, 06 2008. Katharina Stich(Graduate Student Member, IEEE) received the B.Sc. and M.Sc. degrees in elec- trical engineering with a specialization in in- formation technology from Friedrich-Alexander- Universit¨at Erlangen-N ¨urnberg (FAU), Erlangen, Germany, in 20...
work page 2008
-
[42]
Dr. Reissland has been engaged in research and development of radar systems, JCAS systems and 6G communication systems. Norman Franchi(Member, IEEE) received the Dipl.-Ing. (M.S.) and Dr.-Ing. (Ph.D.) degrees in electrical engineering from Friedrich- Alexander- Universit¨at Erlangen-N ¨urnberg (FAU), Germany, in 2007 and 2015, respectively. He is currentl...
work page 2007
