The 0.9 Megasecond XRISM/Resolve Spectrum of the Seyfert-1 AGN NGC 4151
Pith reviewed 2026-05-10 07:39 UTC · model grok-4.3
The pith
XRISM spectrum of NGC 4151 shows relativistic reflection from the inner accretion disk at 3.2 GM/c².
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The data statistically prefer the addition of relativistic reflection from the innermost accretion disk, extending down to a radius of r = 3.2^{+3.5}_{-2.0} GM/c² and with an inclination of θ = 29.7^{+0.5}_{-0.4} degrees. The narrow Fe Kα emission line complex requires contributions from the torus and the optical broad line region with an emissivity index of q=2. A smooth shoulder on the red wing is interpreted as Compton scattering in a medium with bound electrons, potentially signaling dust at the base of the BLR and in the torus. The Fe K edge at 7.1 keV is best modeled with contributions from multiple charge states consistent with obscuration due to cool gas, and a spectrum of outflows (
What carries the argument
Relativistic reflection from the innermost accretion disk combined with separate torus and BLR emission components in the iron K line profile.
If this is right
- The torus and broad line region are better described with an emissivity index of q=2 than q=3.
- The accretion disk reaches close to the black hole, with the inner radius at 3.2 GM/c².
- Ultra-fast outflows may deliver enough kinetic feedback to affect star formation only for larger volume filling factors.
- Warm absorbers are failed winds whose radius, density, and filling factor are now constrained by the data.
Where Pith is reading between the lines
- The inner radius near 3.2 GM/c² implies the black hole is spinning rapidly enough for the disk to reach near the innermost stable circular orbit.
- Dust signatures in the BLR and torus could connect line profile modeling to the broader AGN unification picture.
- The detailed wind constraints provide a benchmark for testing AGN feedback prescriptions in galaxy evolution simulations.
- Repeating the analysis on time-resolved segments could reveal whether the reflection or wind properties vary with flux state.
Load-bearing premise
The smooth shoulder on the red wing is best interpreted as Compton scattering in a medium with bound electrons signaling dust, and that models with emissivity index q=2 for torus/BLR components are physically preferred over q=3.
What would settle it
A higher-quality spectrum showing no statistical improvement when the relativistic reflection component is added, or constraining the inner disk radius to be larger than 10 GM/c².

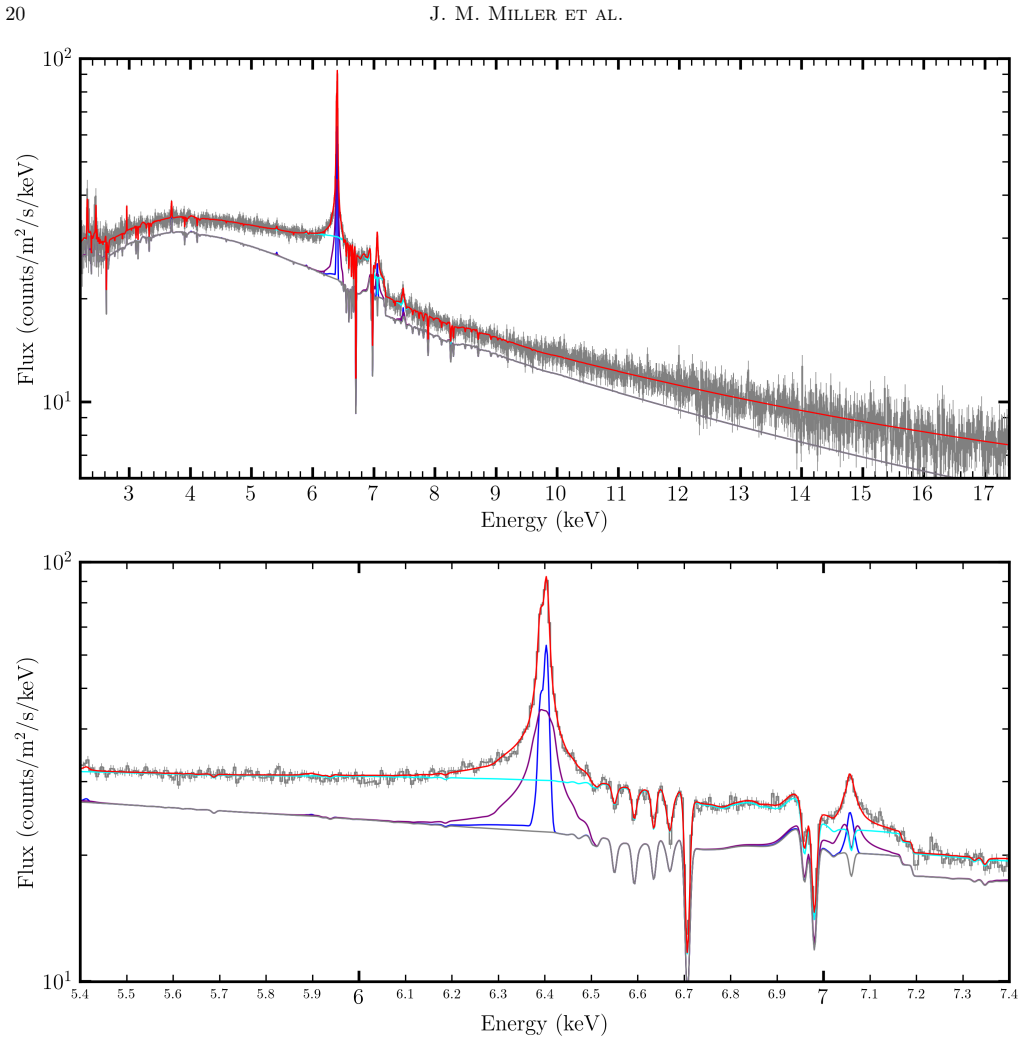

Figures
read the original abstract
NGC 4151 is the brightest Seyfert-1 active galaxy in the pass band of the Resolve calorimeter spectrometer aboard XRISM. It has been observed on 14 occasions, resulting in a total exposure of 893 ks. Herein, we report on an analysis of the time-averaged spectrum. The narrow Fe K$_{\alpha}$ emission line complex requires contributions from the torus and the optical broad line region (BLR). Models assuming an emissivity index of $q=2$ for these components are statistically preferred over models assuming $q=3$ for a flat disk (where $J\propto r^{-q}$). A smooth shoulder on the red wing of these line components is likely best interpreted as Compton scattering in a medium with bound electrons, potentially signaling the presence of dust at the base of the BLR and in the torus. The data statistically prefer the addition of relativistic reflection from the innermost accretion disk, extending down to a radius of $r = 3.2^{+3.5}_{-2.0}~GM/c^{2}$ and with an inclination of $\theta = 29.7^{+0.5}_{-0.4}$ degrees. The Fe K edge at 7.1 keV is best modeled with contributions from multiple charge states, consistent with obscuration due to cool, $kT \simeq 5$ eV collisional gas or photoionized gas. Dust is not evident in the Fe K absorption edge. A spectrum of outflows is clearly revealed, with slow ``warm absorber'' winds spanning Fe XX-XXVI, fast winds primarily seen via Fe XXV and Fe XXVI lines, and ultra-fast outflows (or, UFOs) seen as broad Fe~XXVI lines. The warm absorbers are almost certainly ``failed'' winds that return to the central engine; the data constrain their radius, density, filling factor, and distribution. For the most conservative volume filling factors, the UFOs may not deliver the kinetic feedback needed to halt star formation, on average. However, they may generate galaxy-altering feedback for larger filling factors and/or during certain intervals. (abridged)
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents the time-averaged 893 ks XRISM/Resolve spectrum of the Seyfert-1 AGN NGC 4151. It decomposes the narrow Fe Kα complex into torus and BLR contributions (statistically preferring emissivity index q=2 over q=3), attributes a smooth red-wing shoulder to Compton scattering off bound electrons in dust, adds a relativistic reflection component from the inner disk (r_in = 3.2^{+3.5}_{-2.0} GM/c², inclination 29.7^{+0.5}_{-0.4}°), models the Fe K edge with multiple charge states from cool gas, and identifies a multi-phase outflow spectrum including warm absorbers, fast winds, and UFOs, with discussion of feedback implications.
Significance. If the inner-disk relativistic reflection detection and outflow constraints are robust, the work provides valuable high-resolution constraints on accretion-disk geometry and wind properties in a bright nearby AGN, leveraging the long exposure for detailed component separation.
major comments (2)
- [Spectral fitting of the Fe Kα complex and relativistic reflection] The central claim of a statistically preferred relativistic reflection component (r_in = 3.2^{+3.5}_{-2.0} GM/c²) is presented after adopting q=2 for the torus/BLR. The manuscript must demonstrate that the Δχ² improvement from adding the relxill component remains significant when q=3 is instead fixed for the distant reflectors, since a steeper q=3 profile for a flat geometry could extend additional flux into the red wing and reduce the necessity of the inner-disk component. The abstract provides no such test or Δχ² values under q=3.
- [Abstract] The abstract states that models with q=2 are statistically preferred over q=3 for the torus/BLR but does not report the specific Δχ², degrees of freedom, or null-hypothesis probability for this choice, nor for the subsequent addition of the relativistic component. This omission makes it difficult to evaluate the load-bearing strength of the inner-disk detection.
minor comments (2)
- [Abstract] The abstract claims the red-wing shoulder is 'likely best interpreted' as Compton scattering in dust but does not quantify the improvement over alternative smooth-component models (e.g., additional Gaussian or partial covering).
- [Outflow analysis] The discussion of warm-absorber constraints on radius, density, filling factor, and distribution would benefit from explicit tabulation of the derived values and their uncertainties.
Simulated Author's Rebuttal
We thank the referee for their careful and constructive review of our manuscript. We appreciate the emphasis on ensuring the statistical robustness of the relativistic reflection detection and on providing quantitative details in the abstract. We address each major comment below and will revise the manuscript to incorporate the requested tests and metrics.
read point-by-point responses
-
Referee: [Spectral fitting of the Fe Kα complex and relativistic reflection] The central claim of a statistically preferred relativistic reflection component (r_in = 3.2^{+3.5}_{-2.0} GM/c²) is presented after adopting q=2 for the torus/BLR. The manuscript must demonstrate that the Δχ² improvement from adding the relxill component remains significant when q=3 is instead fixed for the distant reflectors, since a steeper q=3 profile for a flat geometry could extend additional flux into the red wing and reduce the necessity of the inner-disk component. The abstract provides no such test or Δχ² values under q=3.
Authors: We agree that verifying the significance of the inner-disk reflection under the q=3 assumption for the torus/BLR is important, as a steeper emissivity could partially account for red-wing flux. Although the data prefer q=2, we will perform the additional fit with q fixed to 3 for the distant reflectors, report the resulting Δχ² improvement upon adding relxill, and include the updated r_in constraints. These results will be added to the main text and the abstract will be revised to note the robustness check. revision: yes
-
Referee: [Abstract] The abstract states that models with q=2 are statistically preferred over q=3 for the torus/BLR but does not report the specific Δχ², degrees of freedom, or null-hypothesis probability for this choice, nor for the subsequent addition of the relativistic component. This omission makes it difficult to evaluate the load-bearing strength of the inner-disk detection.
Authors: We acknowledge that the abstract should include the quantitative statistics to allow readers to assess the model preferences. In the revised manuscript we will report the specific Δχ² values, degrees of freedom, and null-hypothesis probabilities both for the q=2 versus q=3 comparison and for the addition of the relativistic reflection component. These details will appear in the abstract and be expanded in the main text. revision: yes
Circularity Check
No significant circularity; central results from direct spectral fitting to data
full rationale
The paper reports statistical model fits to the time-averaged XRISM spectrum, with the preference for a relativistic reflection component (r_in = 3.2^{+3.5}_{-2.0} GM/c², θ = 29.7^{+0.5}_{-0.4}°) arising after including torus/BLR contributions. The q=2 emissivity choice is justified by explicit statistical preference over q=3, and inner-disk parameters are free fits rather than outputs of prior equations. No self-definitional relations, fitted inputs renamed as predictions, load-bearing self-citations, or ansatzes smuggled via citation are present. The analysis is self-contained against the observed spectrum and does not reduce the main claim to tautology by construction.
Axiom & Free-Parameter Ledger
free parameters (3)
- inner disk radius =
3.2 GM/c²
- disk inclination =
29.7 degrees
- emissivity index q =
2
axioms (2)
- domain assumption Standard relativistic reflection and photoionization codes accurately describe the spectrum
- ad hoc to paper The red-wing shoulder arises from Compton scattering off bound electrons in dust
