arxiv: 2604.17343 · v1 · submitted 2026-04-19 · 📡 eess.SY · cs.SY

CAR-EnKF: A Covariance-Adaptive and Recalibrated Ensemble Kalman Filter Framework

Shida Jiang , Shengyu Tao , Zihe Liu , Scott Moura This is my paper

Pith reviewed 2026-05-10 06:02 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords ensemble Kalman filternonlinear state estimationcovariance adaptationrecalibrationdata assimilationSLAMLorenz-96
0
0 comments X

The pith

The CAR-EnKF framework improves nonlinear state estimation by recalibrating the ensemble update and adaptively compensating covariance for measurement nonlinearity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops the CAR-EnKF framework to mitigate overconfidence in ensemble Kalman filters caused by nonlinear measurements. Conventional EnKF can underestimate uncertainty in such cases, and simple inflation helps only partially. The new method introduces a recalibration of the Kalman gain effect after the mean update and a positive semidefinite term to compensate for nonlinearity-induced uncertainty, with online tuning via normalized innovation squared. These features activate only when measurements are nonlinear and revert to standard EnKF for linear measurements. Tests on feature-based SLAM and the Lorenz-96 model demonstrate consistent RMSE reductions, particularly pronounced at low measurement noise levels.

Core claim

The CAR-EnKF framework establishes that reassessing the effect of the chosen Kalman gain after updating the ensemble mean together with adding a positive semidefinite covariance compensation term for measurement nonlinearity, with the magnitude tuned online by the normalized innovation squared, produces improved ensemble statistics and lower root mean square errors in nonlinear state estimation compared to conventional EnKF while reducing to the standard framework in the linear case.

What carries the argument

The recalibration mechanism that reassesses the Kalman gain post-update combined with an adaptive positive semidefinite covariance compensation term, active only for nonlinear measurements.

If this is right

  • Standard EnKF implementations can achieve better accuracy in nonlinear regimes without relying solely on covariance inflation.
  • The framework is compatible with both stochastic EnKF and ETKF variants.
  • Performance improvements are especially notable at low measurement noise levels in applications like SLAM and chaotic dynamical systems.
  • In linear measurement cases the method introduces no changes, preserving prior theoretical properties and code.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This recalibration approach might address overconfidence in other nonlinear estimation techniques such as the unscented Kalman filter.
  • Online tuning via innovation statistics could enhance robustness when model errors are present beyond what the paper tests.
  • Combining CAR-EnKF with localization techniques could benefit high-dimensional applications like weather prediction.
  • The gains at low noise suggest utility in precision sensing scenarios not explicitly covered in the experiments.

Load-bearing premise

The recalibration step and adaptive compensation term, when tuned via normalized innovation squared, correctly capture the additional uncertainty induced by measurement nonlinearity without introducing new bias or instability in the ensemble statistics.

What would settle it

Observing whether CAR-EnKF produces lower RMSE than conventional EnKF on the Lorenz-96 system at low measurement noise levels; failure to do so would falsify the improvement claim.

Figures

Figures reproduced from arXiv: 2604.17343 by Scott Moura, Shengyu Tao, Shida Jiang, Zihe Liu.

Figure 1
Figure 1. Figure 1: Feature-based SLAM benchmark used in the paper. [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

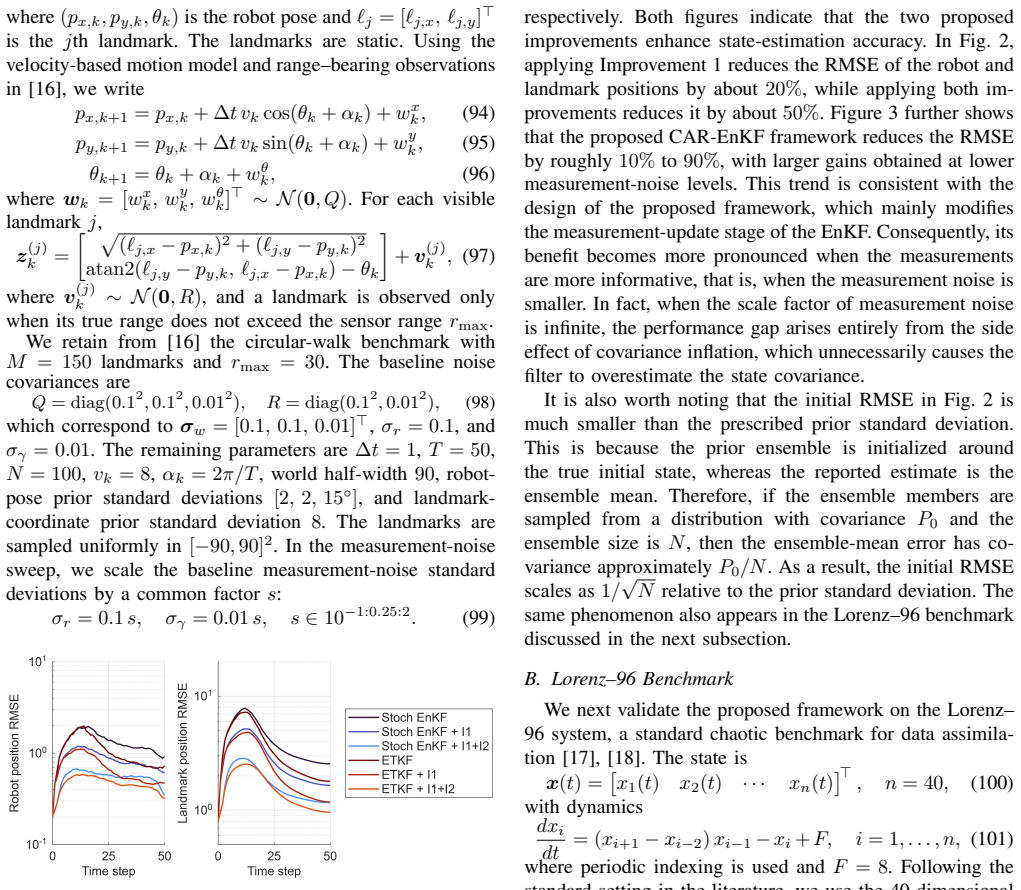

Figure 2
Figure 2. Figure 2: Comparison of different EnKF algorithms on the SLAM problem [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

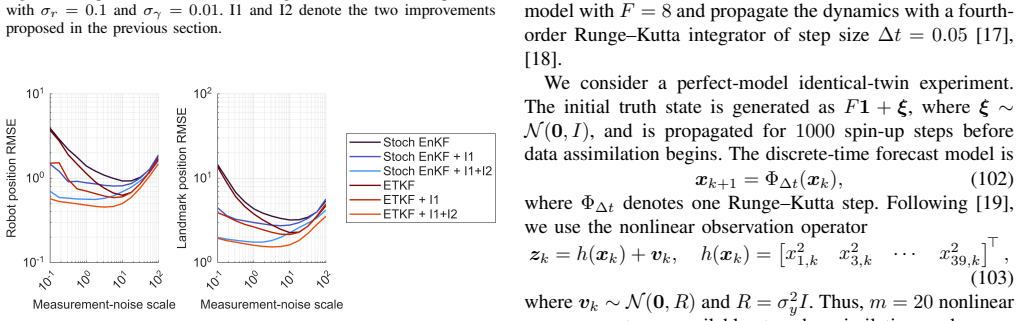

Figure 3
Figure 3. Figure 3: Comparison of different EnKF algorithms on the SLAM problem [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

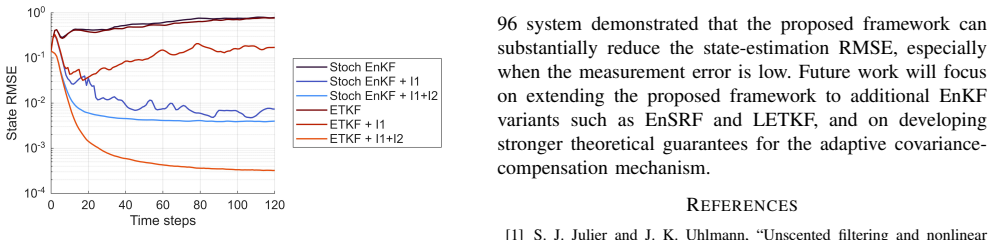

Figure 4
Figure 4. Figure 4: Comparison of different EnKF algorithms on the Lorenz–96 system [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Comparison of different EnKF algorithms on the Lorenz–96 [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

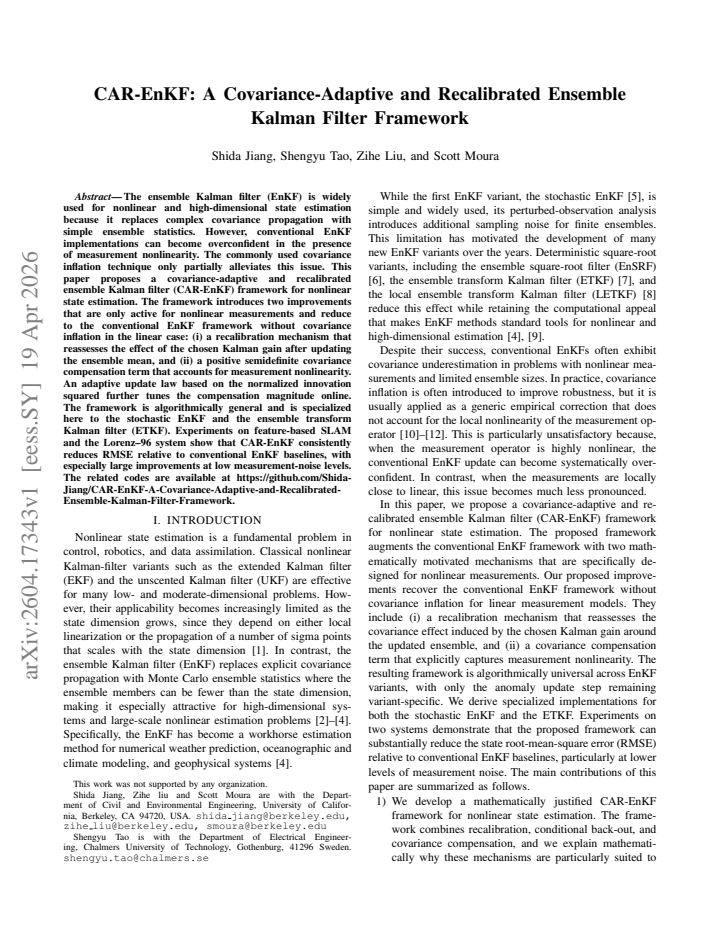

read the original abstract

The ensemble Kalman filter (EnKF) is widely used for nonlinear and high-dimensional state estimation because it replaces complex covariance propagation with simple ensemble statistics. However, conventional EnKF implementations can become overconfident in the presence of measurement nonlinearity. The commonly used covariance inflation technique only partially alleviates this issue. This paper proposes a covariance-adaptive and recalibrated ensemble Kalman filter (CAR-EnKF) framework for nonlinear state estimation. The framework introduces two improvements that are only active for nonlinear measurements and reduce to the conventional EnKF framework without covariance inflation in the linear case: (i) a recalibration mechanism that reassesses the effect of the chosen Kalman gain after updating the ensemble mean, and (ii) a positive semidefinite covariance compensation term that accounts for measurement nonlinearity. An adaptive update law based on the normalized innovation squared further tunes the compensation magnitude online. The framework is algorithmically general and is specialized here to the stochastic EnKF and the ensemble transform Kalman filter (ETKF). Experiments on feature-based SLAM and the Lorenz--96 system show that CAR-EnKF consistently reduces RMSE relative to conventional EnKF baselines, with especially large improvements at low measurement-noise levels. The related codes are available at \href{https://github.com/Shida-Jiang/CAR-EnKF-A-Covariance-Adaptive-and-Recalibrated-Ensemble-Kalman-Filter-Framework}

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes the CAR-EnKF framework as an augmentation to the ensemble Kalman filter for nonlinear state estimation. It introduces a recalibration mechanism that reassesses the effect of the Kalman gain after the ensemble mean update and a positive semidefinite covariance compensation term to account for measurement nonlinearity; the magnitude of the compensation is tuned online via an adaptive law based on normalized innovation squared. The framework is stated to be identically zero (hence inactive) for linear measurements, reduces to standard EnKF without inflation in that case, and is specialized to both stochastic EnKF and ETKF. Experiments on feature-based SLAM and the Lorenz-96 system report consistent RMSE reductions relative to conventional EnKF baselines, with larger gains at low measurement noise levels. Code is made available at the cited GitHub repository.

Significance. If the derivations establish positive semidefiniteness of the compensated covariance and the adaptive law preserves ensemble consistency without introducing bias, the framework offers a principled, measurement-nonlinearity-specific alternative to covariance inflation. The fact that both improvements deactivate for linear measurements is a strength, as is the public code release that supports reproducibility. This could be relevant for high-dimensional nonlinear filtering tasks in robotics and geosciences where overconfidence from unmodeled nonlinearity is a recurring practical issue.

major comments (2)
  1. Abstract and §3 (adaptive law): The compensation term is adapted online using normalized innovation squared, yet the manuscript provides no derivation or justification for the scaling constants inside the update law. This is load-bearing for the central claim of a general, non-ad-hoc framework; if the constants were selected to match the reported RMSE values on Lorenz-96 and SLAM, the validation becomes circular and the method's robustness across untuned systems is unclear.
  2. §4 (covariance compensation): The claim that the added term is positive semidefinite and preserves the statistical properties of the ensemble is central, but the text does not include an explicit proof or even a sketch showing that the recalibration step after the mean update does not violate the zero-mean innovation assumption or introduce new bias in the ensemble spread.
minor comments (2)
  1. The experimental section would benefit from reporting the number of Monte Carlo runs, ensemble size, and statistical significance tests for the RMSE differences, especially the claim of 'especially large improvements at low measurement-noise levels'.
  2. A short complexity analysis or timing comparison versus standard EnKF would clarify the practical overhead of the recalibration and compensation steps.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive summary and detailed comments. We address the two major points below and will revise the manuscript to incorporate the requested clarifications and proofs.

read point-by-point responses

  1. Referee: Abstract and §3 (adaptive law): The compensation term is adapted online using normalized innovation squared, yet the manuscript provides no derivation or justification for the scaling constants inside the update law. This is load-bearing for the central claim of a general, non-ad-hoc framework; if the constants were selected to match the reported RMSE values on Lorenz-96 and SLAM, the validation becomes circular and the method's robustness across untuned systems is unclear.

    Authors: We acknowledge that the original manuscript did not provide an explicit derivation of the scaling constants in the adaptive law of §3. The constants are chosen to match the expected value of the normalized innovation squared under the linear-Gaussian case and then held fixed for the nonlinear extension; however, this motivation was only sketched rather than derived. In the revised manuscript we will add a short derivation in §3 that starts from the innovation statistics and shows how the constants follow directly from the requirement that the adaptive term vanishes for linear measurements. We will also add a brief sensitivity study (using the same Lorenz-96 and SLAM setups) that varies the constants by ±20 % and reports that RMSE improvements remain consistent, thereby addressing the concern of circular validation. revision: yes

  2. Referee: §4 (covariance compensation): The claim that the added term is positive semidefinite and preserves the statistical properties of the ensemble is central, but the text does not include an explicit proof or even a sketch showing that the recalibration step after the mean update does not violate the zero-mean innovation assumption or introduce new bias in the ensemble spread.

    Authors: We agree that an explicit proof sketch is missing from §4. The compensation term is constructed as a rank-one update whose positive-semidefiniteness follows from the outer-product form of the innovation, and the recalibration is applied symmetrically to the ensemble deviations so that the sample mean remains unchanged. In the revised manuscript we will insert a short proof sketch in §4 that (i) verifies positive semidefiniteness by showing the compensation matrix is a Gram matrix, (ii) confirms that the post-update ensemble mean still satisfies the zero-mean innovation property because the recalibration correction is orthogonal to the observation-space mean, and (iii) demonstrates that the ensemble covariance is only inflated, not biased, by the added term. This will make the statistical preservation argument self-contained. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The CAR-EnKF framework augments standard EnKF only for nonlinear measurements via a post-update recalibration step and a PSD compensation term whose magnitude is adapted online via normalized innovation squared (NIS), a standard external consistency statistic. The construction is explicitly stated to be identically zero for linear measurements, reducing exactly to conventional EnKF without inflation. No equations or steps reduce by construction to fitted inputs, self-definitions, or load-bearing self-citations; the adaptive law is presented as a general online tuning device without evidence that its scaling constants are chosen to force the reported RMSE improvements. Experiments on Lorenz-96 and SLAM provide independent empirical checks. The derivation remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract alone, the central claim rests on the standard EnKF ensemble statistics plus two new algorithmic pieces whose correctness is asserted rather than derived from first principles; no explicit free parameters, axioms, or invented entities are named.

pith-pipeline@v0.9.0 · 5555 in / 1160 out tokens · 37304 ms · 2026-05-10T06:02:43.745739+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages · 1 internal anchor

  1. [1]

    Unscented filtering and nonlinear estimation,

    S. J. Julier and J. K. Uhlmann, “Unscented filtering and nonlinear estimation,”Proceedings of the IEEE, vol. 92, no. 3, pp. 401–422, 2004

    work page 2004

  2. [2]

    Sequential data assimilation with a nonlinear quasi- geostrophic model using monte carlo methods to forecast error statis- tics,

    G. Evensen, “Sequential data assimilation with a nonlinear quasi- geostrophic model using monte carlo methods to forecast error statis- tics,”Journal of Geophysical Research: Oceans, vol. 99, no. C5, pp. 10 143–10 162, 1994

    work page 1994

  3. [3]

    The ensemble kalman filter: Theoretical formulation and prac- tical implementation,

    ——, “The ensemble kalman filter: Theoretical formulation and prac- tical implementation,”Ocean dynamics, vol. 53, no. 4, pp. 343–367, 2003

    work page 2003

  4. [4]

    Review of the ensemble kalman filter for atmospheric data assimilation,

    P. L. Houtekamer and F. Zhang, “Review of the ensemble kalman filter for atmospheric data assimilation,”Monthly Weather Review, vol. 144, no. 12, pp. 4489–4532, 2016

    work page 2016

  5. [5]

    Analysis scheme in the ensemble kalman filter,

    G. Burgers, P. J. van Leeuwen, and G. Evensen, “Analysis scheme in the ensemble kalman filter,”Monthly Weather Review, vol. 126, no. 6, pp. 1719–1724, 1998

    work page 1998

  6. [6]

    Ensemble data assimilation without perturbed observations,

    J. S. Whitaker and T. M. Hamill, “Ensemble data assimilation without perturbed observations,”Monthly weather review, vol. 130, no. 7, pp. 1913–1924, 2002

    work page 1913

  7. [7]

    Adaptive sampling with the ensemble transform kalman filter. part i: Theoretical aspects,

    C. H. Bishop, B. J. Etherton, and S. J. Majumdar, “Adaptive sampling with the ensemble transform kalman filter. part i: Theoretical aspects,” Monthly weather review, vol. 129, no. 3, pp. 420–436, 2001

    work page 2001

  8. [8]

    Efficient data assim- ilation for spatiotemporal chaos: A local ensemble transform kalman filter,

    B. R. Hunt, E. J. Kostelich, and I. Szunyogh, “Efficient data assim- ilation for spatiotemporal chaos: A local ensemble transform kalman filter,”Physica D: Nonlinear Phenomena, vol. 230, no. 1-2, pp. 112– 126, 2007

    work page 2007

  9. [9]

    A deterministic formulation of the ensemble kalman filter: an alternative to ensemble square root filters,

    P. Sakov and P. R. Oke, “A deterministic formulation of the ensemble kalman filter: an alternative to ensemble square root filters,”Tellus A: Dynamic Meteorology and Oceanography, vol. 60, no. 2, pp. 361–371, 2008

    work page 2008

  10. [10]

    An adaptive covariance inflation error correction algorithm for ensemble filters,

    J. L. Anderson, “An adaptive covariance inflation error correction algorithm for ensemble filters,”Tellus A: Dynamic meteorology and oceanography, vol. 59, no. 2, pp. 210–224, 2007

    work page 2007

  11. [11]

    Covariance inflation in the ensemble kalman filter: A residual nudging perspective and some implications,

    X. Luo and I. Hoteit, “Covariance inflation in the ensemble kalman filter: A residual nudging perspective and some implications,”Monthly Weather Review, vol. 141, no. 10, pp. 3360–3368, 2013

    work page 2013

  12. [12]

    Enhanced adaptive inflation algorithm for ensemble filters,

    M. El Gharamti, “Enhanced adaptive inflation algorithm for ensemble filters,”Monthly Weather Review, vol. 146, no. 2, pp. 623–640, 2018

    work page 2018

  13. [13]

    A comparison of breeding and ensemble transform kalman filter ensemble forecast schemes,

    X. Wang and C. H. Bishop, “A comparison of breeding and ensemble transform kalman filter ensemble forecast schemes,”Journal of the atmospheric sciences, vol. 60, no. 9, pp. 1140–1158, 2003

    work page 2003

  14. [14]

    Mitigating Overconfidence in Nonlinear Kalman Filters via Covariance Recalibration

    S. Jiang, J. Shi, and S. Moura, “A new framework for nonlinear kalman filters,” 2025. [Online]. Available: https://arxiv.org/abs/2407.05717

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  15. [15]

    Controlling overestimation of error covariance in ensemble kalman filters with sparse observa- tions: A variance-limiting kalman filter,

    G. A. Gottwald, L. Mitchell, and S. Reich, “Controlling overestimation of error covariance in ensemble kalman filters with sparse observa- tions: A variance-limiting kalman filter,”Monthly weather review, vol. 139, no. 8, pp. 2650–2667, 2011

    work page 2011

  16. [16]

    An ensem- ble kalman filter for feature-based slam with unknown associations,

    F. Sigges, C. Rauterberg, M. Baum, and U. D. Hanebeck, “An ensem- ble kalman filter for feature-based slam with unknown associations,” in 2018 21st International Conference on Information Fusion (FUSION). IEEE, 2018, pp. 1–7

    work page 2018

  17. [17]

    Optimal sites for supplementary weather observations: Simulation with a small model,

    E. N. Lorenz and K. A. Emanuel, “Optimal sites for supplementary weather observations: Simulation with a small model,”Journal of the Atmospheric Sciences, vol. 55, no. 3, pp. 399–414, 1998

    work page 1998

  18. [18]

    Improving the ensemble transform kalman filter using a second-order taylor approximation of the nonlinear observation operator,

    G. Wu, X. Yi, L. Wang, X. Liang, S. Zhang, X. Zhang, and X. Zheng, “Improving the ensemble transform kalman filter using a second-order taylor approximation of the nonlinear observation operator,”Nonlinear Processes in Geophysics, vol. 21, no. 5, pp. 955–970, 2014

    work page 2014

  19. [19]

    Data assimilation challenges posed by nonlinear operators: A comparative study of ensemble and variational filters and smoothers,

    K. Kurosawa and J. Poterjoy, “Data assimilation challenges posed by nonlinear operators: A comparative study of ensemble and variational filters and smoothers,”Monthly Weather Review, vol. 149, no. 7, pp. 2369–2389, 2021

    work page 2021
