Physics-Aware Query-Conditioned Graph Attention Networks for Radio Map Estimation
Pith reviewed 2026-05-10 06:05 UTC · model grok-4.3
The pith
A physics-aware hierarchical graph attention network estimates transmitter-specific signal strength at queried locations from sparse measurements using only geometric descriptors.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The proposed physics-aware query-conditioned hierarchical graph attention network constructs a bounded local graph over sampled reference observations for each queried target-transmitter pair, aggregates reference-to-query evidence through transmitter-referenced geometric descriptors, and employs a global graph to exchange representation-level context among nearby target locations. This architecture supports three operating regimes: direct RSS estimation, prior-conditioned residual correction, and post-hoc gated attenuation of the learned correction. The framework relies solely on measurement-side quantities without environment-side inputs. On the DeepMIMO scenario, the direct regime of the
What carries the argument

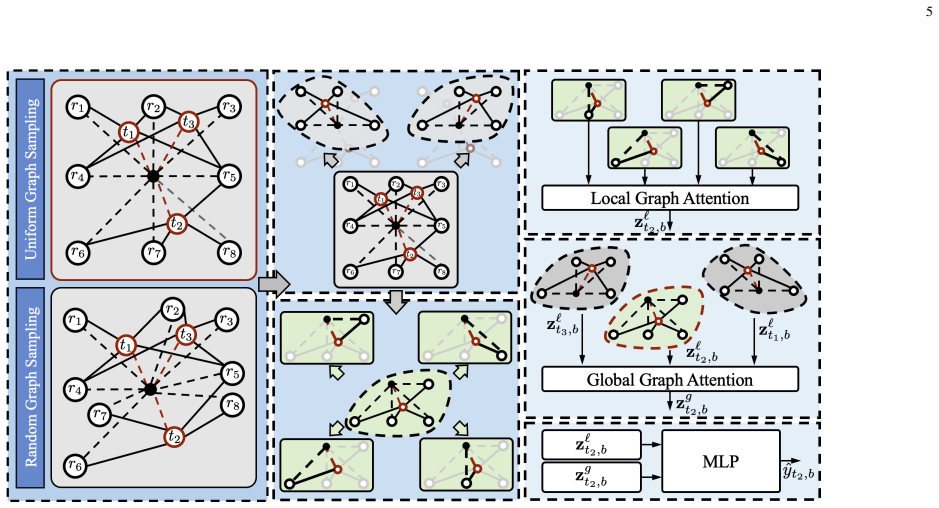

Hierarchical graph attention network (HGAT) that builds a local graph around each query-transmitter pair to aggregate evidence via transmitter-referenced geometric descriptors and then uses a global graph for neighborhood consistency.
Where Pith is reading between the lines
- The query-based design could support efficient localized map updates by re-estimating only around changed areas rather than rebuilding everything.
- The same local-plus-global graph structure might transfer to other wave-propagation tasks such as acoustic or optical field estimation if the geometric descriptors are adapted.
- Because the model needs no environment inputs, it could be deployed on edge devices that only collect measurements on demand.
Load-bearing premise
The DeepMIMO ray-tracing simulations sufficiently represent the propagation physics of real deployments, and the chosen transmitter-referenced geometric descriptors capture the necessary effects without explicit environment modeling or post-hoc tuning.
What would settle it
Run the trained HGAT on a set of sparse real-world RSS measurements collected in an actual urban or indoor site with known transmitter locations, then compare its RMSE and MAE against the same baselines and any available prior estimates.
Figures
read the original abstract
Radio map estimation from sparse measurements is fundamental to wireless network planning, optimization, and localized map updating. Most recent learning-based approaches formulate the problem as dense map completion over a predefined grid, whereas many practical deployments require estimating transmitter-specific received signal strength only at queried locations or refining an existing map after local changes. This paper proposes a physics-aware query-conditioned hierarchical graph attention network for transmitter-resolved point-wise radio map estimation. For each queried target--transmitter pair, the proposed encoder constructs a bounded local graph over sampled reference observations and aggregates reference-to-query evidence through transmitter-referenced geometric descriptors. A global graph then exchanges representation-level context among nearby target locations to improve neighborhood consistency without revisiting a large number of reference measurements. On top of this shared architecture, we instantiate three operating regimes: direct RSS estimation, prior-conditioned residual correction, and post-hoc gated attenuation of the learned correction. The framework uses only measurement-side quantities and does not rely on environment-side inputs. Simulations on the DeepMIMO scenario show that, in the direct regime, the proposed HGAT achieves the lowest RMSE and MAE among the evaluated learning-based baselines on all reported sites. When conventional prior estimate is available, the residual and gated regimes further reduce the prior error.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a physics-aware query-conditioned hierarchical graph attention network (HGAT) for transmitter-resolved point-wise radio map estimation from sparse measurements. It builds bounded local graphs using transmitter-referenced geometric descriptors to aggregate reference-to-query evidence, followed by a global graph for neighborhood consistency, and supports three regimes (direct RSS estimation, prior-conditioned residual correction, and post-hoc gated attenuation). The framework operates solely on measurement-side quantities. DeepMIMO ray-tracing simulations show that the direct-regime HGAT achieves the lowest RMSE and MAE among evaluated learning-based baselines across reported sites, with residual and gated regimes further reducing prior error when available.
Significance. If the performance ordering holds under more rigorous validation, the work provides a practical, query-specific alternative to dense grid-completion methods for radio map tasks, with built-in support for incorporating priors via residual/gated modes and explicit use of geometric descriptors to encode propagation physics without environment-side inputs. The hierarchical local-to-global graph design and measurement-only constraint are notable strengths for deployment flexibility.
major comments (1)
- [Experimental results on DeepMIMO scenario] Experimental results (DeepMIMO evaluation): the claim of lowest RMSE/MAE in the direct regime across sites lacks error bars, standard deviations from repeated trials, ablation studies on graph construction or attention components, or statistical significance tests against baselines; without these, the reported gains cannot be assessed for robustness or generalizability beyond the specific simulation protocol.
minor comments (2)
- [Abstract and §3 (method)] The abstract and method description would benefit from a concise diagram or pseudocode clarifying the data flow between the local graph encoder, global graph, and the three operating regimes.
- [§3.1] Notation for geometric descriptors and graph construction could be made more explicit (e.g., explicit definition of bounded local graph radius) to aid reproducibility.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback and the recommendation of minor revision. We address the major comment on the experimental results point by point below.
read point-by-point responses
-
Referee: Experimental results (DeepMIMO evaluation): the claim of lowest RMSE/MAE in the direct regime across sites lacks error bars, standard deviations from repeated trials, ablation studies on graph construction or attention components, or statistical significance tests against baselines; without these, the reported gains cannot be assessed for robustness or generalizability beyond the specific simulation protocol.
Authors: We agree that the current presentation of results would benefit from additional statistical rigor to better support claims of robustness and generalizability. In the revised manuscript we will rerun all DeepMIMO experiments across multiple independent random seeds (reporting mean and standard deviation for RMSE and MAE), include ablation studies that isolate the contributions of the bounded local-graph construction, transmitter-referenced geometric descriptors, and hierarchical attention layers, and add statistical significance tests (e.g., paired t-tests or Wilcoxon signed-rank tests) against the baselines. Updated tables and figures will be provided. revision: yes
Circularity Check
No significant circularity
full rationale
The paper introduces a hierarchical graph attention network architecture for point-wise radio map estimation from sparse measurements, using transmitter-referenced geometric descriptors and query-conditioned graphs. All performance claims rest on empirical training and evaluation against external DeepMIMO ray-tracing simulations and a set of independent learning-based baselines. No equations, predictions, or uniqueness arguments reduce by construction to fitted parameters, self-definitions, or self-citation chains; the reported RMSE/MAE ordering follows directly from the described experimental protocol on held-out simulation data.
Axiom & Free-Parameter Ledger
free parameters (1)
- model parameters and hyperparameters
axioms (1)
- domain assumption DeepMIMO ray-tracing simulations provide representative data for real radio propagation
