Continuous Wave Second Harmonic Generation from an Etchless Lithium Niobate Resonant Metasurface

Noa Mazurski; Uriel Levy; Zetian Chen

arxiv: 2604.18501 · v1 · submitted 2026-04-20 · ⚛️ physics.optics

Continuous Wave Second Harmonic Generation from an Etchless Lithium Niobate Resonant Metasurface

Zetian Chen , Noa Mazurski , Uriel Levy This is my paper

Pith reviewed 2026-05-10 03:54 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords lithium niobatemetasurfacesecond harmonic generationcontinuous waveresonant metasurfacenonlinear photonicsetchless fabricationguided mode resonance

0 comments

The pith

A hybrid etchless lithium niobate metasurface enables continuous-wave second-harmonic generation at low pump powers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that patterning a silicon-rich nitride layer atop an unetched lithium niobate film creates a resonant structure that concentrates light in the nonlinear material for efficient frequency conversion. This design supports guided-mode resonances with quality factors near 2300 while avoiding etching damage to the lithium niobate. Under continuous-wave pumping at intensities below one kilowatt per square centimeter, clear second-harmonic signals appear with a normalized conversion efficiency of 0.156 percent square centimeters per gigawatt in the linear regime. The results also highlight that resonant operation under continuous drive produces time-dependent effects such as power-induced resonance shifts and signal overshoot, which must be accounted for in device performance.

Core claim

CW second-harmonic generation is achieved in transmission on an etchless thin-film lithium niobate platform with a patterned silicon-rich nitride metasurface, yielding a quality factor of approximately 2300 and a normalized efficiency of 0.156 % cm²/GW at sub-kW/cm² pump levels, together with the observation of transient resonance dynamics including power-dependent evolution and overshoot.

What carries the argument

Hybrid SRN-on-LN metasurface providing guided-mode resonance while confining most of the optical mode in the unpatterned lithium niobate layer.

If this is right

CW resonant SHG exhibits pronounced transient dynamics such as power-dependent resonance shifts and nonideal power scaling.
The etchless platform combines low loss, high nonlinearity, and CMOS compatibility for compact frequency converters.
Resonance dynamics are central to both the operation and the accurate evaluation of CW-driven nonlinear metasurfaces.
Sub-kW/cm² operation opens routes to narrow-linewidth, stable-frequency nonlinear sources without high-power requirements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Transient dynamics observed here may appear in other resonant nonlinear metasurface systems and could be engineered for adaptive tuning.
Extending the hybrid design to different wavelengths or nonlinear processes could broaden applications in integrated photonics.
The avoidance of etching suggests better preservation of material properties, potentially improving long-term stability compared to etched structures.

Load-bearing premise

The hybrid design truly confines most of the optical mode in the unpatterned lithium niobate while the SRN only provides resonance without adding significant loss or nonlinearity, and the observed transient dynamics arise intrinsically from the CW resonant process.

What would settle it

Absence of any detectable second-harmonic signal when the pump is tuned to the resonance wavelength at the reported power levels, or complete disappearance of the transients when the measurement is repeated with different equipment or sample batches, would challenge the claims.

Figures

Figures reproduced from arXiv: 2604.18501 by Noa Mazurski, Uriel Levy, Zetian Chen.

**Figure 2.** Figure 2: Linear transmission spectrum. (a) Simulated spectrum of devices with different notch sizes and periods. Inset: calculated field enhancement for the small notch high-Q device at resonance, showing 44-fold enhancement confined in the LN. (b) Measured transmission spectrum. Inset shows the zoom-in of the high-Q device resonance, estimated with Q~2300. (c) Optical setup. EDFA: erbium-doped fiber amplifier, SM:… view at source ↗

**Figure 3.** Figure 3: a [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

**Figure 4.** Figure 4: SH power (a, c) and conversion efficiency (b, d), for the low-Q device (a, b) and high-Q device (c, d). The low-Q device shows a close to 2 logarithmic slope between the SH power and pump power up to high power, with almost constant normalized conversion efficiency. The high-Q device shows piecewise, and progressively decreased slope as pump power increases. In contrast, the high-Q device does not exhibit … view at source ↗

**Figure 4.** Figure 4: When the device is illuminated directly from the dark at 𝜆max𝑆𝐻 , the SH signal exhibits only a slow and relatively weak increase (green curve), remaining far below the optimized value. For red-detuned excitation, i.e., at 𝜆max𝑆𝐻 + 0.1 nm, the response is even weaker. In contrast, for blue-detuned excitation at 𝜆max𝑆𝐻 − 0.3 nm and 𝜆max𝑆𝐻 − 0.4 nm, the SH signal first builds up with time and can temporarily… view at source ↗

**Figure 5.** Figure 5: Transient dynamic of the high-Q device SH response. (a) under constant pump power, and (b) under constant pump wavelength. 𝝀𝒎𝒂𝒙𝑺𝑯 denotes the pump wavelength that yields the maximum SH signal at quasi-steady state under 270 mW, as determined using the resonance-tracking protocol. The yellow curves with markers indicate the same measurement for direct comparison. The dashed lines are included only as guides… view at source ↗

read the original abstract

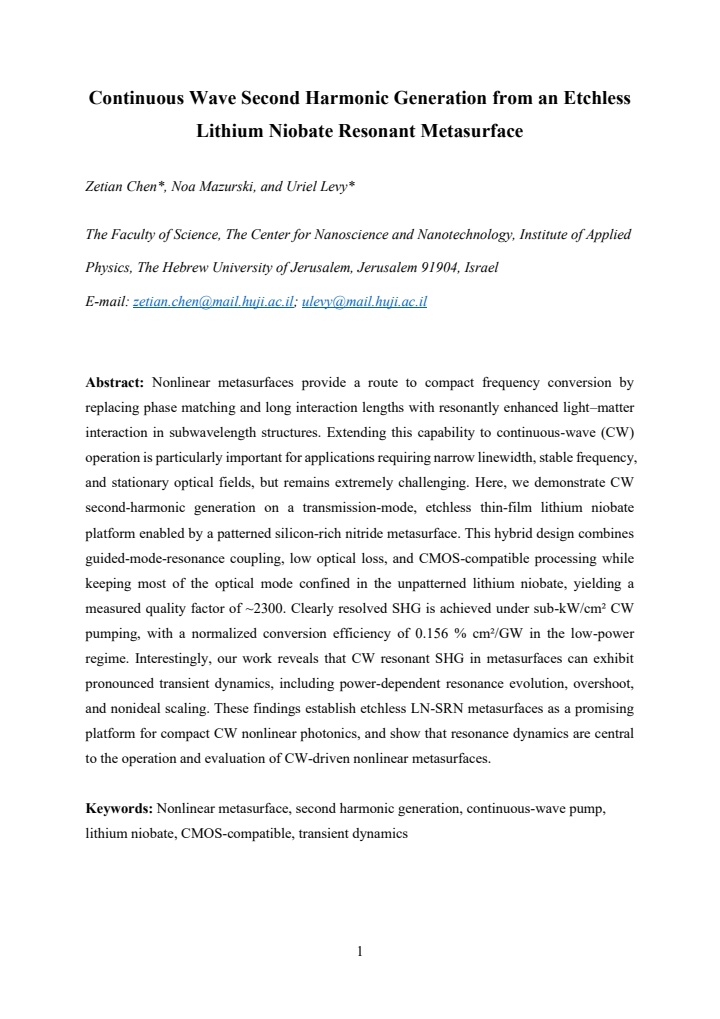

Nonlinear metasurfaces provide a route to compact frequency conversion by replacing phase matching and long interaction lengths with resonantly enhanced light matter interaction in subwavelength structures. Extending this capability to continuous wave (CW) operation is particularly important for applications requiring narrow linewidth, stable frequency, and stationary optical fields, but remains extremely challenging. Here, we demonstrate CW second-harmonic generation on a transmission mode, etchless thin film lithium niobate platform enabled by a patterned silicon rich nitride metasurface. This hybrid design combines guided mode resonance coupling, low optical loss, and CMOS compatible processing while keeping most of the optical mode confined in the unpatterned lithium niobate, yielding a measured quality factor of ~2300. Clearly resolved SHG is achieved under sub-kW/cm^2 CW pumping, with a normalized conversion efficiency of 0.156 % cm^2/GW in the low power regime. Interestingly, our work reveals that CW resonant SHG in metasurfaces can exhibit pronounced transient dynamics, including power dependent resonance evolution, overshoot, and nonideal scaling. These findings establish etchless LN SRN metasurfaces as a promising platform for compact CW nonlinear photonics, and show that resonance dynamics are central to the operation and evaluation of CW driven nonlinear metasurfaces.
