Topological analysis of hemodynamic response to cardiac resynchronization therapy

Aina Ferr\`a Marc\'us , Carles Casacuberta , Josep Vives , Joan Guich , Gerard Amor\'os-Figueras , Jose M. Guerra

Authors on Pith no claims yet

Pith reviewed 2026-05-10 05:57 UTC · model grok-4.3

classification 🧬 q-bio.QM

keywords Mapper algorithmtopological data analysiscardiac resynchronization therapyhemodynamic responsebiventricular pacingswine modelself-connectivity indexendocardial versus epicardial

0 comments

The pith

Topological Mapper analysis finds basal pacing sites produce higher self-connectivity in hemodynamic responses than mid or apical sites during biventricular stimulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The study applies the Mapper algorithm to map distributions of four hemodynamic variables recorded during endocardial and epicardial biventricular pacing in a swine model of non-ischemic cardiomyopathy. It augments the resulting graphs with three new numerical indices that measure self-connectivity, scattering, and homogeneity. These measures detect statistically significant regional differences, with basal pacing yielding a self-connectivity index of 0.57 while mid and apical sites yield 0.14 and 0.24 respectively. Lateral endocardial stimulation further widens the separation between basal and non-basal patterns compared with epicardial stimulation. The approach demonstrates that topological tools can extract biologically interpretable distinctions in cardiac pacing effects from complex multivariate data.

Core claim

The Mapper algorithm applied to point clouds of hemodynamic variables generates graphs whose self-connectivity index reaches 0.57 for basal-region pacing but only 0.14 for mid-region pacing and 0.24 for apical-region pacing, with the differences statistically significant at p less than 0.01. Endocardial stimulation from lateral sites increases the separation between the basal and non-basal distributions relative to epicardial stimulation, revealing new quantitative distinctions across heart regions.

What carries the argument

The Mapper algorithm enhanced by quantitative indices that compute self-connectivity, scattering, and homogeneity directly from the colored graphs it produces.

If this is right

Pacing from basal left-ventricular regions consistently produces more internally connected topological structures in the hemodynamic variable space.
Lateral endocardial lead placement increases the topological contrast between basal and non-basal pacing effects compared with epicardial placement.
The self-connectivity index provides an objective, graph-based metric for ranking the hemodynamic impact of different CRT site combinations.
Topological indices can detect regional response patterns that remain hidden under standard summary statistics alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the same topological signatures appear in human CRT patients, the indices could help select lead positions that maximize response homogeneity.
The observed basal-mid contrast may correspond to underlying differences in myocardial fiber orientation or local wall stress that future imaging studies could test.
Combining Mapper-derived indices with electrical activation maps might produce a joint optimization framework for multi-site pacing.

Load-bearing premise

The numerical indices extracted from Mapper graphs capture genuine biological differences in hemodynamic response distributions rather than depending on specific algorithm parameters or the swine model.

What would settle it

Re-running the Mapper construction on the same hemodynamic data with altered filter functions, cover parameters, or clustering methods and obtaining non-significant differences in self-connectivity between basal and mid/apical groups would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.18634 by Aina Ferr\`a Marc\'us, Carles Casacuberta, Gerard Amor\'os-Figueras, Joan Guich, Jose M. Guerra, Josep Vives.

**Figure 2.** Figure 2: Colored Mapper graph of the study dataset for a comparison between epicardial [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

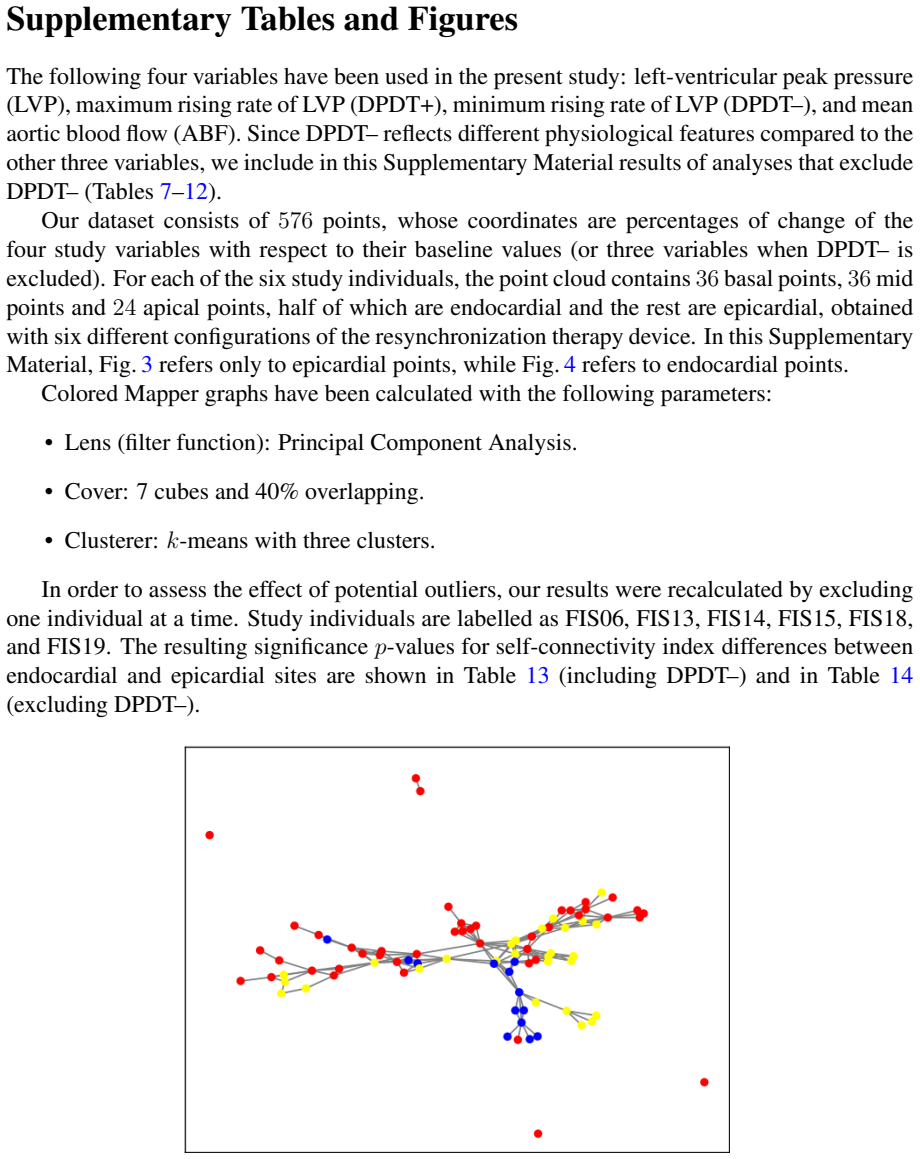

**Figure 3.** Figure 3: Colored Mapper graph using only epicardial points in the study dataset. Colors of vertices correspond to heart sites (red: basal; yellow: mid; blue: apical). 13 [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
