Stiffness-Aware Decentralized Dynamic State Estimation for Inverter-Dominated Power Systems

Xingyu Zhao , Marcos Netto , Junbo Zhao This is my paper

Pith reviewed 2026-05-10 03:35 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords dynamic state estimationinverter-based resourcesstiffnessstatistical linearizationmatrix exponentialdecentralized estimationpower system monitoring
0
0 comments X p. Extension

The pith

Statistical linearization lets decentralized estimators track stiff inverter dynamics stably at coarse sampling intervals.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to overcome numerical instability in dynamic state estimation for modern power grids dominated by inverter-based resources. These resources introduce multi-timescale stiff dynamics that force conventional explicit discretization methods to use impractically small sampling steps, raising communication and computation costs. The proposed approach builds local linear surrogate models through statistical linearization, then applies matrix-exponential discretization to propagate uncertainty analytically in discrete time. This combination keeps estimation accurate and stable even when sampling intervals are coarse. A sympathetic reader would care because it makes real-time monitoring feasible as renewable inverters replace traditional synchronous machines.

Core claim

The central claim is that statistical linearization constructs sufficiently accurate local linear surrogate models of the nonlinear multi-timescale inverter dynamics, which in turn permits matrix-exponential discretization to achieve analytical uncertainty propagation in discrete time and thereby enables stable, accurate, stiffness-aware decentralized dynamic state estimation at sampling rates that would destabilize conventional explicit schemes.

What carries the argument

Local linear surrogate models obtained via statistical linearization, followed by matrix-exponential discretization that performs analytical uncertainty propagation without explicit integration.

If this is right

  • Conventional explicit discretization schemes require impractically small sampling intervals to remain stable under stiff inverter dynamics, while the proposed method does not.
  • Decentralized dynamic state estimation can operate with reduced communication and computational burden while retaining accuracy.
  • The method explicitly reveals the mechanism by which stiff multi-timescale dynamics destabilize standard DSE approaches.
  • Numerical tests confirm efficient and accurate estimation under coarse sampling conditions for inverter-dominated systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same linear-surrogate-plus-matrix-exponential pattern could be tested on other stiff nonlinear systems such as fast chemical reactors or multi-scale mechanical control loops.
  • Integration with phasor measurement unit data streams would provide a direct field test of whether the coarse-sampling accuracy holds under realistic measurement noise.
  • Because uncertainty is propagated analytically, the method may naturally support extensions that quantify how inverter parameter uncertainty affects overall grid observability.

Load-bearing premise

Statistical linearization must yield a local linear model accurate enough for the matrix-exponential discretization to remain stable and produce estimates that track the true nonlinear behavior at large sampling intervals.

What would settle it

Run the estimator on a high-fidelity nonlinear simulation of an inverter-dominated grid at sampling intervals where explicit methods diverge; if state-estimate errors grow unbounded or the filter becomes unstable, the central claim is falsified.

Figures

Figures reproduced from arXiv: 2604.18732 by Junbo Zhao, Marcos Netto, Xingyu Zhao.

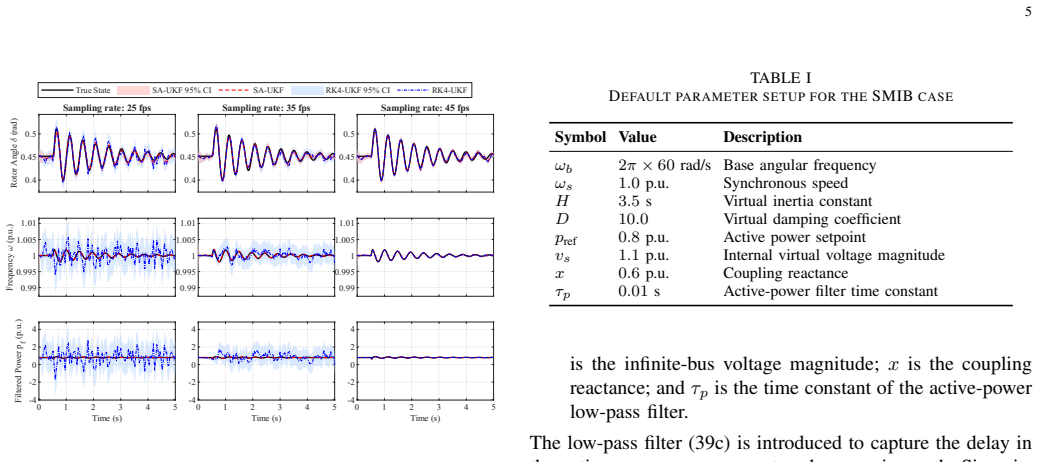

Figure 1
Figure 1. Figure 1: DSE trajectories of SA-UKF and RK4-UKF in the SMIB case under [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

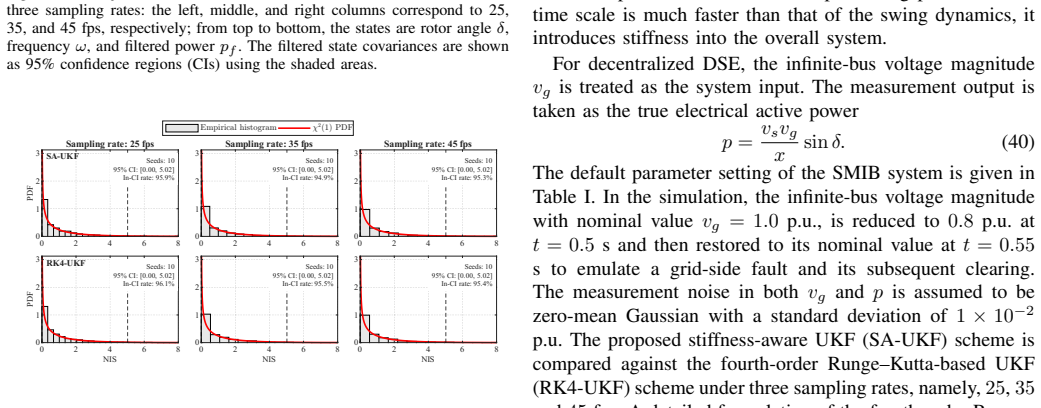

Figure 2. Figure 2: NIS consistency assessment (10 different random-seed selections) of [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

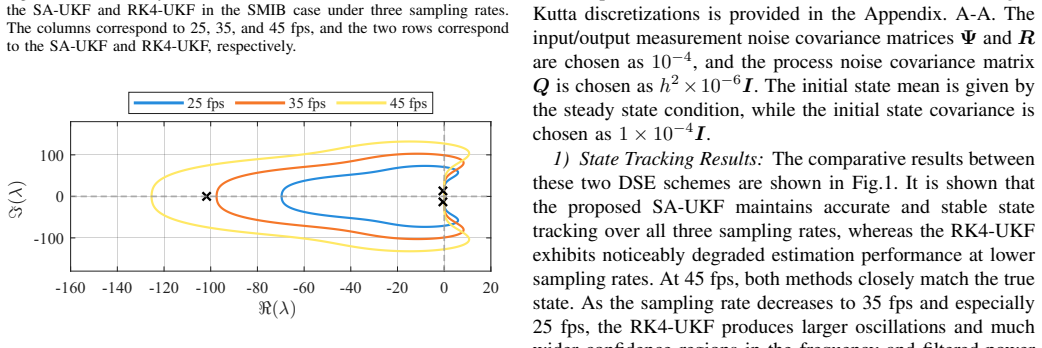

Figure 3
Figure 3. Figure 3: RK4 stability regions in the complex plane under three sampling rates. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: The first row indicates that the proposed method is [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

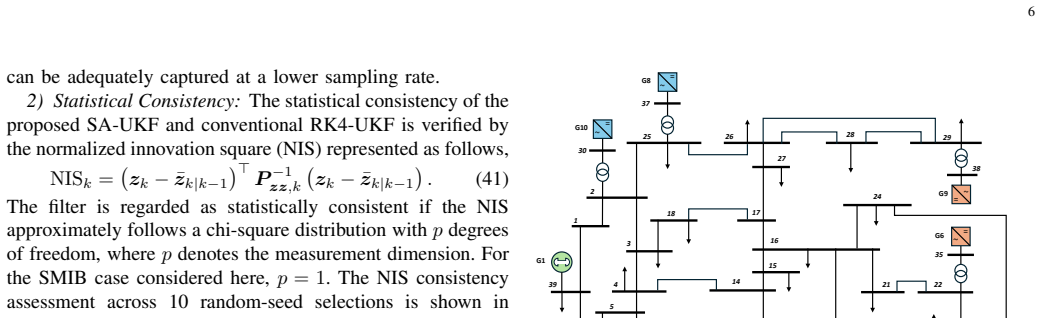

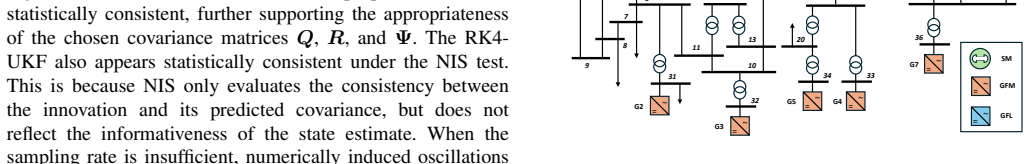

Figure 4
Figure 4. Figure 4: The modified inverter-dominated 39-bus power system [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

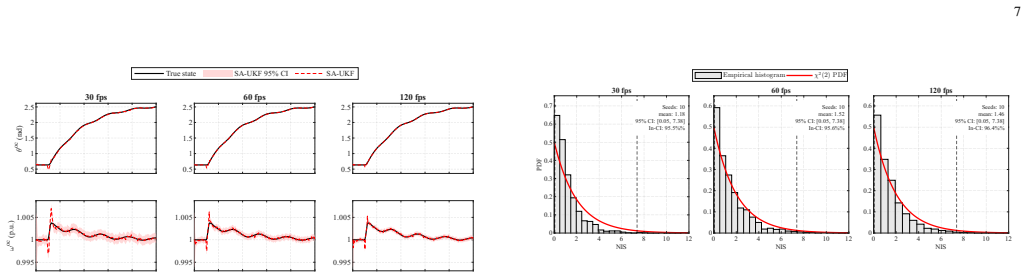

Figure 7
Figure 7. Figure 7: NIS consistency assessment (10 different random-seed selections) for [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

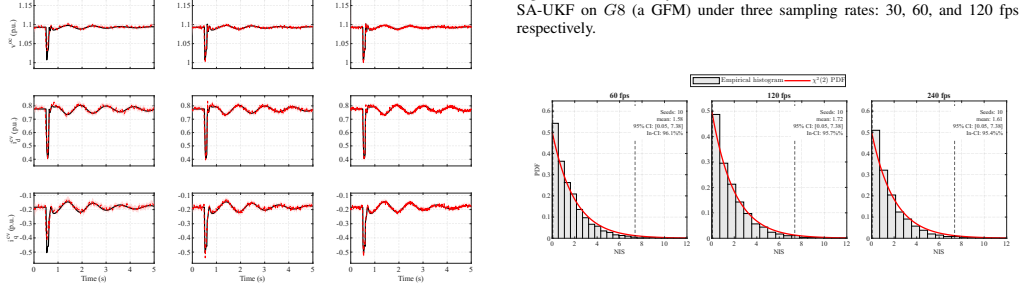

Figure 8
Figure 8. Figure 8: NIS consistency assessment (10 different random-seed selections) for [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

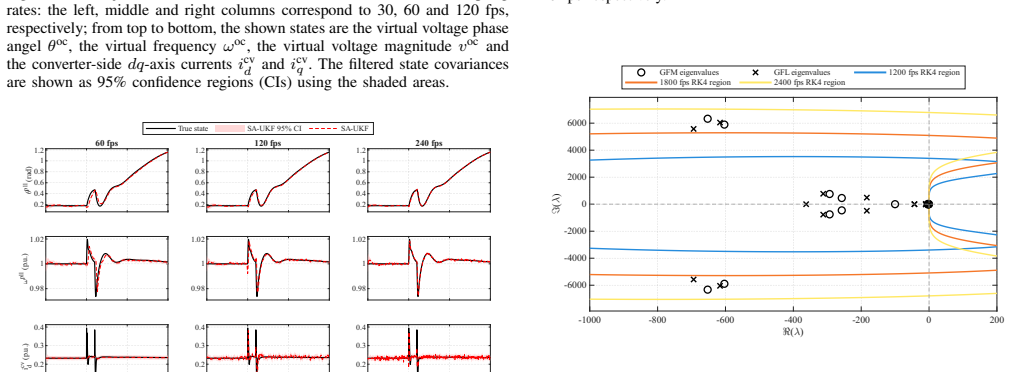

Figure 9
Figure 9. Figure 9: RK4 stability regions in the complex plane for different sampling [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: DSE results of SA-UKF and RK4-UKF for G8 (a GFM) at 1800 fps sampling rate. The left, middle, and right columns show the virtual frequency ω oc and the converter-side dq-axis currents i cv d and i cv q , respectively. The filtered state covariances are shown as 95% confidence intervals (CIs) using shaded regions. Time (s) 0 0.5 1 1.5 ! pll (p.u.) 0.97 0.98 0.99 1 1.01 1.02 1.03 True SA-UKF 95% CI SA-UKF R… view at source ↗
Figure 11
Figure 11. Figure 11: DSE results of SA-UKF and RK4-UKF for G10 (a GFL) at 1800 fps sampling rate. The left, middle, and right columns show the PLL frequency ω pll and the converter-side dq-axis currents i cv d and i cv q , respectively. The filtered state covariances are shown as 95% confidence intervals (CIs) using shaded regions. responding statistical consistency assessments are given in [PITH_FULL_IMAGE:figures/full_fig_… view at source ↗
read the original abstract

Dynamic state estimation (DSE) is becoming increasingly important for monitoring inverter-dominated power systems. Due to their cascading control structures, inverter-based resources (IBRs) exhibit multi-timescale dynamics, leading to stiff system models that pose significant challenges for conventional DSE methods. In particular, explicit discretization schemes often require impractically small sampling intervals to maintain numerical stability, increasing computational and communication burdens. To address this issue, this paper proposes a stiffness-aware decentralized DSE method for inverter-dominated power systems. The statistical linearization is used to construct a local linear surrogate model for the nonlinear dynamics, which allows matrix-exponential discretization to enable analytical uncertainty propagation in discrete time, rather than relying on explicit integration schemes. This enables stable DSE at lower sampling rates. Numerical results reveal the mechanism by which stiff dynamics destabilize conventional DSE and demonstrate that the proposed method achieves efficient and accurate estimation under coarse sampling conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper claims to introduce a stiffness-aware decentralized DSE method for inverter-dominated power systems. By applying statistical linearization to build local linear surrogate models of the nonlinear IBR dynamics, it enables matrix-exponential based discretization that supports analytical uncertainty propagation. This allows the method to perform stable and accurate state estimation at sampling rates that would cause conventional explicit integrators to fail due to stiffness from multi-timescale dynamics. The numerical results are said to demonstrate both the destabilization mechanism in standard DSE and the advantages of the proposed approach under coarse sampling.

Significance. This research addresses a timely and important problem in power system monitoring as the grid transitions to inverter-based resources. If the proposed method proves robust, it could enable more efficient decentralized estimation with reduced communication and computation requirements. The approach leverages established techniques (statistical linearization and matrix-exponential discretization) in a novel way for this application. Credit is due for focusing on the stiffness issue explicitly and proposing an analytical alternative to numerical integration.

major comments (1)
  1. [Numerical Results] The central claim depends on statistical linearization yielding a sufficiently accurate surrogate for the stiff nonlinear dynamics over coarse sampling intervals. Since statistical linearization only matches first and second moments at the operating point, higher-order nonlinearities and time-varying linearization points in multi-timescale IBR systems may cause the surrogate to diverge within one large step. The numerical results section must include direct trajectory comparisons between the surrogate and the full nonlinear model, along with quantitative error metrics over the sampling interval, to confirm that the discretization remains stable and accurate.
minor comments (1)
  1. [Abstract] The abstract states that numerical results demonstrate the mechanism and the method's performance, yet provides no quantitative metrics, baseline comparisons, error bars, or details on how stiffness was quantified. Adding these would make the summary more informative.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their insightful and constructive review of our manuscript. The feedback highlights an important aspect of validating the proposed method's core approximation, and we address it directly below.

read point-by-point responses

  1. Referee: [Numerical Results] The central claim depends on statistical linearization yielding a sufficiently accurate surrogate for the stiff nonlinear dynamics over coarse sampling intervals. Since statistical linearization only matches first and second moments at the operating point, higher-order nonlinearities and time-varying linearization points in multi-timescale IBR systems may cause the surrogate to diverge within one large step. The numerical results section must include direct trajectory comparisons between the surrogate and the full nonlinear model, along with quantitative error metrics over the sampling interval, to confirm that the discretization remains stable and accurate.

    Authors: We agree that explicit validation of the statistical linearization surrogate's accuracy over coarse sampling intervals is necessary to fully support the central claim. Our existing numerical results demonstrate the destabilization of conventional DSE and the overall estimation performance of the proposed approach, but they do not include direct side-by-side trajectory comparisons or quantitative error metrics (e.g., RMSE or maximum deviation) between the surrogate linear model and the full nonlinear IBR dynamics within each large step. In the revised manuscript, we will add these comparisons and error metrics in the Numerical Results section, using the same test cases and sampling rates already presented, to confirm that the surrogate remains sufficiently accurate for the discretization and uncertainty propagation steps. revision: yes

Circularity Check

0 steps flagged

No circularity: method applies standard techniques to new application domain

full rationale

The derivation chain consists of applying statistical linearization to obtain a local linear surrogate for the nonlinear IBR dynamics, followed by matrix-exponential discretization to enable stable analytical uncertainty propagation at coarse sampling intervals. These steps are standard numerical techniques whose validity does not depend on the paper's own fitted parameters or outputs. Numerical results are presented to illustrate performance differences versus conventional explicit schemes, but the core claims are not obtained by renaming or fitting quantities defined from the method itself. No self-citation chain, self-definitional construction, or fitted-input-as-prediction pattern appears in the load-bearing steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on standard mathematical techniques (statistical linearization and matrix exponential) whose validity is assumed from prior literature; no free parameters, ad-hoc axioms, or newly invented entities are introduced in the summary.
