Multimodal embodiment-aware navigation transformer

Louis Dezons , Quentin Picard , R\'emi Marsal , Fran\c{c}ois Goulette , David Filliat

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:34 UTC · model grok-4.3

classification 💻 cs.RO

keywords multimodal navigationembodiment awaretransformer policydiffusion modelpath clearancegoal conditioned navigationLiDAR fusionrobot trajectory planning

0 comments

The pith

A multimodal transformer fuses images, LiDAR and robot size data to generate safer goal-directed trajectories than vision-only methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ViLiNT, a goal-conditioned navigation policy that merges RGB camera images, 3D LiDAR point clouds, a goal embedding, and a robot embodiment descriptor inside a transformer. The fused representation conditions a diffusion model to produce candidate trajectories and a separate clearance prediction head to rank them, with both steps guided by the embodiment token so the output respects the robot's physical dimensions. The goal is to maintain high success rates when the robot, sensors, or surroundings differ from training conditions, a common failure point for vision-only approaches. A reader would care because navigation policies that work only on the exact training setup limit practical deployment on varied platforms and terrains. The authors report that this design raises average success rates by 166 percent across three simulated environments and holds up in real rover tests in obstacle fields.

Core claim

ViLiNT fuses RGB images, 3D LiDAR point clouds, a goal embedding and a robot's embodiment descriptor with a transformer architecture to capture complementary geometry and appearance cues. The transformer's output is used to condition a diffusion model that generates navigable trajectories. Using automatically generated offline labels, the model trains a path clearance prediction head for scoring and ranking trajectories produced by the diffusion model. The diffusion conditioning as well as the trajectory ranking head depend on a robot's embodiment token that allows the model to generate and select trajectories with respect to the robot's dimensions.

What carries the argument

The embodiment token that conditions both the diffusion model for generating trajectories and the path clearance head for ranking them according to the robot's dimensions.

If this is right

Multimodal inputs plus embodiment conditioning reduce collision failures under distribution shift in robot size, sensors, or environment.
Offline-generated clearance labels suffice to train a ranking head that improves trajectory selection without online supervision.
A single model can produce dimension-appropriate paths for multiple robot platforms after training on heterogeneous data.
Real-world rover navigation in obstacle fields becomes more reliable once simulation gains are confirmed.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same token-based conditioning could let other embodied policies adapt outputs to physical constraints in tasks beyond navigation.
Expanding the set of training platforms would test how far the offline label approach generalizes before label noise becomes limiting.
Adding more sensor modalities could extend the fusion strategy to harder settings such as low-light or dynamic obstacle fields.

Load-bearing premise

Automatically generated offline labels for path clearance serve as reliable proxies for real navigability, and the embodiment token successfully adapts the diffusion and ranking components to robot sizes and sensors not seen in training.

What would settle it

A large drop in success rate when the trained model is deployed on a robot whose dimensions or sensor configuration lie well outside the training distribution, or when tested in environments where the offline clearance labels fail to predict actual collisions.

Figures

Figures reproduced from arXiv: 2604.19267 by David Filliat, Fran\c{c}ois Goulette, Louis Dezons, Quentin Picard, R\'emi Marsal.

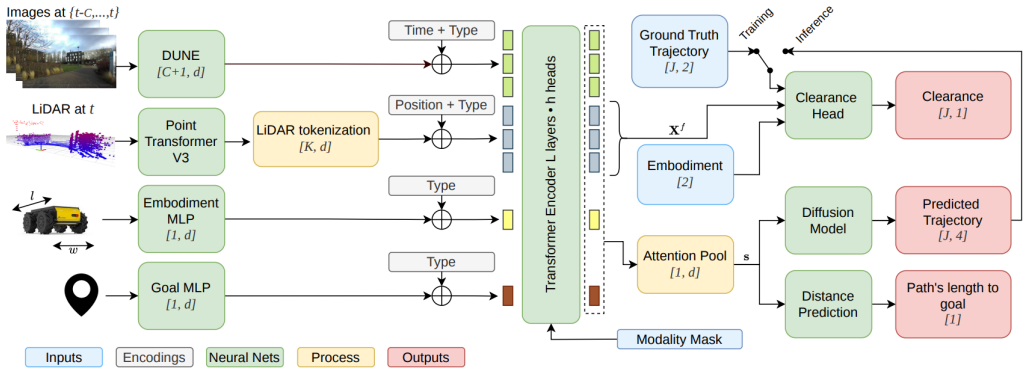

**Figure 2.** Figure 2: Global model architecture. See text for details. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

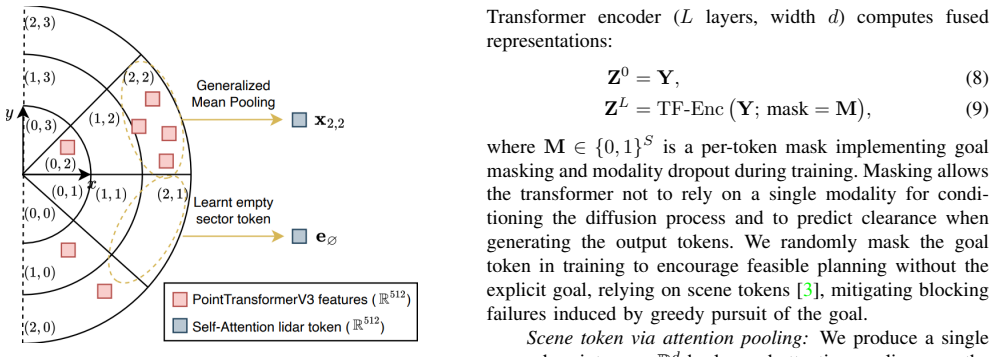

**Figure 3.** Figure 3: Illustration of our LiDAR tokenization approach: [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Example clearance computation from Scand [ [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: Simulated experimental environments. We sample goals [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

**Figure 6.** Figure 6: Zero-shot deployment of ViLiNT (green curves) and NoMaD-FT (Red curves). We compare the capability of both [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

**Figure 7.** Figure 7: Simulated experience showing how changing the [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

read the original abstract

Goal-conditioned navigation models for ground robots trained using supervised learning show promising zero-shot transfer, but their collision-avoidance capability nevertheless degrades under distribution shift, i.e. environmental, robot or sensor configuration changes. We propose ViLiNT a multimodal, attention-based policy for goal navigation, trained on heterogeneous data from multiple platforms and environments, which improves robustness with two key features. First, we fuse RGB images, 3D LiDAR point clouds, a goal embedding and a robot's embodiment descriptor with a transformer architecture to capture complementary geometry and appearance cues. The transformer's output is used to condition a diffusion model that generates navigable trajectories. Second, using automatically generated offline labels, we train a path clearance prediction head for scoring and ranking trajectories produced by the diffusion model. The diffusion conditioning as well as the trajectory ranking head depend on a robot's embodiment token that allows our model to generate and select trajectories with respect to the robot's dimensions. Across three simulated environments, ViLiNT improves Success Rate on average by 166\% over equivalent state-of-the-art vision-only baseline (NoMaD). This increase in performance is confirmed through real-world deployments of a rover navigating in obstacle fields. These results highlight that combining multimodal fusion with our collision prediction mechanism leads to improved off-road navigation robustness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ViLiNT combines multimodal transformer fusion with diffusion trajectories and an embodiment token, but the reported robustness gains rest on unvalidated auto-generated clearance labels.

read the letter

The core idea is a transformer that fuses RGB, LiDAR, goal embedding and a robot embodiment descriptor to condition a diffusion model for trajectory generation, followed by a separate head that ranks those trajectories using path clearance scores. The model is trained on mixed data from several platforms and environments, and the embodiment token is meant to let the same weights produce and select paths suited to different robot sizes. They show large average gains in simulated success rate over a vision-only baseline and include some real rover tests in obstacle fields. The embodiment token and the heterogeneous training data are the parts that feel most useful in practice, since many navigation papers still assume a fixed robot and sensor setup. The multimodal conditioning also looks like a reasonable way to combine appearance and geometry cues for off-road settings. The main weakness is the clearance ranking head. It is trained only on automatically generated offline labels, yet the abstract gives no numbers on how well those labels match actual collisions in simulation or on the real robot. Without that check, it is difficult to know whether the ranking step is truly selecting safer paths or simply exploiting biases in the proxy. The 166% success-rate jump is large enough that it would be good to see error bars, details on baseline matching, and at least a small validation set where label accuracy is measured against logged failures. The real-world rover runs help, but they are described at a high level and do not directly test whether the clearance scores generalize to new sensor configurations. This work is aimed at researchers building learned policies for ground robots that must handle varied hardware and environments. It has a clear architecture and some empirical results, so it is worth sending out for peer review even though the label validation needs to be strengthened before the robustness claims can be taken at face value.

Referee Report

2 major / 2 minor

Summary. The manuscript presents ViLiNT, a multimodal transformer-based navigation policy for ground robots. It fuses RGB images, 3D LiDAR point clouds, goal embeddings, and a robot embodiment descriptor to condition a diffusion model for trajectory generation; a separate path-clearance prediction head, trained on automatically generated offline labels, then ranks the generated trajectories. The embodiment token conditions both the diffusion process and the ranking head. Across three simulated environments the model reports an average 166% Success Rate improvement over the vision-only NoMaD baseline, with the gains confirmed in real-world rover deployments through obstacle fields. The central claim is that multimodal fusion plus the learned collision-prediction mechanism yields improved robustness under environmental, embodiment, and sensor distribution shifts.

Significance. If the quantitative claims and label fidelity hold, the work would advance embodied navigation by demonstrating concrete benefits from cross-modal fusion and explicit trajectory ranking that respects robot dimensions. The heterogeneous training data, diffusion-based generation, and real-world rover validation are genuine strengths that support the generalization narrative. The approach offers a falsifiable empirical comparison rather than a purely theoretical derivation.

major comments (2)

[§3.2 (Path Clearance Prediction Head) and Experiments] The headline 166% Success Rate gain is explicitly attributed to the collision-prediction (ranking) head, yet the manuscript provides no quantitative validation of the automatically generated offline labels used to train that head (e.g., agreement with logged collisions, expert annotation, or embodiment-specific failure modes). Because the ranking step selects among diffusion samples, systematic bias in the proxy labels would directly inflate simulated success rates without guaranteeing the claimed real-world robustness.
[Table 1 / Experiments section] Table 1 (or equivalent results table) reports the 166% average Success Rate improvement without error bars, standard deviations, or statistical significance tests, and without explicit details on how the NoMaD baseline was matched in training data volume, sensor configuration, or hyper-parameters. These omissions make it impossible to assess whether the reported gain is robust or an artifact of experimental setup.

minor comments (2)

[Abstract] The abstract would benefit from naming the three simulated environments and the specific robot platforms used for heterogeneous training.
[§3.1] Notation for the embodiment token and its injection into the diffusion and ranking heads should be made fully explicit (e.g., a single equation showing the conditioning).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and indicate where revisions will be made to improve clarity, statistical rigor, and transparency.

read point-by-point responses

Referee: [§3.2 (Path Clearance Prediction Head) and Experiments] The headline 166% Success Rate gain is explicitly attributed to the collision-prediction (ranking) head, yet the manuscript provides no quantitative validation of the automatically generated offline labels used to train that head (e.g., agreement with logged collisions, expert annotation, or embodiment-specific failure modes). Because the ranking step selects among diffusion samples, systematic bias in the proxy labels would directly inflate simulated success rates without guaranteeing the claimed real-world robustness.

Authors: We agree that explicit validation of the proxy labels would strengthen confidence in the ranking head's contribution. The labels are produced automatically offline by forward-simulating each diffusion-generated trajectory against the robot's embodiment geometry and the available 3D geometry (point clouds or maps) to flag collisions; this process is deterministic and directly incorporates the embodiment token. While the original manuscript did not report agreement metrics, the real-world rover results (where physical collisions occur) provide indirect support. In revision we will expand §3.2 with a precise description of the label-generation procedure and add an appendix containing quantitative validation (e.g., precision-recall of the clearance head against held-out simulation trajectories with known ground-truth collisions). revision: yes
Referee: [Table 1 / Experiments section] Table 1 (or equivalent results table) reports the 166% average Success Rate improvement without error bars, standard deviations, or statistical significance tests, and without explicit details on how the NoMaD baseline was matched in training data volume, sensor configuration, or hyper-parameters. These omissions make it impossible to assess whether the reported gain is robust or an artifact of experimental setup.

Authors: We concur that the current reporting is insufficient for assessing robustness. In the revised manuscript we will update Table 1 (and the corresponding text) to include per-environment means, standard deviations, and error bars computed across multiple random seeds. We will also report p-values from paired statistical tests (e.g., t-tests) between ViLiNT and NoMaD. The Experiments section will be expanded to document that the NoMaD baseline was retrained on identical data volumes and sensor configurations (RGB only), using the same hyper-parameter search budget and training protocol as ViLiNT to ensure a matched comparison. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical results are independent of inputs

full rationale

The paper describes an empirical multimodal transformer policy trained on heterogeneous robot data, with a diffusion model for trajectory generation and a separate ranking head trained on automatically generated offline labels for path clearance. Performance is reported as measured success rates in simulation (166% average improvement over NoMaD baseline) and real-world rover deployments, without any equations, derivations, or self-referential definitions that reduce the claimed gains to fitted quantities or prior self-citations by construction. The use of proxy labels is a training choice whose accuracy is externally validated through the reported empirical outcomes rather than assumed tautologically; no load-bearing step collapses the result to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, axioms, or invented entities are stated. Standard neural-network hyperparameters and the assumption that offline labels are reliable are implicit but not quantified.

pith-pipeline@v0.9.0 · 5535 in / 1219 out tokens · 38942 ms · 2026-05-10T02:34:05.614019+00:00 · methodology
