arxiv: 2604.19960 · v1 · submitted 2026-04-21 · 🧮 math.CO · eess.AS· math.AG

Tonnetz Theory, Classical Harmony, and the Combinatorial Geometry of Abstract Musical Resources

Jeffrey R. Boland , Lane P. Hughston This is my paper

Pith reviewed 2026-05-10 01:39 UTC · model grok-4.3

classification 🧮 math.CO eess.ASmath.AG
keywords tonnetzcombinatorial configurationsdiatonic harmonyvoice leadingFano configurationLevi graphpentatonic musicincidence geometry
0
0 comments X

The pith

Diatonic triads map to a {7_3} bipartite graph and seventh chords to the Fano configuration in tonnetz theory.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends prior links between tone networks and combinatorial configurations to classical harmony and other scales. It shows that relations among the seven diatonic degrees and pitch classes are captured by a bipartite graph of type {7_3} with girth four, while voice-leading relations among diatonic seventh chords are fully characterized by the Fano configuration {7_3}. Parallel constructions appear for pentatonic music via the Desargues {10_3} and for twelve-tone music via the Cremona-Richmond {15_3}, plus a D222 representation that separates major and minor triads through hexacycles in the associated Levi graph. A sympathetic reader would care because these identifications treat musical resources as concrete incidence geometries that can serve as compositional tools.

Core claim

In the case of diatonic triads, the well-known relations between the seven diatonic degrees and their pitch classes are represented by a bipartite graph of type {7_3} and girth four. In the case of diatonic seventh chords, the voice-leading relations are given a complete characterization by a Fano configuration {7_3}. A tonnetz for pentatonic music is constructed on the Desargues configuration {10_3}, and a tonnetz for the twelve-tone system is constructed on the Cremona-Richmond configuration {15_3}. The chromatic pitch-class set and the major-triad set are related by a D222 configuration whose Levi graph places the minor triads in one-to-one correspondence with a class of hexacycles, so as

What carries the argument

Levi graphs of specific combinatorial configurations ({7_3} bipartite graphs, Fano {7_3}, Desargues {10_3}, Cremona-Richmond {15_3}, D222) that encode the adjacency and incidence structure of pitch classes and harmonies in each tonnetz.

If this is right

  • Voice-leading relations among diatonic seventh chords receive an exhaustive combinatorial description via the Fano plane.
  • Pentatonic and twelve-tone materials become available for composition through the incidence structure of the Desargues and Cremona-Richmond configurations.
  • The characteristic major-minor duality in the classical tonnetz is expressed by the placement of minor triads on specific hexacycles of the D222 Levi graph.
  • These configurations supply abstract combinatorial resources that can be used to generate or analyze harmonic progressions beyond traditional interval-based models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the mappings are faithful, then other scale systems might be classified by matching them to known configurations in finite geometry.
  • Algorithms that enumerate cycles or automorphisms in these graphs could be tested as generators of new harmonic sequences.
  • The approach may link to existing group-theoretic treatments of transposition and inversion by identifying the symmetry groups of the chosen configurations with musical operations.

Load-bearing premise

The selected graph configurations accurately encode the musically relevant relations such as voice leading and harmonic function without omitting important features or introducing arbitrary choices.

What would settle it

A concrete voice-leading move between two diatonic seventh chords that is absent from the edges of the Fano {7_3} graph, or an edge present in the graph that does not correspond to any standard voice-leading relation, would refute the claimed complete characterization.

Figures

Figures reproduced from arXiv: 2604.19960 by Jeffrey R. Boland, Lane P. Hughston.

Figure 1
Figure 1. Figure 1: The tonnetz, here depicted as a finite regular pitch-class graph of degree six, is dual to [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The Levi graph of the tonnetz. The dual of the finite form of the Eulerian pitch-class [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Tessellation of the Tristan-genus tonnetz with the octacycle of the immolation [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Bipartite graph of type {73} representing the pitch classes (labelled 1, 2, 3, 4, 5, 6, 7) and degrees (labelled I, II, III, IV, V, VI, VII) associated with a diatonic scale. Each degree contains three pitch classes and each pitch class belongs to three degrees [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The pitch classes and degrees of a diatonic scale determine a hexagonal tessellation of [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: In association with the C-major scale there are three major degrees (I, IV, V), three minor degrees (II, III, VI) and one diminished degree (VII). The seven degrees together with the seven pitches form a bipartite graph of type {73} with girth four. If two triads are adjacent to the same pitch that means they share that pitch and hence a progression from one triad to the other can be made by pivoting on th… view at source ↗
Figure 7
Figure 7. Figure 7: A Fano configuration {73} for the pitch classes and seventh chords of the C-major scale. The seven points correspond to tones and the seven lines, one being represented by a circle, correspond to major sevenths, minor sevenths, dominant sevenths and half-diminished sevenths. Now let’s turn to the matter of seventh chords. In the theory of tonal harmony, seventh chords are clearly important, but are usually… view at source ↗
Figure 8
Figure 8. Figure 8: The seven pitch classes and seven degrees of the seventh chords associated with the [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Tessellation of the plane by the pitch classes and seventh chords of the [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The complete pentagon determined by five points [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: The pentatonic tonnetz of the Desargues configuration. The triangles ( [PITH_FULL_IMAGE:figures/full_fig_p013_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: The pentatonic tonnetz is represented here in two isomorphic ways as the Levi graph [PITH_FULL_IMAGE:figures/full_fig_p014_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: A simple composition, ‘On the Perimeter’ based on a Hamiltonian cycle of the [PITH_FULL_IMAGE:figures/full_fig_p015_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: The Levi graph of the Cremona-Richmond configuration 15 [PITH_FULL_IMAGE:figures/full_fig_p017_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: The tonnetz corresponding to an unordered hexachord maps to a configuration [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: ‘Decacycle for Violin’, based on a 5p-decacycle of the 12-tone tonnetz constructed from a hexachord of the form [1, 2, 3, 4, 5, 6] = [F♯ , G♯ , C♯ , D♯ , E, A♯ ]. The duads and synthemes of the decacycle are given by ⟨12, ab, 56, df, 13, ac, 25, bf, 36, cd, 12⟩, forming the sides and vertices of a pentagon in the Cremona-Richmond configuration of [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 17

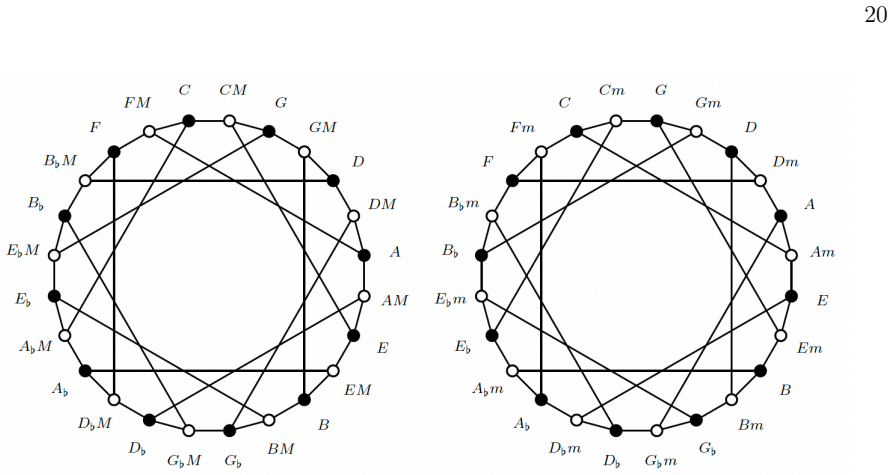

Figure 17. Figure 17: Levi graphs for the pitch-to-major-triad and pitch-to-minor-triad tonnetze. On the [PITH_FULL_IMAGE:figures/full_fig_p020_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: The complete triadic tonnetz is a face-centered hexagonal tessellation admitting an [PITH_FULL_IMAGE:figures/full_fig_p021_18.png] view at source ↗
read the original abstract

In a previous submission, we established a fundamental relation between tone networks and configurations. It was shown that the Eulerian tonnetz can be represented by a $\{12_3\}$ of Daublebsky von Sterneck type D222. We also constructed a tonnetz for Tristan-genus chords (dominant sevenths and half-diminished sevenths) and we showed that this tonnetz can be represented by a $\{12_3\}$ of type D228. In both of these constructions the associated Levi graphs play an important role. Here we look at the tonnetze associated with some other musical systems, thereby offering several concrete examples of an abstract view of music as combinatorial geometry. First, we look at the tonal harmonies typical of the classical period. In the case of diatonic triads, we show the existence of a bipartite graph of type $\{7_3\}$ and girth four that represents the well-known relations between the seven diatonic degrees and their pitch classes. In the case of diatonic seventh chords, we obtain a Fano configuration $\{7_3\}$ which gives a complete characterization of the voice-leading relations that hold between such chords. Next, we construct a tonnetz for pentatonic music based on the Desargues configuration $\{10_3\}$ and we construct a tonnetz for the 12-tone system based on the Cremona-Richmond configuration $\{15_3\}$. Both can be used as a resource for musical compositions. Finally, we show that the relation between the chromatic pitch class set and the major triad set is also represented by a D222. The minor triads are in one-to-one correspondence with the members of a certain class of hexacycles in the Levi graph of this configuration. In this way, the characteristic duality between major and minor triads in the tonnetz can be broken.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper extends prior work on tonnetz representations via combinatorial configurations by constructing geometric models for classical diatonic harmony, pentatonic scales, and 12-tone systems. It claims existence of a {7_3} bipartite graph of girth four for relations among the seven diatonic triads and pitch classes, a Fano plane {7_3} that completely characterizes voice-leading relations among diatonic seventh chords, a Desargues {10_3} tonnetz for pentatonic music, a Cremona-Richmond {15_3} tonnetz for the 12-tone system, and a D222 configuration linking chromatic pitch classes to major triads (with minor triads corresponding to hexacycles in the associated Levi graph).

Significance. If the claimed incidences are shown to arise directly from exhaustive enumeration of musically admissible voice-leading relations rather than selective encoding, the work supplies explicit, reusable combinatorial resources (Fano plane, Desargues configuration, Levi graphs) for analyzing harmonic function and voice leading. The approach strengthens the link between music theory and finite geometry by exhibiting known configurations as tonnetze, potentially enabling systematic composition tools and falsifiable predictions about admissible progressions.

major comments (3)
  1. [Abstract] Abstract: the claim that the Fano {7_3} 'gives a complete characterization of the voice-leading relations' between diatonic seventh chords is load-bearing for the central thesis yet unsupported by any enumeration of admissible leadings, incidence matrix, or verification that every musically allowed pair corresponds to a line and no disallowed pair does; without this explicit matching the characterization cannot be assessed as non-circular.
  2. [Abstract] Abstract: the asserted existence of a {7_3} girth-four bipartite graph for diatonic triads and pitch classes likewise requires a concrete construction (point-line incidence table or diagram) showing how the seven degrees and their pitch classes realize the incidences and why the girth is exactly four; the abstract states existence without derivation details.
  3. [Introduction] The manuscript refers to 'a previous submission' establishing the {12_3} D222 and D228 cases but provides no self-contained recap of the Levi-graph construction or the definition of admissible voice-leading moves used there; this definition is prerequisite for verifying that the new {7_3} and {10_3} incidences are not fitted post hoc.
minor comments (2)
  1. [Abstract] The notation '{n_k}' for configurations should be defined or referenced to standard combinatorial literature (e.g., incidence structures or block designs) on first use.
  2. Diagrams or explicit Levi-graph drawings for the Fano, Desargues, and D222 cases would make the claimed correspondences verifiable at a glance.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading and constructive suggestions. The comments highlight areas where the presentation of our combinatorial constructions can be made more explicit and self-contained. We address each major comment below and commit to revisions that strengthen the manuscript without altering its core claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the Fano {7_3} 'gives a complete characterization of the voice-leading relations' between diatonic seventh chords is load-bearing for the central thesis yet unsupported by any enumeration of admissible leadings, incidence matrix, or verification that every musically allowed pair corresponds to a line and no disallowed pair does; without this explicit matching the characterization cannot be assessed as non-circular.

    Authors: We agree that an explicit incidence matrix and verification are necessary to substantiate the claim of complete characterization. The manuscript derives the Fano plane directly from the admissible voice-leading relations among the seven diatonic seventh chords (using the same combinatorial rules as in our prior work on D222/D228 configurations). To eliminate any ambiguity, we will add a dedicated subsection with the full incidence table, an enumeration of all admissible leadings, and a proof that the lines match exactly these relations while excluding disallowed pairs. This will be included in the revised version. revision: yes

  2. Referee: [Abstract] Abstract: the asserted existence of a {7_3} girth-four bipartite graph for diatonic triads and pitch classes likewise requires a concrete construction (point-line incidence table or diagram) showing how the seven degrees and their pitch classes realize the incidences and why the girth is exactly four; the abstract states existence without derivation details.

    Authors: The bipartite {7_3} graph is constructed in the body by taking the seven diatonic degrees as one partite set and the corresponding pitch classes as the other, with incidences given by triad membership. The girth is four because the structure contains no 3-cycles (no three elements are mutually incident). We will add an explicit incidence table and a diagram in the revised manuscript to provide the requested concrete construction and derivation details. revision: yes

  3. Referee: [Introduction] The manuscript refers to 'a previous submission' establishing the {12_3} D222 and D228 cases but provides no self-contained recap of the Levi-graph construction or the definition of admissible voice-leading moves used there; this definition is prerequisite for verifying that the new {7_3} and {10_3} incidences are not fitted post hoc.

    Authors: We accept that a self-contained recap is needed for independent verification. The revised introduction will include a brief subsection summarizing the Levi-graph construction from the prior work and the precise definition of admissible voice-leading moves (minimal voice motion preserving harmonic function under the combinatorial incidence rules). This will allow readers to confirm that the new {7_3} and {10_3} incidences arise directly from the same rules rather than being fitted post hoc. revision: yes

Circularity Check

0 steps flagged

No significant circularity; mappings to external configurations are independent

full rationale

The paper references prior work on the general tonnetz-configuration relation but presents the specific claims for diatonic triads (bipartite {7_3} graph of girth four) and seventh chords (Fano {7_3}) as direct constructions that exhibit the incidence structures matching voice-leading relations. These are shown by explicit correspondence rather than by redefining the musical relations to force the geometry or by fitting parameters whose output is then relabeled as a prediction. No equation or definition in the abstract or described chain reduces the claimed complete characterization to the input data by construction; the combinatorial objects are external and the musical relations are treated as given data to be matched. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard definitions of incidence configurations and Levi graphs from combinatorial geometry; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • standard math Incidence structures satisfy the standard axioms of a linear space or configuration where each point lies on a fixed number of lines and each line contains a fixed number of points.
    Invoked implicitly when representing tonnetze as {n_k} configurations.

pith-pipeline@v0.9.0 · 5654 in / 1257 out tokens · 31844 ms · 2026-05-10T01:39:05.522584+00:00 · methodology
