arxiv: 2604.20044 · v2 · submitted 2026-04-21 · 🧮 math.NA · cs.NA

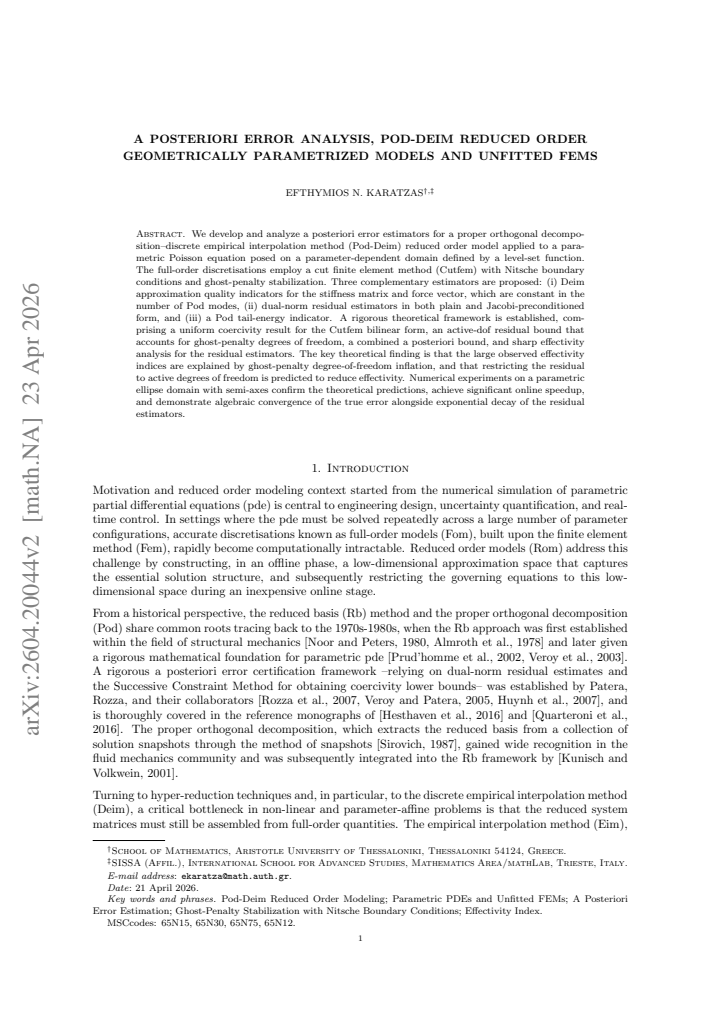

A posteriori error analysis, Pod-Deim reduced order geometrically parametrized models and unfitted FEMs

Efthymios N. Karatzas This is my paper

Pith reviewed 2026-05-10 01:12 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords a posteriori error estimationreduced order modelingPOD-DEIMcut finite elementsghost penaltyparametric domainslevel set functionPoisson equation
0
0 comments X

The pith

Restricting residuals to active degrees of freedom reduces effectivity indices in cut finite element reduced-order models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops and analyzes a posteriori error estimators for POD-DEIM reduced-order models of a parametric Poisson equation on level-set domains discretized with cut finite elements using Nitsche conditions and ghost-penalty stabilization. It provides a theoretical framework with uniform coercivity of the bilinear form, an active-dof residual bound, combined error estimates, DEIM quality indicators, and a POD tail-energy indicator. The central result is that large observed effectivity indices stem from inflation by ghost-penalty degrees of freedom, and that restricting the residual to active degrees of freedom is predicted to sharpen the bounds. This matters for obtaining reliable and efficient error control in geometrically parametrized simulations without overestimation.

Core claim

For POD-DEIM reduced-order models of geometrically parametrized Poisson problems discretized with cut finite elements, the dual-norm residual estimators exhibit effectivity indices inflated by the inclusion of ghost-penalty degrees of freedom. The analysis supplies an active-dof residual bound that accounts for these stabilization terms separately, together with DEIM approximation quality indicators that are constant in the number of POD modes, a POD tail-energy indicator, and a combined a posteriori bound. Numerical experiments on a parametric ellipse confirm the predictions, show algebraic convergence of the true error, exponential decay of the estimators, and significant online speedup.

What carries the argument

The active-dof residual bound, which restricts the residual norm to degrees of freedom associated with the physical domain while isolating ghost-penalty contributions to explain and reduce effectivity indices.

Load-bearing premise

The cut finite element bilinear form remains uniformly coercive over the entire family of parameter-dependent domains.

What would settle it

Numerical experiments on the parametric ellipse in which effectivity indices remain high even after the residual is restricted to active degrees of freedom would falsify the claim that ghost-penalty degrees of freedom explain the inflation.

Figures

Figures reproduced from arXiv: 2604.20044 by Efthymios N. Karatzas.

Figure 1
Figure 1. Figure 1: Solution errors vs. n with algebraic convergence rate fit [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Deim quality estimators (Est. 1a/1b) – convergence rate = 0. In [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Residual & tail energy estimators with convergence rate fits. We continue with the visualization of Est. 2a in [PITH_FULL_IMAGE:figures/full_fig_p016_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Log–log convergence diagram, algebraic rates as slopes. Moreover, [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Semi-log convergence diagram, exponential rates as slopes [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Effectivity indices of residual-based estimators. In [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Online timing comparison. Finally, [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
read the original abstract

We develop and analyze a posteriori error estimators for a proper orthogonal decomposition-discrete empirical interpolation method (Pod-Deim) reduced order model applied to a parametric Poisson equation posed on a parameter-dependent domain defined by a level-set function. The full-order discretisations employ a cut finite element method (Cutfem) with Nitsche boundary conditions and ghost-penalty stabilization. Three complementary estimators are proposed: (i) Deim approximation quality indicators for the stiffness matrix and force vector, which are constant in the number of Pod modes, (ii) dual-norm residual estimators in both plain and Jacobi-preconditioned form, and (iii) a Pod tail-energy indicator. A rigorous theoretical framework is established, comprising a uniform coercivity result for the Cutfem bilinear form, an active-dof residual bound that accounts for ghost-penalty degrees of freedom, a combined a posteriori bound, and sharp effectivity analysis for the residual estimators. The key theoretical finding is that the large observed effectivity indices are explained by ghost-penalty degree-of-freedom inflation, and that restricting the residual to active degrees of freedom is predicted to reduce effectivity. Numerical experiments on a parametric ellipse domain with semi-axes confirm the theoretical predictions, achieve significant online speedup, and demonstrate algebraic convergence of the true error alongside exponential decay of the residual estimators.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript develops a posteriori error estimators for POD-DEIM reduced-order models of a parametric Poisson equation on level-set-defined domains discretized via CutFEM with Nitsche boundary conditions and ghost-penalty stabilization. Three estimator families are introduced: DEIM approximation indicators (constant in POD dimension), dual-norm residual estimators in plain and Jacobi-preconditioned forms, and a POD tail-energy indicator. A theoretical framework is provided that includes a uniform coercivity result for the CutFEM bilinear form, an active-DOF residual bound incorporating ghost-penalty degrees of freedom, a combined a posteriori bound, and sharp effectivity analysis. The central theoretical finding is that large observed effectivity indices stem from ghost-penalty DOF inflation and that restricting residuals to active DOFs reduces effectivity. Numerical experiments on a parametric ellipse confirm algebraic convergence of the true error, exponential decay of the residual estimators, and online speedups.

Significance. If the uniform coercivity holds uniformly and the effectivity analysis is sharp, the work supplies a valuable rigorous toolkit for reliable ROMs in geometrically parametrized unfitted FEM settings. The explicit link between ghost-penalty DOF inflation and effectivity, together with the active-DOF restriction suggestion, offers practical guidance. Credit is due for the combination of uniform coercivity, active-DOF residual bounds, and numerical confirmation of both algebraic error convergence and exponential estimator decay.

major comments (3)
  1. [Uniform coercivity result (theoretical framework)] The uniform coercivity result for the CutFEM bilinear form (including Nitsche and ghost-penalty terms) over the full family of parameter-dependent domains is load-bearing for the active-DOF residual bound, the combined a posteriori estimate, and the effectivity analysis. The proof must explicitly establish that the coercivity constant remains independent of cut configurations for all ellipse semi-axis values in the considered range; any deterioration for adverse cuts would undermine the predicted effectivity reduction upon restricting to active DOFs.
  2. [Active-dof residual bound] The active-DOF residual bound that accounts for ghost-penalty degrees of freedom is central to the claim that large effectivity indices arise from DOF inflation. The bound should be stated with explicit dependence on the number or measure of ghost DOFs and the stabilization parameter so that the quantitative reduction in effectivity upon restriction to active DOFs can be verified directly from the analysis.
  3. [Numerical experiments on parametric ellipse domain] The numerical experiments confirm algebraic convergence of the true error and exponential decay of the residual estimators, but the reported effectivity indices are not compared before and after restricting the residual to active DOFs. Such a direct comparison on the same parametric ellipse family would be required to substantiate the theoretical prediction that restriction reduces effectivity.
minor comments (2)
  1. [Notation and definitions] Clarify the precise definition of 'active degrees of freedom' versus ghost-penalty degrees of freedom in the residual norm, including how the restriction is implemented in the dual-norm computation.
  2. [Combined a posteriori bound] Ensure that all constants in the a posteriori bounds are tracked with respect to the parameter domain and the CutFEM stabilization parameters.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and indicate the revisions we will incorporate to strengthen the presentation and substantiation of our results.

read point-by-point responses

  1. Referee: The uniform coercivity result for the CutFEM bilinear form (including Nitsche and ghost-penalty terms) over the full family of parameter-dependent domains is load-bearing for the active-DOF residual bound, the combined a posteriori estimate, and the effectivity analysis. The proof must explicitly establish that the coercivity constant remains independent of cut configurations for all ellipse semi-axis values in the considered range; any deterioration for adverse cuts would undermine the predicted effectivity reduction upon restricting to active DOFs.

    Authors: We agree that the uniform coercivity result is central to the theoretical framework. The existing proof establishes independence of the coercivity constant from cut configurations by deriving uniform bounds on the Nitsche and ghost-penalty terms that hold for the full range of ellipse semi-axes considered, relying on the level-set representation and stabilization to control contributions from arbitrarily small cut elements. To address the request for greater explicitness, we will revise the proof section to include a dedicated remark or lemma that directly verifies the constant remains bounded independently for all parameter values in the range, including adverse cuts, by making the dependence on cut-element measures explicit in the estimates. This clarification will be added without altering the result. revision: yes

  2. Referee: The active-DOF residual bound that accounts for ghost-penalty degrees of freedom is central to the claim that large effectivity indices arise from DOF inflation. The bound should be stated with explicit dependence on the number or measure of ghost DOFs and the stabilization parameter so that the quantitative reduction in effectivity upon restriction to active DOFs can be verified directly from the analysis.

    Authors: We appreciate the suggestion to enhance the explicitness of the active-DOF residual bound. The manuscript derives this bound by isolating the residual contributions associated with ghost-penalty degrees of freedom and incorporating the stabilization parameter in the estimates, which underpins the explanation for observed effectivity inflation. To allow direct verification of the quantitative reduction, we will revise the statement of the bound (and the subsequent effectivity analysis) to include explicit dependence on the number or measure of ghost DOFs and the stabilization parameter. A new corollary or remark will be added to quantify the reduction factor achieved by restricting to active DOFs. revision: yes

  3. Referee: The numerical experiments confirm algebraic convergence of the true error and exponential decay of the residual estimators, but the reported effectivity indices are not compared before and after restricting the residual to active DOFs. Such a direct comparison on the same parametric ellipse family would be required to substantiate the theoretical prediction that restriction reduces effectivity.

    Authors: We agree that a direct numerical comparison of effectivity indices before and after restricting the residual to active DOFs is needed to fully substantiate the theoretical prediction. Although the manuscript reports effectivity behavior and links it to ghost-penalty DOF inflation, this specific side-by-side comparison on the parametric ellipse family was not included. We will add the comparison by recomputing and tabulating the effectivity indices for both the full residual and the active-DOF restricted version across the same set of parameter values, thereby confirming the predicted reduction. revision: yes

Circularity Check

0 steps flagged

No significant circularity; bounds and effectivity analysis follow from standard coercivity and residual arguments

full rationale

The paper establishes a uniform coercivity result for the CutFEM bilinear form (with Nitsche and ghost-penalty terms) over the parameter-dependent domains as part of its rigorous framework, then derives the active-dof residual bound, combined a posteriori bound, and effectivity analysis from those. These steps use standard FEM coercivity and residual techniques with grounding in prior CutFEM/POD-DEIM literature rather than self-definition, fitted inputs renamed as predictions, or load-bearing self-citations. The explanation of large effectivity indices via ghost-penalty DOF inflation is a direct consequence of the active-dof accounting in the bound, not a tautology. Numerical experiments on the ellipse domain provide independent confirmation. No load-bearing step reduces by construction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract; the analysis rests on standard domain assumptions from cut finite element theory without introducing new free parameters or entities.

axioms (1)
  • domain assumption Uniform coercivity of the Cutfem bilinear form for parameter-dependent domains
    Invoked to establish stability and enable a posteriori bounds.
