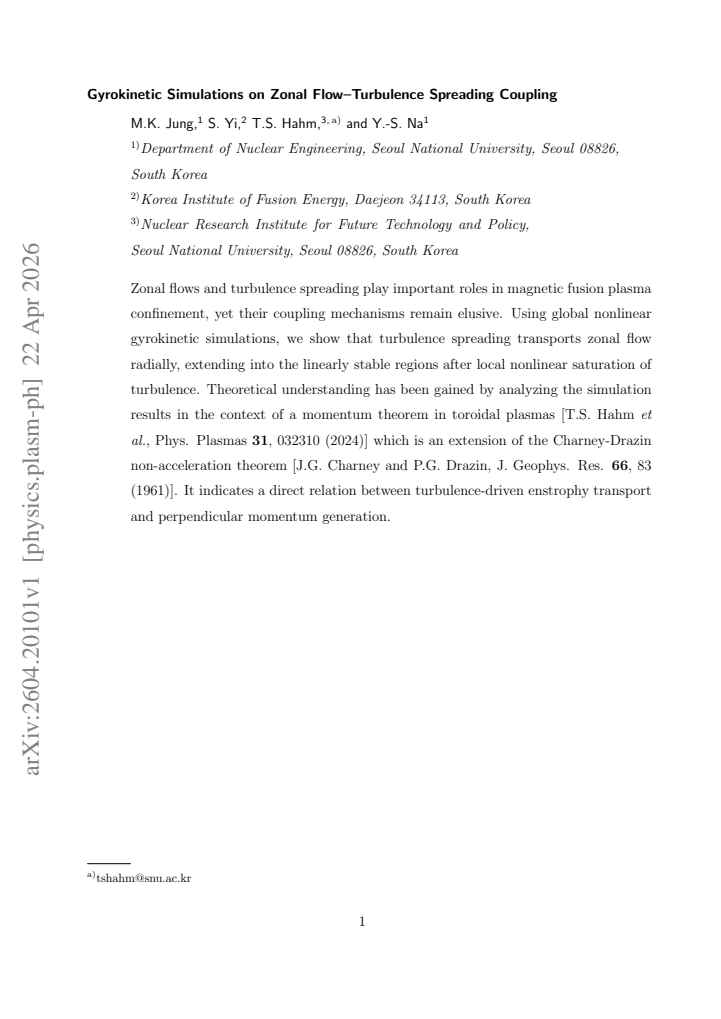

arxiv: 2604.20101 · v1 · submitted 2026-04-22 · ⚛️ physics.plasm-ph

Gyrokinetic simulations on zonal flow-turbulence spreading coupling

Min Ki Jung , Sumin Yi , Taik Soo Hahm , Yong-Su Na This is my paper

Pith reviewed 2026-05-09 23:38 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords zonal flowsturbulence spreadinggyrokinetic simulationsradial transportenstrophy transportmomentum generationplasma confinementtoroidal plasmas
0
0 comments X

The pith

Global nonlinear gyrokinetic simulations demonstrate that turbulence spreading transports zonal flows radially into linearly stable regions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that in global nonlinear gyrokinetic simulations, turbulence spreading transports zonal flow radially into linearly stable regions after local nonlinear saturation. Analysis via a momentum theorem connects this to turbulence-driven enstrophy transport and perpendicular momentum generation. Sympathetic readers would care as this mechanism suggests zonal flows can regulate turbulence in regions not expected from linear stability alone, with potential consequences for understanding plasma confinement. If correct, it requires incorporating spreading effects into models of how turbulence saturates and transports momentum across the plasma.

Core claim

Using global nonlinear gyrokinetic simulations, turbulence spreading is shown to transport zonal flow radially, extending into the linearly stable regions after local nonlinear saturation of turbulence. This is understood through analysis with a momentum theorem in toroidal plasmas, indicating a direct relation between turbulence-driven enstrophy transport and perpendicular momentum generation.

What carries the argument

The momentum theorem that relates turbulence-driven enstrophy transport to perpendicular momentum generation, applied to interpret the radial transport by turbulence spreading.

If this is right

  • Zonal flows can extend their influence into linearly stable plasma regions via turbulence spreading.
  • Radial transport of perpendicular momentum is tied to enstrophy carried by spreading turbulence.
  • Local nonlinear saturation of turbulence does not confine its effects to unstable regions.
  • The coupling between zonal flows and turbulence spreading affects how momentum is generated and transported in toroidal plasmas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This radial transport could lead to broader regulation of turbulence across the plasma profile than local analysis predicts.
  • Experimental measurements of fluctuations in stable regions might detect signatures of this spreading-induced zonal flow presence.
  • Similar mechanisms may apply to other types of plasma instabilities or different magnetic configurations.

Load-bearing premise

The momentum theorem applies directly and without extra assumptions to the global simulation results to establish the radial transport mechanism.

What would settle it

Observation of turbulence spreading into stable regions without corresponding radial transport of zonal flow or without the expected correlation between enstrophy transport and momentum generation would contradict the claim.

Figures

Figures reproduced from arXiv: 2604.20101 by Min Ki Jung, Sumin Yi, Taik Soo Hahm, Yong-Su Na.

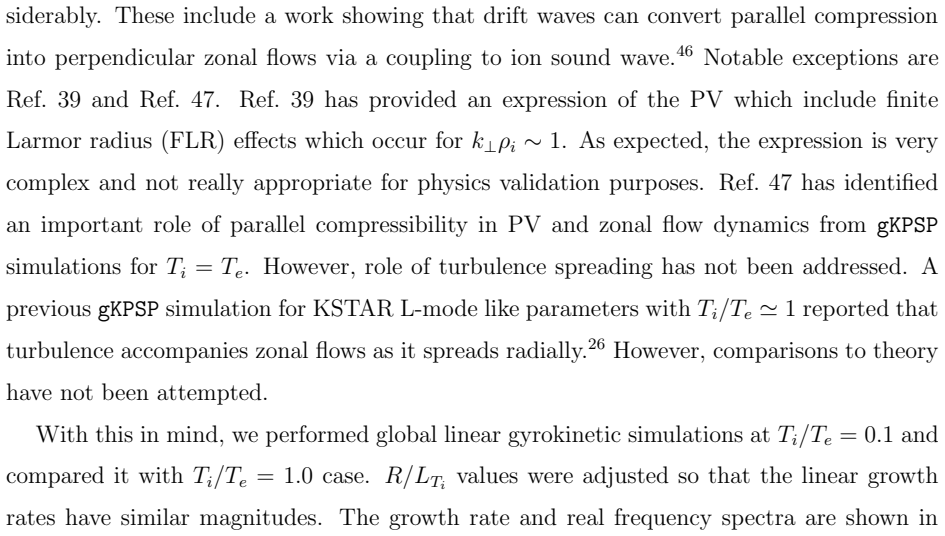

Figure 1
Figure 1. Figure 1: It is apparent that, as we reduce the ion temperature, the growth rate spectrum [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗

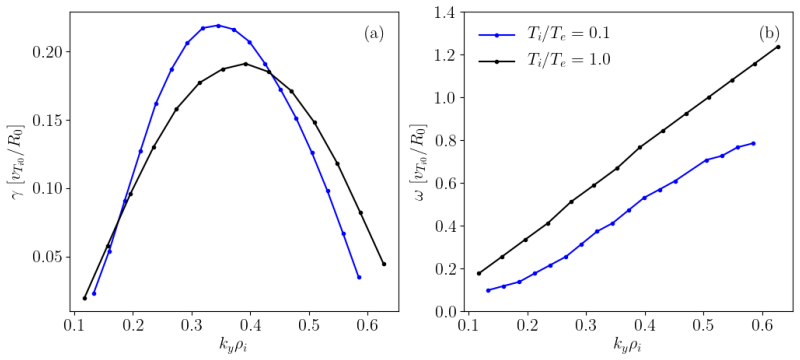

Figure 1
Figure 1. Figure 1: FIG. 1. Linear gyrokinetic simulation results. (a) shows the linear growth rate spectra of both the [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗

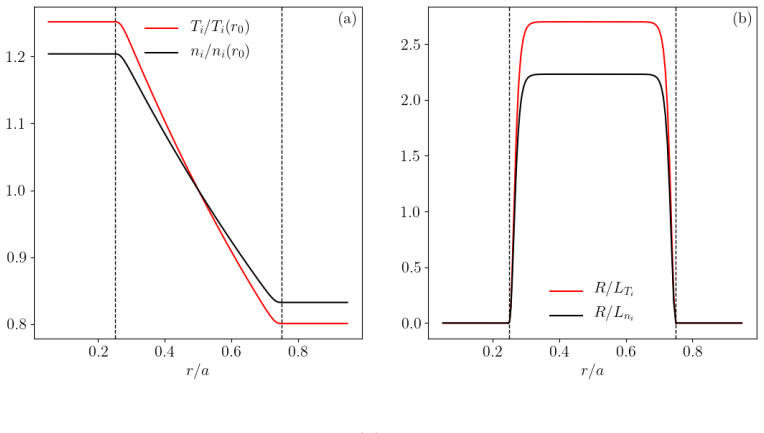

Figure 2
Figure 2. Figure 2: FIG. 2. Profiles used for [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

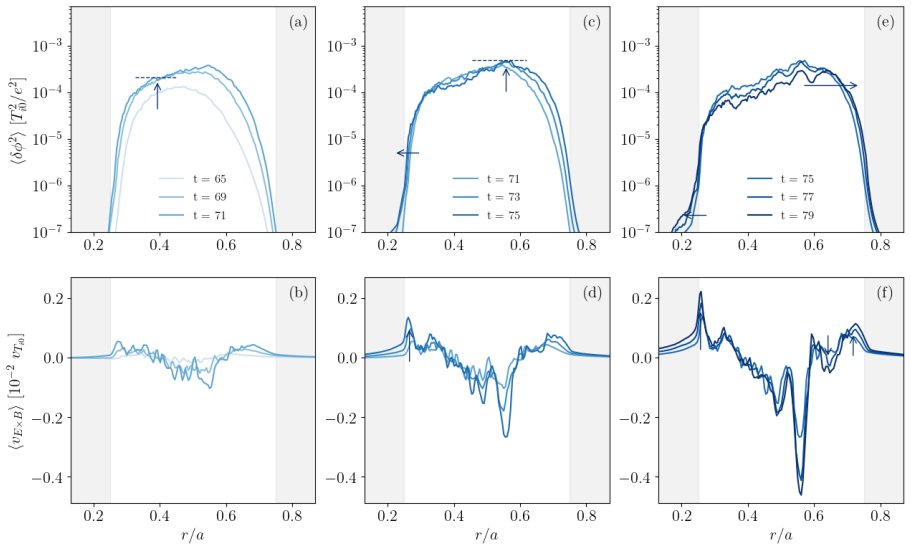

Figure 3
Figure 3. Figure 3: FIG. 3. Evolution of electrostatic potential fluctuation intensity profile and zonal flow profile. (a), [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

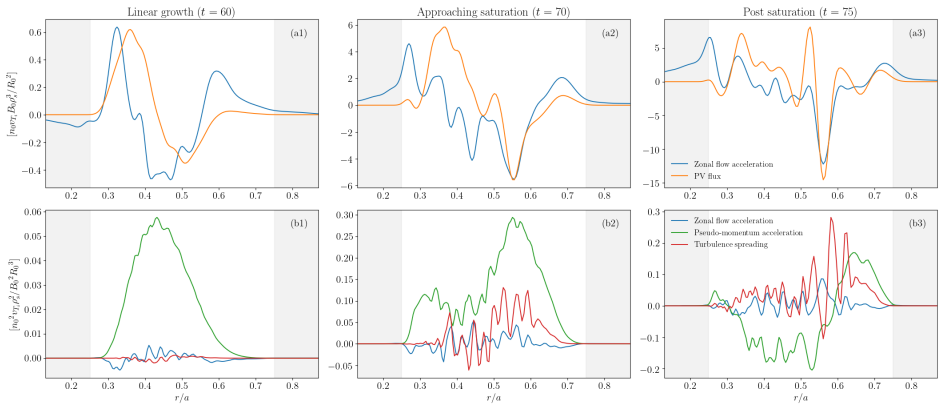

Figure 4
Figure 4. Figure 4: FIG. 4. Comparative plots of each term of the momentum theorem equation at three different time [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
read the original abstract

Zonal flows and turbulence spreading play important roles in magnetic fusion plasma confinement, yet their coupling mechanisms remain elusive. Using global nonlinear gyrokinetic simulations, we show that turbulence spreading transports zonal flow radially, extending into the linearly stable regions after local nonlinear saturation of turbulence. Theoretical understanding has been gained by analyzing the simulation results in the context of a momentum theorem in toroidal plasmas [T.S. Hahm \textit{et al.}, Phys. Plasmas \textbf{31}, 032310 (2024)] which is an extension of the Charney-Drazin non-acceleration theorem [J.G. Charney and P.G. Drazin, J. Geophys. Res. \textbf{66}, 83 (1961)]. It indicates a direct relation between turbulence-driven enstrophy transport and perpendicular momentum generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper uses global nonlinear gyrokinetic simulations to demonstrate that turbulence spreading transports zonal flows radially into linearly stable regions after local nonlinear saturation. Theoretical interpretation is provided by analyzing the results in the context of the momentum theorem from Hahm et al. (Phys. Plasmas 31, 032310, 2024), an extension of the Charney-Drazin non-acceleration theorem, which is claimed to establish a direct relation between turbulence-driven enstrophy transport and perpendicular momentum generation.

Significance. If the central claim holds after validation, the work would provide a concrete mechanistic link between zonal-flow spreading and enstrophy transport in toroidal plasmas, extending non-acceleration theorems to the nonlinear gyrokinetic regime with potential implications for understanding confinement and transport barriers in fusion devices. The global simulation approach to probe spreading beyond linearly unstable regions is a strength, though the result's robustness depends on confirming the theorem's applicability.

major comments (2)
  1. [Interpretation / Discussion] The interpretation section (likely §4 or equivalent): the claimed direct relation between observed zonal-flow spreading and the momentum theorem rests on the unverified assumption that the Hahm et al. (2024) theorem applies without modification to the global nonlinear simulation regime. Global simulations include radial profile variations, finite domain boundaries, and possible residual sources that can introduce additional terms or violate the theorem's underlying assumptions (e.g., specific averaging, absence of external torques, or quasilinear ordering); no dedicated check confirming these conditions hold unmodified is described.
  2. [Results] Results section (likely §3): the central finding is stated without accompanying quantitative profiles of zonal-flow transport, error estimates, resolution convergence checks, or direct numerical comparison to the theorem equations (e.g., enstrophy flux terms). This weakens the data-to-claim linkage, as the abstract and summary provide no simulation parameters (e.g., grid resolution, time steps, or plasma parameters) to allow independent assessment of the spreading mechanism.
minor comments (2)
  1. [Abstract] The abstract could be expanded to include at least one key quantitative indicator (e.g., radial extent of spreading or a normalized transport coefficient) to better convey the result's magnitude.
  2. [Theoretical background] Notation for the momentum theorem terms should be explicitly cross-referenced to the equations in Hahm et al. (2024) for clarity when applying them to the simulation diagnostics.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments help clarify how to strengthen the linkage between the simulation results and the momentum theorem. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Interpretation / Discussion] The interpretation section (likely §4 or equivalent): the claimed direct relation between observed zonal-flow spreading and the momentum theorem rests on the unverified assumption that the Hahm et al. (2024) theorem applies without modification to the global nonlinear simulation regime. Global simulations include radial profile variations, finite domain boundaries, and possible residual sources that can introduce additional terms or violate the theorem's underlying assumptions (e.g., specific averaging, absence of external torques, or quasilinear ordering); no dedicated check confirming these conditions hold unmodified is described.

    Authors: We agree that explicit verification of the theorem's assumptions is necessary for a robust claim. Our simulations are performed without external torques and employ flux-surface averaging consistent with the theorem's derivation. However, the original manuscript does not contain a dedicated subsection confirming that radial profile variations and boundary effects introduce no significant extra terms. In the revision we will add a paragraph in the interpretation section that (i) restates the key assumptions of Hahm et al. (2024), (ii) shows that the residual sources remain negligible in our runs, and (iii) demonstrates that the observed enstrophy flux and perpendicular momentum generation remain directly correlated as predicted by the theorem even when modest profile variations are present. This will make the applicability explicit rather than implicit. revision: yes

  2. Referee: [Results] Results section (likely §3): the central finding is stated without accompanying quantitative profiles of zonal-flow transport, error estimates, resolution convergence checks, or direct numerical comparison to the theorem equations (e.g., enstrophy flux terms). This weakens the data-to-claim linkage, as the abstract and summary provide no simulation parameters (e.g., grid resolution, time steps, or plasma parameters) to allow independent assessment of the spreading mechanism.

    Authors: We accept that the results section would be strengthened by additional quantitative material. The full manuscript already reports the essential simulation parameters (grid resolution, time step, and plasma parameters) in the methods section, but they are not summarized in a single table. In the revision we will (i) add a table of key numerical parameters, (ii) include radial profiles of the zonal-flow transport and the relevant enstrophy flux terms with direct overlay of the theorem predictions, (iii) report statistical error estimates obtained from multiple independent realizations, and (iv) present resolution-convergence tests for the spreading distance and the enstrophy-momentum correlation. These additions will make the data-to-claim connection quantitative and reproducible. revision: yes

Circularity Check

1 steps flagged

Central mechanistic interpretation of simulation results as radial zonal-flow transport rests on self-cited momentum theorem without re-derivation or validation

specific steps
  1. self citation load bearing [Abstract]
    "Theoretical understanding has been gained by analyzing the simulation results in the context of a momentum theorem in toroidal plasmas [T.S. Hahm et al., Phys. Plasmas 31, 032310 (2024)] which is an extension of the Charney-Drazin non-acceleration theorem [J.G. Charney and P.G. Drazin, J. Geophys. Res. 66, 83 (1961)]. It indicates a direct relation between turbulence-driven enstrophy transport and perpendicular momentum generation."

    The paper claims the simulations reveal a direct relation between enstrophy transport and perpendicular momentum (i.e., radial zonal-flow transport via spreading). This relation is not extracted from the simulation data alone but is supplied by interpreting the data through the momentum theorem of Hahm et al. (2024). Because the cited paper shares an author with the present work and the current manuscript does not re-derive or validate the theorem's assumptions in the global regime, the central interpretive step is justified only by self-citation.

full rationale

The paper's simulations demonstrate turbulence spreading into linearly stable regions post-saturation, but the abstract explicitly states that theoretical understanding and the 'direct relation between turbulence-driven enstrophy transport and perpendicular momentum generation' are gained solely by analyzing results 'in the context of' the momentum theorem from Hahm et al. (2024). With T.S. Hahm as co-author on both works, this self-citation supplies the load-bearing link between observed spreading and the claimed radial transport mechanism. The provided text gives no indication that the theorem's assumptions (e.g., specific averaging, absence of external torques, or quasilinear ordering) are re-derived or explicitly checked against the global nonlinear gyrokinetic setup, so the unification claim reduces to application of prior self-work rather than independent derivation from the current simulations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the cited momentum theorem to the simulation data and on the assumption that global gyrokinetic simulations faithfully represent the relevant plasma dynamics without unaccounted numerical artifacts.

axioms (1)
  • domain assumption Momentum theorem in toroidal plasmas (Hahm et al. 2024) that extends the Charney-Drazin non-acceleration theorem and relates turbulence-driven enstrophy transport to perpendicular momentum generation
    Invoked in the abstract to provide theoretical understanding of the simulation results.

pith-pipeline@v0.9.0 · 5442 in / 1399 out tokens · 39676 ms · 2026-05-09T23:38:56.651475+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

61 extracted references · 61 canonical work pages
