arxiv: 2604.20185 · v1 · submitted 2026-04-22 · 📡 eess.SY · cs.SY

Risk-Aware Hosting Capacity Analysis for Flexible Load Interconnection in Distribution Networks

Gobinda Chandra Sarker , Nathan Dahlin This is my paper

Pith reviewed 2026-05-10 00:19 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords hosting capacityflexible loadsCVaRrisk-aware optimizationdistribution networksload curtailmentconvex optimization
0
0 comments X

The pith

A convex optimization using CVaR and weighted penalties increases hosting capacity for flexible loads while enforcing risk limits and intervention budgets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a method to determine how much flexible load such as electric vehicles or data centers can connect to distribution networks without violating reliability standards. It treats load curtailment as a controllable flexibility resource but adds a Conditional Value-at-Risk constraint to keep extreme curtailment events rare and a weighted L1 penalty to limit how often the utility must intervene. The resulting problem stays convex and therefore solvable at scale. Numerical tests indicate that networks can accept substantially more flexible load than with conventional methods while still meeting the chosen risk and frequency targets. A sympathetic reader would care because this gives operators a practical way to accommodate growing clean loads without immediate grid upgrades or frequent service disruptions.

Core claim

The authors formulate hosting capacity analysis as a convex program that maximizes accepted flexible load subject to network flow constraints, a CVaR bound on the tail risk of excessive curtailment, and a tunable weighted L1 term that controls the number of utility-directed interventions; the regularization parameter directly sets the desired intervention budget.

What carries the argument

The central mechanism is the risk-aware convex optimization that combines a Conditional Value-at-Risk constraint for tail curtailment risk with weighted L1 regularization to enforce a limit on intervention frequency.

Load-bearing premise

The network model and flexibility assumptions must keep the optimization convex and guarantee that any required curtailment can actually be executed when needed.

What would settle it

A distribution feeder test in which the computed hosting capacity produces either more tail-risk curtailment events than the CVaR bound allows or more interventions than the budgeted count would show the method does not deliver its claimed guarantees.

Figures

Figures reproduced from arXiv: 2604.20185 by Gobinda Chandra Sarker, Nathan Dahlin.

Figure 1

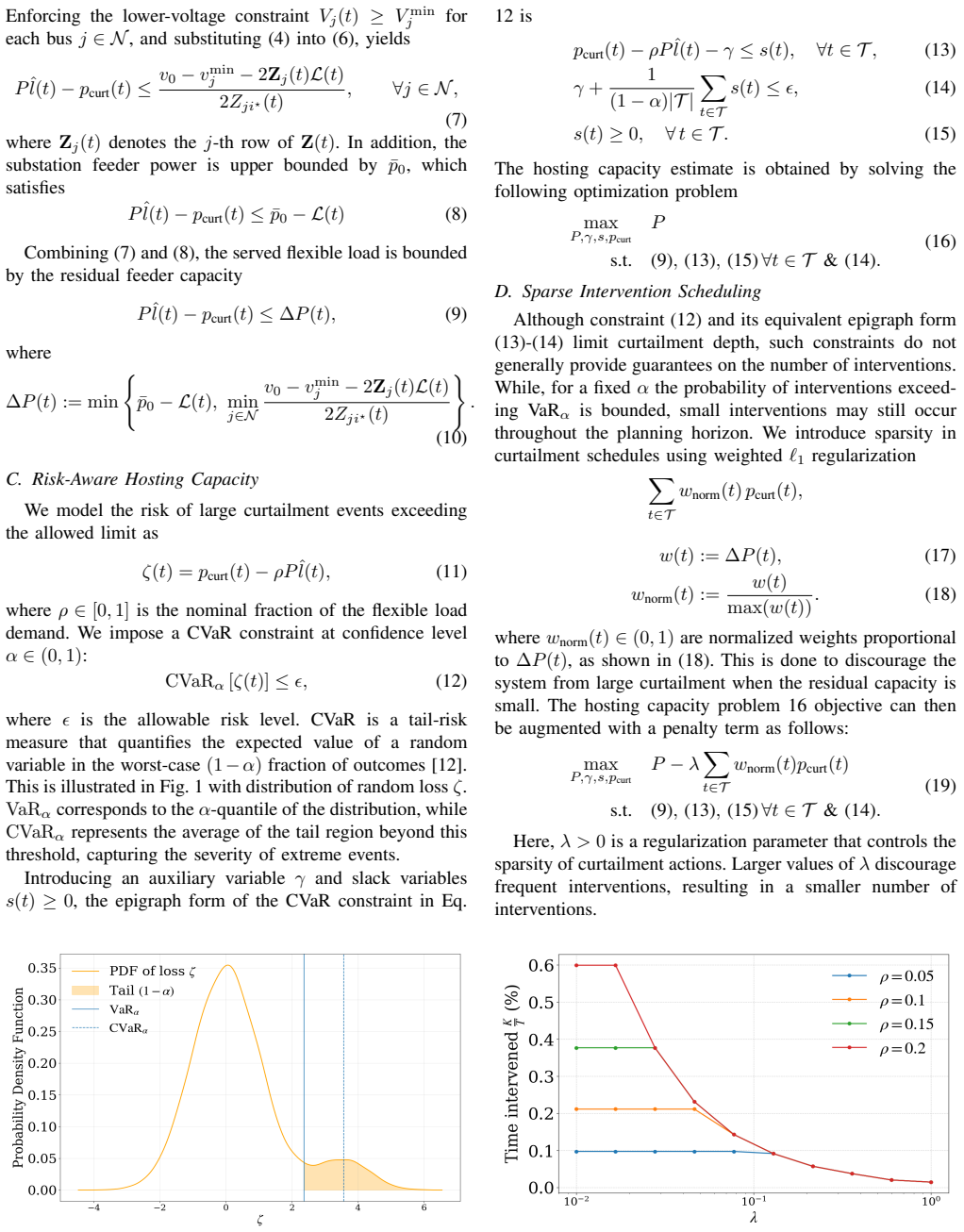

Figure 1. Figure 1: Example PDF of the random loss ζ. CVaRα denotes the expected loss within the tail (shaded) region (1 − α). 12 is pcurt(t) − ρPˆl(t) − γ ≤ s(t), ∀t ∈ T , (13) γ + 1 (1 − α)|T | X t∈T s(t) ≤ ϵ, (14) s(t) ≥ 0, ∀ t ∈ T . (15) The hosting capacity estimate is obtained by solving the following optimization problem max P,γ,s,pcurt P s.t. (9), (13), (15) ∀t ∈ T & (14). (16) D. Sparse Intervention Scheduling Althou… view at source ↗
Figure 3

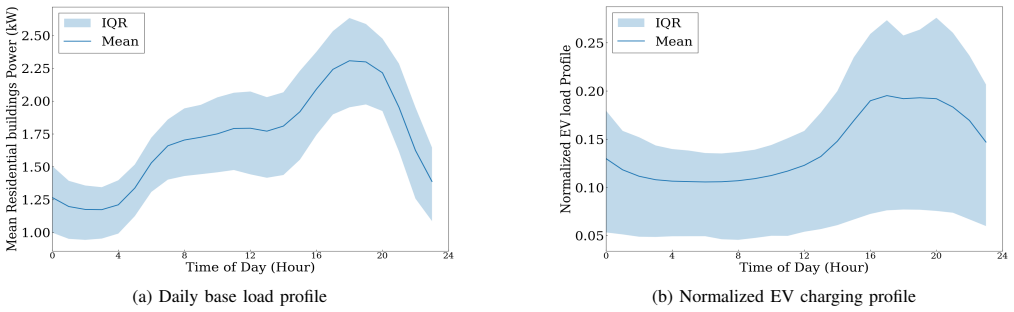

Figure 3. Figure 3: Typical average daily profiles of bus loads and EV charging demand, showing mean behavior and variability (IQR) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

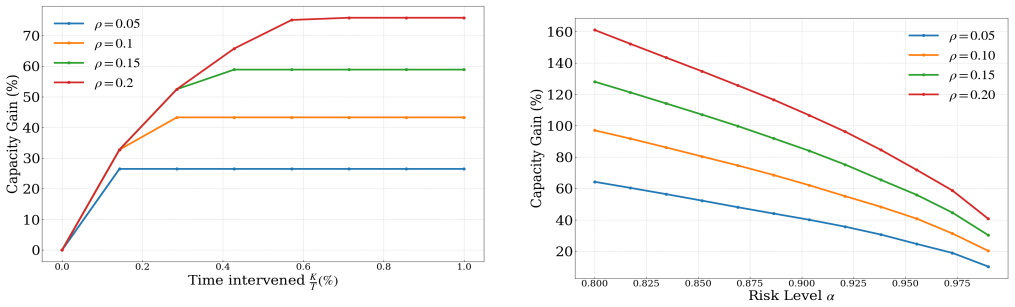

Figure 4. Figure 4: Hosting capacity gain with respect to time intervened [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6

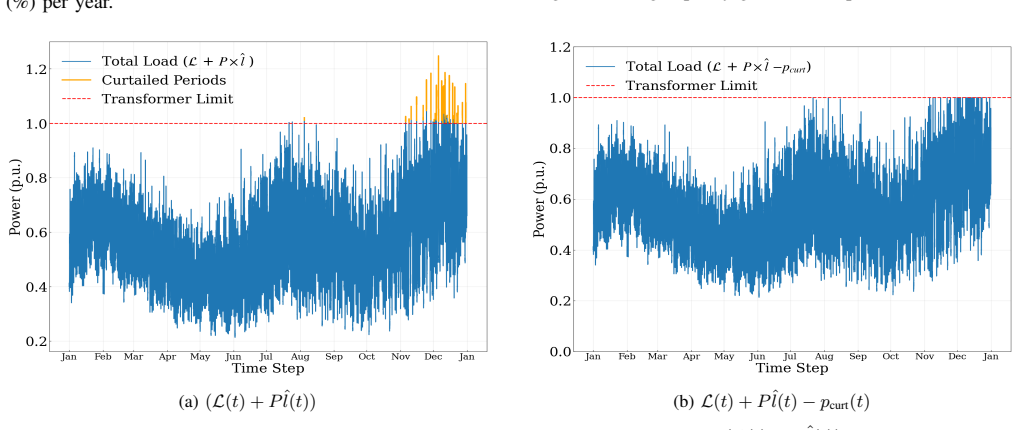

Figure 6. Figure 6: Impact of flexible load hosting and curtailment on feeder capacity (a) Total load [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

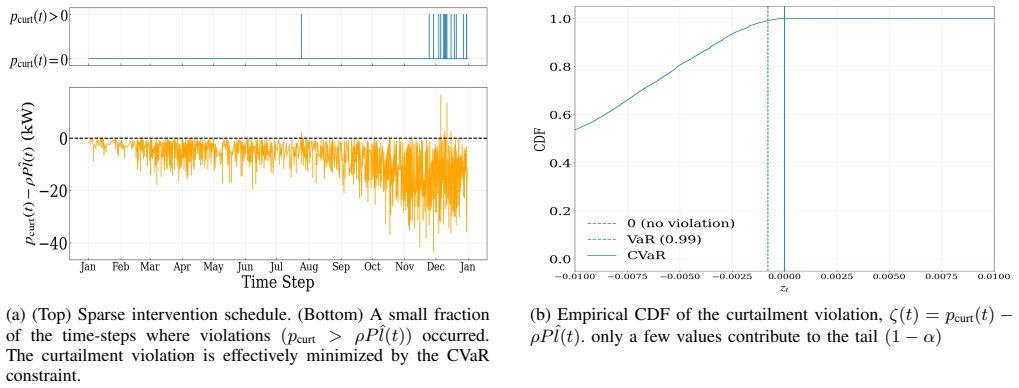

Figure 7. Figure 7: Illustration of Curtailment violation and the impact of CVaR constraint [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

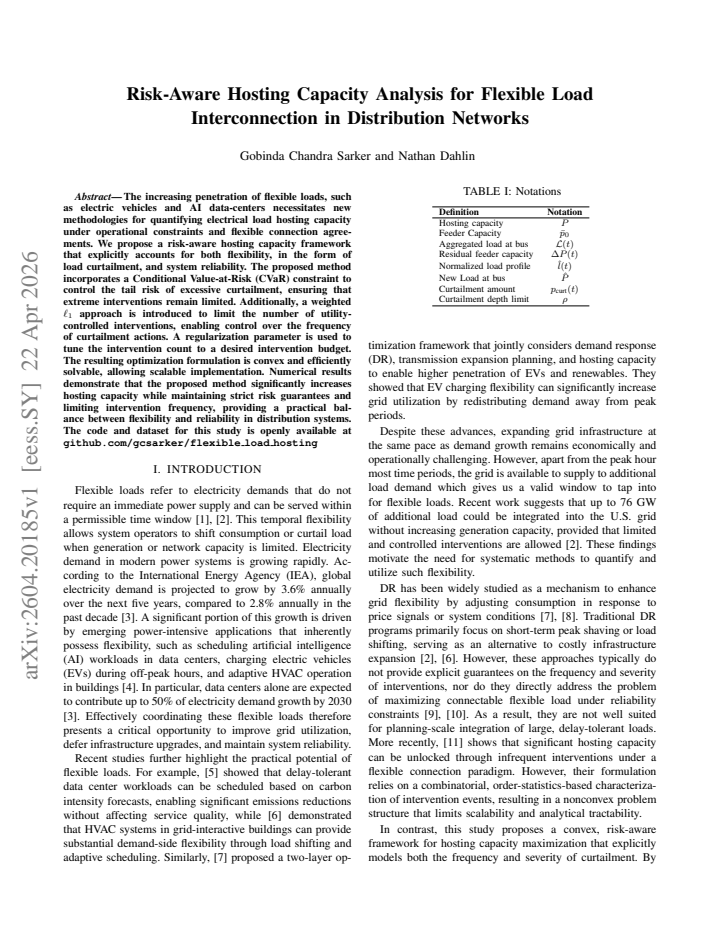

read the original abstract

The increasing penetration of flexible loads, such as electric vehicles and AI data-centers necessitates new methodologies for quantifying electrical load hosting capacity under operational constraints and flexible connection agreements. We propose a risk-aware hosting capacity framework that explicitly accounts for both flexibility, in the form of load curtailment, and system reliability. The proposed method incorporates a Conditional Value-at-Risk (CVaR) constraint to control the tail risk of excessive curtailment, ensuring that extreme interventions remain limited. Additionally, a weighted $\ell_1$ approach is introduced to limit the number of utility-controlled interventions, enabling control over the frequency of curtailment actions. A regularization parameter is used to tune the intervention count to a desired intervention budget. The resulting optimization formulation is convex and efficiently solvable, allowing scalable implementation. Numerical results demonstrate that the proposed method significantly increases hosting capacity while maintaining strict risk guarantees and limiting intervention frequency, providing a practical balance between flexibility and reliability in distribution systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a risk-aware hosting capacity analysis framework for interconnecting flexible loads (e.g., EVs, data centers) in distribution networks. It augments a hosting capacity optimization with a CVaR constraint on the tail risk of excessive load curtailment and a weighted ℓ1 regularization term (controlled by a tunable regularization parameter) to limit the frequency of utility interventions. The resulting program is asserted to be convex and scalable; numerical experiments are reported to show substantially higher hosting capacity while preserving strict risk bounds and intervention budgets.

Significance. If the convexity and feasibility assumptions hold, the framework supplies a computationally tractable method for utilities to quantify and expand hosting capacity under explicit tail-risk and intervention-frequency controls, moving beyond deterministic or worst-case approaches. The combination of CVaR and weighted-ℓ1 regularization offers tunable, interpretable levers that are directly relevant to practical flexible-connection agreements.

major comments (2)
  1. [§3 and Abstract] §3 (formulation) and Abstract: convexity is asserted to follow from the linear power-flow approximation together with CVaR and weighted-ℓ1 terms, yet no explicit statement of the linearization (e.g., LinDistFlow or similar) nor any a-posteriori error bound relative to the nonlinear AC equations is supplied. Because the numerical capacity gains and CVaR guarantees rest entirely on this surrogate remaining feasible and accurate, the absence of such validation is load-bearing.
  2. [§5] §5 (numerical results): all reported hosting-capacity increases presuppose that any required curtailment is physically feasible. The manuscript contains no sensitivity cases enforcing hard minimum-consumption constraints on flexible loads; violation of this assumption would invalidate both the strict CVaR tail bound and the claimed capacity improvement.
minor comments (2)
  1. [§4] The regularization parameter is introduced as a tunable input, but the manuscript does not provide guidance or an algorithm for selecting its value to meet a prescribed intervention budget; a small illustrative table or procedure would improve reproducibility.
  2. [Notation] Notation for the CVaR auxiliary variables and the weighting vector in the ℓ1 term is introduced without a consolidated symbol table; readers must hunt through the text to confirm definitions.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough and insightful review of our manuscript. The comments have helped us identify areas for improvement, and we provide point-by-point responses below, indicating the revisions we plan to make.

read point-by-point responses

  1. Referee: [§3 and Abstract] §3 (formulation) and Abstract: convexity is asserted to follow from the linear power-flow approximation together with CVaR and weighted-ℓ1 terms, yet no explicit statement of the linearization (e.g., LinDistFlow or similar) nor any a-posteriori error bound relative to the nonlinear AC equations is supplied. Because the numerical capacity gains and CVaR guarantees rest entirely on this surrogate remaining feasible and accurate, the absence of such validation is load-bearing.

    Authors: We agree with the referee that the manuscript would benefit from an explicit description of the linear power-flow approximation employed. The formulation in §3 is based on the LinDistFlow model, a common linearization for radial distribution networks. In the revised manuscript, we will explicitly state this and provide a brief overview of the linearization. Regarding a-posteriori error bounds, while we do not perform a full nonlinear AC validation in the current work due to computational considerations, we will add a discussion citing studies that quantify the approximation errors for hosting capacity problems in similar networks, thereby supporting the reliability of our results. revision: yes

  2. Referee: [§5] §5 (numerical results): all reported hosting-capacity increases presuppose that any required curtailment is physically feasible. The manuscript contains no sensitivity cases enforcing hard minimum-consumption constraints on flexible loads; violation of this assumption would invalidate both the strict CVaR tail bound and the claimed capacity improvement.

    Authors: We acknowledge that the numerical results assume curtailment is feasible within the modeled flexibility. To address the referee's concern, we will incorporate sensitivity analyses in the revised §5 that enforce hard minimum-consumption constraints on the flexible loads. These additional cases will demonstrate how the hosting capacity and risk metrics change under reduced flexibility, ensuring the robustness of the proposed framework. revision: yes

Circularity Check

0 steps flagged

No circularity: formulation and results are independent of inputs

full rationale

The paper presents a convex optimization framework that incorporates CVaR constraints and a tunable weighted-l1 regularization term to control intervention frequency. The regularization parameter is stated as an explicit tunable input chosen to meet a desired budget, not fitted to produce the reported hosting-capacity gains. Numerical experiments evaluate the model under its stated assumptions (linearized power flow, feasible curtailment) but do not claim first-principles predictions that reduce to the same fitted quantities by construction. No load-bearing self-citations or uniqueness theorems are invoked to justify the core method, and the convexity and risk bounds follow directly from the chosen mathematical structure rather than from any tautological renaming or self-referential fit.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The framework rests on a domain assumption that power-flow equations admit a convex relaxation and on one explicit free parameter (the regularization weight) that directly sets the intervention budget.

free parameters (1)
  • regularization parameter
    Tuned to achieve a user-specified intervention budget; directly controls the frequency of curtailment actions.
axioms (1)
  • domain assumption Distribution network power flow can be represented by a convex model under the flexible connection agreements.
    Required for the overall optimization to remain convex and efficiently solvable.

pith-pipeline@v0.9.0 · 5461 in / 1123 out tokens · 28011 ms · 2026-05-10T00:19:05.458687+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

  1. [1]

    The potential of data center energy demand to provide grid flexibility,

    C. Crozier and M. Liska, “The potential of data center energy demand to provide grid flexibility,”Current Sustainable/Renewable Energy Reports, vol. 12, no. 1, p. 12, 2025

    work page 2025

  2. [2]

    Rethinking load growth: Assessing the potential for integration of large flexible loads in us power systems,

    T. Norris, T. Profeta, D. Patino-Echeverri, and A. Cowie-Haskell, “Rethinking load growth: Assessing the potential for integration of large flexible loads in us power systems,” 2025

    work page 2025

  3. [3]

    Electricity market report 2023,

    International Energy Agency, “Electricity market report 2023,” 2023. [Online]. Available: https://www.iea.org/reports/electricity-2026

    work page 2023

  4. [4]

    Power hungry: How ai will drive energy demand,

    C. Bogmans, P. Gomez-Gonzalez, G. Ganpurev, G. Melina, A. Pesca- tori, and S. Thube, “Power hungry: How ai will drive energy demand,” IMF Working Papers, vol. 81, no. 4, p. 2025, 2025

    work page 2025

  5. [5]

    Carbon-aware computing for datacenters,

    A. Radovanovi ´c, R. Koningstein, I. Schneider, B. Chen, A. Duarte, B. Roy, D. Xiao, M. Haridasan, P. Hung, N. Careet al., “Carbon-aware computing for datacenters,”IEEE Transactions on Power Systems, vol. 38, no. 2, pp. 1270–1280, 2022

    work page 2022

  6. [6]

    Investigation on electricity flexi- bility and demand-response strategies for grid-interactive buildings,

    H. Yuan, Y . Chen, and Z. Chen, “Investigation on electricity flexi- bility and demand-response strategies for grid-interactive buildings,” Buildings, vol. 15, no. 23, p. 4368, 2025

    work page 2025

  7. [7]

    A hierarchical optimization approach to maximize hosting capacity for electric vehicles and renewable energy sources through demand response and transmission expansion planning,

    S. Z. Almutairi, A. M. Alharbi, Z. M. Ali, M. M. Refaat, and S. H. A. Aleem, “A hierarchical optimization approach to maximize hosting capacity for electric vehicles and renewable energy sources through demand response and transmission expansion planning,”Scientific Reports, vol. 14, no. 1, p. 15765, 2024

    work page 2024

  8. [8]

    Demand response program towards sustainable power supply: current status, challenges, and prospects in malaysia,

    M. S. Ahmad, N. N. Mansor, H. Mokhlis, K. Naidu, H. Mohamad, and F. Ramadhani, “Demand response program towards sustainable power supply: current status, challenges, and prospects in malaysia,” IEEE Access, 2025

    work page 2025

  9. [9]

    A survey of commercial and industrial demand response flexibility with energy storage systems and renewable energy,

    R. Yasmin, B. R. Amin, R. Shah, and A. Barton, “A survey of commercial and industrial demand response flexibility with energy storage systems and renewable energy,”Sustainability, vol. 16, no. 2, p. 731, 2024

    work page 2024

  10. [10]

    Integrating solar pv, battery storage, and demand response for industrial peak shaving: A systematic review on strategy, challenges and case study in malaysian food manufacturing,

    N. E. M. Zahari, H. Mokhlis, H. Mubarak, N. N. Mansor, M. F. Sulaima, A. K. Ramasamy, M. F. Zulkapli, M. A. B. Ja’Apar, M. Jaa- far, and M. B. Marsadek, “Integrating solar pv, battery storage, and demand response for industrial peak shaving: A systematic review on strategy, challenges and case study in malaysian food manufacturing,” IEEE Access, vol. 12, ...

    work page 2024

  11. [11]

    The role of flexible connection in accelerating load interconnection in distribution networks,

    N. Gu, G. Chen, and J. Qin, “The role of flexible connection in accelerating load interconnection in distribution networks,”arXiv preprint arXiv:2510.11476, 2025

    work page arXiv 2025

  12. [12]

    Risk-based hosting capacity analysis in distribution systems,

    A. N. Madavan, N. Dahlin, S. Bose, and L. Tong, “Risk-based hosting capacity analysis in distribution systems,”IEEE Transactions on Power Systems, vol. 39, no. 1, pp. 355–365, 2023

    work page 2023

  13. [13]

    Analytic considerations and design basis for the ieee distribution test feeders,

    K. P. Schneider, B. Mather, B. C. Pal, C.-W. Ten, G. J. Shirek, H. Zhu, J. C. Fuller, J. L. R. Pereira, L. F. Ochoa, L. R. de Araujoet al., “Analytic considerations and design basis for the ieee distribution test feeders,”IEEE Transactions on power systems, vol. 33, no. 3, pp. 3181–3188, 2017

    work page 2017

  14. [14]

    End-use load profiles for the us building stock: Methodology and results of model calibration, validation, and uncertainty quantification,

    E. J. Wilson, A. Parker, A. Fontanini, E. Present, J. L. Reyna, R. Adhikari, C. Bianchi, C. CaraDonna, M. Dahlhausen, J. Kimet al., “End-use load profiles for the us building stock: Methodology and results of model calibration, validation, and uncertainty quantification,” National Renewable Energy Laboratory (NREL), Golden, CO (United States), Tech. Rep., 2022

    work page 2022

  15. [15]

    Analysis of residential ev energy flexibility potential based on real-world charging reports and smart meter data,

    ˚A. L. Sørensen, K. B. Lindberg, I. Sartori, and I. Andresen, “Analysis of residential ev energy flexibility potential based on real-world charging reports and smart meter data,”Energy and Buildings, vol. 241, p. 110923, 2021

    work page 2021
