arxiv: 2604.20253 · v1 · submitted 2026-04-22 · 💻 cs.LO · cs.FL

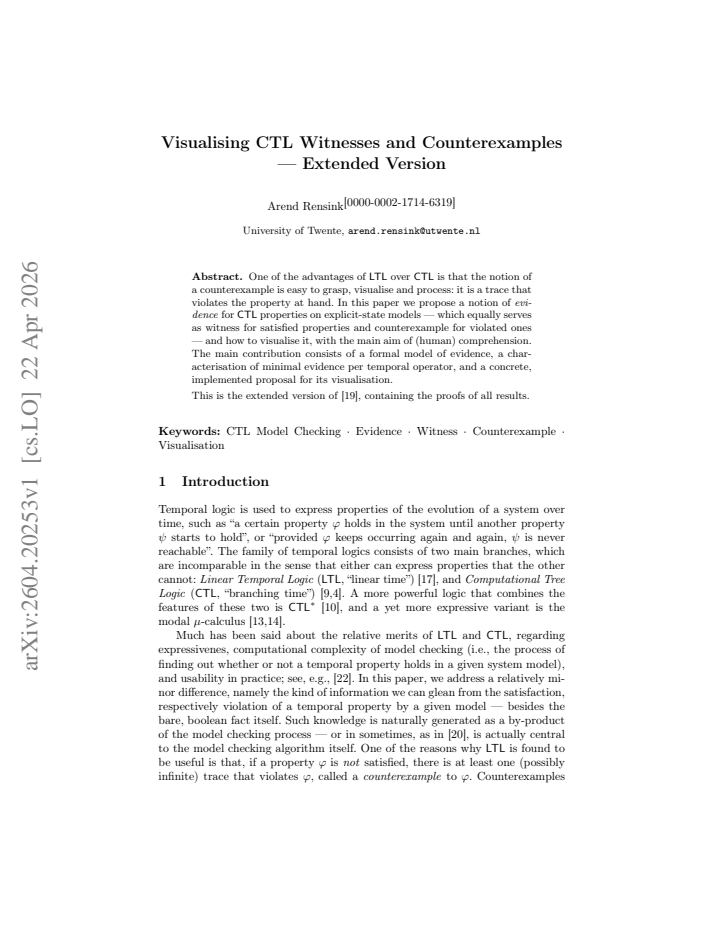

Visualising CTL Witnesses and Counterexamples -- Extended Version

Arend Rensink This is my paper

Pith reviewed 2026-05-09 23:43 UTC · model grok-4.3

classification 💻 cs.LO cs.FL
keywords CTLwitnessescounterexamplesvisualizationevidencetemporal logicminimal evidenceexplicit state models
0
0 comments X

The pith

CTL evidence can be modeled minimally and visualized to explain property satisfaction or violation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a notion of evidence for CTL that doubles as both witness and counterexample. It gives a formal model for this evidence along with the smallest evidence needed for each temporal operator. A visualization method is then proposed and implemented to make this evidence understandable to people. If this works, it would let users see directly the reasons behind model checking results for branching-time properties.

Core claim

We introduce a formal model of evidence for CTL properties on explicit-state models. This evidence serves for both satisfied properties and their violations. Minimal evidence is characterized for every temporal operator, leading to a concrete visualization proposal that has been implemented.

What carries the argument

The formal model of evidence with its per-operator minimal characterizations, which generates the visual diagrams.

If this is right

  • Evidence structures can represent both positive and negative outcomes uniformly.
  • Minimal evidence focuses attention on the relevant parts of the state space.
  • Visualizations provide concrete diagrams rather than abstract traces or trees.
  • The method applies to all CTL operators through their individual characterizations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar evidence models could be developed for related logics like LTL or others.
  • The approach might reduce the need for manual inspection of large state spaces.
  • Integration with existing model checkers could make results more interpretable without changing the checking process.

Load-bearing premise

Visual representations of the minimal evidence will actually help humans comprehend the CTL properties better.

What would settle it

Performing a user experiment that measures whether people understand CTL properties better when shown the visualizations compared to text or standard counterexamples.

Figures

Figures reproduced from arXiv: 2604.20253 by Arend Rensink.

Figure 1
Figure 1. Figure 1: Game board (L = loss, W = win) [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Kripke model of the game state space (cf. Example 3). [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Sample minimal evidence for temporal formulas. Dotted nodes are open; dashed [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Model checking result and minimal witness for [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Locally closed and natural evidence for E ! d1 U win (compare Fig. 4b). In the next proposition, we use M|s (for s ∈ S) to denote the restriction of M to the states reachable from s. Proposition 21 (combined evidence always exists). Let F ∈ ↓F and let M ∈ M(F) be sound. For every φ ∈ FO there exists combined evidence Eφ ⊑ M. If, moreover, φ ∈ {EU, EG} × F <ω, then there exists combined [natural] evidence E… view at source ↗
Figure 6
Figure 6. Figure 6: Combined natural evidence for the temporal operators of [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
read the original abstract

One of the advantages of LTL over CTL is that the notion of a counterexample is easy to grasp, visualise and process: it is a trace that violates the property at hand. In this paper we propose a notion of evidence for CTL properties on explicit-state models -- which equally serves as witness for satisfied properties and counterexample for violated ones -- and how to visualise it, with the main aim of (human) comprehension. The main contribution consists of a formal model of evidence, a characterisation of minimal evidence per temporal operator, and a concrete, implemented proposal for its visualisation. This is the extended version of a paper published in SPIN 2026, containing the proofs of all results.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes a formal model of evidence for CTL properties on explicit-state models, serving as both witnesses for satisfied properties and counterexamples for violated ones. It characterises minimal evidence per temporal operator, provides proofs for all results in this extended version, and presents a concrete implemented visualisation proposal whose main aim is improved human comprehension of CTL properties.

Significance. The formal model and per-operator minimality characterisations, backed by complete proofs, constitute a solid contribution to representing and reasoning about CTL evidence. If the visualisation proposal is adopted, it could help close the gap between LTL's intuitive traces and CTL's more complex branching structures, aiding debugging and education. The implemented nature of the proposal is a concrete strength.

major comments (1)
  1. [Abstract and §1] Abstract and §1: the main aim is stated as improving human comprehension via visualisation, yet the manuscript contains no user studies, controlled experiments, or quantitative metrics evaluating whether the proposed visuals actually aid understanding; this leaves the central practical claim resting on untested design choices rather than evidence.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for minor revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract and §1] Abstract and §1: the main aim is stated as improving human comprehension via visualisation, yet the manuscript contains no user studies, controlled experiments, or quantitative metrics evaluating whether the proposed visuals actually aid understanding; this leaves the central practical claim resting on untested design choices rather than evidence.

    Authors: We agree that the manuscript contains no user studies, controlled experiments or quantitative metrics assessing whether the proposed visualisation improves human comprehension of CTL properties. The primary contributions of the work are the formal model of evidence (serving as both witnesses and counterexamples), the per-operator minimality characterisations, and the complete proofs supplied in this extended version. The visualisation scheme is presented as a concrete, implemented proposal whose design is motivated by the formal evidence model and by the contrast with linear LTL traces. We do not claim to have demonstrated improved comprehension empirically; the stated aim is therefore aspirational rather than proven. In the revised manuscript we will add a short dedicated paragraph in §1 (and a corresponding remark in the conclusion) that explicitly acknowledges the absence of empirical validation, summarises the design rationale, and identifies user studies as future work. revision: yes

Circularity Check

0 steps flagged

No circularity: new formal definitions and proofs are self-contained

full rationale

The paper introduces a formal model of evidence for CTL properties on explicit-state models, provides a characterisation of minimal evidence per temporal operator (with proofs in the extended version), and proposes a concrete visualisation. These are definitional contributions and proven results rather than numerical predictions, fitted parameters, or derivations that reduce to inputs by construction. No self-citations appear load-bearing, no ansatzes are smuggled, and no renaming of known results occurs. The central claims rest on explicit definitions and formal proofs, making the derivation chain independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The paper rests on standard definitions of CTL semantics and explicit-state transition systems. No free parameters are introduced. The new 'evidence' objects are defined rather than postulated as physical entities.

axioms (1)
  • standard math Standard CTL semantics on Kripke structures
    Invoked throughout the formal model of evidence.
invented entities (1)
  • Evidence structure for CTL no independent evidence
    purpose: To serve as witness or counterexample
    Defined formally in the paper; no independent empirical evidence supplied.
