arxiv: 2604.20280 · v2 · submitted 2026-04-22 · 🌌 astro-ph.SR · astro-ph.GA

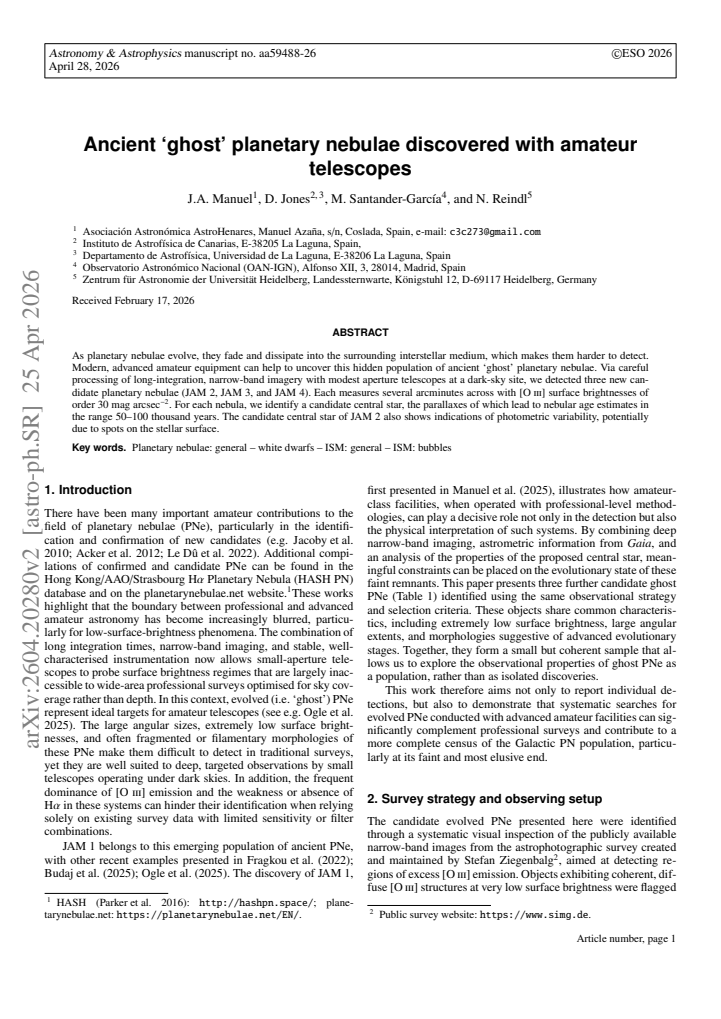

Ancient 'ghost' planetary nebulae discovered with amateur telescopes

J.A. Manuel , D. Jones , M. Santander-Garc\'ia , N. Reindl This is my paper

Pith reviewed 2026-05-09 23:42 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.GA
keywords planetary nebulaefaint nebulaeamateur telescopesGaia parallaxesnebular evolution[O III] imagingancient planetary nebulaeghost nebulae
0
0 comments X

The pith

Careful long-exposure narrow-band imaging with modest telescopes reveals three ancient planetary nebulae that are nearly dissipated.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that long-integration narrow-band images taken with small telescopes at dark sites can detect very faint, extended structures in the [O III] line that standard surveys miss. These three new candidates each span several arcminutes at surface brightnesses around 30 magnitudes per square arcsecond, placing them among the oldest known planetary nebulae. Candidate central stars are identified for each, and their Gaia parallaxes yield distances that translate to nebular ages of 50 to 100 thousand years. One central star also displays photometric variability that may indicate surface spots. The work illustrates how accessible equipment can locate the final, ghost-like stage of planetary nebula evolution before the material merges into the interstellar medium.

Core claim

Via careful processing of long-integration, narrow-band imagery with modest aperture telescopes at a dark-sky site, we reveal three new candidate planetary nebulae (JAM 2, JAM 3, and JAM 4). Each measures several arcminutes across with [O III] surface brightnesses of order 30 mag arcsec^{-2}. For each nebula, we identify a candidate central star, the parallaxes of which lead to nebular age estimates in the range 50-100 thousand years. The candidate central star of JAM 2 also shows indications of photometric variability, potentially due to spots on the stellar surface.

What carries the argument

Long-integration narrow-band [O III] imaging processed to extract faint extended emission, paired with Gaia parallaxes of candidate central stars to derive distances and therefore ages.

Load-bearing premise

That the faint emission structures are genuine planetary nebulae and that the identified stars are their true central stars, so Gaia parallaxes give reliable distances and ages.

What would settle it

Spectroscopic confirmation that the extended emission shows planetary-nebula line ratios and that the candidate stars exhibit the expected radial velocities or proper-motion agreement with the nebulae.

Figures

Figures reproduced from arXiv: 2604.20280 by D. Jones, J.A. Manuel, M. Santander-Garc\'ia, N. Reindl.

Figure 1
Figure 1. Figure 1: JAM 2 in the light of [O iii]. The position of the candidate central star is marked with a red cross. North is up, and east to the left [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Starless [O iii] image of JAM 2 and the resulting symmetry diagnostics [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: GTC-OSIRIS spectrum of the candidate central star of JAM 2, PG 0038 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Fit to the SED for PG 0038+199. Top panel: Filter￾averaged fluxes converted from observed magnitudes are shown in different colours. The pink line represents the IUE spectra, and the grey lines correspond to the model flux that best fits the observation. The model flux is degraded to a spectral resolution of 6 Å. To reduce the steep SED slope, the flux is multiplied by the wavelength cubed. Bottom panel: D… view at source ↗
Figure 5
Figure 5. Figure 5: Lomb-Scargle periodogram of the zg light curve of [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: zg light curve of PG 0038+199 folded on the peak of the Lomb-Scargle periodogram (0.994 d). and the star is moving towards the brighter, compressed side of the shell, as clearly indicated in [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: JAM 3 in the light of [O iii]. The position of the candidate central star is marked with a red cross. North is up, and east to the left. of weak or ambiguous mirror symmetry in JAM 3, compati￾ble either with intrinsically irregular or low-axisymmetry struc￾ture or with the limited contrast of the detected emission. Given the known sensitivity of TI-based symmetry signatures to the adopted centre and large-… view at source ↗
Figure 8
Figure 8. Figure 8: Starless [O iii] image of JAM 3 and the resulting symmetry diagnostics. dently reported by Celnik et al. (2026) during a survey for dwarf companions to the spiral galaxy NGC 2403. They dub the nebula TBG-N1. 5.1. Morphology Morphologically, JAM 4 is shell-like and predominantly limb￾brightened, with a markedly brighter sector along the rim, plau￾sibly produced by compression and enhanced excitation where t… view at source ↗
Figure 9
Figure 9. Figure 9: JAM 4 in the light of [O iii]. The position of the candidate central star is marked with a red cross. North is up,and east to the left. 6. Conclusions We present narrow-band imaging of three new candidate ancient PNe, which we name JAM 2, JAM 3 and JAM 4. Morphological analysis indicates that all three have axisymmetric morphologies with strong indications of interaction with the ISM. Based on the Gaia par… view at source ↗
Figure 10
Figure 10. Figure 10: Starless [O iii] image of JAM 4 and the resulting symmetry diagnostics. trofis., 48, 223 Althaus, L. G., Panei, J. A., Miller Bertolami, M. M., et al. 2009, ApJ, 704, 1605 Astropy Collaboration, Price-Whelan, A. M., Lim, P. L., et al. 2022, ApJ, 935, 167 Astropy Collaboration, Price-Whelan, A. M., Sipocz, B. M., et al. 2018, AJ, 156, ˝ 123 Astropy Collaboration, Robitaille, T. P., Tollerud, E. J., et al. … view at source ↗
read the original abstract

As planetary nebulae evolve, they fade and dissipate into the surrounding interstellar medium making them harder to detect. Modern, advanced amateur equipment can help to uncover this hidden population of ancient 'ghost' planetary nebulae. Via careful processing of long-integration, narrow-band imagery with modest aperture telescopes at a dark-sky site, we reveal three new candidate planetary nebulae (JAM 2, JAM 3, and JAM 4). Each measures several arcminutes across with [O iii] surface brightnesses of order 30 mag arcsec$^{-2}$. For each nebula, we identify a candidate central star, the parallaxes of which lead to nebular age estimates in the range 50-100 thousand years. The candidate central star of JAM 2 also shows indications of photometric variability, potentially due to spots on the stellar surface.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript reports the discovery of three new candidate ancient 'ghost' planetary nebulae (JAM 2, JAM 3, JAM 4) via long-integration narrow-band [O III] imaging obtained with modest amateur telescopes at a dark-sky site. The objects are several arcminutes across with surface brightnesses of order 30 mag arcsec^{-2}. Candidate central stars are identified for each nebula; Gaia parallaxes of these stars are used to derive nebular ages in the 50-100 kyr range. One central star (for JAM 2) exhibits photometric variability possibly attributable to surface spots.

Significance. If the candidate identifications and central-star associations hold, the work would illustrate the scientific value of advanced amateur equipment for detecting faint, evolved planetary nebulae missed by professional surveys, thereby improving statistics on PN lifetimes and dissipation into the ISM. The reported photometric variability in one candidate central star is an additional potentially interesting datum.

major comments (3)
  1. [Abstract] Abstract and age-estimate discussion: the 50-100 kyr ages are derived from Gaia parallaxes of the candidate central stars combined with observed angular sizes, but the manuscript provides no explicit expansion velocity assumption, no error propagation on the parallax-to-distance conversion, and no discussion of how misidentification of the central star would affect the result. This assumption is load-bearing for the headline age range.
  2. [Candidate central stars] Candidate central-star identification section: association rests on positional coincidence within the nebula plus Gaia parallax; no radial-velocity match, proper-motion consistency, or exclusion of chance superpositions is presented. For objects at ~30 mag arcsec^{-2} this is the weakest link and directly undermines the distance and age claims if the stars are unrelated.
  3. [Observations] Observations and classification: the objects are classified as planetary nebulae solely on narrow-band [O III] morphology and the presence of a candidate central star. No spectra, emission-line ratios, or kinematic data are supplied to rule out contaminants (H II regions, supernova remnants, or imaging artifacts).
minor comments (3)
  1. [Abstract] The surface brightness is quoted uniformly as 'of order 30 mag arcsec^{-2}'; tabulating individual measured values (with uncertainties) for each nebula would improve precision and allow direct comparison with known faint PNe.
  2. [Results] A summary table listing coordinates, angular sizes, candidate central-star Gaia IDs, distances, and ages for JAM 2-4 would aid readability and future reference.
  3. [Discussion] The manuscript would benefit from a short paragraph placing these candidates in context with previously known ancient or 'ghost' PNe and with existing professional searches for low-surface-brightness nebulae.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address each major comment point by point below, providing the strongest honest defense of the work while acknowledging its limitations as a candidate discovery paper. Revisions have been made where they strengthen the presentation without misrepresenting the data.

read point-by-point responses

  1. Referee: [Abstract] Abstract and age-estimate discussion: the 50-100 kyr ages are derived from Gaia parallaxes of the candidate central stars combined with observed angular sizes, but the manuscript provides no explicit expansion velocity assumption, no error propagation on the parallax-to-distance conversion, and no discussion of how misidentification of the central star would affect the result. This assumption is load-bearing for the headline age range.

    Authors: We agree that the age estimates depend on assumptions and will revise the manuscript to explicitly state the adopted expansion velocity of 20 km s^{-1} (a representative value for evolved PNe), include formal error propagation from the Gaia parallaxes and angular sizes, and add a paragraph discussing the consequences of possible central-star misidentification. These changes will be incorporated into the age-estimate section and abstract to make the basis for the 50-100 kyr range fully transparent. revision: yes

  2. Referee: [Candidate central stars] Candidate central-star identification section: association rests on positional coincidence within the nebula plus Gaia parallax; no radial-velocity match, proper-motion consistency, or exclusion of chance superpositions is presented. For objects at ~30 mag arcsec^{-2} this is the weakest link and directly undermines the distance and age claims if the stars are unrelated.

    Authors: The associations rely on positional coincidence and parallax consistency, as described. We will add to the revised manuscript a quantitative estimate of chance-superposition probability based on local Gaia source density, along with a clear statement that radial-velocity or proper-motion confirmation is not yet available. While these objects remain candidates, the combination of location inside the nebula and plausible PN distances supports the identifications; we do not claim definitive proof but present the evidence that exists. revision: partial

  3. Referee: [Observations] Observations and classification: the objects are classified as planetary nebulae solely on narrow-band [O III] morphology and the presence of a candidate central star. No spectra, emission-line ratios, or kinematic data are supplied to rule out contaminants (H II regions, supernova remnants, or imaging artifacts).

    Authors: Classification is based on the distinctive [O III] morphology and candidate central stars, which is standard for faint extended nebulae. In revision we will expand the discussion to note morphological differences from typical H II regions and SNRs (large angular extent, extremely low surface brightness, absence of strong H-alpha in the same imaging) and to address possible artifacts. Spectra of 30 mag arcsec^{-2} targets are not feasible with the amateur setup used here and would require large professional telescopes; we therefore present these as imaging-based candidates while acknowledging the value of future spectroscopic follow-up. revision: partial

Circularity Check

0 steps flagged

No circularity: purely observational discovery with no derivations or fitted predictions

full rationale

This is an observational report of three candidate planetary nebulae identified via narrow-band imaging and Gaia parallax associations. The provided text and abstract contain no equations, models, parameter fits, predictions, or derivation chains. All claims rest on direct measurements and external catalogs (Gaia parallaxes, morphology). No self-citations are load-bearing for any result, and there are no instances of self-definition, fitted inputs renamed as predictions, or ansatzes smuggled via citation. The paper is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard astronomical assumptions about central-star identification and distance measurements rather than new free parameters or invented entities.

axioms (2)
  • domain assumption The candidate central stars are the true ionizing sources of the observed nebulae.
    Required to associate Gaia parallaxes with nebular distances and ages.
  • standard math Gaia parallaxes provide sufficiently accurate distances for these stars.
    Standard assumption for converting parallax to distance in modern stellar astronomy.

pith-pipeline@v0.9.0 · 5450 in / 1436 out tokens · 84903 ms · 2026-05-09T23:42:52.139191+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

37 extracted references · 37 canonical work pages · 1 internal anchor

  1. [1]

    Acker, A., Boffin, H. M. J., Outters, N., et al. 2012, Rev. Mexicana Astron. As- Article number, page 9 A&A proofs:manuscript no. aa59488-26 Fig. 10: Starless [Oiii] image of JAM 4 and the resulting symmetry diagnostics. trofis., 48, 223

    work page 2012

  2. [2]

    G., Panei, J

    Althaus, L. G., Panei, J. A., Miller Bertolami, M. M., et al. 2009, ApJ, 704, 1605 Astropy Collaboration, Price-Whelan, A. M., Lim, P. L., et al. 2022, ApJ, 935, 167 Astropy Collaboration, Price-Whelan, A. M., Sip˝ocz, B. M., et al. 2018, AJ, 156, 123 Astropy Collaboration, Robitaille, T. P., Tollerud, E. J., et al. 2013, A&A, 558, A33

    work page 2009

  3. [3]

    Bailer-Jones, C. A. L., Rybizki, J., Fouesneau, M., Demleitner, M., & Andrae, R. 2021, AJ, 161, 147

    work page 2021

  4. [4]

    2025, Nature Astronomy, 9, 380

    Budaj, J., Bernhard, K., Jones, D., & Munday, J. 2025, Nature Astronomy, 9, 380

    work page 2025

  5. [5]

    E., Köchling, P., Kotov, S., et al

    Celnik, W. E., Köchling, P., Kotov, S., et al. 2026, Astronomische Nachrichten, 347, e70078

    work page 2026

  6. [6]

    A., Cortés-Contreras, M., et al

    Cifuentes, C., Caballero, J. A., Cortés-Contreras, M., et al. 2020, A&A, 642, A115

    work page 2020

  7. [7]

    2025, StarXTerminator: star removal software using AI, RC-Astro software (PixInsight plugin), version 2.3.11

    Croman, R. 2025, StarXTerminator: star removal software using AI, RC-Astro software (PixInsight plugin), version 2.3.11

    work page 2025

  8. [8]

    2022, A&A, 662, A40

    Culpan, R., Geier, S., Reindl, N., et al. 2022, A&A, 662, A40

    work page 2022

  9. [9]

    & Werner, K

    Dreizler, S. & Werner, K. 1996, A&A, 314, 217

    work page 1996

  10. [10]

    1997, in The Third Conference on Faint Blue Stars, ed

    Dreizler, S., Werner, K., Heber, U., Reid, N., & Hagen, H. 1997, in The Third Conference on Faint Blue Stars, ed. A. G. D. Philip, J. Liebert, R. Saffer, & D. S. Hayes, 303

    work page 1997

  11. [11]

    L., Massa, D., Gordon, K

    Fitzpatrick, E. L., Massa, D., Gordon, K. D., Bohlin, R., & Clayton, G. C. 2019, ApJ, 886, 108

    work page 2019

  12. [12]

    A., Zijlstra, A

    Fragkou, V ., Parker, Q. A., Zijlstra, A. A., et al. 2022, ApJ, 935, L35 Gaia Collaboration, Brown, A. G. A., Vallenari, A., et al. 2021a, A&A, 649, A1 Gaia Collaboration, Brown, A. G. A., Vallenari, A., et al. 2021b, A&A, 650, C3 Gaia Collaboration, Vallenari, A., Brown, A. G. A., et al. 2023, A&A, 674, A1 Gentile Fusillo, N. P., Tremblay, P.-E., Cukanov...

    work page 2022

  13. [13]

    2018, Open Astronomy, 27, 35

    Heber, U., Irrgang, A., & Schaffenroth, J. 2018, Open Astronomy, 27, 35

    work page 2018

  14. [14]

    2013, A&A, 553, A6

    Husser, T.-O., Wende-von Berg, S., Dreizler, S., et al. 2013, A&A, 553, A6

    work page 2013

  15. [15]

    2021, A&A, 650, A102

    Irrgang, A., Geier, S., Heber, U., et al. 2021, A&A, 650, A102

    work page 2021

  16. [16]

    H., Kronberger, M., Patchick, D., et al

    Jacoby, G. H., Kronberger, M., Patchick, D., et al. 2010, PASA, 27, 156

    work page 2010

  17. [17]

    S., Werner, K., Kilkenny, D., et al

    Jeffery, C. S., Werner, K., Kilkenny, D., et al. 2023, MNRAS, 519, 2321

    work page 2023

  18. [18]

    Jones, D., Boffin, H. M. J., Hibbert, J., et al. 2020, A&A, 642, A108 Le Dû, P., Mulato, L., Parker, Q. A., et al. 2022, A&A, 666, A152

    work page 2020

  19. [19]

    A., Jones, D., & Santander-García, M

    Manuel, J. A., Jones, D., & Santander-García, M. 2025, Research Notes of the American Astronomical Society, 9, 251 Martínez, J. R., del Palacio, S., & Bosch-Ramon, V . 2023, Astronomy & Astro- physics, 680, A99

    work page 2025

  20. [20]

    J., Laher, R

    Masci, F. J., Laher, R. R., Rusholme, B., et al. 2019, PASP, 131, 018003 Miller Bertolami, M. M. 2016, A&A, 588, A25

    work page 2019

  21. [21]

    2020, Nature Astronomy, 4, 1092

    Momany, Y ., Zaggia, S., Montalto, M., et al. 2020, Nature Astronomy, 4, 1092

    work page 2020

  22. [22]

    2025, arXiv e-prints, arXiv:2507.15834

    Ogle, P., Petersen, M., Schaeffer, T., et al. 2025, arXiv e-prints, arXiv:2507.15834

    work page internal anchor Pith review arXiv 2025

  23. [23]

    A., Bojiˇci´c, I

    Parker, Q. A., Bojiˇci´c, I. S., & Frew, D. J. 2016, in Journal of Physics Conference

    work page 2016

  24. [24]

    2023, A&A, 677, A29

    Reindl, N., Islami, R., Werner, K., et al. 2023, A&A, 677, A29

    work page 2023

  25. [25]

    W., & Todt, H

    Reindl, N., Rauch, T., Werner, K., Kruk, J. W., & Todt, H. 2014, A&A, 566, A116

    work page 2014

  26. [26]

    2021, A&A, 647, A184

    Reindl, N., Schaffenroth, V ., Filiz, S., et al. 2021, A&A, 647, A184

    work page 2021

  27. [27]

    Schlafly, E. F. & Finkbeiner, D. P. 2011, ApJ, 737, 103

    work page 2011

  28. [28]

    2026, arXiv e-prints, arXiv:2601.07913, doi: 10.48550/arXiv.2601.07913

    Shishkin, D. & Michaelis, A. 2026, arXiv e-prints, arXiv:2601.07913

    work page arXiv 2026

  29. [29]

    J., Zijlstra, A

    Wareing, C. J., Zijlstra, A. A., & O’Brien, T. J. 2007, MNRAS, 382, 1233

    work page 2007

  30. [30]

    2012, TMAP: Tübingen NLTE Model- Atmosphere Package, Astrophysics Source Code Library

    Werner, K., Dreizler, S., & Rauch, T. 2012, TMAP: Tübingen NLTE Model- Atmosphere Package, Astrophysics Source Code Library

    work page 2012

  31. [31]

    & Rauch, T

    Werner, K. & Rauch, T. 2015, A&A, 583, A131

    work page 2015

  32. [32]

    Werner, K., Rauch, T., & Kepler, S. O. 2014, A&A, 564, A53

    work page 2014

  33. [33]

    Werner, K., Rauch, T., & Kruk, J. W. 2017, A&A, 601, A8

    work page 2017

  34. [34]

    2022, A&A, 658, A66

    Werner, K., Reindl, N., Dorsch, M., et al. 2022, A&A, 658, A66

    work page 2022

  35. [35]

    2025, A&A, 693, A167

    Werner, K., Reindl, N., Pritzkuleit, M., & Geier, S. 2025, A&A, 693, A167

    work page 2025

  36. [36]

    L., Liebert, J., et al

    Wesemael, F., Greenstein, J. L., Liebert, J., et al. 1993, PASP, 105, 761

    work page 1993

  37. [37]

    & Jeffery, C

    Zhang, X. & Jeffery, C. S. 2012, MNRAS, 419, 452 Article number, page 10

    work page 2012
