arxiv: 2604.20428 · v1 · submitted 2026-04-22 · 💻 cs.RO

Lexicographic Minimum-Violation Motion Planning using Signal Temporal Logic

Patrick Halder , Lothar Kiltz , Hannes Homburger , Johannes Reuter , Matthias Althoff This is my paper

Pith reviewed 2026-05-10 00:08 UTC · model grok-4.3

classification 💻 cs.RO
keywords signal temporal logicmotion planninglexicographic optimizationminimum-violationmodel predictive path integralautonomous vehiclesrobustness measure
0
0 comments X

The pith

Non-uniform quantization and bit-shifting turn lexicographic STL optimization into a single scalar problem.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper seeks to make minimum-violation motion planning practical when specifications have strict priorities that cannot all be satisfied at once. It converts the hard lexicographic ordering into one scalar cost by quantizing and bit-shifting the individual violation measures from signal temporal logic. A standard single-objective solver can then find plans that respect the order of importance. The work also provides a new way to measure how much a predicate is violated in both space and time. This matters for autonomous systems that must choose which rules to bend least when conflicts arise.

Core claim

The authors transform the multi-objective lexicographic optimization problem into a single-objective scalar optimization problem using non-uniform quantization and bit-shifting. They extend a deterministic model predictive path integral solver to handle optimization without quadratic input cost. A novel predicate-robustness measure is introduced that combines spatial and temporal violations. This yields an interpretable and scalable approach for lexicographic STL minimum-violation motion planning.

What carries the argument

Non-uniform quantization with bit-shifting to encode priority levels into a single scalar cost

If this is right

  • The single-objective framework becomes sufficient for handling prioritized specification violations.
  • The MPPI solver can now address problems lacking a quadratic input cost term.
  • Plans can be generated that minimize violations in a priority-respecting manner efficiently.
  • The combined robustness measure allows better quantification of specification breaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar quantization methods might help in other domains requiring lexicographic preferences, such as resource allocation.
  • The scalability claims suggest potential for use in high-dimensional state spaces typical of vehicle planning.
  • One could test whether the bit-shifting approach generalizes to continuous priority weights beyond discrete orders.

Load-bearing premise

The quantization and bit-shifting steps preserve the original lexicographic order of violations without major distortion in the cost landscape.

What would settle it

If a direct lexicographic optimizer produces a different trajectory than the quantized scalar version on the same set of conflicting specifications, the transformation would be shown to alter the solution.

Figures

Figures reproduced from arXiv: 2604.20428 by Hannes Homburger, Johannes Reuter, Lothar Kiltz, Matthias Althoff, Patrick Halder.

Figure 1
Figure 1. Figure 1: FIGURE 1: An overtaking scenario involving a broken-down vehicle and five [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIGURE 2: Overview of the motion planning framework. Figure derived [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIGURE 3: Example visualizations of predicate robustness and cost [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIGURE 4: Visualization of decay rules and example solution of the proposed [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 6

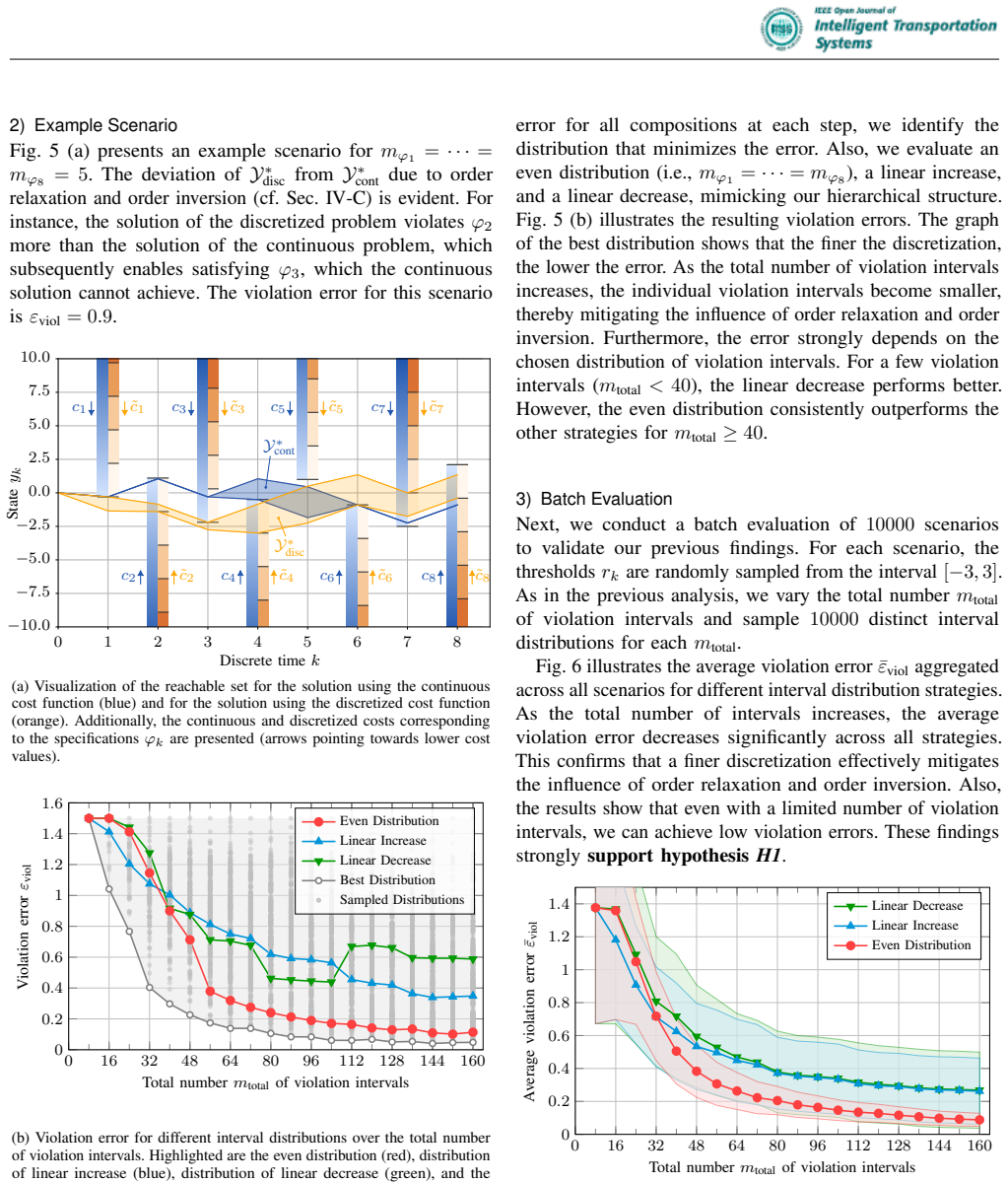

Figure 6. Figure 6: illustrates the average violation error ε¯viol aggregated across all scenarios for different interval distribution strategies. As the total number of intervals increases, the average violation error decreases significantly across all strategies. This confirms that a finer discretization effectively mitigates the influence of order relaxation and order inversion. Also, the results show that even with a limi… view at source ↗
Figure 7
Figure 7. Figure 7: FIGURE 7: Planning results of the CommonRoad scenario. (a) Scenario at four MPC iterations, including the planned trajectory, sampled trajectories, and [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIGURE 9: Comparison of robustness measures in the CommonRoad [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIGURE 8: Comparison of robustness measures for the running example. (a) 0 10 20 [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
read the original abstract

Motion planning for autonomous vehicles often requires satisfying multiple conditionally conflicting specifications. In situations where not all specifications can be met simultaneously, minimum-violation motion planning maintains system operation by minimizing violations of specifications in accordance with their priorities. Signal temporal logic (STL) provides a formal language for rigorously defining these specifications and enables the quantitative evaluation of their violations. However, a total ordering of specifications yields a lexicographic optimization problem, which is typically computationally expensive to solve using standard methods. We address this problem by transforming the multi-objective lexicographic optimization problem into a single-objective scalar optimization problem using non-uniform quantization and bit-shifting. Specifically, we extend a deterministic model predictive path integral (MPPI) solver to efficiently solve optimization problems without quadratic input cost. Additionally, a novel predicate-robustness measure that combines spatial and temporal violations is introduced. Our results show that the proposed method offers an interpretable and scalable solution for lexicographic STL minimum-violation motion planning within a single-objective solver framework.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims to address lexicographic minimum-violation motion planning for autonomous vehicles with multiple conflicting STL specifications by converting the multi-objective problem into a single scalar objective via non-uniform quantization and bit-shifting. It extends deterministic MPPI to solve the resulting optimization without quadratic input costs and introduces a novel predicate-robustness measure combining spatial and temporal violations, claiming the result is interpretable and scalable.

Significance. If the quantization and bit-shifting transformation rigorously preserves strict lexicographic priority (including under the new robustness measure and MPPI sampling), the work would provide a practical single-objective framework for prioritized STL planning, extending MPPI in a useful way and potentially enabling more efficient handling of complex, conditionally conflicting specifications in real-time autonomous systems.

major comments (2)
  1. [Method (transformation and scalar optimization)] The central reduction (described in the abstract and method) converts lexicographic ordering to a scalar via non-uniform quantization and bit-shifting but provides no explicit bound relating quantization granularity, bit-shift amounts, the range of the predicate-robustness measure, or MPPI importance-weight variance to guarantee that the maximum contribution of any lower-priority term is strictly less than the minimum of the next higher-priority term. This is load-bearing for the main claim, as the scalar landscape could otherwise admit trajectories trading small high-priority violations for large low-priority gains.
  2. [Results and evaluation] The abstract asserts that results demonstrate an interpretable and scalable solution, yet the provided description contains no validation details, baseline comparisons, quantitative metrics on ordering preservation, or analysis of artifacts from the new robustness measure inside MPPI sampling. This leaves the performance claims unsupported.
minor comments (2)
  1. [Preliminaries and definitions] Clarify the exact definition and semantics of the novel predicate-robustness measure relative to standard STL robustness to prevent notation confusion.
  2. [MPPI extension] The abstract mentions extending MPPI 'to efficiently solve optimization problems without quadratic input cost'; ensure the modified cost function and sampling procedure are fully specified with pseudocode or equations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive review. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation of the transformation guarantees and the empirical validation.

read point-by-point responses

  1. Referee: [Method (transformation and scalar optimization)] The central reduction (described in the abstract and method) converts lexicographic ordering to a scalar via non-uniform quantization and bit-shifting but provides no explicit bound relating quantization granularity, bit-shift amounts, the range of the predicate-robustness measure, or MPPI importance-weight variance to guarantee that the maximum contribution of any lower-priority term is strictly less than the minimum of the next higher-priority term. This is load-bearing for the main claim, as the scalar landscape could otherwise admit trajectories trading small high-priority violations for large low-priority gains.

    Authors: We agree that an explicit bound is necessary to rigorously support the claim that the scalarization preserves strict lexicographic priority. The current manuscript motivates the non-uniform quantization and bit-shifting approach but does not derive the required separation condition accounting for the new predicate-robustness measure and MPPI importance-weight variance. In the revision we will add a formal lemma (with proof) in Section III that relates the quantization step size, the number of bits shifted per priority level, the known bounds on the combined spatial-temporal robustness, and a conservative upper bound on MPPI weight variance to guarantee that the contribution of any lower-priority term is strictly smaller than the smallest possible increment from the next higher-priority term. This will be accompanied by a practical guideline for selecting the bit-shift amounts given the expected range of robustness values. revision: yes

  2. Referee: [Results and evaluation] The abstract asserts that results demonstrate an interpretable and scalable solution, yet the provided description contains no validation details, baseline comparisons, quantitative metrics on ordering preservation, or analysis of artifacts from the new robustness measure inside MPPI sampling. This leaves the performance claims unsupported.

    Authors: The full manuscript contains a results section with autonomous-vehicle simulation scenarios that illustrate the method. However, we acknowledge that the current presentation lacks explicit quantitative metrics on lexicographic ordering fidelity, direct baseline comparisons, and targeted analysis of how the combined predicate-robustness measure interacts with MPPI sampling. In the revised version we will expand the evaluation to include: (i) a baseline comparison against a weighted-sum STL planner and a lexicographic optimizer using sequential quadratic programming, (ii) a metric that counts the frequency with which lower-priority specifications override higher-priority ones across Monte-Carlo trials, and (iii) an ablation study isolating the effect of the new robustness measure on sample efficiency and trajectory quality. Additional figures will be added to demonstrate interpretability of the scalarized cost landscape. revision: yes

Circularity Check

0 steps flagged

No significant circularity; method is a direct proposal of new scalarization and robustness measure.

full rationale

The paper proposes a concrete algorithmic transformation (non-uniform quantization + bit-shifting) to convert lexicographic STL optimization into a scalar MPPI objective, together with a new predicate-robustness definition that combines spatial and temporal terms. These steps are presented as constructive engineering choices rather than derived from prior fitted parameters or self-referential definitions. No equation reduces a claimed prediction back to its own inputs by construction, and the central claims rest on the explicit definitions of the quantization scheme and the novel robustness function rather than on load-bearing self-citations or ansatzes imported from the authors' prior work. The derivation is therefore self-contained as a proposed method.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 1 invented entities

The method relies on assumptions about quantization preserving order and introduces a new robustness measure; no free parameters explicitly fitted but design choices act as such.

free parameters (2)
  • quantization levels
    Non-uniform quantization parameters chosen to encode priorities.
  • bit-shift amounts
    Bit shifts to combine objectives into scalar.
axioms (1)
  • domain assumption The lexicographic order can be preserved by non-uniform quantization and bit-shifting in the optimization objective.
    Assumed in the transformation to single-objective problem.
invented entities (1)
  • predicate-robustness measure no independent evidence
    purpose: Combines spatial and temporal violations for STL predicates.
    New measure introduced without external validation mentioned.
