Node-reduction through Joint Optimization of Input and Readout Layers in Photonic Reservoir Equalization

Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:16 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords photonic reservoir computingoptical signal equalizationjoint input-output optimizationnode reductionbit error ratememory extensionIM/DD transmission
0
0 comments X

The pith

Jointly optimizing input and readout layers halves the node count in photonic reservoirs while improving equalization performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines adding trainable input mappings to the conventional training of only output weights in photonic reservoir computing for optical signal equalization. This joint optimization produces over two orders of magnitude better bit error rates across short- and mid-reach IM/DD links up to 200 km. It permits using half as many nodes for equivalent results and stretches the reservoir's effective memory, yielding more than three orders of magnitude gains on memory-heavy tasks. From 16 nodes onward the method also surpasses complexity-matched feed-forward equalizers and second-order Volterra filters.

Core claim

In photonic reservoir computing for IM/DD transmission equalization up to 200 km at 28 GBd NRZ, jointly optimizing the input mapping with the readout weights delivers more than two orders of magnitude improvement in bit error rate. This approach halves the required reservoir size while preserving performance and extends the reservoir memory to produce over three orders of magnitude better results on memory-intensive tasks. Starting at 16 nodes, the optimized system outperforms both a complexity-matched FFE and a second-order Volterra filter by one to two orders of magnitude.

What carries the argument

The trainable input mapping optimized jointly with the readout layer, which augments the fixed photonic reservoir dynamics to support stronger equalization with fewer nodes.

If this is right

  • The reservoir network size can be halved without sacrificing equalization performance.
  • Effective memory length increases, producing over three orders of magnitude better results on memory-intensive equalization tasks.
  • Bit error rate improves by more than two orders of magnitude for short- and mid-reach IM/DD links up to 200 km.
  • From 16 nodes the method exceeds the performance of complexity-matched FFE and second-order Volterra filters by one to two orders of magnitude.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same joint-optimization idea could be tested in non-photonic reservoir systems to check whether node reduction is a general property.
  • Trainable input layers might allow online adaptation to slowly varying optical channels without retraining the full reservoir.
  • Lower node counts could translate directly into reduced optical power and smaller integrated photonic chips for high-speed links.
  • The approach might be extended to longer-haul or higher-baud-rate scenarios where memory effects dominate and current reservoirs struggle.

Load-bearing premise

Optimizing the input mapping leaves the photonic reservoir's stability and fixed internal dynamics unchanged and does not introduce hardware noise or instabilities that would hurt real performance.

What would settle it

Running a physical photonic reservoir experiment with joint input-output optimization and observing either no BER improvement over output-only training or clear degradation from added noise or instability.

Figures

Figures reproduced from arXiv: 2604.20519 by Peter Bienstman, Ruben Van Assche, Sarah Masaad.

Figure 1
Figure 1. Figure 1: Optical communications setup. Upper and lower paths respectively show the setups with and without the photonic reservoir. The lower path is used for contextual baseline comparisons. CW: continuous wave. OOK: on-off keying. OSNR: optical signal-to-noise ratio. B. Reservoir Model in Photontorch The equalizer, see figure 2, takes the abstract form x(t+dt) = Rx(t)+wT inu(t), y(t) = g [PITH_FULL_IMAGE:figures/… view at source ↗
Figure 2

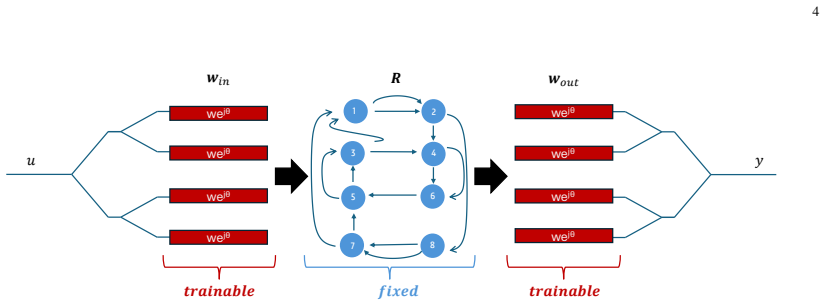

Figure 2. Figure 2: Schematic overview of the four-port reservoir computing architecture. An input signal u gets transmitted to a trainable input layer with weights win. This input is used in a fixed, random reservoir, here configured in the four-port architecture. Finally the states from the reservoir are extracted and recombined into an output y by being transmitted through a trainable output layer with weights wout. where … view at source ↗
Figure 3

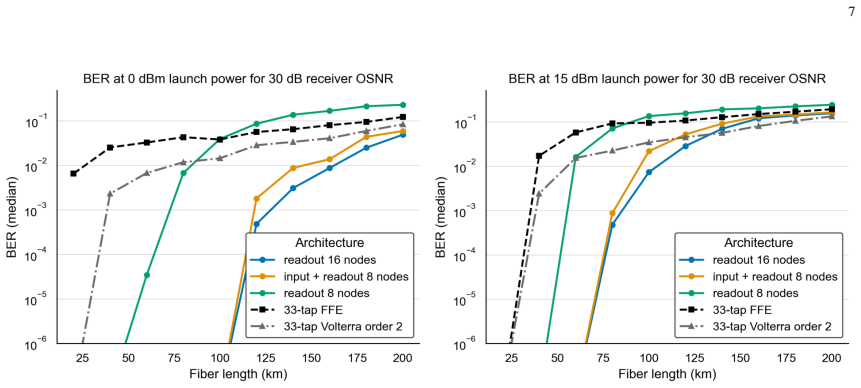

Figure 3. Figure 3: Median BER versus fiber length at (a) 0 and (b) 15 dBm launch power and 30 dB receiver OSNR for an 8-node jointly optimized reservoir, an 8-node readout-only reservoir, and a 16-node readout-only reservoir. The jointly optimized 8-node variant consistently improves on the 8-node readout-only variant and, over a useful short-to-intermediate-length regime, approaches the BER range of the 16-node readout￾only… view at source ↗
Figure 4

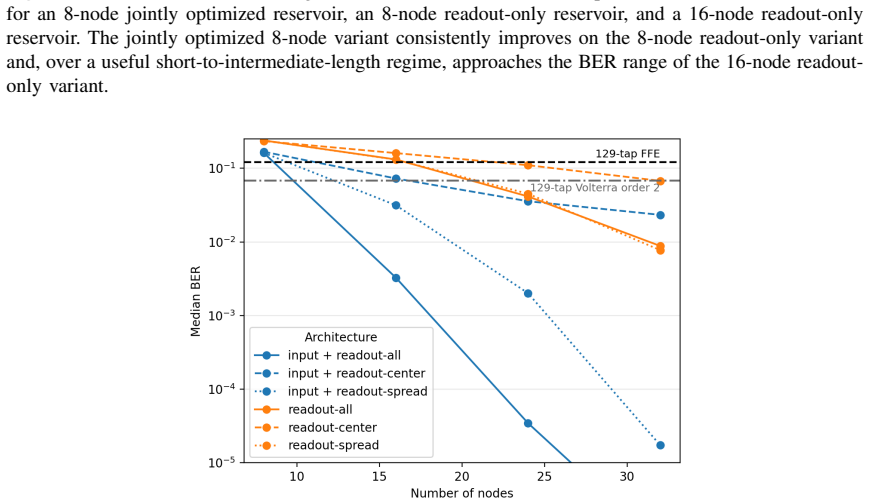

Figure 4. Figure 4: Median BER versus reservoir size. The jointly optimized configurations, particularly IR-all, improve much more rapidly with node count than the readout-only variants, indicating that trainable optical encoding increases the usefulness of additional reservoir nodes in this operating regime. optical degrees of freedom. This again indicates that the observed performance is not merely a consequence of paramete… view at source ↗
Figure 5

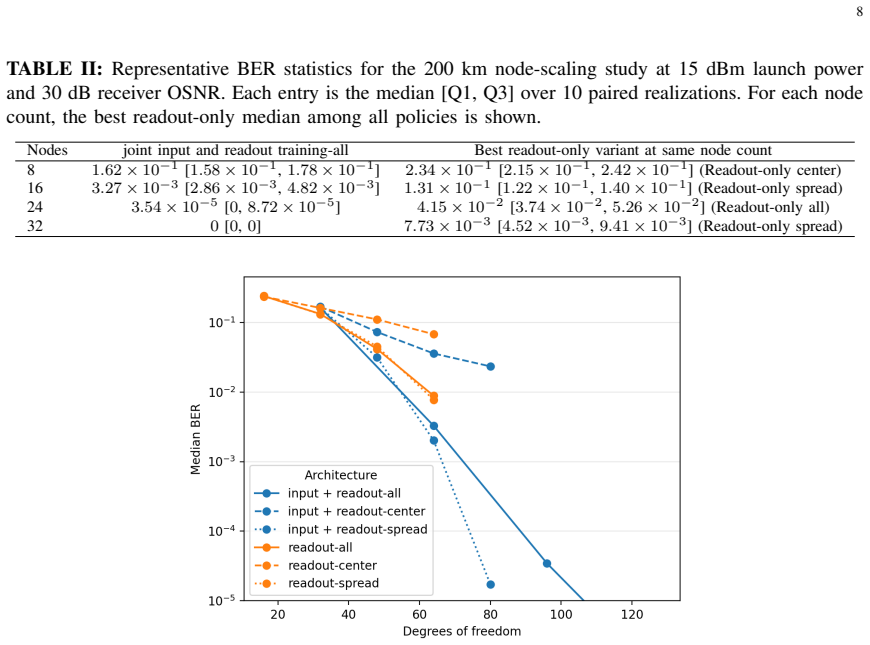

Figure 5. Figure 5: Median BER versus the number of real-valued trainable degrees of freedom for the same operating point as in [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Photonic reservoir computing is a machine learning paradigm in which a recurrent neural network remains fixed while only the output weights are trained. This makes it a well-suited approach for high-speed signal equalisation in optical communication systems, offering a trainable, low-power, and low-complexity solution. However, achieving strong performance typically requires relatively large network sizes, as learning is confined to the output layer. To address this, we investigate the role of trainable input mappings alongside conventional output weight optimisation. Across a range of short- and mid-reach IM/DD transmission scenarios, reaching up to 200 km for a 28 GBd NRZ signal, improvements of over two orders of magnitude in BER are achieved. This enables halving the network size while maintaining comparable performance. Furthermore, we show that this approach effectively extends the memory of the reservoir, resulting in over three orders of magnitude improvement in memory-intensive tasks. These results also show that starting at 16 nodes a performance of at least one to two magnitudes better than both a complexity matched FFE and a Volterra filter of second order are reached.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper investigates joint optimization of input mappings and readout weights in photonic reservoir computing for IM/DD optical signal equalization. It claims that this allows halving the reservoir network size while maintaining performance, extends memory capacity by over three orders of magnitude in memory-intensive tasks, and achieves 1-2 orders better performance than FFE and second-order Volterra filters starting from 16 nodes, with BER improvements over two orders in scenarios up to 200 km for 28 GBd NRZ signals.

Significance. If the results hold under rigorous verification, this could advance photonic RC by enabling smaller, more efficient equalizers for high-speed optical communications, with reported BER gains and memory extensions that outperform complexity-matched linear and nonlinear filters.

major comments (2)
  1. [Results section (transmission scenarios)] The manuscript reports quantitative BER and memory-capacity gains but provides no details on experimental vs. simulation setup, error bars, data exclusion criteria, or statistical significance testing (e.g., in the results section describing the 28 GBd NRZ scenarios up to 200 km). This is load-bearing for the central claims of two-order BER improvement and halving network size.
  2. [Reservoir model and optimization description] The claim that joint input-readout optimization extends memory by >3 orders while preserving fixed reservoir dynamics requires that the optimized input mapping leaves the echo-state property and stability unchanged. No post-optimization spectral-radius verification, Lyapunov exponent check, or noise-robustness ablation is described, which directly affects whether the reported gains are artifacts of idealized simulation.
minor comments (2)
  1. [Abstract and results] Define 'memory-intensive tasks' explicitly and state how the three-order-of-magnitude memory improvement is computed (e.g., via the standard memory capacity metric).
  2. [Comparison section] Clarify the precise complexity matching used for the FFE and Volterra baselines when claiming 1-2 orders better performance at 16 nodes.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We are grateful to the referee for their detailed and insightful comments, which have helped us identify areas where the manuscript can be improved. Below we provide a point-by-point response to the major comments.

read point-by-point responses
  1. Referee: [Results section (transmission scenarios)] The manuscript reports quantitative BER and memory-capacity gains but provides no details on experimental vs. simulation setup, error bars, data exclusion criteria, or statistical significance testing (e.g., in the results section describing the 28 GBd NRZ scenarios up to 200 km). This is load-bearing for the central claims of two-order BER improvement and halving network size.

    Authors: We agree that the manuscript would benefit from explicit methodological details to support the quantitative claims. All results are obtained via numerical simulation of the IM/DD transmission link. In the revised manuscript we will add a dedicated subsection describing the simulation framework (including the fiber propagation model), the procedure for BER estimation, how variability across realizations is quantified via error bars, confirmation that no data exclusion criteria were applied beyond standard BER computation, and the approach to assessing performance consistency across scenarios. These additions will directly substantiate the reported BER gains and the feasibility of halving the node count. revision: yes

  2. Referee: [Reservoir model and optimization description] The claim that joint input-readout optimization extends memory by >3 orders while preserving fixed reservoir dynamics requires that the optimized input mapping leaves the echo-state property and stability unchanged. No post-optimization spectral-radius verification, Lyapunov exponent check, or noise-robustness ablation is described, which directly affects whether the reported gains are artifacts of idealized simulation.

    Authors: The recurrent reservoir matrix remains completely fixed; only a static input mapping and the readout weights are optimized. We acknowledge that explicit post-optimization checks would strengthen the argument that the echo-state property is unaffected. In the revised manuscript we will add a verification that the spectral radius of the reservoir matrix is unchanged (and remains below unity) after input optimization, together with a noise-robustness ablation that evaluates performance under controlled additive noise at the reservoir input. For discrete-time reservoirs the spectral radius is the conventional metric for the echo-state property, so a full Lyapunov-exponent analysis is not required; we will clarify this rationale in the text. These additions will confirm that the observed memory extension arises from the joint optimization rather than from any alteration of reservoir stability. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical performance metrics are independent measured outcomes.

full rationale

The paper's central claims rest on joint optimization of input mappings and readout weights in a standard photonic reservoir computing setup, with reported BER improvements, node reduction, and memory capacity gains presented as direct simulation and transmission results across IM/DD scenarios. These quantities are not defined by or reduced to the paper's own equations or fitted parameters; the reservoir dynamics are kept fixed while external weights are trained, and performance is evaluated against external benchmarks like FFE and Volterra filters. No self-definitional loops, fitted inputs renamed as predictions, load-bearing self-citations, or ansatz smuggling appear in the derivation. The approach is self-contained against external benchmarks, yielding a normal non-finding of circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work relies on standard assumptions from reservoir computing and photonic signal processing literature with no new free parameters, axioms, or invented entities introduced in the abstract.
