A provably stable numerical method for the anisotropic diffusion equation in confined magnetic fields: Curvilinear coordinates and multi-block domains

Dean Muir; Kenneth Duru; Matthew Hole; Stuart Hudson

arxiv: 2604.20766 · v1 · submitted 2026-04-22 · 🧮 math.NA · cs.NA

A provably stable numerical method for the anisotropic diffusion equation in confined magnetic fields: Curvilinear coordinates and multi-block domains

Dean Muir , Kenneth Duru , Stuart Hudson , Matthew Hole This is my paper

Pith reviewed 2026-05-09 23:25 UTC · model grok-4.3

classification 🧮 math.NA cs.NA

keywords anisotropic diffusioncurvilinear coordinatessummation by partsmulti-block domainsnumerical stabilityfinite difference methodsmagnetic fields

0 comments

The pith

A summation-by-parts penalty scheme for anisotropic diffusion stays stable under curvilinear coordinate mappings and multi-block decompositions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a numerical method that solves the anisotropic diffusion equation on domains described by curvilinear coordinates and split into multiple structured blocks. Diffusion perpendicular to magnetic field lines is discretized with summation-by-parts operators and simultaneous approximation terms, while diffusion parallel to the lines uses a volume penalty. The authors derive discrete energy estimates showing that the semi-discrete solution remains bounded when the curvilinear operators and interface penalties obey the summation-by-parts property. This stability result extends an earlier Cartesian version of the method and is checked on a sequence of manufactured solutions plus a qualitative test drawn from a magnetic equilibrium code.

Core claim

The semi-discrete scheme based on curvilinear SBP-SAT operators, volume penalties for parallel diffusion, and interface penalties for block coupling produces a discrete energy that is non-increasing, thereby establishing stability for the anisotropic diffusion problem in confined magnetic fields.

What carries the argument

Curvilinear summation-by-parts simultaneous-approximation-term operators together with volume and interface penalties that preserve the summation-by-parts property.

Load-bearing premise

The chosen coordinate mappings and block interfaces must admit SBP operators and penalties whose discrete energy contribution is negative semi-definite.

What would settle it

A numerical run on a smooth curved multi-block mesh in which the computed discrete energy increases for a manufactured solution would disprove the stability claim.

Figures

Figures reproduced from arXiv: 2604.20766 by Dean Muir, Kenneth Duru, Matthew Hole, Stuart Hudson.

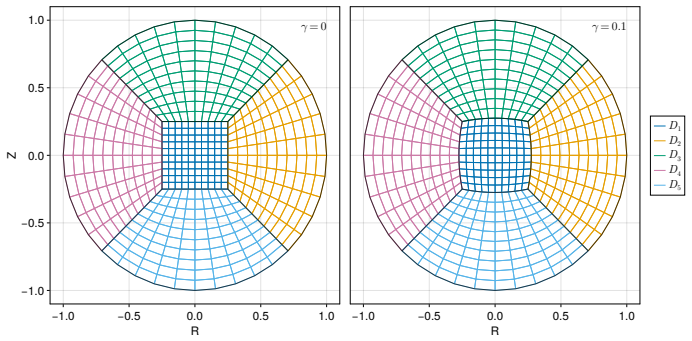

**Figure 2.** Figure 2: Effect of the dilation parameter on the mesh geometry. The value for the dilation parameter is listed to [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗

**Figure 3.** Figure 3: Convergence for the perpendicular only manufactured solution on the circular domains with dilation of [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗

**Figure 4.** Figure 4: Self convergence test in the five block circle test with magnetic field given by ( [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗

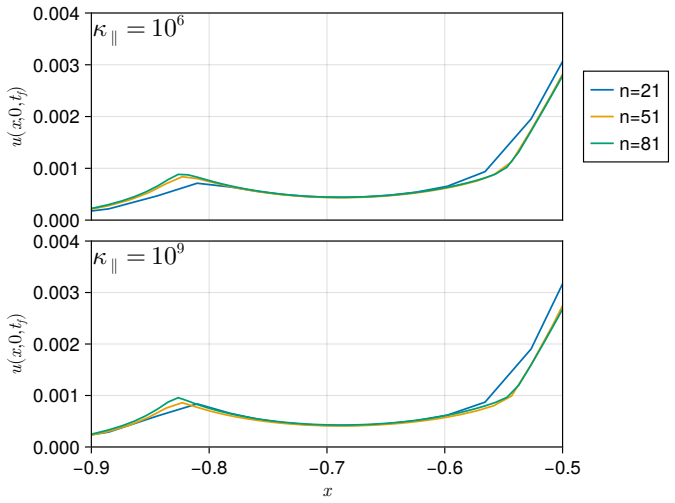

**Figure 5.** Figure 5: Solution along chords extending from −0.9 ≤ x ≤ −0.5, y = 0 for varying resolutions for the second order case. The legend indicates the grid resolution such that n = nx = ny. Top: κ∥ = 106 . Bottom: κ∥ = 109 . We plot the reference solution with a partial Poincaré section in the top of [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

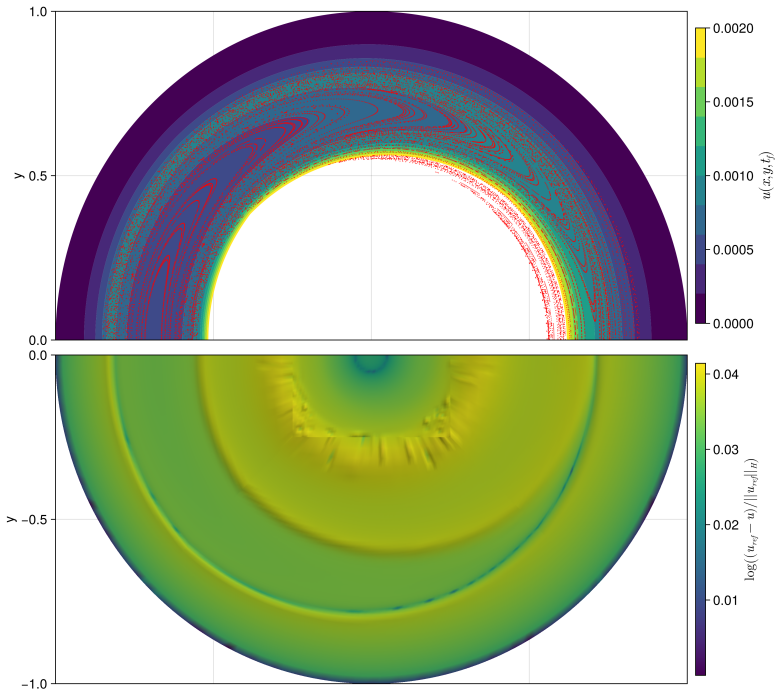

**Figure 6.** Figure 6: Top: Reference solution in upper half plane with partial Poincaré section overlayed to illustrate the solution conforming to the island shape. Bottom: The point-wise relative error. This can be seen to be maximised at the barrier between the interior grid and the outer domains, likely because the grid is not aligned with the magnetic field. The separatrix can also be seen in the error field as two curves o… view at source ↗

**Figure 7.** Figure 7: SPEC Poincaré section and low resolution multiblock grid. Note that the grid resolution here is purely [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗

**Figure 8.** Figure 8: Contour plot showing the solution contours between [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗

read the original abstract

We present a robust and accurate numerical method for the anisotropic diffusion equation in curvilinear coordinates. This study extends the recent work [Muir et al., Computer Physics Communications, 2025] for solving the anisotropic diffusion equation in magnetic fields from Cartesian meshes to to curvilinear coordinates and complex geometries. The method uses summation by parts with simultaneous approximation terms for computing the diffusion perpendicular to field lines. The diffusion along field lines is computed using a penalty approach, similar to a simultaneous approximation term, but applied across the volume. To extend the method to complex geometry we use a multi-block approach with piecewise smooth structured meshes. That is, the domain is split into sub-grids, with locally adjacent boundaries coupled weakly using penalties. We prove the semi-discrete stability for the curvilinear implementation by deriving discrete energy estimates. The approach is verified though a number of numerical tests, which demonstrate the convergence properties of the method in multi-domain approach. Finally, we present a qualitative result generated in complex geometry and magnetic field, which is generated by the Stepped Pressure Equilibrium Code.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper extends the Cartesian SBP-SAT anisotropic diffusion scheme to curvilinear multi-block grids and proves semi-discrete stability via discrete energy estimates.

read the letter

The core advance is the move from Cartesian to curvilinear coordinates and multi-block domains while keeping a provable stability property. They derive discrete energy estimates that close to a non-positive quantity for the volume terms, the parallel diffusion penalty, and the interface penalties between blocks. Numerical tests then show the expected convergence rates on manufactured solutions and a qualitative run on a complex geometry taken from the Stepped Pressure Equilibrium Code. That combination of proof plus verification is the useful part of the work. The stability argument follows the standard SBP-SAT pattern but requires the metric terms and the chosen penalties to satisfy the summation-by-parts property on the mapped grids; the paper states that this holds for the piecewise smooth mappings they consider. The tests are straightforward and confirm order of accuracy, which is reassuring but not surprising once the energy estimate is in place. One minor limitation is that the examples stay within relatively smooth mappings; how the scheme behaves on grids with stronger distortion or non-smooth block interfaces, which can appear in real fusion geometries, is not explored in detail. The parallel diffusion penalty is applied volumetrically rather than only at interfaces, which simplifies the multi-block coupling but could be sensitive to the strength of anisotropy. This paper is aimed at people who need reliable high-order discretizations for anisotropic transport in complex magnetic confinement geometries. A reader working on whole-device modeling or on SBP-SAT methods for hyperbolic or parabolic problems would find the energy estimate and the multi-block construction directly usable. It deserves a serious referee because the central stability claim is stated explicitly and the supporting derivation and tests are present.

Referee Report

1 major / 3 minor

Summary. The paper presents a numerical method for the anisotropic diffusion equation using summation-by-parts (SBP) operators with simultaneous approximation terms (SAT) in curvilinear coordinates and multi-block domains. It extends prior Cartesian-mesh work by introducing volume penalties for parallel diffusion and interface penalties for multi-block coupling, derives discrete energy estimates to prove semi-discrete stability, demonstrates convergence on numerical tests, and shows a qualitative application in complex geometry generated by the Stepped Pressure Equilibrium Code.

Significance. If the stability proof holds, the work supplies a robust, provably stable discretization for anisotropic diffusion in confined magnetic fields on complex geometries. This is valuable for plasma-physics and fusion applications where Cartesian meshes are insufficient. The explicit derivation of discrete energy estimates, the multi-block extension, and the reported convergence tests constitute concrete strengths that support reliability beyond heuristic validation.

major comments (1)

The semi-discrete stability proof relies on the curvilinear SBP operators and the volume/interface penalties producing a non-positive contribution to the discrete energy. The manuscript should explicitly verify (or cite the precise conditions on the coordinate mappings) that the summation-by-parts property and negative semi-definiteness continue to hold after the curvilinear transformation and multi-block decomposition; without this, the energy estimate does not close for arbitrary mappings.

minor comments (3)

Abstract: repeated word 'to to' in the phrase 'from Cartesian meshes to to curvilinear coordinates'.
Abstract: 'verified though a number of numerical tests' should read 'verified through'.
The description of the parallel-diffusion penalty as 'similar to a simultaneous approximation term, but applied across the volume' would benefit from a brief equation or reference to the precise penalty form to avoid ambiguity with standard SAT terms.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive summary, recognition of the work's significance for fusion applications, and recommendation of minor revision. We address the single major comment below and have incorporated a clarification to strengthen the presentation of the stability result.

read point-by-point responses

Referee: The semi-discrete stability proof relies on the curvilinear SBP operators and the volume/interface penalties producing a non-positive contribution to the discrete energy. The manuscript should explicitly verify (or cite the precise conditions on the coordinate mappings) that the summation-by-parts property and negative semi-definiteness continue to hold after the curvilinear transformation and multi-block decomposition; without this, the energy estimate does not close for arbitrary mappings.

Authors: We agree that the closure of the energy estimate requires the underlying SBP property to be preserved under the coordinate transformation. Our derivation in Section 3 proceeds by substituting the curvilinear SBP operators (defined via the standard transformation of the reference-element operators) into the discrete inner products and showing that all volume and interface penalty contributions are non-positive. This step relies on the known fact that the curvilinear SBP property holds when the mapping is sufficiently smooth and the Jacobian is positive (conditions stated, for example, in the foundational works on curvilinear SBP operators). In the revised manuscript we have added an explicit paragraph immediately preceding the energy estimate that cites these mapping requirements and notes that the multi-block SAT penalties are constructed identically to the single-block case, so the cancellation at interfaces remains unchanged. The proof therefore holds for the class of piecewise-smooth mappings employed in the Stepped Pressure Equilibrium Code geometries we consider; we do not claim validity for completely arbitrary (non-smooth) mappings. revision: yes

Circularity Check

0 steps flagged

Minor self-citation to prior Cartesian work; core stability derivation is independent

full rationale

The paper claims semi-discrete stability via explicit derivation of discrete energy estimates for the curvilinear SBP-SAT scheme, relying on the summation-by-parts property of the operators and negative semi-definiteness of the penalty terms. This is a direct mathematical derivation from stated operator properties rather than a fit or self-referential definition. The citation to Muir et al. (2025) provides context for the Cartesian precursor but is not load-bearing for the new curvilinear/multi-block proof, which is presented as self-contained. No step equates the stability result to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The method rests on the existence of summation-by-parts operators in curvilinear coordinates and the ability to decompose the domain into piecewise smooth structured blocks that can be coupled by penalties while preserving the energy estimate.

axioms (2)

domain assumption Summation-by-parts finite-difference operators exist and satisfy the required telescoping property for the chosen curvilinear coordinate mappings.
Invoked to obtain the discrete energy estimate for perpendicular diffusion.
domain assumption The domain admits a decomposition into locally adjacent piecewise smooth structured blocks whose interfaces can be treated with penalty terms.
Required for the multi-block extension and weak coupling.

pith-pipeline@v0.9.0 · 5500 in / 1394 out tokens · 31957 ms · 2026-05-09T23:25:50.491902+00:00 · methodology

discussion (0)
