HyperCEUNet: Parameter-Aware Hypernetwork-Driven UNet for Channel Estimation

Ke Ma , Feng Wang , Lihui Lei , Shu Tan
Authors on Pith no claims yet

Pith reviewed 2026-05-09 20:55 UTC · model grok-4.3

classification 📡 eess.SP
keywords channel estimationhypernetworkUNetdeep learningwireless communicationscorrelation parameters6Gparameter-aware
0
0 comments X

The pith

HyperCEUNet uses a hypernetwork to generate adaptive front-end layers for UNet channel estimation based on time-frequency correlation parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a deep learning framework for channel estimation in sixth-generation wireless systems that goes beyond standard least-squares methods by incorporating channel time-frequency correlation parameters. It deploys a hypernetwork to produce a parameter-specific convolutional layer that pre-filters the input before a UNet estimator, while using Wiener-filtered estimates to initialize data resources with correlation awareness. This design is motivated by the availability of semi-static reference signals in modern systems that can provide independent parameter estimates. A reader would care because more accurate channel estimates directly support higher spectral efficiency and reliability in dense, high-mobility wireless environments.

Core claim

HyperCEUNet employs a hypernetwork to generate an adaptive front-end convolutional layer conditioned on estimated channel time-frequency correlation parameters, serving as a pre-filtering stage before the UNet-based estimator, while adopting Wiener-filtered channel estimates to provide correlation-aware initialization for data resources, thereby improving estimation accuracy over conventional counterparts.

What carries the argument

The hypernetwork that dynamically produces the weights of an adaptive front-end convolutional layer from channel correlation parameters to pre-filter inputs for the UNet.

If this is right

  • Channel estimation accuracy increases when time-frequency correlation parameters are explicitly incorporated via the hypernetwork rather than ignored.
  • The framework integrates naturally into wireless systems that already transmit semi-static reference signals for parameter measurement.
  • Wiener-filtered initialization supplies the UNet with correlation-aware starting values on data subcarriers.
  • The core UNet weights remain fixed while only the front-end layer adapts, reducing the need for full retraining under varying conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar hypernetwork conditioning could be applied to other deep-learning tasks in communications where auxiliary parameters are measurable.
  • Performance under imperfect parameter estimates from real hardware would determine whether the approach remains robust outside ideal simulations.
  • The method suggests a general pattern for injecting domain-specific parameters into neural estimators without redesigning the main network.

Load-bearing premise

Reliable estimates of channel time-frequency correlation parameters can be obtained from semi-static reference signals and fed into the hypernetwork to create a useful adaptive front-end layer.

What would settle it

A simulation in which the hypernetwork receives deliberately noisy or mismatched channel parameter estimates from semi-static signals and the accuracy gain over a standard UNet disappears or reverses.

Figures

Figures reproduced from arXiv: 2604.21484 by Feng Wang, Ke Ma, Lihui Lei, Shu Tan.

Figure 1
Figure 1. Figure 1: Illustration of proposed HyperCEUNet. C denotes output feature channels of hidden layers. Conv, TransConv and FC denote convolutional layer, transposed convolutional layer and fully-connected layer, respectively. CA represents channel attention. 𝐶 𝐻 𝑊 𝐶 1 1 𝐶/𝜆 1 1 𝐶 1 1 𝐶 1 1 𝐶 𝐻 𝑊 FC FC Sigmoid Global avgpool Channel-wise multiplication [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

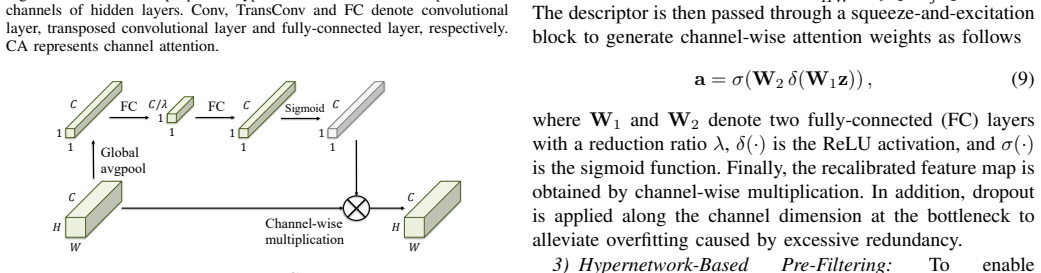

Figure 2. Figure 2: Illustration of CA module, where C, H, W denote feature channels, height and width of input feature map, respectively. 1) Wiener-Based Interpolation Enhancement: Similar to existing works that formulate channel estimation as an image super-resolution problem [3], [6], the LS estimates at DMRS positions are first interpolated to the entire time-frequency resource grid and used as the input to the neural net… view at source ↗
Figure 3

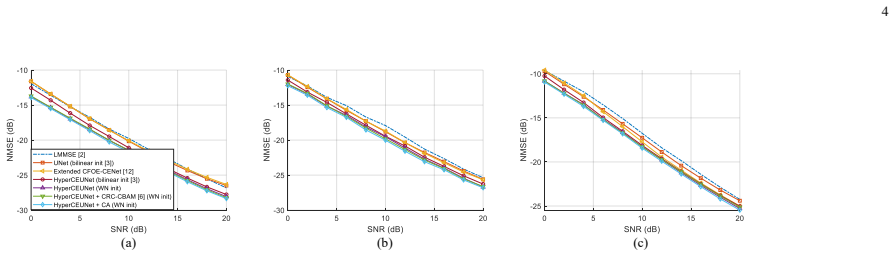

Figure 3. Figure 3: NMSE performance versus SNR under different channel models: (a) TDL-A, (b) TDL-B, and (c) TDL-C. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: NMSE performance versus SNR under different Doppler frequencies: (a) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: BLER performance versus SNR under different Doppler frequencies: (a) [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

Deep learning-based channel estimation has been recognized as a promising technique for sixth-generation wireless systems. However, most existing approaches rely solely on least-squares estimates obtained from demodulation reference signals, which fail to explicitly exploit channel time-frequency correlation parameters. Inspired by the independent channel parameter estimation enabled by semi-static reference signals in modern wireless systems, this letter presents a parameter-aware deep learning-based channel estimation framework termed HyperCEUNet. Specifically, the proposed hypernetwork generates an adaptive front-end convolutional layer based on estimated channel parameters, serving as a pre-filtering stage before the UNet-based estimator. In addition, the Wiener-filtered channel estimates are adopted to provide a correlation-aware initialization for data resources. Simulation results demonstrate that our proposed HyperCEUNet effectively improves channel estimation accuracy compared with its conventional counterparts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes HyperCEUNet, a hypernetwork-driven UNet framework for channel estimation. A hypernetwork generates an adaptive front-end convolutional layer conditioned on channel time-frequency correlation parameters estimated from semi-static reference signals; this serves as pre-filtering before the UNet estimator, which is initialized using Wiener-filtered estimates on data resources. The central claim is that simulations demonstrate improved channel estimation accuracy relative to conventional methods.

Significance. If the simulation results are robust and the parameter estimates prove reliable, the work could meaningfully advance parameter-aware deep learning for wireless channel estimation by leveraging existing semi-static reference signals to adapt the network front-end without full retraining. This addresses a gap in most DL estimators that ignore explicit correlation parameters.

major comments (2)
  1. [Simulation results / abstract] The central claim rests on simulation results showing accuracy gains, yet the manuscript provides no quantitative metrics (e.g., NMSE values), baselines (standard UNet, Wiener filter), channel models, or error bars. This prevents verification of the headline result.
  2. [Proposed method and simulation results] No analysis is given of how estimation errors or bias in the semi-static reference-signal-derived parameters propagate through the hypernetwork to the generated convolutional layer and final NMSE. This is load-bearing: if realistic noise in the parameters causes mismatch, the adaptive front-end could degrade rather than improve performance relative to a plain UNet.
minor comments (2)
  1. A diagram or explicit equations showing the hypernetwork mapping from correlation parameters to convolutional weights would improve clarity of the adaptive front-end mechanism.
  2. The description of the Wiener-filtered initialization for data resources could specify the exact correlation matrix construction and its integration with the UNet input.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and commit to revisions that strengthen the empirical support and robustness analysis for HyperCEUNet.

read point-by-point responses

  1. Referee: [Simulation results / abstract] The central claim rests on simulation results showing accuracy gains, yet the manuscript provides no quantitative metrics (e.g., NMSE values), baselines (standard UNet, Wiener filter), channel models, or error bars. This prevents verification of the headline result.

    Authors: We agree that explicit quantitative metrics are required to substantiate the central claim. In the revised manuscript we will add a results table reporting NMSE values for HyperCEUNet versus the standard UNet, the Wiener filter, and least-squares baselines. We will specify the channel models (3GPP TR 38.901 UMa and UMi scenarios with the correlation parameters used), the number of Monte Carlo realizations, and error bars showing one standard deviation. These additions will enable direct verification of the reported accuracy gains. revision: yes

  2. Referee: [Proposed method and simulation results] No analysis is given of how estimation errors or bias in the semi-static reference-signal-derived parameters propagate through the hypernetwork to the generated convolutional layer and final NMSE. This is load-bearing: if realistic noise in the parameters causes mismatch, the adaptive front-end could degrade rather than improve performance relative to a plain UNet.

    Authors: We acknowledge that sensitivity to parameter estimation errors is an important robustness question. We will add a new subsection containing Monte Carlo simulations that inject realistic noise and bias levels (derived from semi-static reference-signal SNR) into the estimated correlation parameters. The resulting hypernetwork-generated layers and end-to-end NMSE will be compared against both the ideal-parameter case and a non-adaptive UNet baseline, thereby quantifying whether the adaptive front-end remains advantageous under practical estimation conditions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; architecture uses external parameter estimates as conditioning input

full rationale

The paper's core proposal conditions a hypernetwork on channel time-frequency correlation parameters obtained independently from semi-static reference signals, then feeds the generated convolutional layer plus Wiener-initialized estimates into a UNet. The final channel estimate is produced by this composite network rather than being algebraically identical to any fitted input. Simulation results are presented as empirical validation, not as a closed-form derivation that reduces to the conditioning parameters by construction. No self-citation chains, uniqueness theorems, or ansatzes are invoked to force the architecture; the method remains open to external falsification via NMSE on held-out channels.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the domain assumption that semi-static reference signals yield usable channel parameters and that these parameters can be injected via a hypernetwork to improve estimation.

axioms (1)
  • domain assumption Channel time-frequency correlation parameters can be estimated independently from semi-static reference signals.
    Stated as the inspiration for the parameter-aware design in the abstract.

pith-pipeline@v0.9.0 · 5436 in / 1124 out tokens · 35273 ms · 2026-05-09T20:55:28.949560+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 1 canonical work pages · 1 internal anchor

  1. [1]

    A comparison of pilot-aided channel estimation methods for OFDM systems,

    M. Morelli and U. Mengali, “A comparison of pilot-aided channel estimation methods for OFDM systems,”IEEE Trans. Signal Process., vol. 49, no. 12, pp. 3065–3073, Dec. 2001

    2001

  2. [2]

    Deep learning-based channel estimation,

    M. Soltani, V . Pourahmadi, A. Mirzaei, and H. Sheikhzadeh, “Deep learning-based channel estimation,”IEEE Commun. Lett., vol. 23, no. 4, pp. 652–655, Apr. 2019

    2019

  3. [3]

    Deep residual learning meets OFDM channel estimation,

    L. Li, H. Chen, H. -H. Chang, and L. Liu, “Deep residual learning meets OFDM channel estimation,”IEEE Wireless Commun. Lett., vol. 9, no. 5, pp. 615–618, May 2020

    2020

  4. [4]

    AttenReEsNet: Attention-aided residual learning for effective model-driven channel estimation,

    E. Fola, Y . Luo, and C. Luo, “AttenReEsNet: Attention-aided residual learning for effective model-driven channel estimation,”IEEE Commun. Lett., vol. 28, no. 8, pp. 1855–1859, Aug. 2024

    2024

  5. [5]

    Deep learning based channel estimation for OFDM systems with doubly selective channel,

    Q. Peng, J. Li, and H. Shi, “Deep learning based channel estimation for OFDM systems with doubly selective channel,”IEEE Commun. Lett., vol. 26, no. 9, pp. 2067–2071, Sep. 2022

    2067

  6. [6]

    SCCENet: A symmetric CNN-based model for channel estimation in OFDM systems,

    S. Wang, T. Hiang Cheng, and K. Chan Teh, “SCCENet: A symmetric CNN-based model for channel estimation in OFDM systems,”IEEE Wireless Commun. Lett., vol. 14, no. 9, pp. 2872–2876, Sep. 2025

    2025

  7. [7]

    U-net: Convolutional networks for biomedical image segmentation,

    O. Ronneberger, F. Philipp, and B. Thomas, “U-net: Convolutional networks for biomedical image segmentation,” inProc. MICCAI, Nov. 2015, pp. 234–241

    2015

  8. [8]

    Generative diffusion model- based variational inference for MIMO channel estimation,

    Z. Chen, H. Shin, and A. Nallanathan, “Generative diffusion model- based variational inference for MIMO channel estimation,”IEEE Trans. Commun., vol. 73, no. 10, pp. 9254–9269, Oct. 2025. [10]Physical layer procedures for data (Release 19), Sec. 5.1.2. Resource allocation. document 3GPP, TS 38.214, Version 19.0.0, 2025

    2025

  9. [9]

    Attention guided multi- task network for joint CFO and channel estimation in OFDM systems,

    Z. Chen, Z. Liu, X. Geng, Y . Zhao, and H. Wu, “Attention guided multi- task network for joint CFO and channel estimation in OFDM systems,” IEEE Trans. Wireless Commun., vol. 23, no. 1, pp. 321–333, Jan. 2024

    2024

  10. [10]

    CRS-based joint CFO and channel estimation using deep learning in OFDM-based vehicular communication systems,

    H. Wu, Z. Chen, Z. Liu, X. Geng, Y . Zhao, and Z. Liu, “CRS-based joint CFO and channel estimation using deep learning in OFDM-based vehicular communication systems,”IEEE Trans. Wireless Commun., vol. 24, no. 5, pp. 3882–3893, May 2025

    2025

  11. [11]

    Squeeze-and-excitation networks,

    J. Hu, L. Shen, S. Albanie, G. Sun, and E. Wu, “Squeeze-and-excitation networks,”IEEE Trans. Pattern Anal. Mach. Intell., vol. 42, no. 8, pp. 2011–2023, Aug. 2020

    2011

  12. [12]

    Pilot-based LMMSE channel estimation for OFDM systems with power–delay profile approximation,

    K. -C. Hung, and D. W. Lin, “Pilot-based LMMSE channel estimation for OFDM systems with power–delay profile approximation,”IEEE Trans. V eh. Tech., vol. 59, no. 1, pp. 150–159, Jan. 2010

    2010

  13. [13]

    Estimating Jakes’ Doppler power spec- trum parameters using the whittle approximation,

    A. Dogandzic and B. Zhang, “Estimating Jakes’ Doppler power spec- trum parameters using the whittle approximation,”IEEE Trans. Signal Process., vol. 53, no. 3, pp. 987–1005, Mar. 2005

    2005

  14. [14]

    HyperNetworks,

    D. Ha, A. M. Dai, and Q. V . Le, “HyperNetworks,” inProc. ICLR, Apr. 2017, pp. 1–11

    2017

  15. [15]

    Sampling-Free Diffusion Transformers for Low-Complexity MIMO Channel Estimation

    Z. Chen, H. Shin, and A. Nallanathan, “Sampling-free diffusion trans- formers for low-complexity MIMO channel estimation,”arXiv preprint arXiv:2602.02202, 2026. [18]Study on channel model for frequencies from 0.5 to 100 GHz (Release 19). document 3GPP, TR 38.901, Version 19.0.0, 2025

    work page internal anchor Pith review Pith/arXiv arXiv 2026
