First measurement of wind line formation regions in an early O-type star
Pith reviewed 2026-05-08 13:52 UTC · model grok-4.3
The pith
Resonance line formation regions in an early O-type star wind extend to 316 solar radii.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the SMC binary AzV 75 the optically thick wind of the primary eclipses the secondary near the expected secondary eclipse phase, producing flattening and shortening of the absorption troughs together with weakening of the emission in the C IV and N V resonance lines while the continuum flux stays constant. This geometry is used to determine that the resonance line formation regions in the primary star extend up to 316 solar radii. A direct comparison with 1D non-LTE stellar atmosphere models favors a classical beta-law velocity field with exponent 0.5 rather than the more common value of 0.8.
What carries the argument
Phase-dependent eclipsing of the secondary by the primary's optically thick wind, which selectively modifies the observed resonance line profiles.
If this is right
- Stellar atmosphere models now have an empirical benchmark for the radial extent of UV resonance line formation.

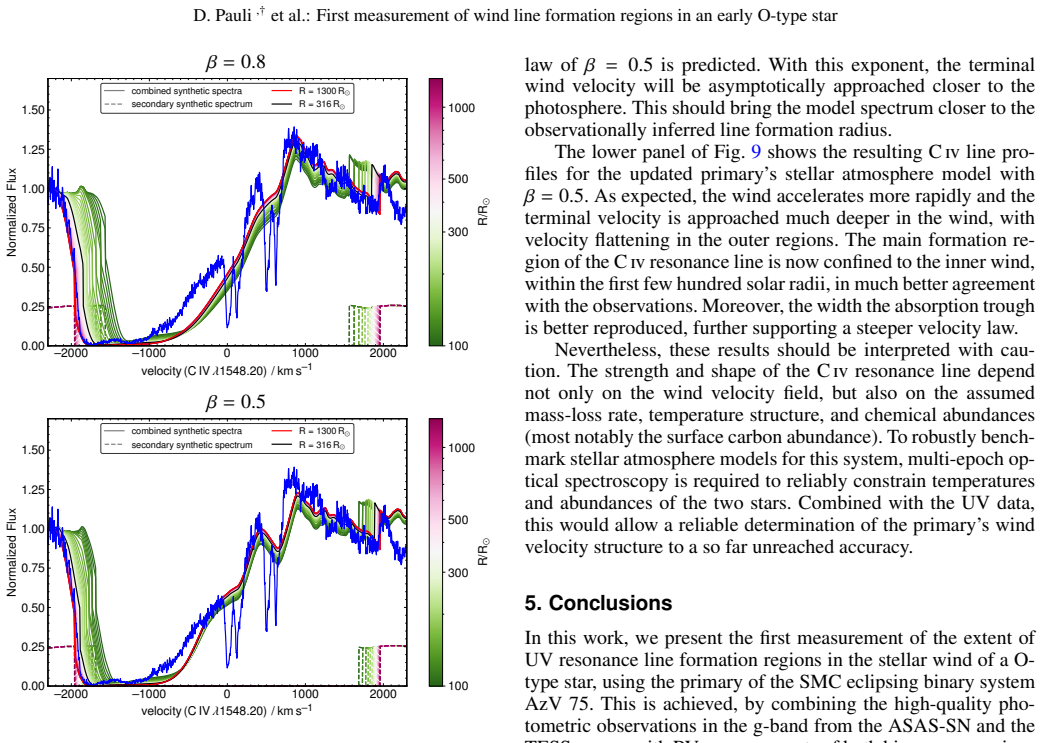

- The wind velocity field in this star is better described by a beta exponent of 0.5 than by the standard 0.8.
- The same eclipse-mapping technique can be applied to other early-type eclipsing binaries to measure wind structures.
- More accurate line formation radii improve calculations of mass-loss rates from massive stars.
Where Pith is reading between the lines
- The measured extent supplies a concrete target for testing whether 3D wind models reproduce the same line-forming zones.
- If a shallower beta law applies more generally, terminal wind speeds predicted for other O stars would need revision.
- Repeated observations of this system at higher spectral resolution could map how optical depth varies with radius inside the wind.
- The derived orbital parameters open the possibility of similar wind measurements in additional SMC binaries.
Load-bearing premise
The observed flattening, shortening, and weakening of the UV resonance lines are produced solely by the primary star's wind eclipsing the secondary.
What would settle it
If detailed modeling of the eclipse geometry shows that line profile changes require a formation region smaller than 316 solar radii or if identical line changes appear at orbital phases with no wind eclipse, the reported extent would be ruled out.
Figures
read the original abstract
Massive stars with their strong ionizing radiation and strong stellar winds are the key feedback agents of the universe. Stellar winds of massive stars are often measured by fitting resonance lines in the UV using non-LTE stellar atmosphere models. So far, the line formation regions of these lines have not been measured empirically, preventing a comparison to the model's structures. We aim to conduct the first measurement of the resonance line formation regions in an early-type eclipsing binary in the SMC, namely AzV 75. We employ TESS and ASAS-SN photometry in combination with radial velocity measurements from multi-epoch HST UV spectra to derive the ephemeris. We examine the intensity changes in the C IV and N V resonance lines in the UV and combine them with a light-curve analysis to estimate the region in the wind where these lines are formed. AzV 75 has an orbital period P=165.66d, eccentricity e=0.42, mass ratio q=0.72, and inclination i=85.77{\deg}. With this orbital configuration, no secondary eclipse is expected. We report that the optically thick UV resonance lines exhibit flattening and shortening of the absorption trough, and weakening of their emission features, as they approach the phase of the expected secondary eclipse, while the continuum UV flux appears to remain unaffected. We illustrate that this can be explained by the primary's optically thick wind eclipsing the secondary star. The C IV and N V resonance line formation regions in the primary star extend up to 316 Rsol. The measured extend of the formation regions of resonance lines in a stellar wind are important benchmarks for 1D as well as 3D non-LTE stellar atmosphere models. A first comparison to 1D-stellar atmosphere models indicates that a classical beta-law with an exponent of beta=0.5 instead of beta=0.8 might be favoured for the primary star's velocity field.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents the first empirical measurement of the C IV and N V resonance line formation regions in the wind of the early O-type primary in the SMC eclipsing binary AzV 75. Combining TESS/ASAS-SN photometry with multi-epoch HST UV spectra, the authors derive an orbital solution (P=165.66 d, e=0.42, q=0.72, i=85.77°), note the absence of a secondary eclipse, and report phase-dependent flattening/shortening of absorption troughs and weakening of emission in the UV resonance lines near the expected conjunction. These changes, with unaffected continuum, are interpreted as the primary's optically thick wind eclipsing the secondary, yielding a formation-region extent of 316 R⊙. A preliminary comparison to 1D non-LTE models favors a β-law exponent of 0.5 over the classical 0.8.
Significance. If the eclipse interpretation is robust, the result supplies a rare empirical anchor for the radial extent of resonance-line formation in massive-star winds, directly testable against both 1D and 3D atmosphere codes. The suggested preference for a shallower velocity law would have implications for wind-acceleration physics and mass-loss prescriptions used in stellar evolution and feedback calculations.
major comments (3)
- [Abstract and UV line analysis section] The mapping of observed line-profile changes (flattening, trough shortening, emission weakening) onto the derived ephemeris to obtain the 316 R⊙ extent is presented without an explicit equation, error propagation, or quantitative radiative-transfer calculation of the wind-eclipse geometry (see abstract and the section on UV line analysis). Because the orbit is eccentric (e=0.42), small changes in projected separation can modulate optical depth; the manuscript does not demonstrate that such orbital effects have been modeled and subtracted.
- [Discussion of line changes and interpretation] The central assumption that the phase-dependent intensity changes arise exclusively from primary-wind occultation of the secondary is not tested against plausible alternatives. No statistical comparison to phase-dependent intrinsic wind variability (known to occur in O stars on comparable timescales) or to eccentricity-induced profile shifts is reported, nor is any argument given that instrumental artifacts or secondary-wind contributions are negligible.
- [Model comparison paragraph] The statement that a β=0.5 law is favored over β=0.8 rests on a 'first comparison' to 1D models, but the manuscript provides neither the fitting procedure, the diagnostic lines or diagnostics used, nor quantitative metrics (χ², residual maps) that would allow the reader to assess the strength of this preference.
minor comments (2)
- [Abstract] The abstract states that 'no secondary eclipse is expected' but does not explicitly connect this to the interpretation of the line changes at the corresponding phase.
- [Throughout] Notation: 'Rsol' should be rendered as R_⊙ or R⊙ for clarity and consistency with standard astronomical usage.
Simulated Author's Rebuttal
We thank the referee for their careful and constructive review of our manuscript. Their comments have prompted us to clarify several aspects of the analysis and strengthen the presentation. We address each major comment below and indicate the revisions made.
read point-by-point responses
-
Referee: [Abstract and UV line analysis section] The mapping of observed line-profile changes (flattening, trough shortening, emission weakening) onto the derived ephemeris to obtain the 316 R⊙ extent is presented without an explicit equation, error propagation, or quantitative radiative-transfer calculation of the wind-eclipse geometry (see abstract and the section on UV line analysis). Because the orbit is eccentric (e=0.42), small changes in projected separation can modulate optical depth; the manuscript does not demonstrate that such orbital effects have been modeled and subtracted.
Authors: We agree that the derivation of the formation radius requires an explicit presentation. In the revised manuscript we have added a new subsection that provides the equation relating the observed phase of line-profile changes to the orbital separation at conjunction, together with formal propagation of uncertainties from the fitted orbital elements (P, e, ω, i, a). We have also computed the projected separation as a function of true anomaly for the eccentric orbit and confirmed that the UV line changes coincide with the calculated conjunction phase to within the timing precision. The stability of the UV continuum across the same phases indicates that the modulation is confined to the line optical depths rather than a broadband orbital effect. A full 3D radiative-transfer simulation of the wind-eclipse geometry lies outside the scope of this primarily observational study; we have noted this limitation and flagged it for future work. revision: partial
-
Referee: [Discussion of line changes and interpretation] The central assumption that the phase-dependent intensity changes arise exclusively from primary-wind occultation of the secondary is not tested against plausible alternatives. No statistical comparison to phase-dependent intrinsic wind variability (known to occur in O stars on comparable timescales) or to eccentricity-induced profile shifts is reported, nor is any argument given that instrumental artifacts or secondary-wind contributions are negligible.
Authors: We have expanded the discussion section to address alternative explanations. The observed changes are strictly phase-locked to the independently determined conjunction (from both photometry and radial velocities), whereas intrinsic wind variability in O stars is generally stochastic and not orbitally phased. Eccentricity-induced velocity shifts would affect the entire UV spectrum uniformly, yet only the resonance lines are modified while the continuum flux remains constant. Instrumental artifacts are inconsistent with the repeatability across multiple HST epochs and the lack of similar effects in the optical photometry. Secondary-wind contributions are expected to be weak given the mass ratio q = 0.72 and the primary’s earlier spectral type and stronger wind. These arguments have been added to the text. A formal statistical comparison (e.g., likelihood ratio test against a variability model) would require a substantially larger observational baseline that is not available in the present dataset. revision: partial
-
Referee: [Model comparison paragraph] The statement that a β=0.5 law is favored over β=0.8 rests on a 'first comparison' to 1D models, but the manuscript provides neither the fitting procedure, the diagnostic lines or diagnostics used, nor quantitative metrics (χ², residual maps) that would allow the reader to assess the strength of this preference.
Authors: We have revised the model-comparison paragraph to make the procedure explicit: the assessment is a qualitative visual comparison of synthetic C IV and N V resonance-line profiles generated with the same non-LTE code and stellar parameters for β = 0.5 versus β = 0.8. The β = 0.5 models better reproduce the observed radial extent and trough shape. We have softened the language to “suggests” and added an explicit statement that this is not a formal χ² fit; a quantitative analysis with residual maps is reserved for a follow-up study. The revised text now clearly qualifies the preliminary nature of the comparison. revision: yes
Circularity Check
No circularity: empirical mapping from independent orbital geometry to line-formation extent
full rationale
The derivation obtains orbital elements (P, e, i, q) from TESS/ASAS-SN photometry plus RV curves extracted from the HST spectra, then records the orbital phases at which C IV and N V profile changes (flattening, trough shortening, emission weakening) appear. These phases are converted to physical separation via the already-determined ephemeris and light-curve solution; the resulting radial extent (316 R⊙) is therefore an observed datum, not a quantity defined by the same fitted parameters that produced the orbit. No equation equates the reported formation radius to a model parameter or to a self-citation; the beta-law comparison is presented only as a post-hoc illustration, not as part of the measurement itself. The chain is self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- beta-law exponent =
0.5
axioms (1)
- domain assumption Phase-dependent changes in UV resonance lines are produced solely by eclipse of the secondary by the primary's wind.
Reference graph
Works this paper leans on
-
[1]
Auer, L. H. & Koenigsberger, G. 1994, ApJ, 436, 859
work page 1994
- [2]
-
[3]
Bodensteiner, J., Shenar, T., Sana, H., et al. 2025, A&A, 698, A38
work page 2025
-
[4]
Bonanos, A. Z., Lennon, D. J., Köhlinger, F., et al. 2010, AJ, 140, 416
work page 2010
-
[5]
Bouret, J. C., Martins, F., Hillier, D. J., et al. 2021, A&A, 647, A134
work page 2021
- [6]
- [7]
-
[8]
E., Kochoska, A., Hey, D., et al
Conroy, K. E., Kochoska, A., Hey, D., et al. 2020, ApJS, 250, 34
work page 2020
-
[9]
Cranmer, S. R. & Owocki, S. P. 1996, ApJ, 462, 469
work page 1996
-
[10]
Cutri, R. M., Skrutskie, M. F., van Dyk, S., et al. 2003, 2MASS All Sky Catalog of point sources
work page 2003
-
[11]
David-Uraz, A., Owocki, S. P., Wade, G. A., Sundqvist, J. O., & Kee, N. D. 2017, MNRAS, 470, 3672
work page 2017
- [12]
- [13]
-
[14]
Fullerton, A. W., Gies, D. R., & Bolton, C. T. 1996, ApJS, 103, 475 Gaia Collaboration. 2020, VizieR Online Data Catalog: Gaia EDR3 (Gaia Col- laboration, 2020), VizieR On-line Data Catalog: I/350. Originally published in: 2021A&A...649A...1G
work page 1996
-
[15]
Gordon, K. D., Clayton, G. C., Misselt, K. A., Landolt, A. U., & Wolff, M. J. 2003, ApJ, 594, 279
work page 2003
-
[16]
Hart, K., Shappee, B. J., Hey, D., et al. 2023, arXiv e-prints, arXiv:2304.03791
- [17]
-
[18]
F., Kereš, D., Oñorbe, J., et al
Hopkins, P. F., Kereš, D., Oñorbe, J., et al. 2014, MNRAS, 445, 581
work page 2014
-
[19]
Howarth, I. D. & Prinja, R. K. 1989, ApJS, 69, 527
work page 1989
-
[20]
Kobulnicky, H. A., Kiminki, D. C., Lundquist, M. J., et al. 2014, ApJS, 213, 34
work page 2014
-
[21]
Kochanek, C. S., Shappee, B. J., Stanek, K. Z., et al. 2017, PASP, 129, 104502
work page 2017
- [22]
-
[23]
Lamontagne, R., Moffat, A. F. J., Drissen, L., Robert, C., & Matthews, J. M. 1996, AJ, 112, 2227
work page 1996
-
[24]
Lewis, N. K., Knutson, H. A., Showman, A. P., et al. 2013, ApJ, 766, 95
work page 2013
- [25]
- [26]
-
[27]
Owocki, S. P. & Rybicki, G. B. 1984, ApJ, 284, 337
work page 1984
-
[28]
Parsons, T. N., Prinja, R. K., Massa, D. L., & Fullerton, A. W. 2026, MNRAS, 545, staf2233
work page 2026
-
[29]
2024, in American Astronomical Society Meeting Abstracts, V ol
Patel, J., Sankrit, R., & Fischer, W. 2024, in American Astronomical Society Meeting Abstracts, V ol. 243, American Astronomical Society Meeting Ab- stracts, 202.13
work page 2024
-
[30]
Pauldrach, A., Puls, J., & Kudritzki, R. P. 1986, A&A, 164, 86
work page 1986
- [31]
-
[32]
Pauli, D., Oskinova, L. M., Hamann, W.-R., et al. 2025, A&A, 697, A114
work page 2025
-
[33]
Pedersen, M. G. & Bildsten, L. 2025, MNRAS, 539, 2742
work page 2025
- [34]
-
[35]
Prinja, R. K. & Howarth, I. D. 1986, ApJS, 61, 357
work page 1986
-
[36]
Prinja, R. K., Massa, D., & Fullerton, A. W. 2002, A&A, 388, 587 Prša, A., Conroy, K. E., Horvat, M., et al. 2016, ApJS, 227, 29
work page 2002
-
[37]
Puls, J., Kudritzki, R. P., Herrero, A., et al. 1996, A&A, 305, 171
work page 1996
-
[38]
Ramachandran, V ., Sander, A. A. C., Pauli, D., et al. 2024, A&A, 692, A90
work page 2024
-
[39]
Ricker, G. R., Winn, J. N., Vanderspek, R., et al. 2015, Journal of Astronomical
work page 2015
-
[40]
Roman-Duval, J. 2011, Second COS FUV Lifetime Position: Wavelength and Resolution Calibration {FCAL2}, HST Proposal ID 12805. Cycle 19
work page 2011
-
[41]
Roman-Duval, J., Fischer, W. J., Fullerton, A. W., et al. 2025, ApJ, 985, 109
work page 2025
-
[42]
Sana, H., de Mink, S. E., de Koter, A., et al. 2012, Science, 337, 444
work page 2012
-
[43]
Sana, H., Shenar, T., Bodensteiner, J., et al. 2025, Nature Astronomy
work page 2025
-
[44]
Sana, H., Tramper, F., Abdul-Masih, M., et al. 2024, A&A, 688, A104
work page 2024
-
[45]
Seaton, M. J. 1979, MNRAS, 187, 73
work page 1979
- [46]
-
[47]
Vink, J. S., de Koter, A., & Lamers, H. J. G. L. M. 2001, A&A, 369, 574
work page 2001
-
[48]
Vink, J. S., Mehner, A., Crowther, P. A., et al. 2023, A&A, 675, A154
work page 2023
-
[49]
Walborn, N. R., Lennon, D. J., Heap, S. R., et al. 2000, PASP, 112, 1243 Article number, page 10 of 17 D. Pauli ,† et al.: First measurement of wind line formation regions in an early O-type star Appendix A: Additional tables Table A.1.List of spectra from HST UV observations of AzV 75 used for the RV measurements. Proposal Spec. ID Instrument Grating Sta...
work page 2000
