arxiv: 2604.22037 · v1 · submitted 2026-04-23 · 💻 cs.SD · eess.AS

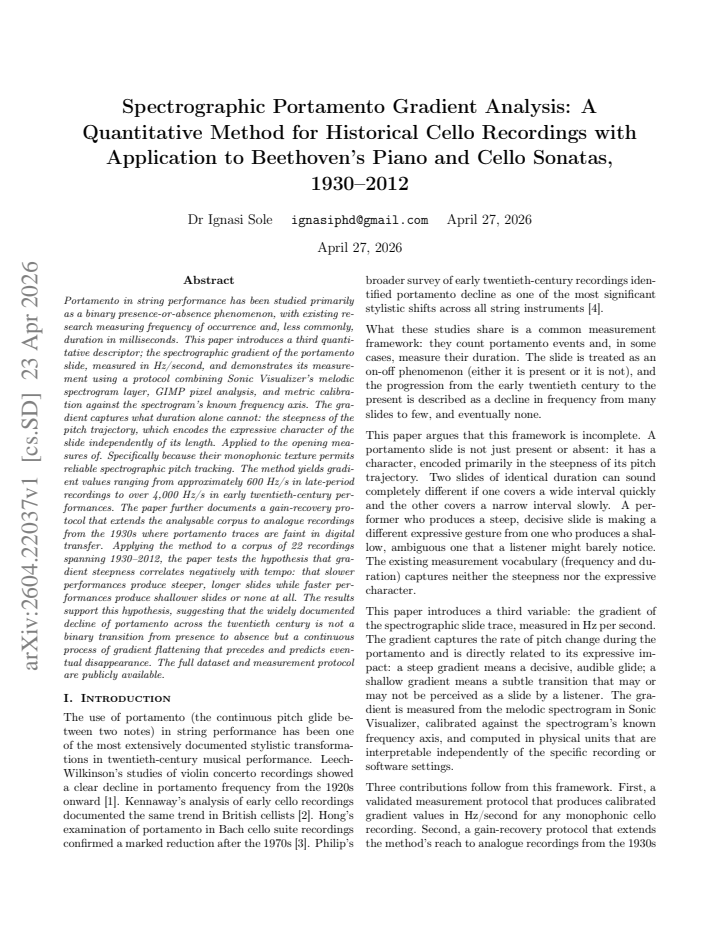

Spectrographic Portamento Gradient Analysis: A Quantitative Method for Historical Cello Recordings with Application to Beethoven's Piano and Cello Sonatas, 1930--2012

Ignasi Sole This is my paper

Pith reviewed 2026-05-08 13:15 UTC · model grok-4.3

classification 💻 cs.SD eess.AS
keywords portamentospectrographic gradientcello performancehistorical recordingsBeethoven sonatastempo correlationpitch trajectory
0
0 comments X

The pith

Spectrographic analysis shows portamento slide steepness in cello performances decreases as tempo increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a quantitative method to measure the gradient, or steepness, of portamento slides in historical string recordings. Using spectrograms from Sonic Visualizer and pixel analysis in GIMP, it calculates pitch change rates in Hz per second, which describes the expressive quality of the slide beyond its mere presence or length. When applied to the opening of Beethoven's Piano and Cello Sonatas in 22 recordings from 1930 to 2012, the method shows steeper gradients in slower performances and shallower ones in faster ones. The findings indicate that the documented decline in portamento over the twentieth century reflects a continuous shift in how slides are performed rather than a simple on-or-off change.

Core claim

The paper establishes that the spectrographic gradient of portamento, measured in Hz/second, provides a third descriptor for string slides that correlates negatively with performance tempo. In the Beethoven sonata corpus, early recordings exhibit gradients over 4000 Hz/s while later ones drop to around 600 Hz/s, supporting the view that portamento decline is a gradual reduction in slide steepness tied to increasing tempos.

What carries the argument

The portamento gradient, quantified as the rate of frequency change in Hz per second from calibrated spectrogram traces, which isolates the steepness of the pitch trajectory independent of slide duration.

If this is right

  • Steeper gradients appear in slower performances, suggesting more pronounced expressive portamento at reduced tempos.
  • Shallower gradients or none occur in faster performances, linking tempo to the choice of slide execution.
  • The gain-recovery protocol allows reliable analysis of faint portamento traces in early analogue recordings from the 1930s.
  • Portamento use declines continuously over the period rather than disappearing abruptly.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could be extended to analyze portamento in recordings of other instruments or composers to test for similar tempo-gradient relationships.
  • Modern performers might use these quantitative benchmarks to calibrate their own portamento steepness when aiming for historically informed interpretations.
  • Further research could investigate whether recording technology or changing musical aesthetics contribute to the observed continuous decline alongside tempo effects.

Load-bearing premise

The protocol combining Sonic Visualizer spectrograms, GIMP pixel measurement, and gain recovery accurately recovers the actual pitch trajectory steepness without significant distortion from analogue artifacts or calibration decisions.

What would settle it

Repeating the gradient measurements on the same set of recordings using a different pitch detection algorithm or software and checking for substantial discrepancies in the reported Hz/second values.

Figures

Figures reproduced from arXiv: 2604.22037 by Ignasi Sole.

Figure 2
Figure 2. Figure 2: Leech-Wilkinson’s scatter chart comparing por view at source ↗
Figure 3
Figure 3. Figure 3: Melodic spectrogram in Sonic Visualizer show view at source ↗
Figure 5
Figure 5. Figure 5: Notation symbols used in score annotation. view at source ↗
Figure 4
Figure 4. Figure 4: Spectrogram of the 1937 Feuermann record view at source ↗
Figure 7
Figure 7. Figure 7: Calibrated portamento gradient (Hz/s) against view at source ↗
Figure 8
Figure 8. Figure 8: Calibrated portamento gradient (Hz/s) against view at source ↗
Figure 10
Figure 10. Figure 10: Representative spectrograms of the two shift view at source ↗
Figure 9
Figure 9. Figure 9: Portamento duration (seconds) against cali view at source ↗
read the original abstract

Portamento in string performance has been studied primarily as a binary presence-or-absence phenomenon, with existing research measuring frequency of occurrence and, less commonly, duration in milliseconds. This paper introduces a third quantitative descriptor; the spectrographic gradient of the portamento slide, measured in Hz/second, and demonstrates its measurement using a protocol combining Sonic Visualizer's melodic spectrogram layer, GIMP pixel analysis, and metric calibration against the spectrogram's known frequency axis. The gradient captures what duration alone cannot: the steepness of the pitch trajectory, which encodes the expressive character of the slide independently of its length. Applied to the opening measures of. Specifically because their monophonic texture permits reliable spectrographic pitch tracking. The method yields gradient values ranging from approximately 600~Hz/s in late-period recordings to over 4,000~Hz/s in early twentieth-century performances. The paper further documents a gain-recovery protocol that extends the analysable corpus to analogue recordings from the 1930s where portamento traces are faint in digital transfer. Applying the method to a corpus of 22 recordings spanning 1930--2012, the paper tests the hypothesis that gradient steepness correlates negatively with tempo: that slower performances produce steeper, longer slides while faster performances produce shallower slides or none at all. The results support this hypothesis, suggesting that the widely documented decline of portamento across the twentieth century is not a binary transition from presence to absence but a continuou

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces spectrographic portamento gradient analysis as a quantitative method to measure the steepness (in Hz/s) of portamento slides in historical cello recordings. It combines Sonic Visualizer melodic spectrograms with manual GIMP pixel slope measurement and frequency-axis calibration, plus a gain-recovery protocol for faint analogue transfers. Applied to the opening measures of Beethoven piano-and-cello sonatas across 22 recordings (1930–2012), the method yields gradients ranging from ~600 Hz/s (late-period) to >4000 Hz/s (early), and tests the hypothesis that gradient steepness correlates negatively with tempo, supporting the claim that the documented decline of portamento is a continuous rather than binary change.

Significance. If the measurement protocol proves reliable, the work supplies a third quantitative descriptor (trajectory steepness) that captures expressive character beyond binary presence or duration alone. The multi-decade corpus and tempo-gradient hypothesis test could refine historical performance-practice narratives by showing gradual rather than abrupt shifts; the gain-recovery technique also extends the usable historical corpus. These elements would be of interest to music-information-retrieval and performance-studies communities provided the data-to-claim link is strengthened.

major comments (2)
  1. [Method] Method (protocol description): the central gradient values (600–4000 Hz/s) and the subsequent tempo-correlation test rest on manual GIMP pixel extraction from Sonic Visualizer spectrograms, yet no accuracy metrics, inter-rater reliability, or comparison against automated pitch trackers (YIN, Praat, CREPE) or synthetic ground-truth signals are reported. Unspecified FFT size, hop, and window parameters further risk time-frequency trade-offs that can systematically flatten or steepen apparent slopes, especially for rapid portamenti; this directly undermines the load-bearing claim that the measured gradients faithfully reflect historical performance practice.
  2. [Results] Results/hypothesis test: the abstract states that the results support a negative correlation between gradient steepness and tempo, but supplies no correlation coefficient, p-value, error bars, or breakdown by tempo category. Without these statistics or any handling of recording-quality confounds, the evidence for the continuous-decline interpretation cannot be evaluated and remains unanchored.
minor comments (2)
  1. [Abstract] Abstract ends abruptly at 'continuou' and contains minor grammatical and completeness issues; the full sentence should be restored and the abstract proofread.
  2. [Method] The gain-recovery protocol for 1930s transfers is described only at a high level; explicit before/after spectrogram examples and quantitative checks on how gain adjustment affects traced slopes would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough and constructive review, which identifies key areas for strengthening the methodological transparency and statistical reporting in our manuscript. We address each major comment below and commit to the indicated revisions.

read point-by-point responses

  1. Referee: [Method] Method (protocol description): the central gradient values (600–4000 Hz/s) and the subsequent tempo-correlation test rest on manual GIMP pixel extraction from Sonic Visualizer spectrograms, yet no accuracy metrics, inter-rater reliability, or comparison against automated pitch trackers (YIN, Praat, CREPE) or synthetic ground-truth signals are reported. Unspecified FFT size, hop, and window parameters further risk time-frequency trade-offs that can systematically flatten or steepen apparent slopes, especially for rapid portamenti; this directly undermines the load-bearing claim that the measured gradients faithfully reflect historical performance practice.

    Authors: We agree that the current method description lacks the necessary validation details. In the revised manuscript we will add a dedicated validation subsection that: (1) explicitly reports the Sonic Visualizer FFT size, hop size, and window parameters used; (2) quantifies measurement accuracy via comparison against CREPE pitch tracking on a subset of recordings; (3) reports inter-rater reliability coefficients from two independent analysts; and (4) evaluates the protocol on synthetic portamento signals with known gradients to assess time-frequency resolution effects and any systematic slope bias. These additions will directly support the reliability of the reported gradient values. revision: yes

  2. Referee: [Results] Results/hypothesis test: the abstract states that the results support a negative correlation between gradient steepness and tempo, but supplies no correlation coefficient, p-value, error bars, or breakdown by tempo category. Without these statistics or any handling of recording-quality confounds, the evidence for the continuous-decline interpretation cannot be evaluated and remains unanchored.

    Authors: We acknowledge that the statistical details supporting the tempo-gradient hypothesis are not currently reported. The revised version will include the Pearson correlation coefficient, p-value, and 95% confidence interval for the relationship across the 22 recordings. We will add a scatter plot with error bars reflecting measurement uncertainty, a breakdown by tempo categories, and a supplementary analysis separating analogue versus digital transfers to address potential recording-quality confounds. These changes will provide the quantitative anchoring needed for the continuous-decline claim. revision: yes

Circularity Check

0 steps flagged

No circularity detected in measurement protocol or hypothesis test

full rationale

The paper defines a new quantitative descriptor (spectrographic portamento gradient in Hz/s) via an explicit protocol using external tools (Sonic Visualizer melodic spectrogram, GIMP pixel analysis, frequency-axis calibration, and gain-recovery for analogue transfers) and then applies the resulting measurements to a corpus of 22 recordings to perform an independent statistical test of the hypothesis that gradient steepness correlates negatively with tempo. No step reduces by construction to its inputs: the gradient values are extracted from data rather than fitted and renamed as predictions, the correlation is an empirical outcome rather than a tautology, and no self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing premises for the central claims. The derivation chain remains self-contained against the external benchmark of the historical recordings themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unstated assumption that spectrogram pixel slopes calibrated to the frequency axis faithfully represent performed pitch trajectories even in faint analogue transfers; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Spectrographic pitch tracking in monophonic cello texture is reliable enough for gradient extraction
    Invoked when restricting analysis to opening measures of sonatas because of monophonic texture
