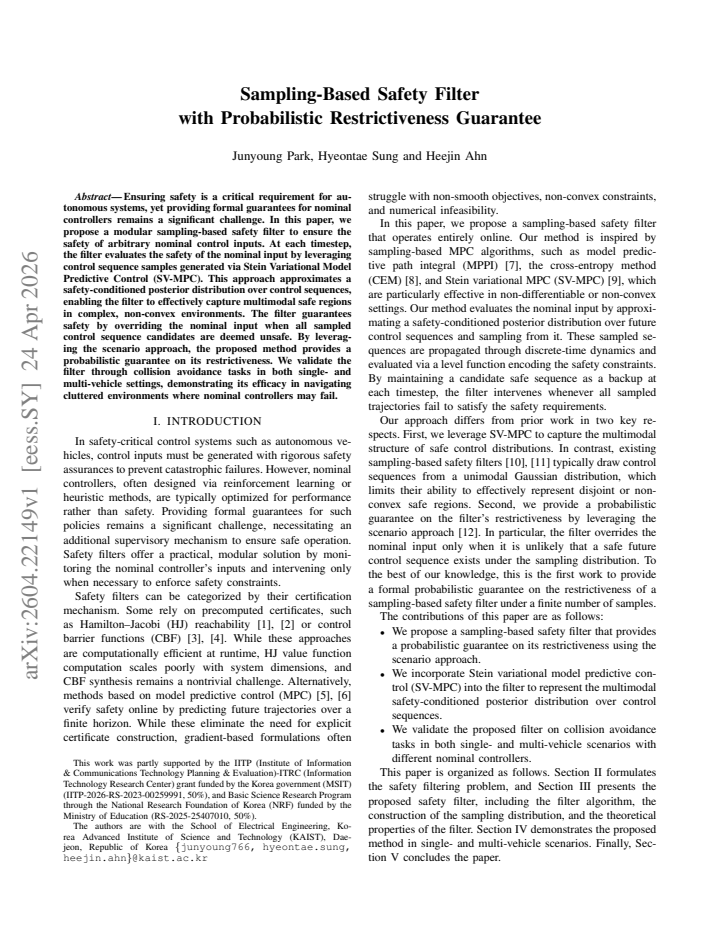

Sampling-Based Safety Filter with Probabilistic Restrictiveness Guarantee

Junyoung Park , Hyeontae Sung , Heejin Ahn This is my paper

Pith reviewed 2026-05-08 10:39 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords safety filtersampling-based controlprobabilistic guaranteeStein Variational MPCcollision avoidancescenario approachnon-convex environmentsautonomous systems
0
0 comments X

The pith

A sampling-based safety filter overrides the nominal input whenever all SV-MPC samples are unsafe and supplies a probabilistic bound on how often it restricts the controller.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a modular safety filter that attaches to any nominal controller without changing it. At each step the filter draws control-sequence samples from Stein Variational Model Predictive Control to approximate the distribution of safe trajectories, then blocks the nominal input if every sample is unsafe. The scenario approach is applied to these samples to obtain a user-chosen probabilistic upper bound on the fraction of time the filter will intervene. This construction is shown to work in non-convex collision-avoidance problems where standard optimization-based safety filters become infeasible. The method therefore separates the task of nominal performance from the task of formal safety certification.

Core claim

The filter guarantees safety by overriding the nominal input when all sampled control sequence candidates are deemed unsafe. By leveraging the scenario approach, the proposed method provides a probabilistic guarantee on its restrictiveness.

What carries the argument

The sampling-based override rule that declares the nominal input unsafe exactly when every SV-MPC sample violates the safety constraints, combined with the scenario-approach bound on the probability of unnecessary overrides.

If this is right

  • Any existing nominal controller can be wrapped by the filter without modification or retraining.
  • The approach handles multimodal safe regions in cluttered, non-convex environments where convex optimization methods fail.
  • The restrictiveness probability can be tuned by choosing the number of samples and the scenario-approach risk parameter.
  • The same sampling mechanism directly extends to multi-agent collision avoidance without requiring joint optimization.
  • Empirical results in single- and multi-vehicle scenarios confirm that the filter intervenes only when the nominal controller would collide.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The modularity makes the filter a candidate wrapper for learned or black-box policies whose internal safety properties are unknown.
  • The number of samples required for a tight restrictiveness bound may limit real-time deployment in very high-dimensional state spaces.
  • Replacing SV-MPC with other posterior-sampling techniques could trade approximation quality for computational speed while preserving the probabilistic guarantee.
  • The method suggests a general pattern for turning any sampling-based planner into a safety filter with explicit restrictiveness certificates.

Load-bearing premise

The SV-MPC samples must be sufficiently representative of the true safety-conditioned distribution of control sequences so that rejecting the nominal input only when all samples are unsafe correctly identifies truly unsafe commands.

What would settle it

A simulation or hardware trial in which an unsafe nominal input is accepted because at least one SV-MPC sample is wrongly classified as safe, or in which the observed frequency of overrides exceeds the scenario-approach probability bound.

Figures

Figures reproduced from arXiv: 2604.22149 by Heejin Ahn, Hyeontae Sung, Junyoung Park.

Figure 2
Figure 2. Figure 2: Comparison of samples generated by the filter using (a) SV-MPC view at source ↗
Figure 3
Figure 3. Figure 3: Visualization of a test case. (a) Vehicle 2 collides with vehicle 3 view at source ↗
read the original abstract

Ensuring safety is a critical requirement for autonomous systems, yet providing formal guarantees for nominal controllers remains a significant challenge. In this paper, we propose a modular sampling-based safety filter to ensure the safety of arbitrary nominal control inputs. At each timestep, the filter evaluates the safety of the nominal input by leveraging control sequence samples generated via Stein Variational Model Predictive Control (SV-MPC). This approach approximates a safety-conditioned posterior distribution over control sequences, enabling the filter to effectively capture multimodal safe regions in complex, non-convex environments. The filter guarantees safety by overriding the nominal input when all sampled control sequence candidates are deemed unsafe. By leveraging the scenario approach, the proposed method provides a probabilistic guarantee on its restrictiveness. We validate the filter through collision avoidance tasks in both single- and multi-vehicle settings, demonstrating its efficacy in navigating cluttered environments where nominal controllers may fail.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. This paper proposes a modular sampling-based safety filter for autonomous systems that uses Stein Variational Model Predictive Control (SV-MPC) to generate samples approximating a safety-conditioned posterior over control sequences. The filter overrides the nominal input only when every sample is deemed unsafe; otherwise the nominal is applied. A probabilistic bound on restrictiveness is obtained via the scenario approach. The method is validated on collision-avoidance tasks in single- and multi-vehicle cluttered environments.

Significance. If the safety claim can be substantiated, the work would offer a practical modular layer that accommodates multimodal safe sets in non-convex spaces while supplying an explicit probabilistic limit on intervention frequency. The combination of SV-MPC sampling with scenario optimization for restrictiveness is a technically interesting contribution that could facilitate deployment of high-performance nominal controllers under formal safety requirements.

major comments (1)
  1. Abstract: the stated safety guarantee rests on the rule that the nominal input is overridden 'when all sampled control sequence candidates are deemed unsafe.' This condition applies the (unchecked) nominal whenever at least one sample is safe. Because the samples approximate the posterior over safe sequences and no forward reachability, dynamics, or constraint check is performed on the nominal itself, an unsafe nominal can be executed as soon as the sampler discovers a single safe alternative. The scenario approach is invoked only for the restrictiveness bound and supplies no safety certificate. Consequently the central safety claim is not supported by the decision rule as described.
minor comments (2)
  1. The abstract and validation description mention empirical results but omit quantitative metrics on sample approximation quality, guarantee tightness, or false-negative rates for unsafe nominals; these should be added with explicit tables or figures.
  2. Clarify the precise definition of 'restrictiveness' and the scenario-optimization formulation (number of samples, violation probability, etc.) in the main text rather than leaving it implicit.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful and insightful review. The major comment identifies a substantive issue with the stated safety guarantee, which we address directly below.

read point-by-point responses

  1. Referee: Abstract: the stated safety guarantee rests on the rule that the nominal input is overridden 'when all sampled control sequence candidates are deemed unsafe.' This condition applies the (unchecked) nominal whenever at least one sample is safe. Because the samples approximate the posterior over safe sequences and no forward reachability, dynamics, or constraint check is performed on the nominal itself, an unsafe nominal can be executed as soon as the sampler discovers a single safe alternative. The scenario approach is invoked only for the restrictiveness bound and supplies no safety certificate. Consequently the central safety claim is not supported by the decision rule as described.

    Authors: We agree with the referee's analysis. The decision rule applies the nominal input whenever at least one SV-MPC sample is classified as safe and overrides only when every sample is unsafe. Because the samples approximate the safety-conditioned posterior and no explicit forward simulation or constraint check is performed on the nominal sequence itself, the rule does not certify that the applied input satisfies the safety constraints. The scenario approach is used exclusively to derive a probabilistic bound on the frequency of intervention (restrictiveness). The abstract's phrasing that the filter 'guarantees safety' is therefore not supported by the current decision rule. In the revised manuscript we will update the abstract, introduction, and method sections to state precisely that the filter supplies a probabilistic restrictiveness guarantee and intervenes with a sampled safe sequence when the posterior indicates no safe controls are likely; we will also add an explicit discussion of the limitation that the nominal input is not directly verified. revision: yes

Circularity Check

0 steps flagged

No circularity: safety and restrictiveness claims rest on external scenario approach and explicit filter logic without self-referential reduction

full rationale

The paper's core claims are that the filter overrides the nominal input precisely when every SV-MPC sample is unsafe, and that the scenario approach supplies a probabilistic bound on how often such overrides occur. Both the override rule and the scenario bound are stated directly in terms of the sampled set and standard concentration inequalities; neither is defined in terms of the other, nor is any parameter fitted to the target safety event and then relabeled as a prediction. No self-citation is invoked as a uniqueness theorem or to smuggle an ansatz. The derivation therefore remains non-circular even if the safety argument itself is incomplete.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review prevents identification of specific free parameters, axioms, or invented entities; the method implicitly relies on standard assumptions from MPC and scenario optimization without explicit listing.
