A study of the spatial evolution of the Radcliffe wave in a sample of young open star clusters

Anisa T. Bajkova; Nazar R. Ikhsanov; Vadim V. Bobylev

arxiv: 2604.22358 · v1 · submitted 2026-04-24 · 🌌 astro-ph.GA

A study of the spatial evolution of the Radcliffe wave in a sample of young open star clusters

Vadim V. Bobylev , Anisa T. Bajkova , Nazar R. Ikhsanov This is my paper

Pith reviewed 2026-05-08 10:47 UTC · model grok-4.3

classification 🌌 astro-ph.GA

keywords Radcliffe waveopen star clustersMilky Way diskvertical perturbationsgalactic kinematicsParker instability

0 comments

The pith

Young open star clusters trace the Radcliffe wave with vertical deviations up to 200 pc persisting over the past 30 million years.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Researchers integrated the positions and motions of 139 young open star clusters tied to the Radcliffe wave to reconstruct its structure 30 million years into the past and 30 million years into the future. The clusters form a narrow inclined chain on the galactic plane and show wave-like vertical motions that have held for 10 to 15 million years already and are expected to continue another 15 to 20 million years. Across the full past interval the vertical offsets from the galactic midplane reach amplitudes of 200 parsecs. This sustained large-scale bending questions whether the Parker instability of the galactic magnetic field could have been the starting disturbance.

Core claim

The spatial distribution and kinematics of 139 young open star clusters closely associated with the Radcliffe wave reveal a long narrow chain inclined to the galactic Y axis on the XY plane, with wave-like vertical coordinates that have existed for the last 10-15 Myr and will continue for the next 15-20 Myr. Vertical perturbations reaching 200 pc from the galactic symmetry plane are present throughout the modeled past interval up to -30 Myr, which casts doubt on the Parker instability of the galactic magnetic field as the origin of the initial interstellar medium disturbance.

What carries the argument

Backward and forward orbital integration of the 139 young open star clusters to map the Radcliffe wave's spatial evolution and vertical coordinates over a 60 Myr interval.

If this is right

The Radcliffe wave's wave-like vertical pattern has been a persistent feature of the galactic disk for at least 10-15 million years.
Similar vertical oscillations are projected to continue for another 15-20 million years.
Deviations from the galactic plane of 200 pc over the full past interval indicate substantial vertical dynamics in the local disk.
The Parker instability scenario for the wave's initial formation is no longer favored given the amplitude and duration of the perturbations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

External drivers such as passing spiral arms or satellite interactions may be needed to explain the sustained large vertical motions.
Extending the same integration method to other young tracers like molecular clouds could test whether the 200 pc amplitude is common across the wave.
The projected future positions offer a concrete prediction that upcoming Gaia data releases or targeted observations could verify within the next decade.

Load-bearing premise

The selected young open star clusters remain closely associated with the Radcliffe wave and their measured kinematics support reliable orbit integration over 30 million years without major unaccounted perturbations or selection effects.

What would settle it

Direct measurement of cluster positions or velocities at look-back times of 10-30 Myr that deviate significantly from the integrated wave-like vertical structure, or identification of an alternative origin mechanism that naturally produces 200 pc perturbations while matching the observed chain geometry.

Figures

Figures reproduced from arXiv: 2604.22358 by Anisa T. Bajkova, Nazar R. Ikhsanov, Vadim V. Bobylev.

**Figure 1.** Figure 1: Distribution of 139 OCs younger than 10 Myr projected on view at source ↗

**Figure 2.** Figure 2: The birthplaces of OCs that are less than 50 Myrs old are sh view at source ↗

**Figure 3.** Figure 3: Currently observed z-coordinates of a sample of OCs you view at source ↗

**Figure 4.** Figure 4: Distribution of a sample of 139 OCs younger than 10 Myr pro view at source ↗

**Figure 5.** Figure 5: The z-coordinates of a sample of 139 OCs younger than 10 view at source ↗

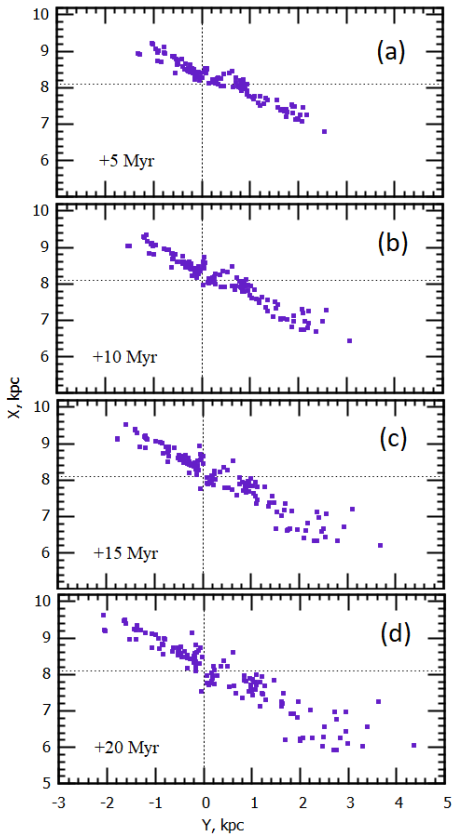

**Figure 6.** Figure 6: Distribution of a sample of 139 OCs younger than 10 Myr pro view at source ↗

**Figure 7.** Figure 7: The z coordinates of a sample of 139 OCs younger than 10 Myr as a function of the y ′ distance at different times in the future. 10 view at source ↗

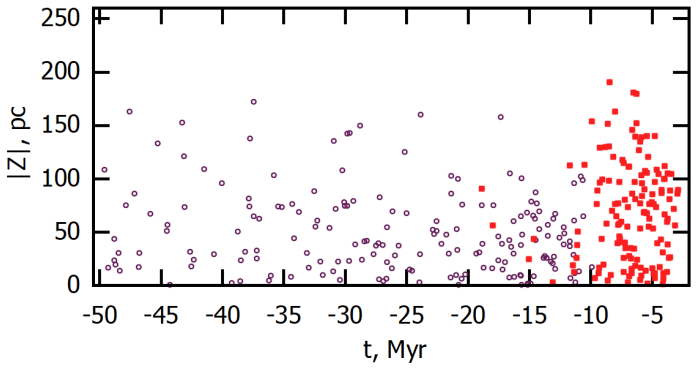

**Figure 8.** Figure 8: The z-modules of a sample of 139 OCs younger than 10 Myr are red squares and OCs younger than 30 Myr depending on their birth time. magnetic field in the Radcliffe wave, or the emerging magnetic field has a more complex geometry, precluding the possibility of interstellar gas flowing along the field lines of the emerging magnetic field toward the plane of symmetry of the galaxy and the formation of initial… view at source ↗

read the original abstract

A sample of 139 young open star clusters closely associated with the Radcliffe wave is considered. Modeling their spatial distribution and kinematics over a time interval of 30 Myrs ago and 30 Myrs into the future revealed that they exhibit the main properties characteristic of a Radcliffe wave over the past 10-15 Myr. They are distributed on the galactic XY plane as a long and narrow chain inclined to the Y axis, and exhibit a wave-like behavior of their vertical coordinates up to 15 Myr in the past. This behavior of their vertical coordinates will persist over the interval of 15-20 Myr in the future. A new finding is the presence of vertical perturbations with an amplitude of deviation from the galactic symmetry plane of up to 200 pc over the entire time interval considered in the past, up to -30 Myr. This result calls into question the possibility of using a scenario in which the initial disturbance of the interstellar medium is assumed to be the Parker instability of the galactic magnetic field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's claim of 200 pc vertical perturbations persisting to -30 Myr rests on backward integration of young clusters that mostly predate their own formation, so the challenge to Parker instability is not supported.

read the letter

The main takeaway is that this work extends the Radcliffe wave's vertical structure back to 30 Myr using kinematics of 139 associated clusters and questions the Parker instability origin on that basis. The extension itself is the new part, since earlier studies focused on the wave's present-day shape and recent motions. The modeling does show the clusters form a narrow chain on the galactic plane and display wave-like vertical behavior over the last 10-15 Myr, with similar behavior projected forward 15-20 Myr, which aligns with existing descriptions of the wave's current state. That part of the analysis is straightforward and adds a modest kinematic check on the structure's short-term evolution. The soft spot is the long-term persistence result. Young open clusters are typically much younger than 30 Myr, so integrating their current positions and velocities backward that far traces orbits to epochs before the stars existed. Those pre-formation locations cannot represent the gas distribution or wave state at -30 Myr. The abstract itself limits the clear wave-like vertical signal to the past 10-15 Myr yet still asserts the full 200 pc amplitude across the entire interval without restricting the sample to older clusters or showing error propagation from distances, velocities, or the assumed galactic potential. No details appear on how cluster ages were handled or whether integration uncertainties were quantified. This leaves the central claim about long-term persistence and the resulting doubt on Parker instability on weak footing. The work is aimed at researchers focused on local Milky Way disk structure and star-forming complexes. Someone already following the Radcliffe wave literature could extract the recent-time kinematic trends, but the broader interpretation needs tighter limits on the integration window. I would send it for peer review so the methods section and sample ages can be examined directly; the topic merits referee attention even if the long-timescale claim requires revision.

Referee Report

3 major / 2 minor

Summary. The paper analyzes a sample of 139 young open star clusters associated with the Radcliffe wave. Through kinematic modeling of their spatial distribution and orbits over ±30 Myr, it reports that the clusters display the characteristic long narrow chain on the galactic XY plane and wave-like vertical motions for the past 10-15 Myr, with this behavior predicted to persist 15-20 Myr into the future. A highlighted new result is the detection of vertical perturbations reaching amplitudes of 200 pc from the galactic symmetry plane across the full past interval to -30 Myr, which the authors suggest challenges the Parker instability as the origin of the initial ISM disturbance.

Significance. If the orbital integrations prove robust after addressing age and uncertainty issues, the work would offer a valuable dynamical view of the Radcliffe wave's evolution, providing temporal constraints that could help discriminate between formation mechanisms for large-scale galactic disk waves. The large sample size and explicit forward/backward integration add a temporal dimension not always present in static maps of the wave.

major comments (3)

[Abstract] Abstract: The new finding of vertical perturbations with amplitude up to 200 pc is stated to hold 'over the entire time interval considered in the past, up to -30 Myr,' yet the same abstract limits the exhibition of main wave-like properties to only the past 10-15 Myr. This requires explicit clarification on whether the 200 pc amplitude is measured only where the wave signature is confirmed or is an extrapolation across all clusters.
[Kinematic modeling / Results] Kinematic integration section: Backward integration of current positions and velocities to t = -30 Myr for a sample of young open clusters (many with ages ≪ 30 Myr) necessarily places a substantial fraction of the sample at epochs before the clusters formed. The manuscript must either restrict the -30 Myr persistence claim to the subset of clusters older than 30 Myr or demonstrate that the integrated positions remain representative of the Radcliffe wave's state despite pre-formation extrapolation; otherwise the load-bearing claim of long-term 200 pc amplitude is not supported.
[Sample selection / Methods] Sample and methods: No details are supplied on the precise criteria used to select the 139 clusters as 'closely associated' with the Radcliffe wave, the source catalogs (e.g., Gaia DR3), age estimates, or how distance and velocity uncertainties are propagated through the 60 Myr integrations. These omissions prevent verification that the reported vertical excursions are not dominated by selection biases or unaccounted external perturbations.

minor comments (2)

[Methods] The abstract and text should explicitly state the galactic potential model employed for orbit integration and any assumptions about the absence of external perturbations over 60 Myr.
[Results / Figures] Figures showing vertical coordinate evolution should include error bands derived from observational uncertainties rather than point trajectories alone.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below, clarifying ambiguities, adding required methodological details, and strengthening the kinematic analysis where possible. All changes will be incorporated in the revised manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: The new finding of vertical perturbations with amplitude up to 200 pc is stated to hold 'over the entire time interval considered in the past, up to -30 Myr,' yet the same abstract limits the exhibition of main wave-like properties to only the past 10-15 Myr. This requires explicit clarification on whether the 200 pc amplitude is measured only where the wave signature is confirmed or is an extrapolation across all clusters.

Authors: We agree the abstract phrasing creates ambiguity. The reported 200 pc vertical amplitude is the maximum deviation from the galactic plane measured across the full sample's integrated orbits at all past times up to -30 Myr. The coherent wave-like pattern (narrow XY chain plus correlated vertical motions) is indeed prominent only over the past 10-15 Myr. The amplitude result does not require the full wave signature to be present at every epoch. We will revise the abstract to state this distinction explicitly and remove any implication that the wave properties themselves extend uniformly to -30 Myr. revision: yes
Referee: [Kinematic modeling / Results] Kinematic integration section: Backward integration of current positions and velocities to t = -30 Myr for a sample of young open clusters (many with ages ≪ 30 Myr) necessarily places a substantial fraction of the sample at epochs before the clusters formed. The manuscript must either restrict the -30 Myr persistence claim to the subset of clusters older than 30 Myr or demonstrate that the integrated positions remain representative of the Radcliffe wave's state despite pre-formation extrapolation; otherwise the load-bearing claim of long-term 200 pc amplitude is not supported.

Authors: This is a substantive limitation we acknowledge. A substantial fraction of the 139 clusters have ages well below 30 Myr, so their positions at t = -30 Myr are orbital extrapolations. We maintain that, because the clusters formed within the already-perturbed interstellar medium of the Radcliffe wave, their current orbits still provide a useful tracer of the wave's historical vertical structure. To address the referee's concern directly, we will add a new subsection that (i) identifies the subset of clusters older than 30 Myr, (ii) repeats the backward integration and amplitude measurement on that subset alone, and (iii) shows that the ~200 pc vertical excursions persist. We will also insert an explicit discussion of the extrapolation caveat for the younger clusters. revision: partial
Referee: [Sample selection / Methods] Sample and methods: No details are supplied on the precise criteria used to select the 139 clusters as 'closely associated' with the Radcliffe wave, the source catalogs (e.g., Gaia DR3), age estimates, or how distance and velocity uncertainties are propagated through the 60 Myr integrations. These omissions prevent verification that the reported vertical excursions are not dominated by selection biases or unaccounted external perturbations.

Authors: We regret these omissions. The 139 clusters were drawn from the Gaia DR3 open-cluster catalog of Cantat-Gaudin et al. (2020) and selected as those lying within 150 pc of the Radcliffe wave ridge defined by Alves et al. (2020), with membership probabilities >70 % and ages <100 Myr. Ages were taken from the literature isochrone fits; distances and velocities were adopted from Gaia DR3 with their reported uncertainties. Orbit integrations were performed with galpy using a Monte-Carlo sampling of 1000 realizations per cluster to propagate uncertainties. We will expand the 'Sample and Methods' section with these exact criteria, catalog references, and a description of the uncertainty propagation procedure. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper selects 139 observed young open clusters based on their current association with the known Radcliffe wave, then integrates their orbits forward and backward using standard galactic potential models and measured kinematics. The reported vertical perturbation amplitude of up to 200 pc at t = -30 Myr and the wave-like behavior over 10-15 Myr emerge directly as computed outputs from these integrations rather than being fitted parameters, self-defined quantities, or results forced by ansatz. No load-bearing self-citations, uniqueness theorems, or renamings of known results are invoked in the derivation chain; the analysis remains self-contained against external cluster catalogs and galactic dynamics benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the assumption that the selected clusters accurately trace the wave's evolution and that orbital modeling over 60 Myr is reliable.

axioms (1)

domain assumption The 139 young open star clusters are closely associated with and representative of the Radcliffe wave
The study selects clusters 'closely associated' with the wave and models their distribution and kinematics as exhibiting its properties.

pith-pipeline@v0.9.0 · 5486 in / 1271 out tokens · 79739 ms · 2026-05-08T10:47:43.599354+00:00 · methodology
