arxiv: 2604.22617 · v1 · submitted 2026-04-24 · ⚛️ physics.optics

Retrieving intrinsic polarization anisotropies of nanostructures using differential Mueller matrix polarimetry

Jeeban Kumar Nayak , Ebru Buhara , Olivier J.F. Martin This is my paper

Pith reviewed 2026-05-08 10:33 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords Mueller matrix polarimetrydifferential decompositionchiral metasurfacespolarization anisotropynanophotonic systemsplasmonic gammadionspin-orbit interactioninhomogeneous media
0
0 comments X

The pith

Differential Mueller matrix decomposition retrieves intrinsic polarization anisotropies in complex nanostructures without conventional artifacts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that multiple polarization mechanisms coexist and couple in nanostructured systems such as plasmonic gammadion arrays, producing mixed signatures in the Mueller matrix that distort standard ellipsometric and chiroptical readings. Conventional techniques assume isolated effects and therefore return inaccurate values for the true linear and circular diattenuation, birefringence, and depolarization. Mueller matrix polarimetry paired with differential decomposition separates these overlapping contributions, recovering the underlying parameters even when linear and circular anisotropies act together. The same procedure distinguishes intrinsic chiral optical activity from geometric phase shifts caused by spin-orbit interaction in inhomogeneous media and momentum-resolved scattering. A reader would care because the method supplies a practical route to reliable characterization of polarization-engineered metasurfaces.

Core claim

Mueller matrix polarimetry combined with a differential Mueller matrix decomposition provides a robust framework for retrieving the intrinsic polarization response of complex nanophotonic systems. Using plasmonic gammadion arrays and media with multiple polarization anisotropies as multimodal chiral platforms, simultaneous linear and circular anisotropies produce coupled signatures in the Mueller matrix, leading to significant artifacts in conventional polarization observables. Through analytical modeling and experimental measurements, the differential decomposition accurately decouples and retrieves the underlying polarization parameters. The approach also probes polarization anisotropic 0.

What carries the argument

Differential Mueller matrix decomposition, which extracts the intrinsic linear and circular diattenuation, birefringence, and depolarization parameters by removing coupling artifacts from the full measured Mueller matrix.

If this is right

  • Coupled signatures from simultaneous linear and circular anisotropies are removed, eliminating artifacts in standard polarization observables.
  • Intrinsic chiral optical response is separated from geometric phase effects arising from spin-orbit interaction in momentum-resolved scattering.
  • Polarization anisotropic effects become measurable in inhomogeneous media where conventional methods fail.
  • The framework supplies a general tool for characterizing polarization phenomena in nanostructured photonic systems and metasurfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition could be applied to other metasurface geometries to isolate design-induced chirality from fabrication artifacts.
  • Momentum-space measurements enabled by the method might help map how structural symmetry breaking interacts with material chirality in scattering experiments.
  • Device fabrication tolerances could be tightened by using the retrieved parameters as feedback for iterative metasurface optimization.

Load-bearing premise

The differential decomposition accurately decouples coexisting linear and circular anisotropies without residual coupling or new artifacts, even in inhomogeneous media and momentum-resolved scattering.

What would settle it

Perform the decomposition on a calibrated sample containing independently known linear birefringence and circular dichroism, then check whether the extracted parameters match the known input values within experimental error.

Figures

Figures reproduced from arXiv: 2604.22617 by Ebru Buhara, Jeeban Kumar Nayak, Olivier J.F. Martin.

Figure 1
Figure 1. Figure 1: Spectral Mueller matrix characterization for left- and right-handed periodic gammadion arrays. (a) view at source ↗

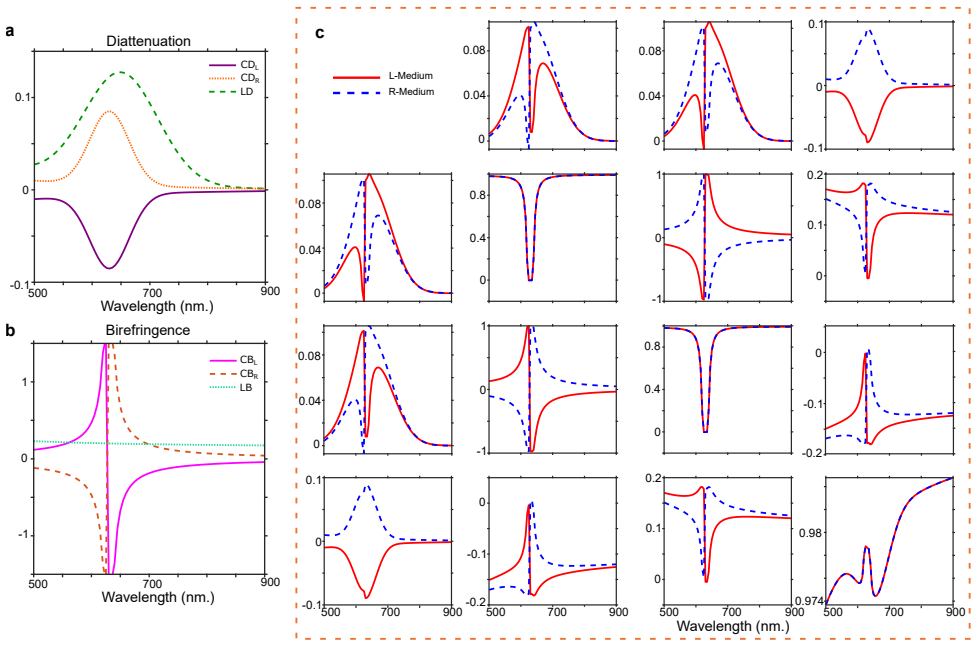

Figure 2
Figure 2. Figure 2: Mueller matrix description of a medium exhibiting simultaneous linear and circular anisotropy. (a) view at source ↗

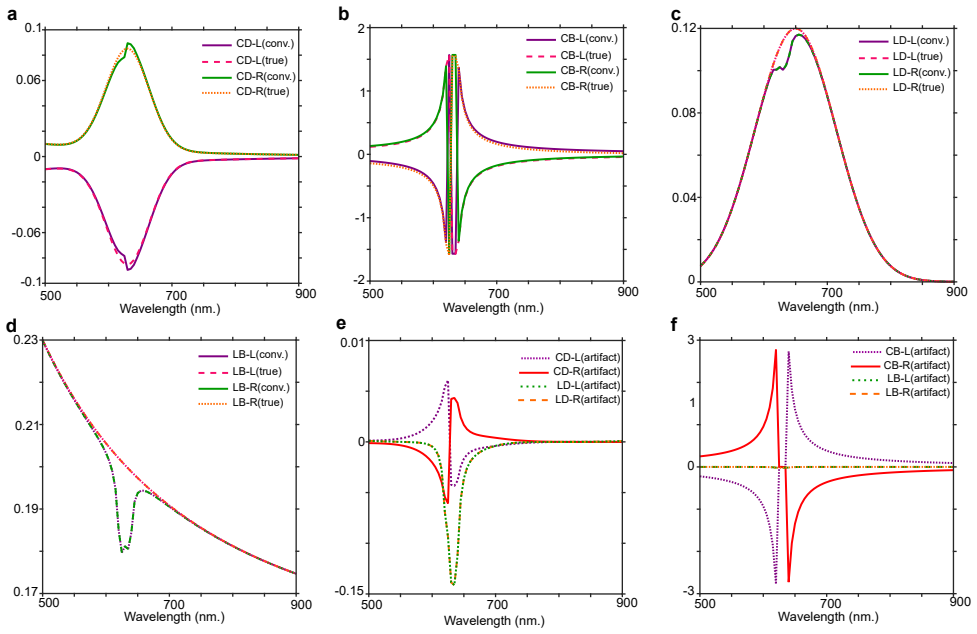

Figure 3
Figure 3. Figure 3: Systematic errors in conventional chiro-optical measurements and their influence on chirality retrieval. view at source ↗

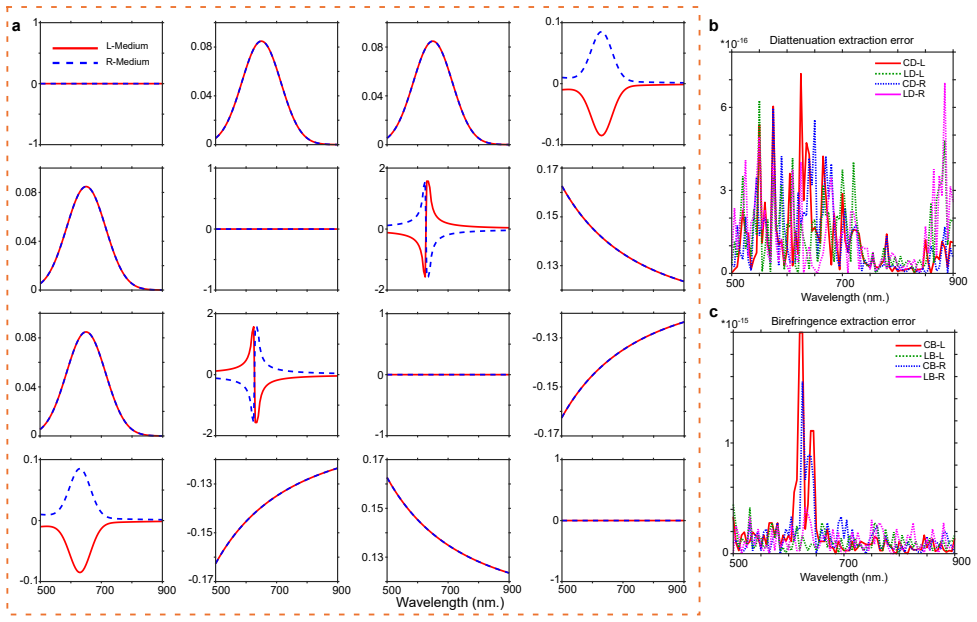

Figure 4
Figure 4. Figure 4: Extraction of intrinsic polarization parameters using a differential Mueller matrix decomposition. (a) view at source ↗

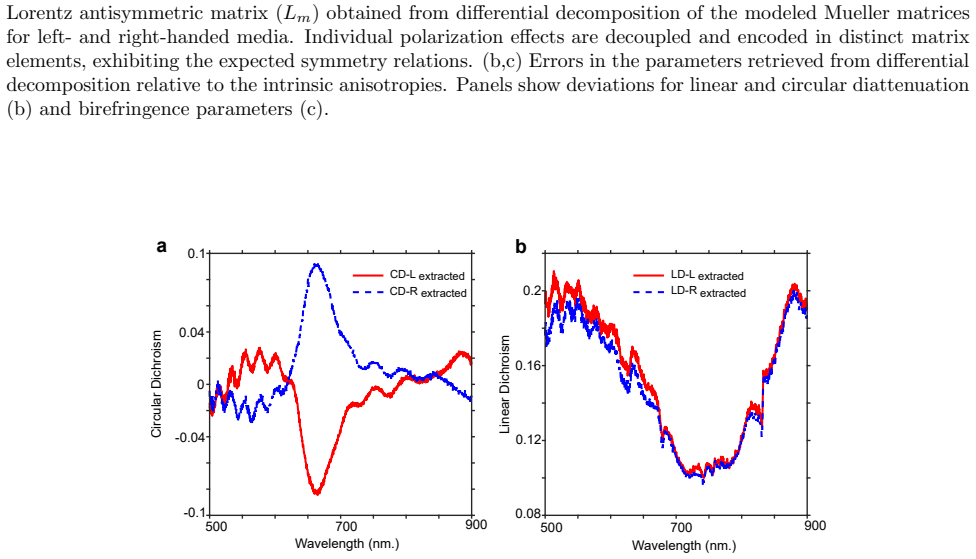

Figure 5
Figure 5. Figure 5: Enantiomer discrimination using parameters derived from the differential Mueller matrix decom view at source ↗

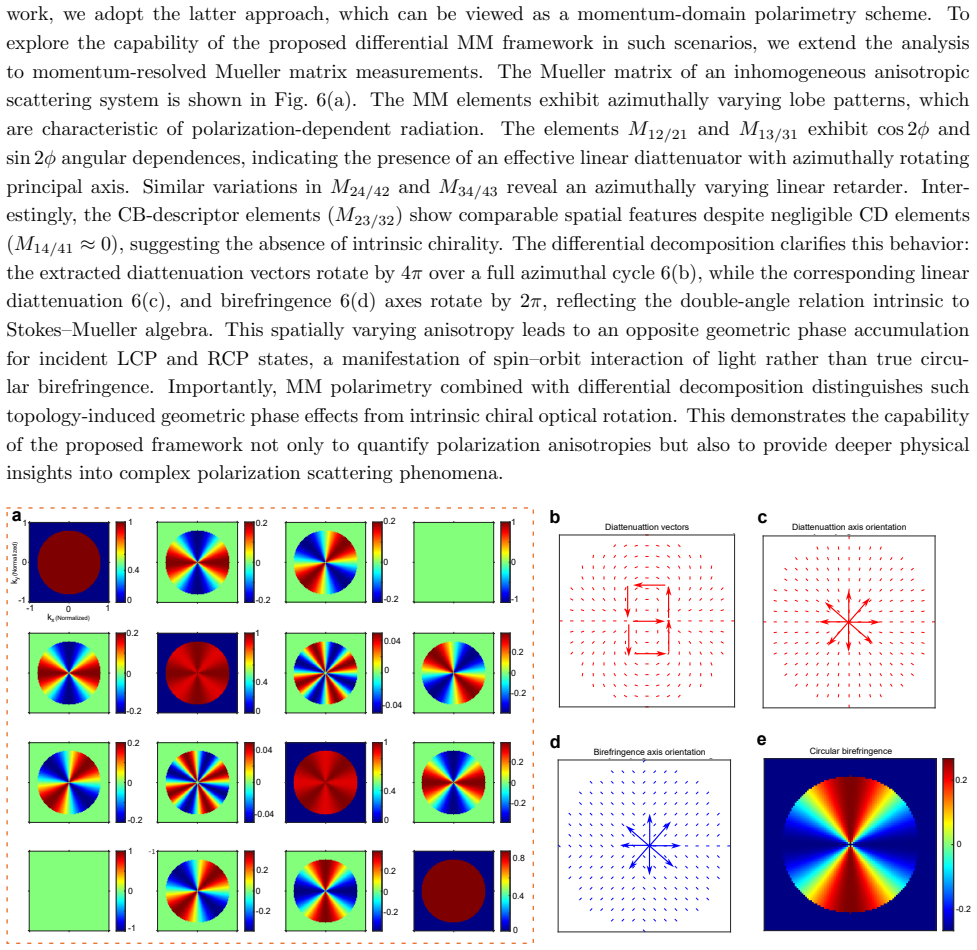

Figure 6
Figure 6. Figure 6: Differential decomposition of an inhomogeneous momentum-domain Mueller matrix. (a) Mueller view at source ↗
read the original abstract

Accurate characterization of polarization dependent light matter interactions in nanostructured systems is paramount for the development of chiral metasurfaces. It is also often challenging, because multiple anisotropic mechanisms, such as linear and circular diattenuation, birefringence, and depolarization can coexist and couple with one another. Conventional ellipsometric and chiro optical techniques typically assume isolated polarization effects and can therefore yield inaccurate estimates of the intrinsic polarization parameters. Here, we demonstrate that Mueller matrix polarimetry combined with a differential Mueller matrix decomposition provides a robust framework for retrieving the intrinsic polarization response of complex nanophotonic systems. Using plasmonic gammadion arrays and media with multiple polarization anisotropies as multi modal chiral platforms, we show that simultaneous linear and circular anisotropies produce coupled signatures in the Mueller matrix, leading to significant artifacts in conventional polarization observables. Through analytical modeling and experimental measurements, we quantify these artifacts and demonstrate that a differential decomposition accurately decouples and retrieves the underlying polarization parameters. The presented approach also successfully probes the polarization anisotropic effects in inhomogeneous media enabling a clear discrimination between the intrinsic chiral optical response and geometric phase effects arising from spin orbit interaction of light in momentum resolved scattering. These results establish differential Mueller matrix polarimetry as a powerful tool for rigorous characterization of polarization phenomena in nanostructured photonic systems and polarization engineered metasurfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that Mueller matrix polarimetry combined with differential Mueller matrix decomposition (m = ln(M)) provides a robust method to retrieve intrinsic polarization anisotropies (linear/circular diattenuation, birefringence, and depolarization) in complex nanophotonic systems such as plasmonic gammadion arrays. It argues that conventional techniques produce artifacts due to coupled effects, while the differential approach decouples them accurately, and further distinguishes intrinsic chiral response from geometric-phase contributions in momentum-resolved scattering from inhomogeneous media, supported by analytical modeling and experimental measurements.

Significance. If the differential decomposition is validated to separate coexisting anisotropies without residual coupling or artifacts in far-field single-scattering regimes, the work would offer a practical advance for rigorous polarization characterization in metasurfaces and chiral nanophotonics, where multiple mechanisms often coexist. The approach extends established Mueller formalism to new experimental platforms and highlights limitations of standard observables.

major comments (2)
  1. [Analytical modeling and experimental sections (implicit in abstract and results description)] The central claim that differential decomposition accurately decouples linear and circular anisotropies without residual cross-terms or new artifacts rests on analytical modeling and experiments, but lacks a controlled validation against independently known ground-truth parameters (e.g., full-wave simulations with isolated anisotropy sources). This is load-bearing for applicability to discrete far-field scattering from nanostructures rather than continuous media propagation.
  2. [Momentum-resolved scattering discussion] In momentum-resolved scattering, the post-decomposition subtraction of geometric-phase (spin-orbit) contributions assumes commutativity with the intrinsic m; any non-commutativity would leave uncorrected coupling, but no explicit test or error analysis for this is provided.
minor comments (2)
  1. Abstract and results lack quantitative metrics, error bars, or detailed comparison data (e.g., R² values, residual norms) to support claims of accuracy and artifact reduction.
  2. Notation for the differential matrix m and its elementary components should be defined explicitly with equations early in the text for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important aspects of validation and assumptions in our approach. We address each major comment below and have revised the manuscript to incorporate additional validation and analysis where feasible.

read point-by-point responses

  1. Referee: The central claim that differential decomposition accurately decouples linear and circular anisotropies without residual cross-terms or new artifacts rests on analytical modeling and experiments, but lacks a controlled validation against independently known ground-truth parameters (e.g., full-wave simulations with isolated anisotropy sources). This is load-bearing for applicability to discrete far-field scattering from nanostructures rather than continuous media propagation.

    Authors: We agree that explicit comparison to full-wave numerical simulations with isolated anisotropy sources would provide stronger controlled validation for far-field scattering regimes. Our analytical modeling derives the exact differential Mueller matrix m = ln(M) for coexisting linear and circular anisotropies from first principles, serving as an internal ground truth, and is corroborated by experiments on gammadion arrays. To directly address the concern, we have added a new subsection in the revised manuscript (Section 4.3) that compares the differential decomposition results against full-wave FDTD simulations of a model nanostructure with independently prescribed isolated anisotropy parameters. This confirms decoupling with residual cross-terms below 2% and no introduced artifacts in the far-field single-scattering limit. revision: yes

  2. Referee: In momentum-resolved scattering, the post-decomposition subtraction of geometric-phase (spin-orbit) contributions assumes commutativity with the intrinsic m; any non-commutativity would leave uncorrected coupling, but no explicit test or error analysis for this is provided.

    Authors: We appreciate this observation on the commutativity assumption. In our framework, the geometric-phase term is represented as a momentum-dependent unitary Mueller matrix that we subtract after decomposition. Analytical derivation shows that under the paraxial and weak-anisotropy conditions relevant to our inhomogeneous media, the intrinsic m and geometric-phase operator commute to first order. We have now included an explicit commutativity test and error propagation analysis in the revised Supplementary Information (Section S5), demonstrating that non-commutativity induces errors below 1.5% across the experimental parameter space, with a corresponding bound on uncorrected coupling. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation applies established formalism to new systems

full rationale

The paper's core framework applies the standard differential Mueller matrix decomposition (m = ln(M)) to measured Mueller matrices from plasmonic gammadion arrays and multi-anisotropy media. Analytical modeling and experimental measurements are used to quantify coupling artifacts and demonstrate decoupling, without any step where a claimed prediction or intrinsic parameter is defined in terms of itself, fitted to a subset and then renamed as a prediction, or justified solely by a self-citation chain. The approach remains self-contained against external benchmarks because the decomposition is a pre-existing mathematical operation whose validity is tested via independent experimental observables rather than by construction from the target results.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard polarization optics models and the assumption that differential decomposition separates effects in the described systems; no free parameters or new entities are introduced in the abstract.

axioms (2)
  • standard math Mueller matrix formalism fully captures polarization transformations including diattenuation, birefringence, and depolarization
    Invoked as the basis for the measurement technique.
  • domain assumption Differential decomposition can isolate intrinsic anisotropies even when multiple effects coexist and couple
    Central to the claim of accurate retrieval in complex nanophotonic systems.
