Beam test of a Pb/SciFi prototype for the Barrel Imaging Calorimeter at the Electron-Ion Collider

Hyungjun Lee , Changhui Lee , Jaehyeok Ryu , Geunpil An , Joonsuk Bae , Yunseul Bae , Jeongsu Bok , Yun Eo

show 22 more authors

Wooseok Ham Yoonha Hong Manoj Jadhav Seo Yun Jang Jinryong Jeong Hyon-Suk Jo Sylvester Joosten Beomkyu Kim Bobae Kim Chong Kim Dongguk Kim Minsuk Kim Shin Hyung Kim Wonjun Ko Sehwook Lee Sanghoon Lim Jessica Metcalfe Zisis Papandreou Sangwoo Park Junseop Shin Hwidong Yoo Maria \.Zurek

Authors on Pith no claims yet

Pith reviewed 2026-05-08 09:02 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords Pb/SciFiprototype calorimeterbeam testElectron-Ion Colliderenergy resolutiontiming performancesampling calorimeter

0 comments

The pith

A lead-scintillating fiber prototype for the EIC barrel calorimeter was tested with electron beams to measure its energy and timing performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes beam tests of a lead-scintillating fiber prototype module intended for the Barrel Imaging Calorimeter at the Electron-Ion Collider. Electrons with momenta from 0.5 to 3 GeV/c were used at the CERN PS T10 line to assess how the sampling calorimeter responds in terms of energy measurement and timing. These results matter because they supply concrete performance numbers that can guide the calibration, electronics choices, and scaling decisions needed to build the full detector for future EIC experiments.

Core claim

A Pb/SciFi prototype consisting of lead sheets and scintillating fibers with a total depth of approximately 10.9 radiation lengths was exposed to electron beams. The tests measured the energy and timing performance across the specified momentum range, generating data intended to inform future beam tests, calibration procedures, readout optimization, and the construction of larger prototypes for the Barrel Imaging Calorimeter.

What carries the argument

The Pb/SciFi unit module with its lead-scintillating fiber sampling structure that captures electromagnetic showers.

Load-bearing premise

The assumption that results from low-momentum electron beams at CERN accurately represent the conditions expected in the Electron-Ion Collider environment.

What would settle it

A mismatch between the observed energy resolution or timing precision and predictions from detector simulations, when applied to higher energy or mixed particle beams, would indicate the test data does not transfer reliably.

Figures

Figures reproduced from arXiv: 2604.22647 by Beomkyu Kim, Bobae Kim, Changhui Lee, Chong Kim, Dongguk Kim, Geunpil An, Hwidong Yoo, Hyon-Suk Jo, Hyungjun Lee, Jaehyeok Ryu, Jeongsu Bok, Jessica Metcalfe, Jinryong Jeong, Joonsuk Bae, Junseop Shin, Manoj Jadhav, Maria \.Zurek, Minsuk Kim, Sanghoon Lim, Sangwoo Park, Sehwook Lee, Seo Yun Jang, Shin Hyung Kim, Sylvester Joosten, Wonjun Ko, Wooseok Ham, Yoonha Hong, Yun Eo, Yunseul Bae, Zisis Papandreou.

**Figure 1.** Figure 1: Experimental setup showing the delay wire chambers, trigger counters, and Pb view at source ↗

**Figure 2.** Figure 2: (a) A Pb/SciFi calorimeter unit module with a dimension of 32 × 3 × 3 cm3 . (b) Bundled fiber edge using 3D printed case with an active area of 2.1 × 2.1 cm2 . (c) The cross section of a unit module. analog signals with a dynamic range of 1 V mapped to a 12-bit ADC, together with 10-bit time sampling at 5 GHz, corresponding to a sampling interval of 0.2 ns for this measurement. Two DAQ modules were employe… view at source ↗

**Figure 3.** Figure 3: (a) Pb/SciFi calorimeter setup. 3×5 array of unit modules was installed with a total dimension of 32(w)×9(h)×15(d) cm3 . (b) Side view of the modules. A unit module equipped with SiPMs was placed on top of the 3×5 stack, but it is not included in this study. (c) Layout of the Pb/SciFi modules with respect to the beam direction. windows were chosen empirically from the observed pulse shape so as to include… view at source ↗

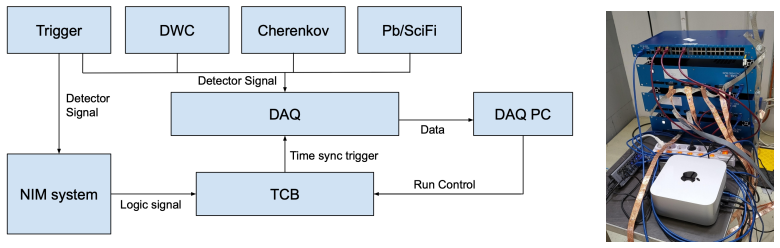

**Figure 4.** Figure 4: DAQ scheme in the beam test and DAQ system with PC. view at source ↗

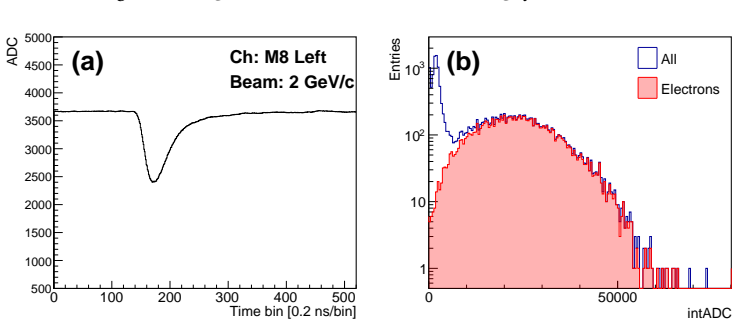

**Figure 5.** Figure 5: (a) A signal waveform in an event for a channel (M8 in Fig. view at source ↗

**Figure 6.** Figure 6: (a) Horizontal (X) and vertical (Y) position of the beam particle (2 GeV view at source ↗

**Figure 7.** Figure 7: Reconstructed energy for electrons at 0.5, 1, 2, and 3 GeV view at source ↗

**Figure 8.** Figure 8: (a) Energy resolution as a function of beam energy. (b) Ratio of the measured energy ( view at source ↗

**Figure 9.** Figure 9: Normalized energy fractions in five unit modules (M6, M7, M8, M9, and M10 in Fig. view at source ↗

**Figure 10.** Figure 10: An example of time-difference measurement ( view at source ↗

read the original abstract

A Lead-Scintillating Fiber (Pb/SciFi) prototype for the Barrel Imaging Calorimeter (BIC) at the Electron--Ion Collider (EIC) was tested with electron beams at the CERN PS T10 beam line in August 2024. The prototype consisted of unit modules with a sampling structure of lead sheets and scintillating fibers, corresponding to a total depth of approximately $10.9\,X_{0}$. Beam tests were performed with electron momenta between 0.5 and 3~GeV/$c$ to evaluate the energy and timing performance of the prototype. This study characterizes the performance of a Pb/SciFi prototype and provides input for future beam tests, calibration and readout optimization, and the development of larger-scale prototypes.
