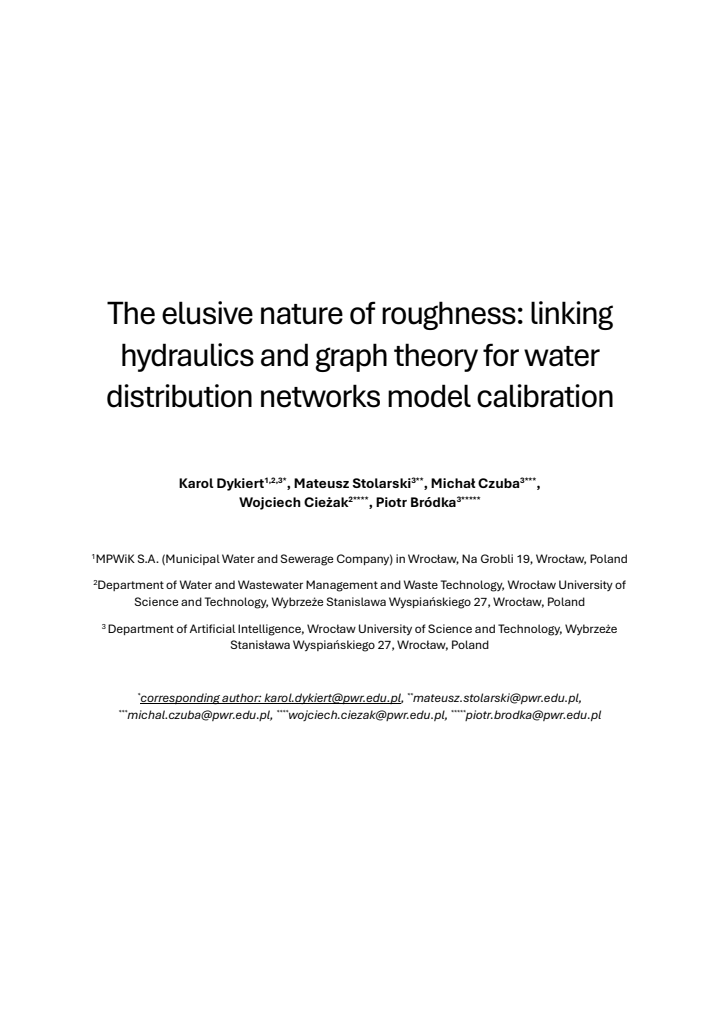

The Elusive Nature of Roughness: Linking Hydraulics and Graph Theory for Water Distribution Networks Model Calibration

Karol Dykiert , Mateusz Stolarski , Micha{\l} Czuba , Wojciech Cie\.zak , Piotr Br\'odka This is my paper

Pith reviewed 2026-05-10 14:38 UTC · model grok-4.3

classification 💻 cs.CE cs.SIcs.SYeess.SY
keywords water distribution networkspipe roughness calibrationnetwork partitioninggraph theoryclusteringhydraulic modelingoptimizationtopology
0
0 comments X

The pith

Grouping pipes using hydraulic and graph attributes produces stable roughness calibration results comparable to manual methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper tests whether partitioning water distribution networks into groups based on hydraulic properties and graph theory metrics can improve the calibration of pipe roughness coefficients. Traditional calibration relies on costly field work or manual heuristics that may not be repeatable. By using a high-fidelity model as benchmark, the study compares clustering approaches and finds that attribute-based groups lead to optimization results that are stable and match manual calibration quality for important pipes. Including graph data helps stabilize the process while hydraulic attributes define clearer clusters.

Core claim

Attribute-based grouping of pipes, leveraging both hydraulic and graph-derived attributes, yields stable and repeatable roughness estimates through optimization that are comparable to manual calibration for hydraulically significant pipes. Hydraulic attributes produce more distinct clusters, graph information improves robustness, and density-based clustering achieves similar accuracy to k-means with lower computational effort in certain setups.

What carries the argument

Attribute-based grouping via density-based clustering and topology-driven strategies that combine hydraulic parameters with graph metrics to partition the network for efficient roughness calibration.

If this is right

  • Calibration becomes more repeatable and less dependent on individual expert choices.
  • Graph-based attributes can be added to hydraulic data to enhance optimization stability.
  • Density-based clustering offers a way to maintain accuracy with reduced computation compared to k-means.
  • The method provides a systematic alternative to manual heuristics for large networks.
  • Network topology is shown to be important for reliable parameter estimation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar grouping strategies could extend to calibrating other parameters like demand or valve settings in the same networks.
  • Applying this to networks without a high-fidelity model would require validation against limited field data.
  • Further research might explore how different graph metrics affect cluster quality and calibration outcomes.
  • The approach may generalize to other infrastructure networks modeled as graphs, such as power grids.

Load-bearing premise

The selected hydraulic and graph attributes capture the main factors that cause errors in roughness estimation, and the high-fidelity model is an accurate proxy for real network behavior.

What would settle it

Running the calibration on the same network but with actual field pressure and flow measurements instead of the high-fidelity model outputs would show if the grouped results deviate substantially from manual calibration accuracy.

read the original abstract

Accurate pipe roughness estimation in large-scale water distribution networks is often hindered by the high cost of traditional field methods. This study investigates whether network partitioning, by utilizing hydraulic and graph-derived attributes, can enhance the calibration of these parameters. Using a high-fidelity model of a real network as a benchmark, we evaluate density-based clustering, and topology-driven grouping strategies. Optimization experiments demonstrate that attribute-based grouping yields stable, repeatable results comparable to manual calibration for hydraulically significant pipes. While hydraulic attributes generate more distinct cluster structures, the inclusion of graph-based data improves calibration robustness by stabilizing the optimization process. Notably, density-based clustering achieves similar accuracy to k-means while reducing computational effort in specific configurations. Although the method does not eliminate all sources of uncertainty, results suggest that topology-informed grouping provides a systematic, reproducible, and computationally efficient alternative to manual heuristics, highlighting the critical role of network structure in reliable parameter estimation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that partitioning water distribution networks using a combination of hydraulic attributes and graph-derived topology features enables more stable and reproducible roughness coefficient calibration than manual heuristics. Optimization experiments on a high-fidelity model of a real network are reported to show that attribute-based grouping (including density-based clustering) produces results comparable to manual calibration for hydraulically significant pipes, with graph attributes improving robustness and density-based methods sometimes matching k-means accuracy at lower computational cost.

Significance. If the benchmark is independently validated and the quantitative results are fully reported, the work would offer a systematic, topology-informed alternative to ad-hoc roughness calibration that could reduce subjectivity and field costs in large-scale WDN modeling. The explicit linkage of graph-theoretic attributes to hydraulic parameter estimation is a potentially useful contribution, though its practical impact depends on demonstrating improvement over existing automated calibration techniques.

major comments (2)
  1. [§4] §4 (Case study / benchmark description): The high-fidelity model is used as ground-truth benchmark for all optimization experiments, yet the manuscript provides no description of its construction, parameter sources, boundary conditions, or quantitative agreement with independent field pressure and flow measurements. This is load-bearing for the central claim because the reported stability and comparability to manual calibration are only meaningful if the benchmark accurately reproduces real-network hydraulics rather than sharing structural assumptions with the tested methods.
  2. [§5] §5 (Optimization experiments / Results): The abstract and results claim that attribute-based grouping yields 'stable, repeatable results comparable to manual calibration,' but no specific error metrics (e.g., RMSE or MAE on roughness values or simulated heads/flows), number of optimization runs, statistical significance tests, or tabulated comparisons with manual calibration are presented. Without these, the strength of the repeatability and comparability assertions cannot be evaluated.
minor comments (2)
  1. [Abstract] Abstract: The statement that 'density-based clustering achieves similar accuracy to k-means while reducing computational effort in specific configurations' is not accompanied by the accuracy measure used or the exact configurations, making the claim difficult to interpret.
  2. [§3] §3 (Methodology): The definitions and normalization of the hydraulic plus graph attributes used for clustering are not fully specified, nor is the rationale for the chosen distance metric or clustering hyperparameters.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and will revise the manuscript to incorporate the requested information and quantitative details.

read point-by-point responses

  1. Referee: [§4] §4 (Case study / benchmark description): The high-fidelity model is used as ground-truth benchmark for all optimization experiments, yet the manuscript provides no description of its construction, parameter sources, boundary conditions, or quantitative agreement with independent field pressure and flow measurements. This is load-bearing for the central claim because the reported stability and comparability to manual calibration are only meaningful if the benchmark accurately reproduces real-network hydraulics rather than sharing structural assumptions with the tested methods.

    Authors: We agree that the current manuscript lacks sufficient detail on the high-fidelity model. In the revised version we will expand §4 with a dedicated subsection that describes: (i) the model's construction from GIS, as-built drawings and SCADA data; (ii) sources of all pipe and node parameters; (iii) boundary conditions (reservoir heads, demand patterns, control settings); and (iv) quantitative validation against independent field pressure and flow measurements, including RMSE, MAE and correlation coefficients. These additions will demonstrate that the benchmark reproduces observed hydraulics independently of the partitioning methods under test. revision: yes

  2. Referee: [§5] §5 (Optimization experiments / Results): The abstract and results claim that attribute-based grouping yields 'stable, repeatable results comparable to manual calibration,' but no specific error metrics (e.g., RMSE or MAE on roughness values or simulated heads/flows), number of optimization runs, statistical significance tests, or tabulated comparisons with manual calibration are presented. Without these, the strength of the repeatability and comparability assertions cannot be evaluated.

    Authors: We acknowledge that the results section currently presents only qualitative statements. We will revise §5 to include: (i) tabulated RMSE and MAE values for both roughness coefficients and simulated heads/flows across all methods; (ii) the exact number of independent optimization runs performed for each configuration; (iii) results of statistical significance tests (e.g., paired t-tests or ANOVA) comparing attribute-based, manual and baseline approaches; and (iv) direct side-by-side tables contrasting the new methods with the manual calibration outcomes. These quantitative elements will allow readers to evaluate the claimed stability and comparability. revision: yes

Circularity Check

0 steps flagged

No circularity: results from empirical optimization on external benchmark

full rationale

The paper's claimed results arise from optimization experiments that compare attribute-based grouping strategies against manual calibration, using a high-fidelity model of a real network as an external benchmark. No equations, parameters, or predictions are shown to reduce by construction to their own inputs, fitted values, or self-citations; the evaluation relies on independent simulation runs and clustering performance metrics rather than self-definitional loops or renamed known results. The derivation chain remains self-contained through direct empirical testing against the benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are detailed in the abstract; the approach assumes standard clustering and optimization techniques apply directly to the roughness problem.
