Fingertip Micro-Motion as a Source of Respiratory Information During Sleep Using Triaxial Accelerometers

Jeanne Lin , Lily Liu , Hau-Tieng Wu
Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:49 UTC · model grok-4.3

classification ⚛️ physics.med-ph stat.ME
keywords triaxial accelerometerfingertiprespiratory monitoringsleepinstantaneous respiratory raterespiratory effortmicro-motionpolysomnography
0
0 comments X

The pith

Fingertip triaxial accelerometers capture respiratory effort and rate during sleep.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that accelerometer signals at the fingertip contain usable information about breathing movements while sleeping. The authors apply an antiderivative-based transformation to turn raw triaxial data into a respiratory surrogate signal. Validation against full polysomnography recordings finds that roughly one-fifth of the night yields high-quality segments on average, where the surrogate tracks chest and abdominal motion better than airflow. These segments support accurate estimates of instantaneous respiratory rate and a motion index that flags reliable data.

Core claim

Fingertip-mounted triaxial accelerometers encode meaningful respiratory information during sleep. An antiderivative-based nonlinear transformation produces a respiratory surrogate called TAA-resp that correlates more strongly with thoracic and abdominal motion than with airflow, indicating predominant capture of respiratory effort. High-quality segments of TAA-resp yield instantaneous respiratory rate estimates with root mean square error 0.027 ± 0.022 Hz, and a respiratory motion index derived from time-frequency analysis identifies reliable data with 0.74 sensitivity and 0.75 specificity in cross-validation.

What carries the argument

The antiderivative-based nonlinear transformation that converts fingertip triaxial accelerometer signals into the TAA-resp respiratory surrogate, isolating micro-motion tied to breathing.

If this is right

  • High-quality TAA-resp segments provide instantaneous respiratory rate estimates accurate to within 0.027 ± 0.022 Hz root mean square error.
  • TAA-resp correlates more strongly with thoracic and abdominal motion than with airflow, indicating it mainly tracks respiratory effort.
  • The respiratory motion index rises during REM, N2, and N3 sleep and falls during apnea or hypopnea events.
  • The respiratory motion index predicts signal quality labels at 0.74 sensitivity and 0.75 specificity in leave-one-subject-out cross-validation.
  • On average 22.2% ± 15.6% of full-night recordings contain high-quality respiratory information from the fingertip sensor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could enable wearable devices for home sleep monitoring that avoid chest straps or nasal cannulas in channel-limited settings.
  • The approach might be tested for daytime respiratory tracking or in populations with frequent movement artifacts.
  • Consumer devices such as smart rings or watches could incorporate similar fingertip or wrist placements for continuous overnight breathing surveillance.
  • The transformation and index may apply to accelerometer data from other body sites during sleep.

Load-bearing premise

The antiderivative-based nonlinear transformation successfully isolates respiratory-induced micro-motion from other fingertip movements and artifacts during sleep without introducing significant distortion or bias.

What would settle it

A new dataset of simultaneous fingertip TAA and PSG recordings in which high-quality TAA-resp segments produce instantaneous respiratory rate estimates with root mean square error well above 0.027 Hz or fail to match thoracic effort waveforms.

Figures

Figures reproduced from arXiv: 2604.22907 by Hau-Tieng Wu, Jeanne Lin, Lily Liu.

Figure 1
Figure 1. Figure 1: Illustration of s(t)g(t), where s(t) = cos(2πt) + 0.5 cos(2π2t + 1) and different smooth windows g’s (left column), and the corresponding Fourier magnitude (right column). From top to bottom, g is compactly supported on [−L, L] with L = 5, 2.5, 1.5, 0.5. In each case, g(t) = 1 on [−L + 0.2, L − 0.2] and tapers monotonically to 0 near the boundaries. Definition 2.3. Assume g is smooth, symmetric at 0, and c… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the proposed algorithm illustrated as a flowchart, with corresponding signal visualizations shown on the right. (a) Raw TAA-resp signal; (b) bandpass-filtered TAA-resp (0.1-1 Hz); (c) time-frequency representation (TFR) of (b) ob￾tained via the synchrosqueezing transform; (d) recovered phase of (b); and (e) unwrapped version of (b). The x-axis is time with unit second. See Figures 9 and 10 for … view at source ↗
Figure 3
Figure 3. Figure 3: The overall label rule and criteria. a more reliable and widely accepted framework would likely require either large￾scale studies involving multiple expert annotators or, more in line with established clinical practice, a process combining expert consensus, systematic literature re￾view, and iterative revision, as exemplified by the established apnea event scoring guidelines of the American Academy of Sle… view at source ↗
Figure 4

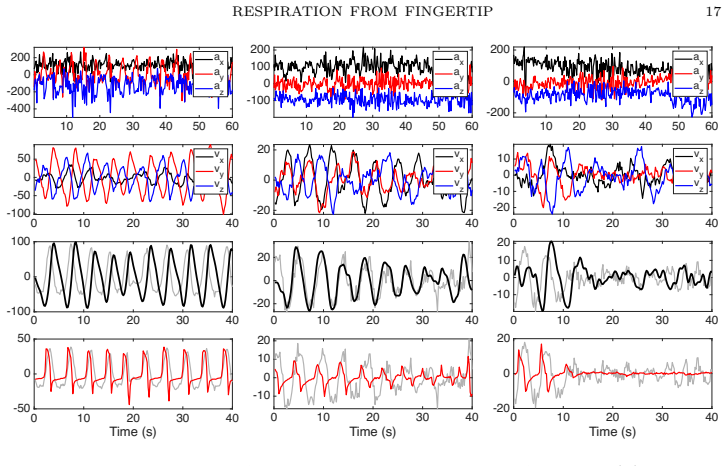

Figure 4. Figure 4: From left to right column: illustration of typical TAA￾resp signals labeled as good (RMI=0.88), moderate (RMI=0.68), and poor (RMI=0.31). The top row shows the raw acceleration signals after removing the mean (unit: m/s2 ), where ax is shifted above by 2×SD(ax) and az is shifted down by 2×SD(ax) to enhance the visualization, the second row shows the integrated acceleration signals after removing the mean (… view at source ↗
Figure 5
Figure 5. Figure 5: Illustration of the effect of unwrapping and the corre￾sponding spectrum. The top panel presents a TAA-resp segment labeled as high quality (RMI = 0.83), the middle panel presents a segment labeled as moderate quality (RMI = 0.64), whereas the bottom panel presents a segment labeled as poor quality (RMI = 0.44). The simultaneously recorded THOs are superimposed as gray curves. ratio 0 0.1 0.2 0.3 0.4 0.5 0… view at source ↗
Figure 6
Figure 6. Figure 6: Ratio of TAA-resp segments labeled as high-quality (moderate or good) over 39 subjects view at source ↗
Figure 7
Figure 7. Figure 7: Distributions of correlations between TAA-resp and THO, ABD, and airflow over all segments (top) and those labeled as high-quality (moderate or good). The mean and median of each group are marked as red and black vertical lines. Note that the unit of TAA-resp is arbitrary. We define the magnitude of a signal over a 1-minute segment as the 99% quantile of its absolute value. The relationships between TAA-re… view at source ↗
Figure 8
Figure 8. Figure 8: Two-dimensional histograms of log(1+magnitude of TAA-resp) versus log(1+magnitude of THO) (left), log(1+magnitude of ABD) (middle), and log(1+magnitude of airflow) (right), shown for all segments (top) and high-quality segments (bottom). 0.02 Hz. See view at source ↗
Figure 9
Figure 9. Figure 9: TAA-resp and THO are shown in the top left panel, and the associated TFRs are shown in the middle and bottom row. The THO is scaled to have the same magnitude of TAA-resp to enhance the visualization. The estimated IRRs are shown in the top right panel and superimposed in each TFR as red curves. The RMSE is 0.02. the odds ratio 2.64 (95% CI=[1.92, 3.63]) and p < 10−10. This result suggests that high-qualit… view at source ↗
Figure 10
Figure 10. Figure 10: TAA-resp and THO are shown in the top left panel, and the associated TFRs are shown in the middle and bottom row. The THO is scaled to have the same magnitude of TAA-resp to enhance the visualization. The estimated IRRs are shown in the top right panel and superimposed in each TFR. The RMSE is 0.015. Bad Moderate Good R M I 0 0.2 0.4 0.6 0.8 1 view at source ↗
Figure 11
Figure 11. Figure 11: Distribution of RMI over three groups. The mean and median of each group are marked as red and black vertical lines. 5.8. RMI distribution over different sleep stages view at source ↗
Figure 12
Figure 12. Figure 12: Violin plots of RMI over different sleep stages. The mean and median of each group are marked as red and black ver￾tical lines. 5.9. RMI distribution over different apnea events. Next, we study the re￾lationship between labels, RMI, and apnea events. Among the 11,502 1-minute segments, 9,312 had neither hypopnea nor apnea, 655 had hypopnea, and 1,535 had apnea. In segments without hypopnea or apnea, 7,168… view at source ↗
Figure 13
Figure 13. Figure 13: RMI distributions for segments with and without sleep apnea. The mean and median of each group are marked as red and black vertical lines. specificity of 0.74±0.27 and 0.75±0.22, with overall accuracy 0.78±0.20 and F1 0.55±0.24 if we replace NaN quantities associated with either row or column of the confusion matrix containing only zeros by 0. If we remove 3 cases with any row or column of the confusion m… view at source ↗
read the original abstract

Objective: Triaxial accelerometers (TAAs) are widely used in homecare medicine. This study investigates whether TAA signals recorded at the fingertip encode respiratory information, particularly instantaneous respiratory rate (IRR) and respiratory effort, during sleep. Method: We propose an antiderivative-based nonlinear transformation to convert TAA signals into a respiratory surrogate, termed TAA-resp. To quantify the embedded respiratory-induced motion, a modern time-frequency analysis tool is applied to derive an index, referred to as the respiratory motion index (RMI). The proposed TAA-resp and RMI are validated on a dataset comprising 39 full-night recordings with simultaneous polysomnography (PSG) and a fingertip TAA measurements. Criteria for labeling TAA-resp signal quality as good, moderate, or poor are established, and expert annotations are obtained. Result: On average, TAA-resp over 22.2% $\pm$ 15.6% of full-night recordings encodes high-quality respiratory information, reaching up to 58.9% in some cases. TAA-resp shows stronger correlation with thoracic and abdominal motion than with airflow, indicating predominant capture of respiratory effort. High-quality TAA-resp offers an accurate IRR estimate with root mean square error $0.027 \pm 0.022$ Hz. RMI is higher for high-quality segments and lower for poor-quality segments, and its distribution aligns with physiology, with higher values during REM, N2, and N3 sleep and in the absence of apnea or hypopnea events. In leave-one-subject-out cross-validation, RMI predicts quality labels with 0.74 sensitivity and 0.75 specificity. Conclusion: Fingertip-mounted TAAs encode meaningful respiratory information. Leveraging this underutilized signal may enhance home-based sleep monitoring in channel-limited settings.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper claims that fingertip-mounted triaxial accelerometers (TAAs) encode respiratory information during sleep. It proposes an antiderivative-based nonlinear transformation to derive a respiratory surrogate (TAA-resp) and a respiratory motion index (RMI) from time-frequency analysis of the transformed signal. These are validated on 39 full-night simultaneous PSG and fingertip TAA recordings, with expert quality labeling of TAA-resp segments. Results indicate that high-quality TAA-resp (present in 22.2% of recordings on average) correlates more strongly with thoracic/abdominal effort than airflow, yields IRR estimates with RMSE 0.027 Hz, and that RMI predicts quality labels in leave-one-subject-out cross-validation while aligning with sleep-stage physiology.

Significance. If the transformation reliably extracts respiratory micro-motion, the work could enable low-channel home sleep monitoring by repurposing fingertip accelerometers already common in wearables. Strengths include the use of full-night PSG ground truth for validation, reporting of both effort and rate metrics, and cross-validation of the RMI quality predictor. The observation that TAA-resp tracks effort better than airflow is physiologically grounded and potentially useful for distinguishing central vs. obstructive events in future extensions.

major comments (3)
  1. [Method] Method section: The antiderivative-based nonlinear transformation used to obtain TAA-resp is described only at a high level. No explicit mathematical definition, derivation, choice of integration limits or filtering parameters, or sensitivity analysis is provided. This is load-bearing for the central claim that the transformation isolates respiratory-induced micro-motion without distortion from other fingertip movements or artifacts.
  2. [Results] Results section: All quantitative performance metrics (correlations with PSG channels, IRR RMSE of 0.027 ± 0.022 Hz) are reported exclusively on the expert-labeled 'high-quality' subset (average 22.2% of recording time). No breakdown of moderate/poor segments, failure-rate statistics, or characteristics of discarded data is given, raising the possibility that reported accuracy reflects selection of favorable segments rather than robust performance of the transformation.
  3. [Results] Results section: No controlled experiments, simulations, or ablation studies are described to test whether the transformation suppresses or distorts non-respiratory components (e.g., cardiac ballistocardiography, voluntary micro-movements, or sensor drift) that are known to be present in fingertip TAA signals. Such tests would be required to substantiate that TAA-resp primarily reflects respiratory effort.
minor comments (3)
  1. [Abstract] Abstract and Methods: The 'modern time-frequency analysis tool' used to compute RMI is not named (e.g., whether it is a specific synchrosqueezed transform or wavelet method), making it difficult to reproduce the index.
  2. [Results] Results: The claim that RMI distributions 'align with physiology' is supported only by qualitative description; quantitative tables or statistical tests comparing RMI across sleep stages and apnea/hypopnea events would improve clarity.
  3. [Figures] Figure legends: Legends for any time-series or spectrogram figures should explicitly state the time scale, frequency range, and which PSG channels are overlaid for visual comparison.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important areas for improving clarity, completeness, and robustness. We address each major comment below and will revise the manuscript to incorporate the suggested enhancements.

read point-by-point responses

  1. Referee: [Method] Method section: The antiderivative-based nonlinear transformation used to obtain TAA-resp is described only at a high level. No explicit mathematical definition, derivation, choice of integration limits or filtering parameters, or sensitivity analysis is provided. This is load-bearing for the central claim that the transformation isolates respiratory-induced micro-motion without distortion from other fingertip movements or artifacts.

    Authors: We agree that the Method section requires greater detail for reproducibility and to fully support the central claim. In the revised manuscript, we will provide the explicit mathematical definition of the antiderivative-based nonlinear transformation, including the integration limits, filtering parameters, and a derivation explaining its isolation of respiratory micro-motion. We will also add a sensitivity analysis to assess robustness to parameter variations. revision: yes

  2. Referee: [Results] Results section: All quantitative performance metrics (correlations with PSG channels, IRR RMSE of 0.027 ± 0.022 Hz) are reported exclusively on the expert-labeled 'high-quality' subset (average 22.2% of recording time). No breakdown of moderate/poor segments, failure-rate statistics, or characteristics of discarded data is given, raising the possibility that reported accuracy reflects selection of favorable segments rather than robust performance of the transformation.

    Authors: The emphasis on high-quality segments reflects the study's aim to characterize performance where respiratory information is reliably present, as determined by expert labeling. We acknowledge the need for fuller context on the entire dataset. In the revision, we will include a breakdown of quality label distributions, statistics on moderate and poor segments, failure rates, and characteristics of lower-quality or discarded data to provide a more complete assessment and address potential selection concerns. revision: yes

  3. Referee: [Results] Results section: No controlled experiments, simulations, or ablation studies are described to test whether the transformation suppresses or distorts non-respiratory components (e.g., cardiac ballistocardiography, voluntary micro-movements, or sensor drift) that are known to be present in fingertip TAA signals. Such tests would be required to substantiate that TAA-resp primarily reflects respiratory effort.

    Authors: The current validation leverages full-night PSG recordings across varied sleep stages and events, with correlations and RMI physiological alignment providing supporting evidence. However, we agree that targeted controlled tests would strengthen substantiation of the transformation's specificity. In the revised manuscript, we will add simulations or ablation studies to evaluate the transformation's handling of non-respiratory components such as cardiac signals, voluntary movements, and drift. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation and validation remain independent of fitted inputs or self-referential definitions.

full rationale

The paper proposes an antiderivative-based nonlinear transformation to obtain TAA-resp from raw fingertip TAA signals and applies standard time-frequency analysis to compute the respiratory motion index (RMI). These steps are presented as methodological choices rather than derived from or fitted to the target metrics. Validation uses simultaneous PSG recordings (independent ground truth for respiratory effort and IRR) plus expert annotations of signal quality on the transformed output. Reported quantities—correlation strengths, IRR RMSE on high-quality segments only, and RMI's ability to predict expert labels in leave-one-subject-out cross-validation—are computed against these external references. No equation or procedure in the provided text reduces the central performance numbers to a statistical tautology (e.g., no parameter fitted on a subset is then relabeled as a prediction of a closely related quantity on the same subset). Quality labeling criteria are established separately and applied by experts; the conditional reporting on high-quality segments is therefore a deliberate scope limitation rather than a circular selection that forces the result. Self-citation, if present in the full text, is not load-bearing for the uniqueness or correctness of the transformation or RMI. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 2 invented entities

Only the abstract is available, so the precise mathematical assumptions inside the antiderivative transformation and any implicit signal-modeling choices cannot be audited. No explicit free parameters, axioms, or invented physical entities are stated in the abstract.

invented entities (2)
  • TAA-resp no independent evidence
    purpose: Respiratory surrogate signal obtained from fingertip TAA via antiderivative nonlinear transformation
    Introduced as the output of the proposed method; no independent evidence outside the paper is provided in the abstract.
  • RMI no independent evidence
    purpose: Respiratory motion index derived from time-frequency analysis of TAA-resp
    New index created to quantify respiratory content; no independent evidence outside the paper is provided in the abstract.
