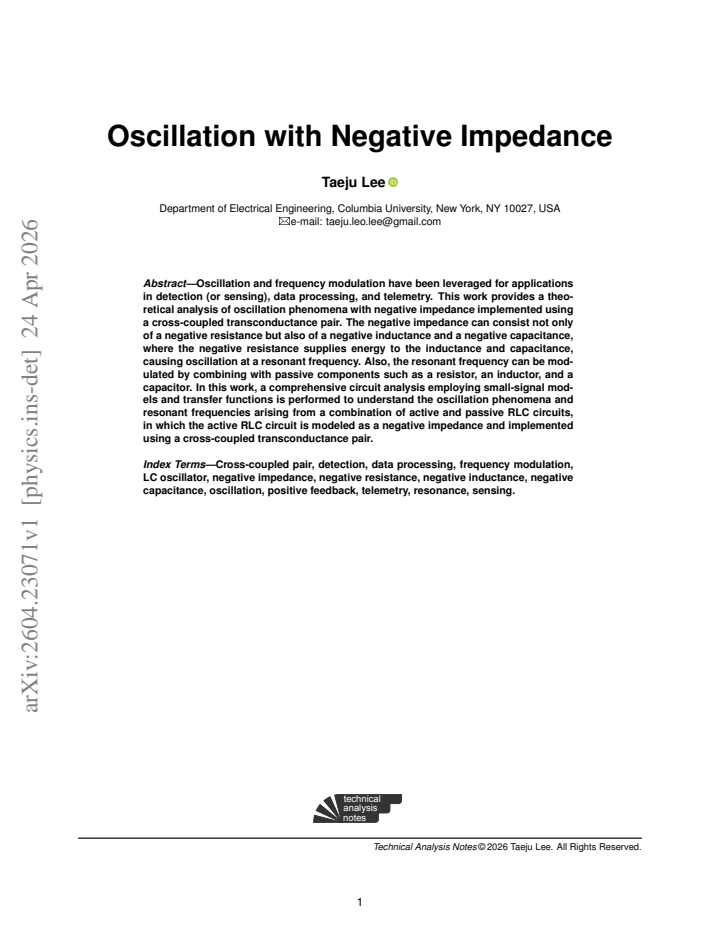

Oscillation with Negative Impedance

Taeju Lee

Authors on Pith no claims yet

Pith reviewed 2026-05-08 08:51 UTC · model grok-4.3

classification ⚛️ physics.ins-det

keywords oscillationnegative impedancecross-coupled transconductance pairresonant frequencyfrequency modulationRLC circuitsmall-signal model

0 comments

The pith

Negative impedance from a cross-coupled transconductance pair supplies energy to inductance and capacitance to produce oscillation at a resonant frequency tunable by passive components.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper analyzes oscillation phenomena arising from negative impedance created by a cross-coupled transconductance pair. Negative resistance in this setup supplies the energy required for the inductance and capacitance to oscillate at their resonant frequency. Combining the negative impedance with additional passive resistors, inductors, or capacitors allows the resonant frequency to be modulated. Small-signal models and transfer functions are used to derive the oscillation conditions and frequencies in these mixed active-passive RLC circuits. This analysis is relevant for applications in detection, sensing, data processing, and telemetry that use oscillatory signals.

Core claim

The negative impedance can consist not only of a negative resistance but also of a negative inductance and a negative capacitance, where the negative resistance supplies energy to the inductance and capacitance, causing oscillation at a resonant frequency. The resonant frequency can be modulated by combining with passive components such as a resistor, an inductor, and a capacitor. A comprehensive circuit analysis employing small-signal models and transfer functions is performed to understand the oscillation phenomena and resonant frequencies arising from a combination of active and passive RLC circuits, in which the active RLC circuit is modeled as a negative impedance and implemented using

What carries the argument

Negative impedance generated by a cross-coupled transconductance pair that energizes resonant RLC circuits to sustain oscillation and permits frequency tuning through passive element combinations.

Load-bearing premise

The small-signal models of the cross-coupled transconductance pair and passive components accurately represent real circuit behavior without large-signal nonlinearities, parasitics, or stability issues.

What would settle it

Measuring the actual oscillation frequency in a fabricated circuit with specific values of L and C and comparing it to the calculated resonant frequency from the small-signal model; significant mismatch would show the model does not hold for real devices.

read the original abstract

Oscillation and frequency modulation have been leveraged for applications in detection (or sensing), data processing, and telemetry. This work provides a theoretical analysis of oscillation phenomena with negative impedance implemented using a cross-coupled transconductance pair. The negative impedance can consist not only of a negative resistance but also of a negative inductance and a negative capacitance, where the negative resistance supplies energy to the inductance and capacitance, causing oscillation at a resonant frequency. Also, the resonant frequency can be modulated by combining with passive components such as a resistor, an inductor, and a capacitor. In this work, a comprehensive circuit analysis employing small-signal models and transfer functions is performed to understand the oscillation phenomena and resonant frequencies arising from a combination of active and passive RLC circuits, in which the active RLC circuit is modeled as a negative impedance and implemented using a cross-coupled transconductance pair.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper re-derives standard negative-impedance oscillator equations using small-signal models but adds no new validated results or practical insights.

read the letter

The main takeaway is that this is a straightforward re-derivation of known negative-impedance oscillator behavior. The author models a cross-coupled transconductance pair to create negative resistance, extends the idea to negative inductance and capacitance, and shows how added passive RLC elements can shift the resonant frequency. All of it stays inside conventional small-signal transfer-function analysis. Nothing in the abstract or described approach looks like a fresh result that hasn't appeared in basic analog electronics texts for decades.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a theoretical analysis of oscillation in circuits employing negative impedance realized via a cross-coupled transconductance pair. Using small-signal models and transfer-function derivations, it argues that the negative resistance component supplies energy to passive inductance and capacitance, producing oscillation at a resonant frequency; this frequency can be modulated by adding passive R, L, or C elements. The active RLC circuit is modeled as a negative impedance whose combination with passive components yields tunable resonance conditions.

Significance. If the derivations are complete and free of gaps, the work could supply a compact small-signal framework for analyzing and designing tunable oscillators based on negative-impedance elements, with potential relevance to sensing and telemetry applications. The absence of machine-checked proofs, reproducible code, or experimental validation, however, limits immediate impact; the result remains a linear stability analysis rather than a full description of sustained oscillation.

major comments (2)

[Abstract and comprehensive circuit analysis section] The central claim that negative resistance 'supplies energy to the inductance and capacitance, causing oscillation' rests entirely on linear small-signal transfer-function analysis. This analysis correctly identifies the condition for instability (negative real part of impedance at resonance) but does not address amplitude stabilization, which requires nonlinear device behavior. The manuscript therefore predicts the onset of oscillation but not the steady-state waveform or frequency under modulation. This gap is load-bearing for the stated conclusions.
[Circuit analysis employing small-signal models and transfer functions] No explicit derivation of the negative inductance or negative capacitance expressions is provided in the visible text; the resonant-frequency formulas appear to be stated without showing the intermediate steps that combine the cross-coupled pair's small-signal parameters with the passive RLC network. Without these steps, it is impossible to verify that the claimed modulation is parameter-free or free of hidden assumptions.

minor comments (1)

[Abstract] The abstract and introduction use the phrase 'negative impedance can consist not only of a negative resistance but also of a negative inductance and a negative capacitance' without defining the frequency range over which each negative element is valid; this should be clarified with the relevant small-signal equivalent circuit.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment point by point below, indicating where revisions will be made.

read point-by-point responses

Referee: [Abstract and comprehensive circuit analysis section] The central claim that negative resistance 'supplies energy to the inductance and capacitance, causing oscillation' rests entirely on linear small-signal transfer-function analysis. This analysis correctly identifies the condition for instability (negative real part of impedance at resonance) but does not address amplitude stabilization, which requires nonlinear device behavior. The manuscript therefore predicts the onset of oscillation but not the steady-state waveform or frequency under modulation. This gap is load-bearing for the stated conclusions.

Authors: We agree that the analysis is confined to linear small-signal models and transfer functions, which identify the instability condition when the real part of the impedance becomes negative at resonance. This is the standard approach for determining the onset of oscillation in negative-impedance oscillators. The statement that negative resistance supplies energy to the inductance and capacitance refers to the compensation of losses leading to growing oscillations in the linear regime. We acknowledge that amplitude stabilization and steady-state waveform details require nonlinear device modeling, which lies outside the scope of this theoretical small-signal framework focused on resonant frequency and modulation. In the revised manuscript we will add an explicit clarification of these limitations and the linear nature of the predictions. revision: partial
Referee: [Circuit analysis employing small-signal models and transfer functions] No explicit derivation of the negative inductance or negative capacitance expressions is provided in the visible text; the resonant-frequency formulas appear to be stated without showing the intermediate steps that combine the cross-coupled pair's small-signal parameters with the passive RLC network. Without these steps, it is impossible to verify that the claimed modulation is parameter-free or free of hidden assumptions.

Authors: The negative inductance and negative capacitance expressions are obtained in the circuit analysis section by substituting the small-signal parameters (transconductance and output resistance) of the cross-coupled pair into the nodal equations of the combined active-passive network and solving for the effective impedance. The resonant-frequency formulas then follow directly from setting the imaginary part of the total admittance to zero. To address the concern, the revised manuscript will expand these sections with the full sequence of algebraic steps, including the intermediate transfer-function expressions, so that readers can verify the modulation conditions and any assumptions. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation follows standard small-signal impedance equations

full rationale

The paper derives oscillation conditions and resonant frequencies from negative impedance (implemented via cross-coupled transconductance pair) combined with passive RLC elements using small-signal models and transfer functions. These steps apply conventional circuit theory (impedance summation, characteristic equations for resonance) without any reduction of outputs to fitted parameters, self-referential definitions, or load-bearing self-citations. The central claims rest on explicit transfer-function analysis rather than tautological renaming or imported uniqueness theorems. The derivation is self-contained within established linear circuit analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The analysis depends on standard linear circuit theory assumptions rather than new postulates or fitted parameters.

axioms (2)

domain assumption Small-signal approximation accurately models the cross-coupled transconductance pair
Invoked for deriving negative impedance behavior from transistor models.
domain assumption Passive RLC components are ideal with no parasitic effects
Required to combine active negative impedance with passive elements for resonant frequency calculations.
