arxiv: 2604.23175 · v1 · submitted 2026-04-25 · 📡 eess.SY · cs.SY

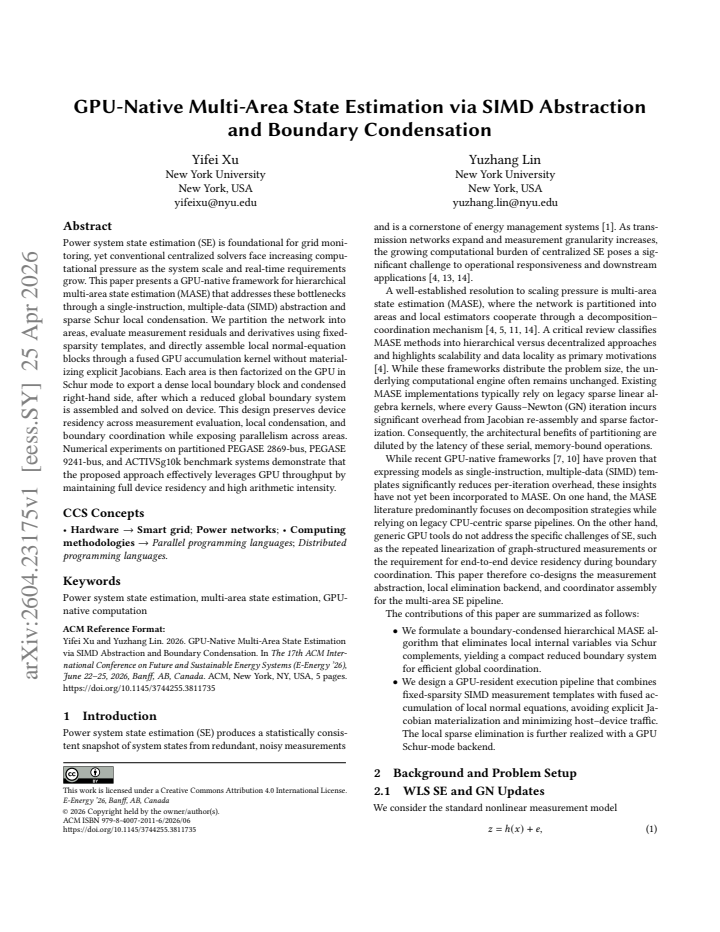

GPU-Native Multi-Area State Estimation via SIMD Abstraction and Boundary Condensation

Yifei Xu , Yuzhang Lin This is my paper

Pith reviewed 2026-05-08 07:49 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords power system state estimationmulti-area state estimationGPU accelerationSchur complementparallel computingreal-time monitoringlarge-scale systems
0
0 comments X

The pith

A GPU-native framework solves large multi-area power system state estimation while keeping all computation and data on the device.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a GPU-native framework for hierarchical multi-area state estimation in power systems. Networks are partitioned into areas where measurement residuals and derivatives are computed using fixed-sparsity templates and assembled into local normal equations via a fused GPU kernel without building explicit Jacobians. Each area undergoes Schur-mode factorization on the GPU to produce a condensed boundary system, which is then assembled into a smaller global boundary problem solved on the device. The design ensures no data leaves the GPU during the process, exposing area-level parallelism and achieving high arithmetic intensity. Tests on large partitioned benchmark systems confirm the approach leverages GPU capabilities effectively.

Core claim

The central claim is that preserving device residency across measurement evaluation, local condensation, and boundary coordination while exposing parallelism across areas allows the GPU-native multi-area state estimation to effectively leverage GPU throughput by maintaining full device residency and high arithmetic intensity on large benchmark systems.

What carries the argument

SIMD abstraction for measurement evaluation with fixed-sparsity templates and sparse Schur local condensation that assembles and factorizes areas on GPU to export dense boundary blocks and condensed right-hand sides.

If this is right

  • The approach scales effectively to systems with thousands of buses by keeping computations on the GPU.
  • Parallel processing across areas is enabled without inter-device communication during core steps.
  • High arithmetic intensity is achieved through fused kernels and avoidance of explicit Jacobian materialization.
  • Full device residency is preserved from start to finish of the estimation process.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If this method generalizes, it could reduce the need for centralized computing infrastructure in grid operations.
  • It might inspire similar condensation techniques for other distributed optimization problems in engineering.
  • One could test its robustness by applying it to networks with frequent topology changes.

Load-bearing premise

Effective network partitioning into areas exists such that boundary systems remain small and the fixed-sparsity templates accurately capture measurement functions without accuracy loss or the need for dynamic adjustments.

What would settle it

A concrete falsifier would be to apply the method to a power network partition where boundary sizes are large relative to areas or where fixed templates cause significant accuracy degradation, and check if the performance gains disappear or accuracy falls below centralized methods.

Figures

Figures reproduced from arXiv: 2604.23175 by Yifei Xu, Yuzhang Lin.

Figure 1
Figure 1. Figure 1: Area-level graph of the PEGASE-2869 partition. view at source ↗
read the original abstract

Power system state estimation (SE) is foundational for grid monitoring, yet conventional centralized solvers face increasing computational pressure as the system scale and real-time requirements grow. This paper presents a GPU-native framework for hierarchical multi-area state estimation (MASE) that addresses these bottlenecks through a single-instruction, multiple-data (SIMD) abstraction and sparse Schur local condensation. We partition the network into areas, evaluate measurement residuals and derivatives using fixed-sparsity templates, and directly assemble local normal-equation blocks through a fused GPU accumulation kernel without materializing explicit Jacobians. Each area is then factorized on the GPU in Schur mode to export a dense local boundary block and condensed right-hand side, after which a reduced global boundary system is assembled and solved on device. This design preserves device residency across measurement evaluation, local condensation, and boundary coordination while exposing parallelism across areas. Numerical experiments on partitioned PEGASE 2869-bus, PEGASE 9241-bus, and ACTIVSg10k benchmark systems demonstrate that the proposed approach effectively leverages GPU throughput by maintaining full device residency and high arithmetic intensity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to present a GPU-native hierarchical multi-area state estimation framework that partitions the network into areas, evaluates measurements and derivatives via fixed-sparsity SIMD templates and fused kernels to assemble local normal equations without explicit Jacobians, performs per-area Schur factorization to export dense boundary blocks plus condensed RHS, assembles and solves the reduced global boundary system on-device, and thereby maintains full GPU residency and high arithmetic intensity. Experiments on partitioned PEGASE 2869-bus, PEGASE 9241-bus, and ACTIVSg10k systems are said to demonstrate effective GPU throughput utilization.

Significance. If the performance and accuracy claims hold, the work could meaningfully advance real-time monitoring capabilities for large-scale power grids by exploiting GPU parallelism and eliminating host-device transfers in multi-area SE. The combination of SIMD abstraction with boundary condensation offers a practical route to scalable hierarchical solvers when boundary sizes remain modest.

major comments (2)
  1. [Numerical experiments] Numerical experiments section: the manuscript supplies neither the partitioning algorithm nor the resulting boundary dimensions for the PEGASE 2869-bus, PEGASE 9241-bus, or ACTIVSg10k cases. Because the claimed GPU advantage and full device residency rest on the dense Schur boundary blocks remaining small (otherwise quadratic memory/compute costs erode the benefit and may force transfers), this omission prevents verification that the pipeline actually delivers the asserted arithmetic intensity and efficiency.
  2. [Abstract] Abstract and results: despite asserting that the experiments 'demonstrate that the proposed approach effectively leverages GPU throughput', no quantitative metrics (runtimes, speedups vs. centralized or alternative MASE solvers, residual norms, or baseline comparisons) are reported. This leaves the central performance claim without concrete empirical support.
minor comments (1)
  1. [Method] Clarify in the method description whether the fixed-sparsity templates are exact or introduce any approximation in the measurement functions and Jacobians.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help improve the clarity and verifiability of our work. We address each major comment below and commit to revisions that strengthen the manuscript without altering its core contributions.

read point-by-point responses

  1. Referee: [Numerical experiments] Numerical experiments section: the manuscript supplies neither the partitioning algorithm nor the resulting boundary dimensions for the PEGASE 2869-bus, PEGASE 9241-bus, or ACTIVSg10k cases. Because the claimed GPU advantage and full device residency rest on the dense Schur boundary blocks remaining small (otherwise quadratic memory/compute costs erode the benefit and may force transfers), this omission prevents verification that the pipeline actually delivers the asserted arithmetic intensity and efficiency.

    Authors: We agree that explicit details on the partitioning procedure and boundary sizes are necessary to substantiate the efficiency claims. The test cases were partitioned to produce modestly sized boundaries consistent with the hierarchical design, but these specifics were omitted to keep the focus on the GPU-native kernels and Schur condensation. In the revised manuscript we will add a dedicated paragraph describing the partitioning approach and will report the exact boundary dimensions (in buses) for each of the three systems. This addition will allow direct verification that the dense Schur blocks remain small enough to preserve full device residency and high arithmetic intensity. revision: yes

  2. Referee: [Abstract] Abstract and results: despite asserting that the experiments 'demonstrate that the proposed approach effectively leverages GPU throughput', no quantitative metrics (runtimes, speedups vs. centralized or alternative MASE solvers, residual norms, or baseline comparisons) are reported. This leaves the central performance claim without concrete empirical support.

    Authors: The numerical experiments section does contain runtime and throughput measurements on the GPU, yet we acknowledge that these data are not summarized with sufficient prominence or explicit baseline comparisons in either the abstract or the results narrative. In the revision we will (i) update the abstract to include key quantitative indicators such as observed speedups and GPU utilization, and (ii) expand the results section with a concise table or set of statements reporting runtimes, speedups relative to a centralized solver, residual norms, and any additional MASE baselines. These changes will furnish the concrete empirical support the referee correctly identifies as missing. revision: yes

Circularity Check

0 steps flagged

No circularity; standard computational design on external benchmarks

full rationale

The paper describes a GPU implementation of hierarchical multi-area state estimation using fixed-sparsity templates, fused kernels for normal-equation assembly, per-area Schur condensation, and on-device boundary solve. All steps follow standard sparse linear algebra and are validated on independent benchmark systems (PEGASE 2869-bus, PEGASE 9241-bus, ACTIVSg10k). No equation or claim reduces to its own inputs by construction, no fitted parameter is relabeled as a prediction, and no load-bearing premise rests on self-citation chains. The design is self-contained against external test cases.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on established numerical techniques and power system modeling without introducing new physical entities or heavily data-fitted parameters.

axioms (2)
  • standard math Schur complement reduction can condense local area systems to boundary blocks while preserving the global solution
    Invoked during GPU factorization of each area to export condensed boundary information.
  • domain assumption Power system measurement models admit fixed sparsity patterns that can be templated for GPU evaluation
    Enables the fused accumulation kernel without materializing explicit Jacobians.

pith-pipeline@v0.9.0 · 5493 in / 1341 out tokens · 54152 ms · 2026-05-08T07:49:45.927219+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 1 canonical work pages

  1. [1]

    2004.Power system state estimation: theory and implementation

    Ali Abur and Antonio Gomez Exposito. 2004.Power system state estimation: theory and implementation. CRC Press, Boca Raton, FL, USA

    2004

  2. [2]

    Adam B Birchfield, Ti Xu, Kathleen M Gegner, Komal S Shetye, and Thomas J Overbye. 2016. Grid structural characteristics as validation criteria for synthetic networks.IEEE Transactions on power systems32, 4 (2016), 3258–3265

    2016

  3. [3]

    Stéphane Fliscounakis, Patrick Panciatici, Florin Capitanescu, and Louis We- henkel. 2013. Contingency ranking with respect to overloads in very large power systems taking into account uncertainty, preventive, and corrective actions.IEEE Transactions on Power Systems28, 4 (2013), 4909–4917

    2013

  4. [4]

    Antonio Gómez-Expósito, Antonio De La Villa Jaén, Catalina Gómez-Quiles, Patricia Rousseaux, and Thierry Van Cutsem. 2011. A taxonomy of multi-area state estimation methods.Electric Power Systems Research81, 4 (2011), 1060–1069

    2011

  5. [5]

    Ye Guo, Lang Tong, Wenchuan Wu, Hongbin Sun, and Boming Zhang. 2016. Hierarchical multi-area state estimation via sensitivity function exchanges.IEEE Transactions on Power Systems32, 1 (2016), 442–453

    2016

  6. [6]

    Cédric Josz, Stéphane Fliscounakis, Jean Maeght, and Patrick Panciatici. 2016. AC power flow data in MATPOWER and QCQP format: iTesla, RTE snapshots, and PEGASE.arXiv preprint arXiv:1603.01533(2016)

    work page arXiv 2016

  7. [7]

    Haihao Lu and Jinwen Yang. 2025. cuPDLP. jl: A GPU implementation of restarted primal-dual hybrid gradient for linear programming in Julia.Operations Research 73, 6 (2025), 3440–3452

    2025

  8. [8]

    NVIDIA Corporation. 2026. NVIDIA CUDA Toolkit. https://developer.nvidia. com/cuda-toolkit

    2026

  9. [9]

    NVIDIA Corporation. 2026. NVIDIA cuDSS: A High-Performance CUDA Library for Direct Sparse Solvers. https://docs.nvidia.com/cuda/cudss/

    2026

  10. [10]

    Sungho Shin, Mihai Anitescu, and François Pacaud. 2024. Accelerating optimal power flow with GPUs: SIMD abstraction of nonlinear programs and condensed- space interior-point methods.Electric Power Systems Research236 (2024), 110651

    2024

  11. [11]

    Jingyu Wang, Dongyuan Shi, Jinfu Chen, and Chen-Ching Liu. 2020. Privacy- preserving hierarchical state estimation in untrustworthy cloud environments. IEEE Transactions on Smart Grid12, 2 (2020), 1541–1551

    2020

  12. [12]

    Yifei Xu. 2026. Multi-Area State Estimation Testbed. https://github.com/yifeihsu/ multi_area_se. GitHub repository, accessed April 4, 2026

    2026

  13. [13]

    Ugur Can Yilmaz and Ali Abur. 2023. A robust parallel distributed state estimation for large scale distribution systems.IEEE Transactions on Power Systems39, 2 (2023), 4437–4445

    2023

  14. [14]

    Liang Zhao and Ali Abur. 2005. Multi area state estimation using synchronized phasor measurements.IEEE Transactions on Power Systems20, 2 (2005), 611–617

    2005
