Moth's eye-inspired perfectly vertical subwavelength grating coupler for silicon photonics

Ivan A. Kazakov , Ilona Popova , Arkady Shipulin This is my paper

Pith reviewed 2026-05-08 07:43 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords grating couplersilicon photonicssubwavelength gratingvertical couplinganisotropyunidirectionalitymoth eyeVCSEL integration
0
0 comments X

The pith

Anisotropy in grating stripes directs vertically incident light unidirectionally into silicon chips.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes a bio-inspired design for perfectly vertical grating couplers on silicon-on-insulator that introduces anisotropy to the grating stripes. The anisotropy breaks symmetry so light from a vertical fiber couples preferentially in one direction along the chip. The approach requires only one etching step and targets 1550 nm operation for easy integration of vertical-cavity lasers. Simulations predict 41 percent coupling efficiency, more than 10 dB unidirectionality, and 50 nm bandwidth; fabricated devices confirm 12.8 dB unidirectionality.

Core claim

By adding anisotropy to the grating stripes, the coupler directs light to one side at vertical incidence, yielding 41 percent in-coupling efficiency from an SMF-28 fiber, over 10 dB unidirectionality, and a 50 nm 1 dB bandwidth in simulation on the SOI platform; experiments measured 12.80 dB unidirectionality and 8.35 dB insertion loss near 1528 nm.

What carries the argument

Anisotropic grating stripes that break left-right symmetry to direct light unidirectionally while permitting single-step etching.

If this is right

  • Fabrication reduces to a single etch step on standard SOI wafers.
  • The design supports direct vertical placement of VCSELs for on-chip light sources.
  • Unidirectionality above 10 dB reduces unwanted back-reflection into the fiber.
  • The 50 nm bandwidth at the 1 dB level covers typical C-band operation.
  • Experimental results already confirm strong unidirectionality in real devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same anisotropy principle could be tested on other photonic platforms such as silicon nitride for different wavelengths.
  • Higher simulated efficiencies might be reached by combining this stripe shape with existing apodization techniques.
  • Direct VCSEL integration would allow compact transmitters for LIDAR or quantum communication without fiber-angle adjustments.

Load-bearing premise

The anisotropy in the grating stripes will reliably steer light in one direction in actual fabricated devices without large back-reflections or efficiency drops that simulations miss.

What would settle it

Fabricating the coupler and measuring coupling efficiency below 25 percent or unidirectionality under 5 dB at exact vertical incidence would show the anisotropy does not deliver the claimed performance.

Figures

Figures reproduced from arXiv: 2604.23394 by Arkady Shipulin, Ilona Popova, Ivan A. Kazakov.

Figure 1
Figure 1. Figure 1: (a) Side view of the proposed grating, which includes a sub-wavelength grating (SWG) view at source ↗
Figure 2

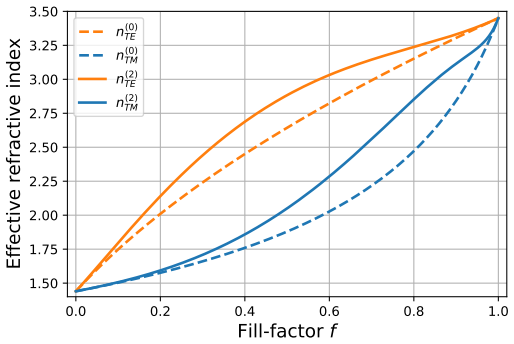

Figure 2. Figure 2: Approximated refractive index of the sub-wavelength grating for different fill-factors, view at source ↗
Figure 3

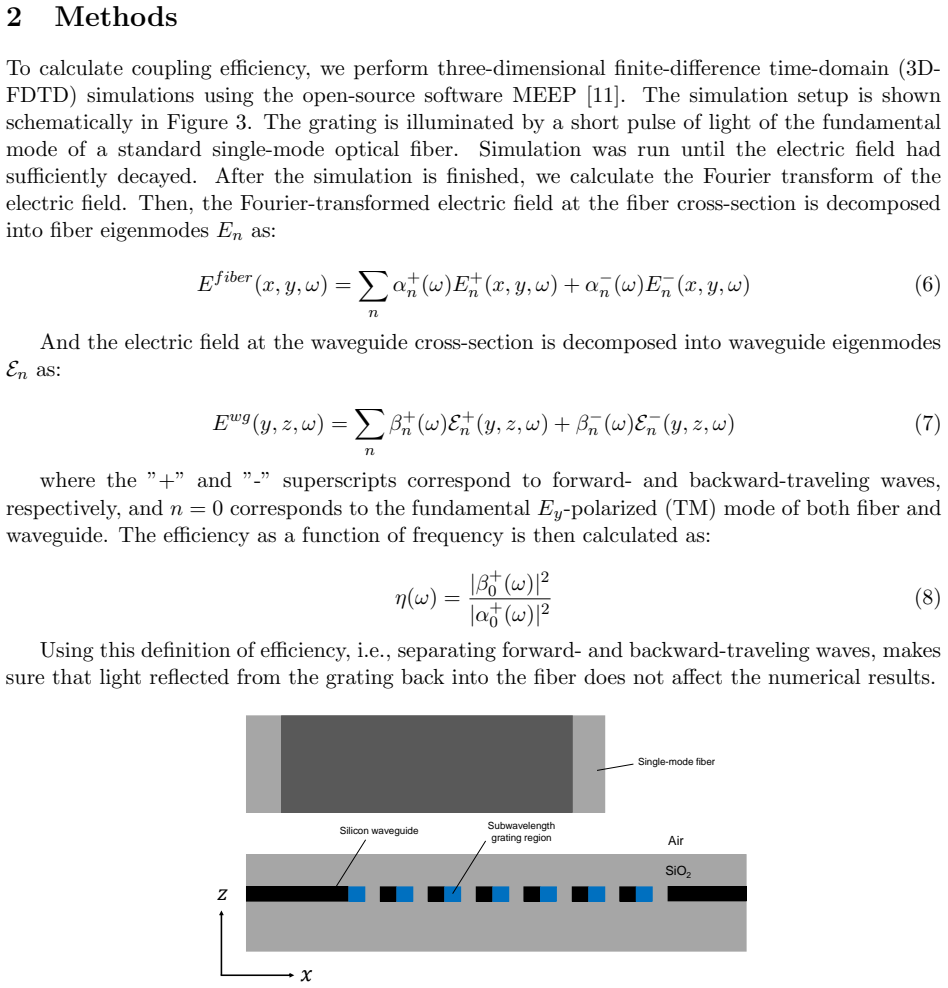

Figure 3. Figure 3: Cross section of the FDTD simulation setup view at source ↗
Figure 4

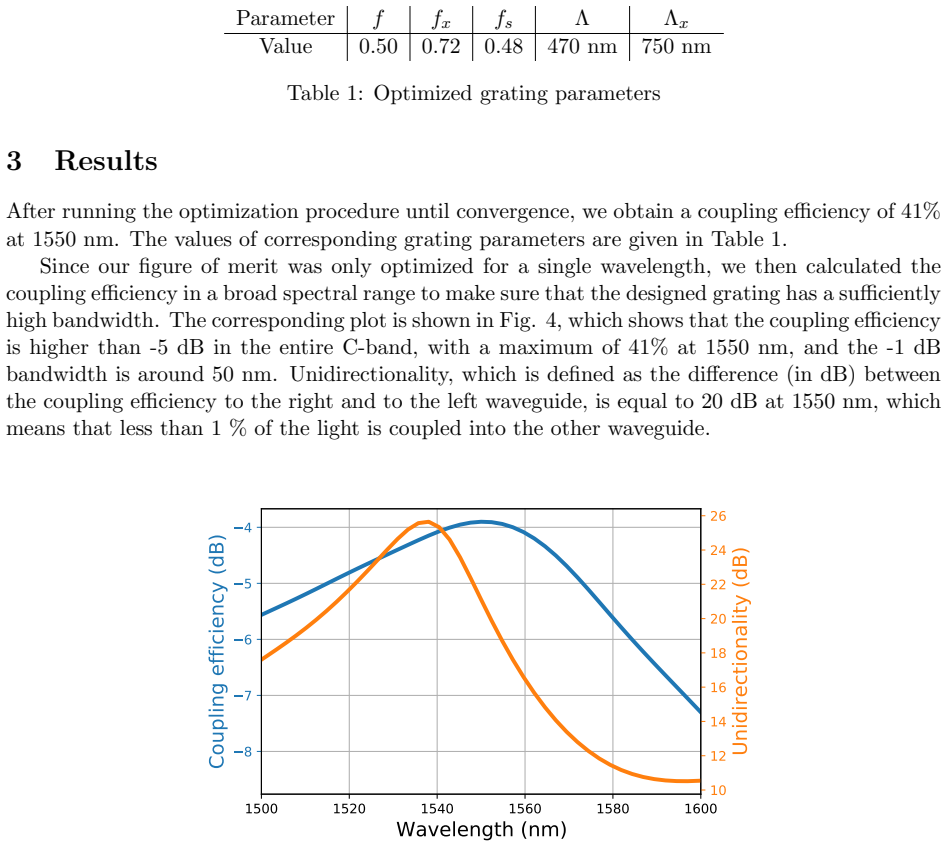

Figure 4. Figure 4: Coupling efficiency (blue, left axis) and unidirectionality (orange, right axis) as a function view at source ↗
Figure 5

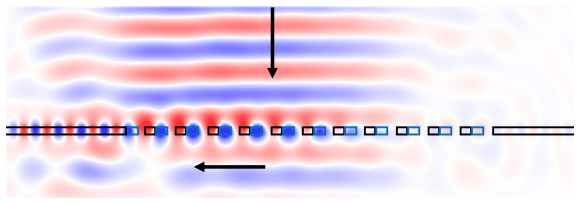

Figure 5. Figure 5: Distribution of Ey for the optimized grating. Black lines indicate silicon and blue lines indicate subwavelength grating regions (a) (b) view at source ↗
Figure 6

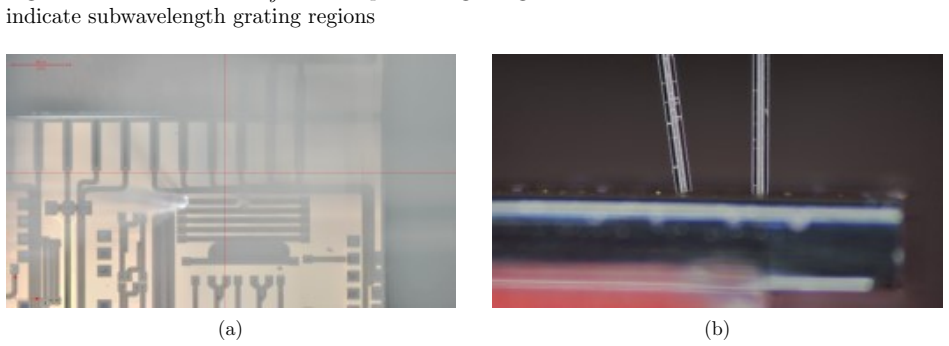

Figure 6. Figure 6: Experimental setup for ME-vGC characterization on the probe station: (a) top view and view at source ↗
Figure 7

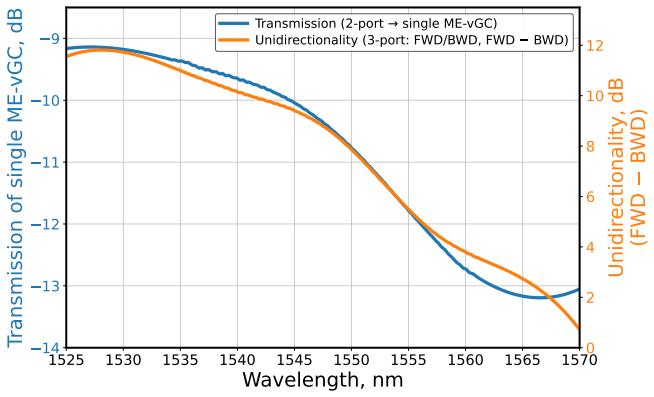

Figure 7. Figure 7: Measured transmission of a single ME-vGC (blue, left axis) and unidirectionality (orange, view at source ↗
read the original abstract

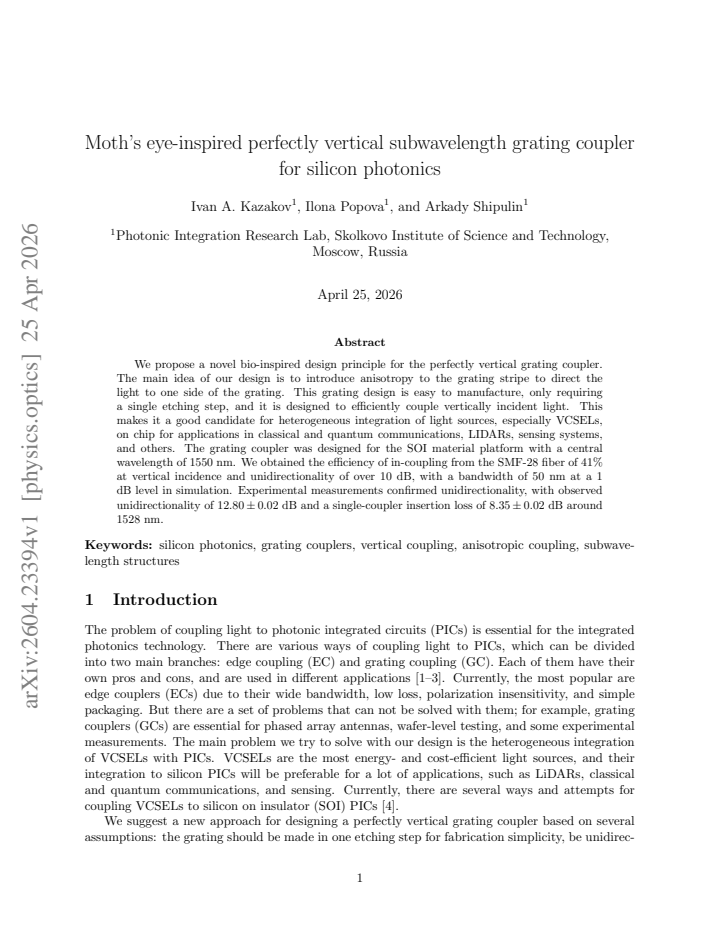

We propose a novel bio-inspired design principle for the perfectly vertical grating coupler. The main idea of our design is to introduce anisotropy to the grating stripe to direct the light to one side of the grating. This grating design is easy to manufacture, only requiring a single etching step, and it is designed to efficiently couple vertically incident light. This makes it a good candidate for heterogeneous integration of light sources, especially VCSELs, on chip for applications in classical and quantum communications, LIDARs, sensing systems, and others. The grating coupler was designed for the SOI material platform with a central wavelength of 1550 nm. We obtained the efficiency of in-coupling from the SMF-28 fiber of 41% at vertical incidence and unidirectionality of over 10 dB, with a bandwidth of 50 nm at a 1 dB level in simulation. Experimental measurements confirmed unidirectionality, with observed unidirectionality of 12.80+-0.02 dB and a single-coupler insertion loss of 8.35+-0.02 dB around 1528 nm.
