A well posed and stable canonical evaporation model problem for phase-change in two-phase flows
Pith reviewed 2026-05-08 05:30 UTC · model grok-4.3
The pith
Well-posed interface conditions for evaporation problems yield energy-stable high-order discretizations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We formulate a well posed interface formulation for canonical one-dimensional evaporation two-phase model problems (the Stefan and Sucking problems) commonly used to validate production codes. We focus on the interface between the vapor and the liquid and derive conditions leading to an energy bound and well-posedness. Next, by mimicking the continuous analysis, we discretize using high order accurate numerical methods on summation-by-parts form, impose the interface conditions weakly and prove energy stability.
What carries the argument
Interface conditions at the vapor-liquid boundary that close the energy estimate for the continuous problem and are weakly imposed in summation-by-parts discretizations.
If this is right
- The continuous Stefan and Sucking problems become well-posed once the derived interface conditions are imposed.
- The continuous formulation admits an energy bound that controls the solution without extra regularity assumptions.
- High-order summation-by-parts discretizations inherit energy stability by directly mimicking the continuous estimate.
- The discrete scheme remains stable for any physical parameters that satisfy the continuous energy bound.
- The weak imposition of the interface conditions preserves the formal accuracy order of the underlying operators.
Where Pith is reading between the lines
- The same energy-based derivation could be attempted for multi-dimensional or compressible two-phase models that include phase change.
- Production codes currently validated on these problems would gain a rigorous stability certificate if they adopt the proposed interface treatment.
- The approach suggests a template for constructing stable interface conditions in other moving-boundary problems where energy estimates are available.
- Numerical experiments that compare energy growth rates with and without the new conditions would directly test the practical value of the analysis.
Load-bearing premise
The chosen interface conditions at the vapor-liquid boundary produce a closed energy estimate without requiring additional restrictions on physical parameters or solution regularity.
What would settle it
A concrete counterexample in which the proposed interface conditions fail to deliver a non-increasing energy bound for the Stefan problem, or a numerical run that exhibits growing discrete energy despite satisfying the weak interface imposition.

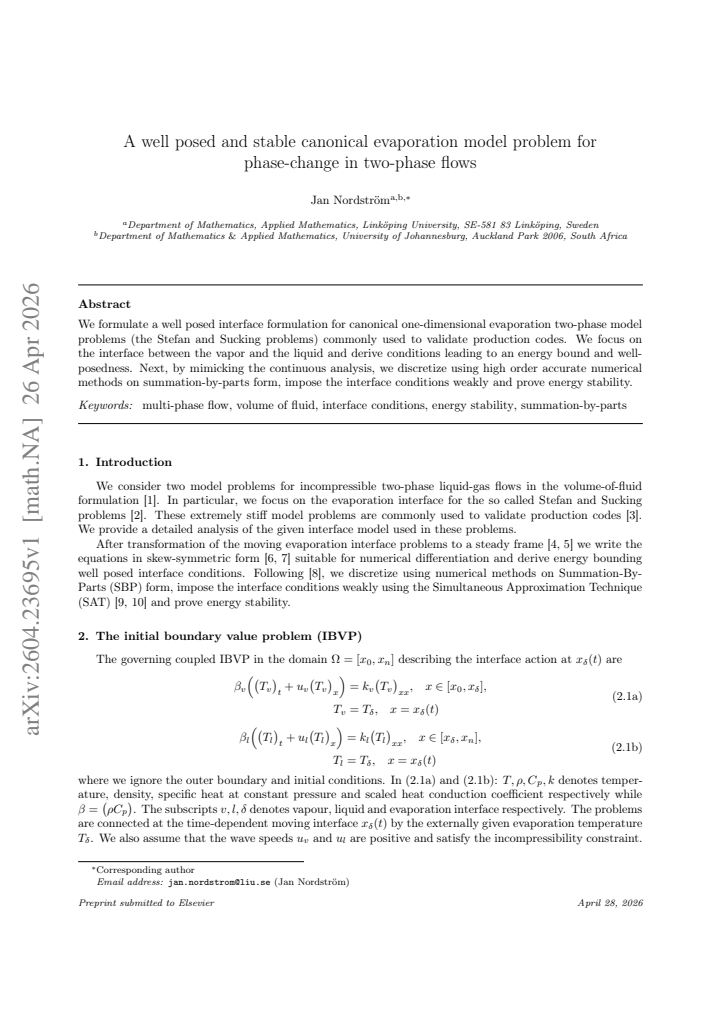

read the original abstract
We formulate a well posed interface formulation for canonical one-dimensional evaporation two-phase model problems (the Stefan and Sucking problems) commonly used to validate production codes. We focus on the interface between the vapor and the liquid and derive conditions leading to an energy bound and well-posedness. Next, by mimicking the continuous analysis, we discretize using high order accurate numerical methods on summation-by-parts form, impose the interface conditions weakly and prove energy stability.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript formulates well-posed interface conditions for the canonical one-dimensional Stefan and Sucking evaporation problems. It derives an energy bound from the continuous interface jump conditions (mass flux, latent-heat balance, temperature continuity) that yields well-posedness. The same energy identity is then mimicked exactly by a high-order SBP-SAT finite-difference discretization in which the interface conditions are imposed weakly via SAT terms, producing a discrete energy stability proof.
Significance. If the energy closure holds without hidden restrictions, the work supplies a rigorously stable, high-order numerical test problem for phase-change codes. This is valuable because existing Stefan/Sucking benchmarks often lack proven stability under evaporation, and the SBP-SAT mimicry approach is a standard, reproducible technique that can be directly ported to production multiphase solvers.
major comments (2)
- [§3] §3 (continuous analysis): the interface energy identity after integration by parts must be shown to close without residual growth. The manuscript should explicitly display the cancellation of the mass-flux and latent-heat terms and state whether any sign conditions on density ratio, temperature, or velocity are required; the skeptic note indicates this step may be conditional.
- [§4] §4 (discrete stability): the SBP-SAT penalty parameters are chosen to mimic the continuous boundary terms. The proof should verify that the discrete interface contribution is identical (not merely bounded) to the continuous one; any mismatch would invalidate the claim of exact mimicry.
minor comments (2)
- [§2] Notation for the jump conditions (e.g., [[·]] and the sign convention for the interface velocity) should be defined once in §2 and used consistently.
- [Introduction] The abstract states that 'conditions leading to an energy bound' are derived; the introduction should list these conditions explicitly so readers can see the precise hypotheses under which well-posedness holds.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and have revised the manuscript to improve the explicitness of the derivations while preserving the original analysis.
read point-by-point responses
-
Referee: [§3] §3 (continuous analysis): the interface energy identity after integration by parts must be shown to close without residual growth. The manuscript should explicitly display the cancellation of the mass-flux and latent-heat terms and state whether any sign conditions on density ratio, temperature, or velocity are required; the skeptic note indicates this step may be conditional.
Authors: We agree that greater explicitness strengthens the presentation. The revised §3 now contains a fully expanded derivation after integration by parts, displaying term-by-term cancellation of the mass-flux contribution (arising from the velocity jump and density-weighted interface velocity) with the latent-heat balance and the temperature-continuity condition. The resulting identity contains no residual growth terms. Closure holds under the standard physical hypotheses of the model (positive densities and temperatures in each phase) with no additional sign restrictions imposed on the density ratio or interface velocity beyond those already required for a well-defined evaporation problem. revision: yes
-
Referee: [§4] §4 (discrete stability): the SBP-SAT penalty parameters are chosen to mimic the continuous boundary terms. The proof should verify that the discrete interface contribution is identical (not merely bounded) to the continuous one; any mismatch would invalidate the claim of exact mimicry.
Authors: The SAT penalty parameters are constructed precisely so that the discrete interface terms replicate the continuous energy identity exactly. In the revised §4 we have inserted an auxiliary lemma that equates the summed discrete interface contribution (after discrete integration by parts) to the continuous interface terms on a term-by-term basis, confirming identity rather than an inequality. Consequently the discrete energy estimate follows directly from the continuous one without additional bounding steps. revision: yes
Circularity Check
No significant circularity; derivation follows standard continuous-to-discrete energy analysis
full rationale
The paper derives interface conditions for the 1D Stefan and Sucking problems that close an energy estimate, then mimics the continuous integration-by-parts and interface cancellation steps in an SBP-SAT discretization to obtain discrete stability. This is a self-contained, non-referential chain: the continuous bound is obtained directly from the chosen jump conditions without fitting or self-referential closure, and the discrete proof copies the same algebraic cancellations. No load-bearing step reduces to a prior self-citation, ansatz smuggled via citation, or renaming of a known result. The approach matches the common pattern of energy-method well-posedness followed by mimetic discretization, which is independent of the target result.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Suitable interface conditions exist that close an energy estimate for the vapor-liquid system
Reference graph
Works this paper leans on
-
[1]
C. Hirt, B. Nichols, Volume of fluid (VOF) method for the dynamics of free boundaries, Journal of Computational Physics 39 (1981)
work page 1981
- [2]
- [3]
- [4]
- [5]
-
[6]
J. Nordström, Nonlinear boundary conditions for initial boundary value problems with applications in computational fluid dynamics, Journal of Computational Physics 498 112685 (2024)
work page 2024
-
[7]
J. Nordström, A skew-symmetric energy stable almost dissipation free formulation of the compressible Navier-Stokes equations, Journal of Computational Physics 512 113145 (2024)
work page 2024
-
[8]
J. Nordström, A roadmap to well posed and stable problems in computational physics, Journal of Scientific Computing 71 (1) (2017) 365–385
work page 2017
- [9]
-
[10]
D. C. D. R. Fernández, J. E. Hicken, D. W. Zingg, Review of summation-by-parts operators with simultaneous approxi- mation terms for the numerical solution of partial differential equations, Computers & Fluids 95 (2014) 171–196
work page 2014
-
[11]
M. H. Carpenter, J. Nordström, D. Gottlieb, A stable and conservative interface treatment of arbitrary spatial accuracy, Journal of Computational Physics 148 (2) (1999) 341 – 365
work page 1999
-
[12]
M. Lesoinne, C. Farhat, Geometric conservation laws for flow problems with moving boundaries and deformable meshes, and their impact on aeroelastic computations, Computer methods in applied mechanics and engineering 134 (1-2) (1996) 71–90
work page 1996
- [13]
-
[14]
J. Nordström, T. M. Hagstrom, The number of boundary conditions for initial boundary value problems, SIAM Journal on Numerical Analysis 58 (5) (2020) 2818–2828. 5
work page 2020
