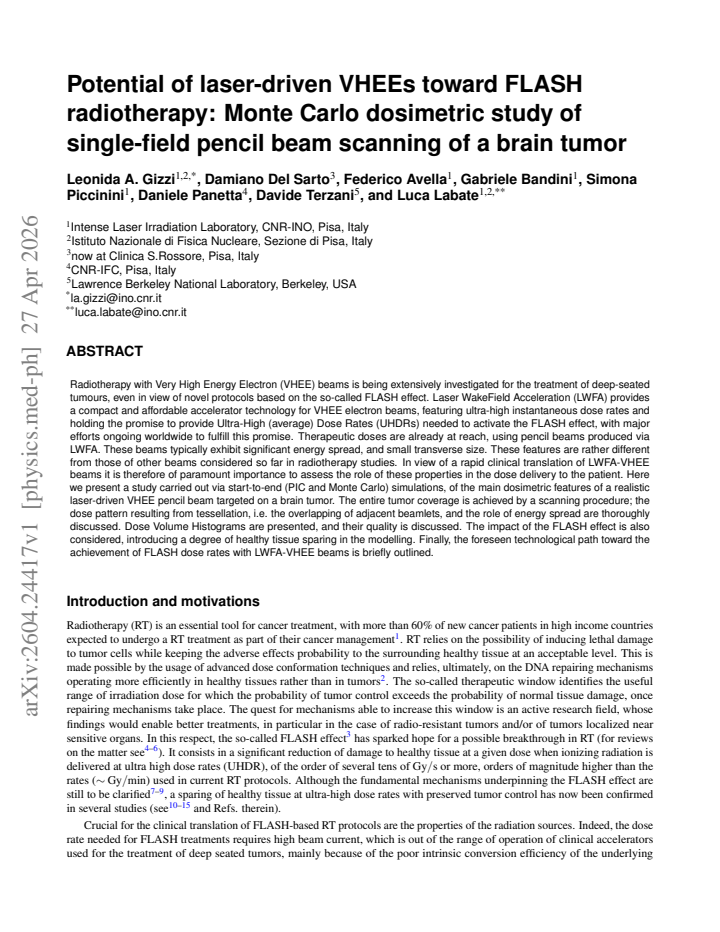

Potential pof laser-driven VHEEs towards FLASH radiotherapy: Monte Carlo dosimetric study of single-field pencil beam scanning of a brain tumor

Leonida A. Gizzi , Damiano Del Sarto , Federico Avella , Gabriele Bandini , Simona Piccinini , Daniele Panetta , Davide Terzani , Luca Labate
Authors on Pith no claims yet

Pith reviewed 2026-05-07 17:16 UTC · model grok-4.3

classification ⚛️ physics.med-ph physics.opticsphysics.plasm-ph
keywords laser wakefield accelerationvery high energy electronsFLASH radiotherapyMonte Carlo dosimetrypencil beam scanningbrain tumordose volume histogramsenergy spread
0
0 comments X

The pith

Laser-driven electron beams reach therapeutic doses for brain tumors via pencil beam scanning

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines whether very high energy electrons accelerated by lasers can treat deep-seated brain tumors in radiotherapy, with emphasis on the potential FLASH effect that may protect healthy tissue at ultra-high dose rates. It models a scanning procedure where multiple narrow pencil beams are overlapped to cover the entire tumor volume, accounting for the beams' natural energy spread and small size. Simulations indicate that suitable dose patterns result from this tessellation, supported by dose volume histograms, and a basic model of healthy tissue sparing is included. This matters because laser-based accelerators could offer compact alternatives to conventional machines if the modeled dose delivery holds up.

Core claim

Therapeutic doses are already at reach using pencil beams produced via laser wakefield acceleration. The entire tumor coverage is achieved by a scanning procedure; the dose pattern resulting from tessellation, i.e. the overlapping of adjacent beamlets, and the role of energy spread are thoroughly discussed. Dose volume histograms are presented and their quality is discussed. The impact of the FLASH effect is also considered, introducing a degree of healthy tissue sparing in the modelling.

What carries the argument

Monte Carlo simulation of dose deposition from scanned laser wakefield accelerated very high energy electron pencil beams, with analysis of beamlet tessellation and energy spread effects on tumor coverage

If this is right

  • Therapeutic dose levels are achievable with existing properties of laser-produced pencil beams.
  • Overlapping scanned beamlets produce full tumor coverage despite the beams' energy spread.
  • Energy spread influences but does not prevent acceptable dose patterns as shown in the histograms.
  • Incorporating healthy tissue sparing supports the feasibility of the FLASH effect in this setup.
  • Further laser and beam development can reach the ultra-high average dose rates needed for FLASH.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Compact laser accelerators might reduce the size and cost of radiotherapy equipment compared to large conventional machines.
  • Real-world tests with actual laser beams on phantoms would be required to verify the simulated dose accuracy.
  • The scanning approach could extend to other deep tumor sites if beam parameters are adjusted accordingly.

Load-bearing premise

The Monte Carlo code accurately predicts real dose deposition for these laser beams with their energy spread and size, and the simple model of healthy tissue sparing correctly represents the actual FLASH effect.

What would settle it

An experiment measuring dose distributions in a brain tumor phantom with a real laser-driven electron beam where the observed dose volume histograms deviate substantially from the simulated results or where no healthy tissue sparing occurs at high dose rates.

Figures

Figures reproduced from arXiv: 2604.24417 by Damiano Del Sarto, Daniele Panetta, Davide Terzani, Federico Avella, Gabriele Bandini, Leonida A. Gizzi, Luca Labate, Simona Piccinini.

Figure 1
Figure 1. Figure 1: 3D dose pattern obtained in a recent experiment with laser-driven VHEE beams. The target volume was placed at the center of cylindrical phantom with 10cm diameter. Beam features were the same as those reported in48 . of a 10cm size cylindrical phantom. The results mentioned above, both theoretical and experimental, make a compelling case for the investigation of the dosimetric features of existing laser-dr… view at source ↗
Figure 2
Figure 2. Figure 2: left: Sketch of the simulated setup for beamlet dosimetry.right: Percentage Dose Depth curves for two different values of the low-energy cut, as resulting from Monte Carlo simulations. Results Single pencil beam dosimetry As a first step to approach the study of a scanning procedure to cover the tumor volume, we preliminarily investigated the dosimetric features of our beam at the position of the brain mod… view at source ↗
Figure 3

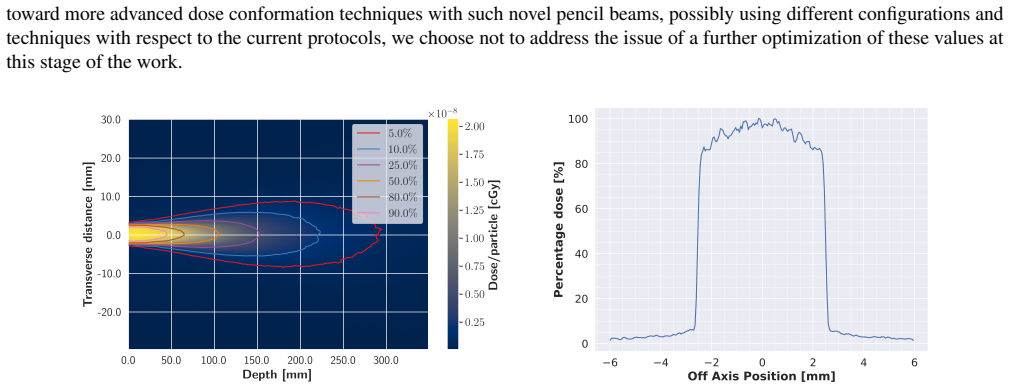

Figure 3. Figure 3: Left: Transverse dose distribution map, with isodose curves. Right: Transverse beamlet profile. Brain tumor scanning dosimetry Here we present the results of the simulated irradiation of a simplified deep seated brain tumor, whose coverage was carried out with a scanning technique using the pencil beam characterized above. The beamlets were sent to the patient along a common direction, which in the followi… view at source ↗
Figure 4

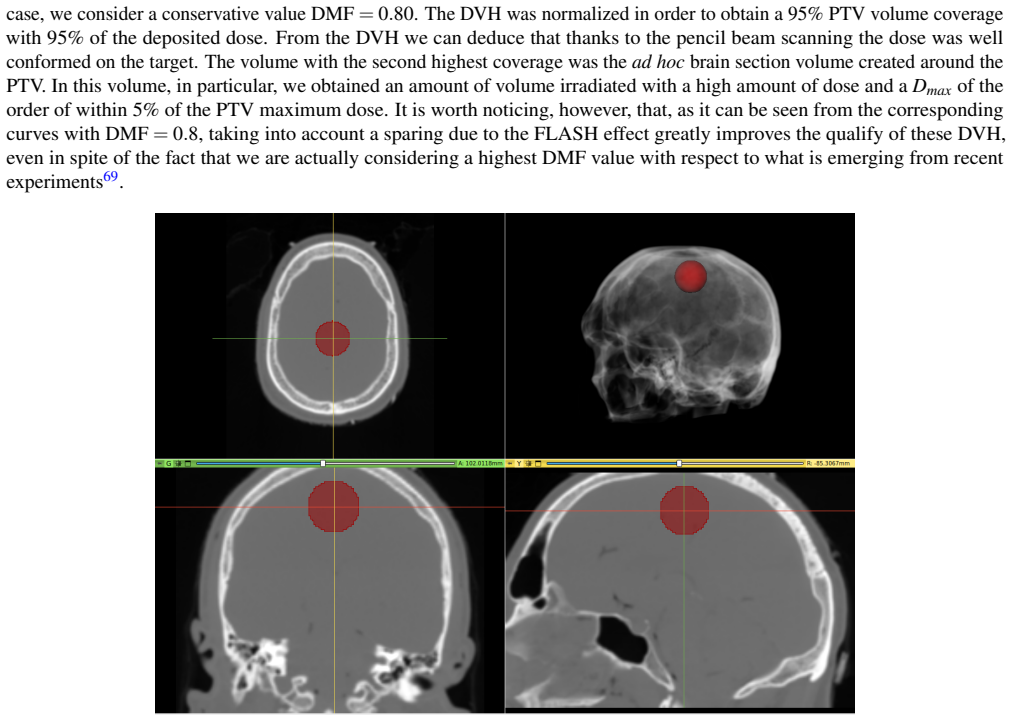

Figure 4. Figure 4: Ad hoc placed tumor volume (red sphere of ∼10 cc) in the reconstructed CT volume; projections and 3D view. Perspectives for laser-driven VHEE RT and open issues In this work, we have investigated via Monte Carlo simulations the potential of a typical laser-driven VHEE pencil beam for the irradiation of a deep brain tumor via a scanning procedure. Although no attempt has been made here to optimize the dose … view at source ↗
Figure 5
Figure 5. Figure 5: Dose deposition of the pencil beam scanning simulation. PTV and organs-at-risks segmentations are superimposed to the CT image view at source ↗
Figure 6
Figure 6. Figure 6: Dose Volume Histogram of the irradiated areas. which leads to a reduced PDD depth (in terms, for instance, of R80 or similar) is already well known, new figures need to be identified to evaluate the ability of a beam to treat deep seated tumors, as shown by this work, where a PTV beyond the "conventional" R80 depth was covered. In addition to all these considerations, it is clear that the exploitation of t… view at source ↗
read the original abstract

Radiotherapy with Very High Energy Electron (VHEE) beams is being extensively investigated for the treatment of deep-seated tumours, even in view of novel protocols based on the so-called FLASH effect. Laser WakeField Acceleration (LWFA) provides a compact and affordable accelerator technology for VHEE electron beams, featuring ultra-high instantaneous dose rates and holding the promise to provide Ultra-High (average) Dose Rates (UHDRs) needed to activate the FLASH effect, with major efforts ongoing worldwide to fulfill this promise. Therapeutic doses are already at reach, using pencil beams produced via LWFA. These beams typically exhibit significant energy spread, and small transverse size. These features are rather different from those of other beams considered so far in radiotherapy studies. In view of a rapid clinical translation of LWFA-VHEE beams it is therefore of paramount importance to assess the role of these properties in the dose delivery to the patient. Here we present a study carried out via start-to-end (PIC and Monte Carlo) simulations, of the main dosimetric features of a realistic laser-driven VHEE pencil beam targeted on a brain tumor. The entire tumor coverage is achieved by a scanning procedure; the dose pattern resulting from tessellation, i.e. the overlapping of adjacent beamlets, and the role of energy spread are thoroughly discussed. Dose Volume Histograms are presented, and their quality is discussed. The impact of the FLASH effect is also considered, introducing a degree of healthy tissue sparing in the modelling. Finally, the foreseen technological path toward the achievement of FLASH dose rates with LWFA-VHEE beams is briefly outlined.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a start-to-end simulation study (PIC for LWFA beam generation followed by Monte Carlo transport) of single-field pencil-beam scanning with laser-driven VHEE beams for a brain tumor. It examines dose patterns arising from beamlet tessellation and overlapping, the influence of beam energy spread, dose-volume histograms, and the incorporation of a simple scaling factor to model healthy-tissue sparing under the FLASH effect. The central claim is that therapeutic doses are already reachable with realistic LWFA-VHEE parameters.

Significance. If the modeled dose distributions prove robust, the work provides a concrete dosimetric roadmap for compact LWFA accelerators in VHEE radiotherapy, highlighting how the distinctive beam properties (energy spread, small transverse size) affect tumor coverage and healthy-tissue exposure. The explicit treatment of tessellation and energy-spread effects supplies falsifiable predictions that can guide upcoming experiments.

major comments (2)
  1. [FLASH modeling discussion] The FLASH-effect modeling introduces healthy-tissue sparing as a simple scaling factor without reference to specific dose-rate thresholds, biological data, or sensitivity tests to the chosen factor value. This assumption directly supports the claims about FLASH impact yet remains unexamined in the results.
  2. [Results and dosimetric analysis] Statistical uncertainties on the Monte Carlo dose tallies are not reported, nor are sensitivity analyses performed on key inputs such as energy spread, pencil-beam size, or scanning step size. These omissions weaken the reliability of the reported dose patterns, DVHs, and feasibility conclusion.
minor comments (2)
  1. [Title] The title contains an apparent typographical error ('pof' instead of 'of').
  2. [Methods] Notation for beam parameters (e.g., energy spread, transverse size) could be defined more explicitly at first use to aid readers unfamiliar with LWFA beam characteristics.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive assessment of the significance of our Monte Carlo dosimetry study on laser-driven VHEE beams. We address each major comment point by point below, indicating the revisions we will implement.

read point-by-point responses

  1. Referee: [FLASH modeling discussion] The FLASH-effect modeling introduces healthy-tissue sparing as a simple scaling factor without reference to specific dose-rate thresholds, biological data, or sensitivity tests to the chosen factor value. This assumption directly supports the claims about FLASH impact yet remains unexamined in the results.

    Authors: We agree that the FLASH modeling in the original manuscript is preliminary and relies on a simplified scaling factor without sufficient supporting details. In the revised version, we will expand the relevant section to reference current literature on FLASH dose-rate thresholds and biological mechanisms, specify the assumed ultra-high dose-rate regime consistent with LWFA-VHEE parameters, and include a sensitivity analysis on the scaling factor value to quantify its effect on DVHs and healthy-tissue sparing estimates. These changes will provide a more thorough examination of the modeling assumptions. revision: yes

  2. Referee: [Results and dosimetric analysis] Statistical uncertainties on the Monte Carlo dose tallies are not reported, nor are sensitivity analyses performed on key inputs such as energy spread, pencil-beam size, or scanning step size. These omissions weaken the reliability of the reported dose patterns, DVHs, and feasibility conclusion.

    Authors: We acknowledge that statistical uncertainties were not explicitly reported and that sensitivity analyses on key parameters were not included, which limits the robustness assessment. In the revised manuscript, we will add statistical error estimates to all dose distributions, DVHs, and derived metrics by increasing the simulated particle histories and applying standard Monte Carlo uncertainty quantification. We will also perform and present sensitivity studies varying the energy spread, pencil-beam size, and scanning step size over realistic LWFA-VHEE ranges to demonstrate the stability of the tessellation patterns, tumor coverage, and overall feasibility conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity in forward simulation study

full rationale

The paper is a start-to-end numerical study that generates LWFA beams via PIC simulation and then transports them through a patient model using Monte Carlo codes to compute dose distributions, DVHs, and a simple FLASH sparing factor. All reported dose metrics, tumor coverage via beamlet scanning, and energy-spread effects are direct numerical outputs of these standard codes rather than results of any analytical derivation, parameter fitting, or self-referential definition. No equations are presented that reduce predictions to inputs by construction, no uniqueness theorems are invoked, and no load-bearing claims rest on self-citations. The work therefore contains no circular steps of the enumerated kinds and is self-contained within its stated simulation assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Only the abstract was available for review; detailed simulation parameters and validation steps could not be examined. The work relies on standard radiation-transport physics rather than new postulates.

axioms (2)
  • domain assumption Standard Monte Carlo radiation transport accurately models electron dose deposition in tissue for the given beam parameters
    Invoked to generate all reported dose distributions and DVHs.
  • ad hoc to paper Healthy tissue sparing can be introduced as a simple scaling factor to represent the FLASH effect
    Explicitly added in the modeling section of the abstract.
