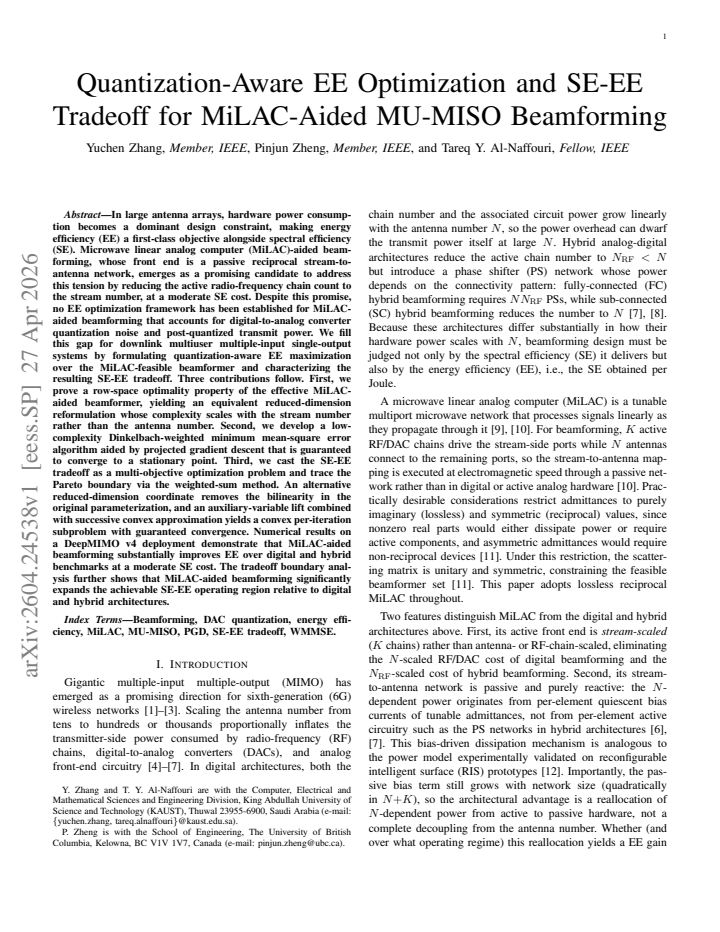

Quantization-Aware EE Optimization and SE-EE Tradeoff for MiLAC-Aided MU-MISO Beamforming
Pith reviewed 2026-05-08 01:49 UTC · model grok-4.3
The pith
MiLAC-aided MU-MISO beamforming improves energy efficiency over digital and hybrid methods at moderate spectral efficiency cost while expanding the achievable tradeoff region.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
MiLAC-aided beamforming for MU-MISO downlink admits a row-space optimality property for its effective beamformer when the front end is a passive reciprocal stream-to-antenna network. This property yields an equivalent reduced-dimension reformulation of the quantization-aware energy-efficiency maximization problem. The reformulated problem is solved by a Dinkelbach-weighted minimum mean-square error algorithm combined with projected gradient descent that converges to a stationary point. The spectral-efficiency versus energy-efficiency tradeoff is characterized by tracing its Pareto boundary through a weighted-sum formulation that employs an alternative reduced-dimension coordinate and an aux-
What carries the argument
Row-space optimality property of the effective MiLAC-aided beamformer, which reduces the optimization dimension from the antenna count to the stream count while preserving the post-quantized transmit power model.
If this is right
- Energy-efficiency maximization reduces to an optimization whose complexity scales with the number of streams.
- The Dinkelbach-WMMSE algorithm with projected gradient descent converges to a stationary point of the non-convex objective.
- The SE-EE Pareto boundary is traced by convex per-iteration subproblems obtained via weighted sums and successive convex approximation.

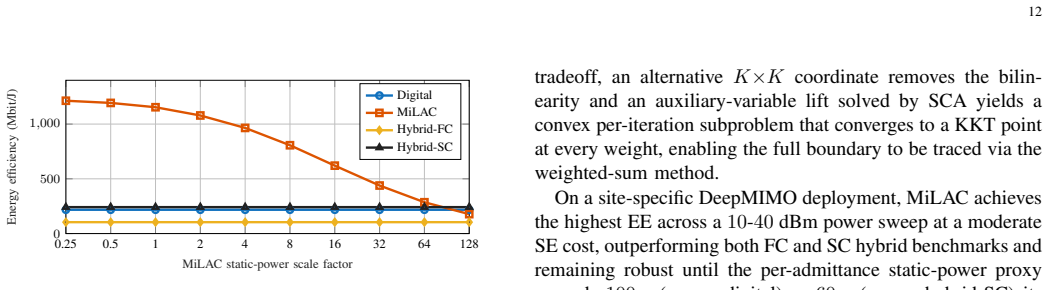

- Numerical results on realistic deployments confirm substantial EE gains over digital and hybrid benchmarks at moderate SE loss.
- The achievable SE-EE operating region is significantly larger than that of conventional beamforming architectures.
Where Pith is reading between the lines
- The same reduced-dimension reformulation may be useful for other performance metrics such as sum-rate maximization under hardware constraints.
- Extending the model to include additional impairments like phase noise could produce more accurate EE predictions for practical hardware.
- The Pareto-tracing method could be adapted to online adaptation when channels vary over time.
- Similar quantization-aware techniques may apply to uplink or cell-free massive MIMO scenarios.
Load-bearing premise
The MiLAC front-end can be modeled as a passive reciprocal stream-to-antenna network whose effective beamformer satisfies a row-space optimality property and whose quantization noise is captured exactly by the post-quantized transmit power used in the energy-efficiency objective.
What would settle it
A numerical evaluation or hardware measurement on the same channel data where MiLAC-aided beamforming yields no energy-efficiency gain over digital beamforming once the same quantization noise model is applied.
Figures
read the original abstract
In large antenna arrays, hardware power consumption becomes a dominant design constraint, making energy efficiency (EE) a first-class objective alongside spectral efficiency (SE). Microwave linear analog computer (MiLAC)-aided beamforming, whose front end is a passive reciprocal stream-to-antenna network, addresses this tension by reducing the active radio-frequency chain count to the stream number, at a moderate SE cost. Despite this promise, no EE optimization framework has been established for MiLAC-aided beamforming that accounts for digital-to-analog converter quantization noise and post-quantized transmit power. We fill this gap for downlink multiuser multiple-input single-output (MU-MISO) systems by formulating quantization-aware EE maximization over the MiLAC-feasible beamformer and characterizing the resulting SE-EE tradeoff. Three contributions follow. First, we prove a row-space optimality property of the effective MiLAC-aided beamformer, yielding an equivalent reduced-dimension reformulation whose complexity scales with the stream number rather than the antenna number. Second, we develop a low-complexity Dinkelbach-weighted minimum mean-square error algorithm aided by projected gradient descent that is guaranteed to converge to a stationary point. Third, we cast the SE-EE tradeoff as a multi-objective problem and trace its Pareto boundary via a weighted-sum method that combines an alternative reduced-dimension coordinate with auxiliary-variable successive convex approximation, yielding convex per-iteration subproblems with guaranteed convergence. Numerical results on a DeepMIMO v4 deployment show MiLAC-aided beamforming substantially improves EE over digital and hybrid benchmarks at a moderate SE cost and significantly expands the achievable SE-EE operating region.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a quantization-aware energy efficiency (EE) maximization framework for MiLAC-aided downlink MU-MISO beamforming. It proves a row-space optimality property of the effective beamformer to obtain an equivalent reduced-dimension reformulation (complexity scaling with stream count), proposes a Dinkelbach-WMMSE algorithm augmented by projected gradient descent that converges to a stationary point, and traces the SE-EE Pareto boundary via weighted-sum optimization combined with auxiliary-variable successive convex approximation. Numerical results on DeepMIMO v4 are reported to show substantial EE gains over digital and hybrid benchmarks at moderate SE cost and an expanded SE-EE operating region.
Significance. If the row-space optimality property holds under the full quantization-aware EE objective and the algorithms are correctly formulated, the work offers a concrete algorithmic pathway for EE optimization in hardware-constrained large-array systems. The reduced-dimension reformulation and guaranteed convergence properties would be useful for practical deployment, and the numerical demonstration on realistic channel data strengthens the case for MiLAC as a viable alternative to conventional architectures.
major comments (2)
- [Section on row-space optimality property and equivalent reformulation] The row-space optimality property (abstract and the derivation leading to the reduced-dimension reformulation) must be shown to incorporate the DAC quantization noise and post-quantized transmit power terms that appear in the EE objective. If this property is established only for an unquantized linear model and quantization is introduced afterward, the Dinkelbach-WMMSE algorithm solves a non-equivalent problem; this would invalidate both the claimed complexity reduction and the reported EE gains.
- [Algorithm section (Dinkelbach-WMMSE with PGD)] The convergence guarantee for the Dinkelbach-WMMSE + projected gradient descent algorithm (Section on algorithm development) needs explicit verification that the quantization-aware objective and the projection onto the MiLAC-feasible set preserve stationarity; any mismatch between the reduced problem and the original quantization-inclusive EE function would affect both the EE maximization and the subsequent SE-EE Pareto tracing.
minor comments (2)

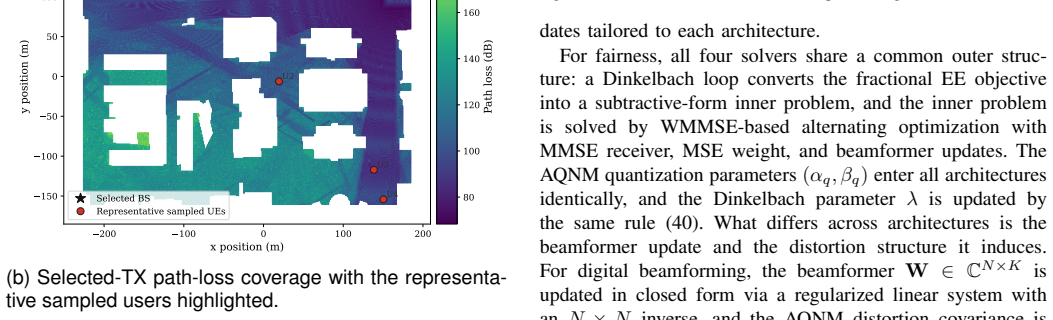

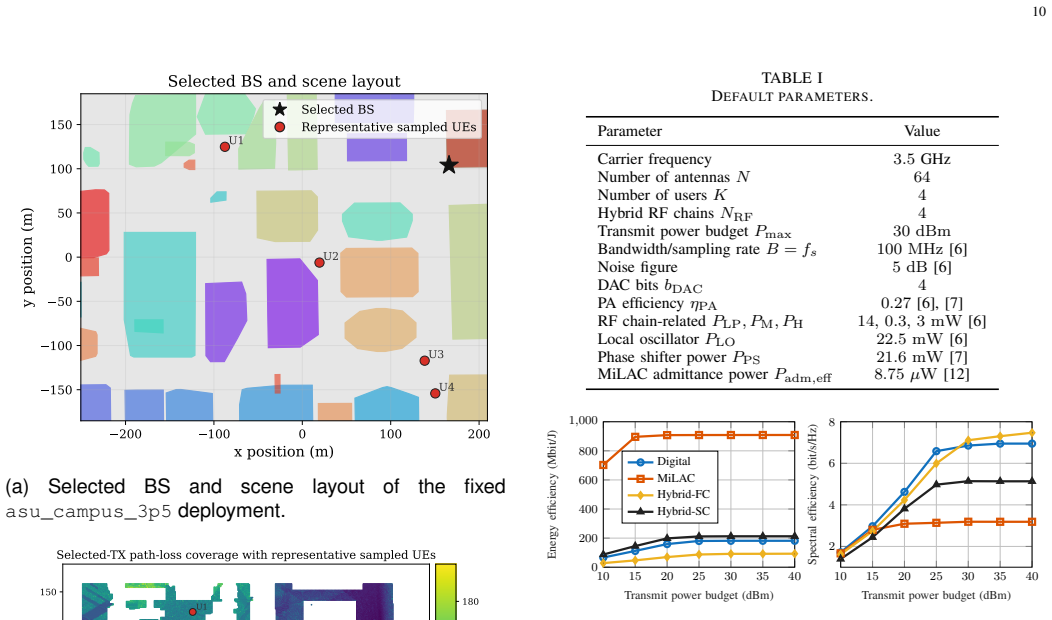

- [Numerical results section] Provide more detail on the DeepMIMO v4 data preprocessing, any exclusion rules, and whether results are averaged over multiple realizations with error bars or confidence intervals.
- [System model section] Clarify the exact definition of the MiLAC effective beamformer and the quantization noise model in the EE objective to ensure consistency with the row-space derivation.
Simulated Author's Rebuttal
We thank the referee for the careful and constructive review. The comments highlight important aspects of the row-space optimality derivation and algorithm convergence that we address point by point below. We have revised the manuscript to strengthen the explicit incorporation of quantization effects and to add formal verification steps.
read point-by-point responses
-
Referee: [Section on row-space optimality property and equivalent reformulation] The row-space optimality property (abstract and the derivation leading to the reduced-dimension reformulation) must be shown to incorporate the DAC quantization noise and post-quantized transmit power terms that appear in the EE objective. If this property is established only for an unquantized linear model and quantization is introduced afterward, the Dinkelbach-WMMSE algorithm solves a non-equivalent problem; this would invalidate both the claimed complexity reduction and the reported EE gains.
Authors: We thank the referee for raising this point. The row-space optimality property is derived directly on the quantization-aware EE objective. In the system model, the quantization noise variance is proportional to the per-antenna transmit power (itself a function of the squared norm of the effective beamformer), and the post-quantized power consumption is modeled as a monotonic function of the same norm. The proof shows that any component of the beamformer lying outside the row space of the effective channel increases both the numerator (power) and the quantization noise term in the denominator without improving the achievable rate, thereby strictly decreasing EE. Consequently, the optimum can be restricted to the reduced row-space without loss of optimality, and the reformulation remains equivalent under the full quantization-inclusive objective. We have expanded the proof in Section III with an additional remark and intermediate steps that explicitly track the quantization noise and power terms. revision: partial
-
Referee: [Algorithm section (Dinkelbach-WMMSE with PGD)] The convergence guarantee for the Dinkelbach-WMMSE + projected gradient descent algorithm (Section on algorithm development) needs explicit verification that the quantization-aware objective and the projection onto the MiLAC-feasible set preserve stationarity; any mismatch between the reduced problem and the original quantization-inclusive EE function would affect both the EE maximization and the subsequent SE-EE Pareto tracing.
Authors: We appreciate the request for explicit verification. Because the reduced-dimension problem is equivalent to the original quantization-aware EE maximization (via the row-space property that already accounts for quantization noise and post-quantized power), any stationary point of the reduced problem is also stationary for the original objective. The Dinkelbach-WMMSE iterations solve the fractional program in the reduced space, while the projected gradient descent step enforces the MiLAC constraint set. We have added a new lemma in the algorithm section that formally establishes that the composite mapping (Dinkelbach-WMMSE update followed by projection) preserves first-order stationarity with respect to the quantization-inclusive objective, thereby ensuring the reported convergence properties and the validity of the subsequent SE-EE Pareto tracing. revision: partial
Circularity Check
No significant circularity; derivations follow from system model and standard optimization
full rationale
The paper establishes a row-space optimality property for the MiLAC effective beamformer directly from the passive reciprocal network model, then applies it to obtain a reduced-dimension reformulation of the quantization-aware EE maximization problem. The Dinkelbach-WMMSE algorithm with projected gradient descent and the weighted-sum Pareto tracing via auxiliary-variable SCA are presented as convergent procedures operating on this reformulation, with the EE objective explicitly incorporating DAC quantization noise and post-quantized power. No step reduces a claimed result to a fitted parameter or prior self-citation by construction; the central claims are obtained by applying standard convex optimization techniques to the stated system equations. The numerical results on DeepMIMO are presented as validation rather than as the source of the optimality property itself.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption MiLAC front-end is a passive reciprocal stream-to-antenna network
- domain assumption DAC quantization noise is captured by the post-quantized transmit power model
Reference graph
Works this paper leans on
-
[1]
On the road to 6G: Visions, requirements, key technologies, and testbeds,
C.-X. Wang, X. You, X. Gao, X. Zhu, Z. Li, C. Zhang, H. Wang, Y . Huang, Y . Chen, H. Haas, J. S. Thompson, E. G. Larsson, M. D. Renzo, W. Tong, P. Zhu, X. Shen, H. V . Poor, and L. Hanzo, “On the road to 6G: Visions, requirements, key technologies, and testbeds,”IEEE Communications Surveys & Tutorials, vol. 25, no. 2, pp. 905–974, 2023
work page 2023
-
[2]
Enabling 6G performance in the upper mid-band by transitioning from massive to gigantic MIMO,
E. Bj ¨ornson, F. Kara, N. Kolomvakis, A. Kosasih, P. Ramezani, and M. B. Salman, “Enabling 6G performance in the upper mid-band by transitioning from massive to gigantic MIMO,”IEEE Open Journal of the Communications Society, vol. 6, pp. 5450–5463, 2025
work page 2025
-
[3]
Precoding matrix indicator in the 5G NR protocol: A tutorial on 3GPP beamforming codebooks,
B. Ning, H. Yin, S. Liu, H. Deng, S. Yang, Y . Zhang, W. Mei, D. Gesbert, J. Park, R. W. Heath, and E. Bj ¨ornson, “Precoding matrix indicator in the 5G NR protocol: A tutorial on 3GPP beamforming codebooks,”IEEE Communications Surveys & Tutorials, vol. 28, pp. 4581–4623, 2026
work page 2026
-
[4]
Massive MIMO for next generation wireless systems,
E. G. Larsson, O. Edfors, F. Tufvesson, and T. L. Marzetta, “Massive MIMO for next generation wireless systems,”IEEE Communications Magazine, vol. 52, no. 2, pp. 186–195, 2014
work page 2014
-
[5]
Massive MIMO networks: Spectral, energy, and hardware efficiency,
E. Bjornson, J. Hoydis, and L. Sanguinetti, “Massive MIMO networks: Spectral, energy, and hardware efficiency,”Foundations and Trends in Signal Processing, vol. 11, no. 3–4, pp. 154–655, 2017
work page 2017
-
[6]
Energy efficiency maximization precoding for quantized massive MIMO systems,
J. Choi, J. Park, and N. Lee, “Energy efficiency maximization precoding for quantized massive MIMO systems,”IEEE Transactions on Wireless Communications, vol. 21, no. 9, pp. 6803–6817, 2022
work page 2022
-
[7]
Energy efficiency of mmwave massive MIMO precoding with low-resolution DACs,
L. N. Ribeiro, S. Schwarz, M. Rupp, and A. L. F. de Almeida, “Energy efficiency of mmwave massive MIMO precoding with low-resolution DACs,”IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 2, pp. 298–312, 2018
work page 2018
-
[8]
Hybrid digital and analog beamforming design for large-scale antenna arrays,
F. Sohrabi and W. Yu, “Hybrid digital and analog beamforming design for large-scale antenna arrays,”IEEE Journal of Selected Topics in Signal Processing, vol. 10, no. 3, pp. 501–513, 2016
work page 2016
-
[9]
M. Nerini and B. Clerckx, “Analog computing for signal processing and communications – part I: Computing with microwave networks,”IEEE Transactions on Signal Processing, vol. 73, pp. 5183–5197, 2025
work page 2025
-
[10]
——, “Analog computing for signal processing and communications – part II: Toward gigantic MIMO beamforming,”IEEE Transactions on Signal Processing, vol. 73, pp. 5198–5212, 2025
work page 2025
-
[11]
Z. Wu, M. Nerini, and B. Clerckx, “Microwave linear analog computer (MiLAC)-aided multiuser MISO: Fundamental limits and beamforming design,” arXiv:2601.10060, 2026, preprint. [Online]. Available: https://arxiv.org/abs/2601.10060 13 3.5 4 4.5 5 5.50 500 1,000 Spectral efficiency (bit/s/Hz) Energy efficiency (Mbit/J) 4 6 8 100 500 1,000 Spectral efficiency...
-
[12]
Reconfigurable intelligent surface: Power consumption modeling and practical measurement validation,
J. Wang, W. Tang, J. C. Liang, L. Zhang, J. Y . Dai, X. Li, S. Jin, Q. Cheng, and T. J. Cui, “Reconfigurable intelligent surface: Power consumption modeling and practical measurement validation,”IEEE Transactions on Communications, vol. 72, no. 9, pp. 5720–5734, 2024
work page 2024
-
[13]
Capacity of MIMO systems aided by microwave linear analog computers (milacs),
M. Nerini and B. Clerckx, “Capacity of MIMO systems aided by microwave linear analog computers (MiLACs),” arXiv:2506.05983, 2025, preprint. [Online]. Available: https://arxiv.org/abs/2506.05983
-
[14]
——, “MIMO systems aided by microwave linear analog computers: Capacity-achieving architectures with reduced circuit complexity,”IEEE Transactions on Wireless Communications, vol. 25, pp. 14 597–14 610, 2026
work page 2026
-
[15]
On the performance of lossless reciprocal MiLAC architectures in multi-user networks,
T. Fang, X. Zhou, and Y . Mao, “On the performance of lossless reciprocal MiLAC architectures in multi-user networks,”IEEE Wireless Communications Letters, vol. 15, pp. 2609–2613, 2026
work page 2026
-
[16]
Channel estimation in MIMO systems aided by microwave linear analog computers (MiLACs),
Q. Zhang, M. Nerini, and B. Clerckx, “Channel estimation in MIMO systems aided by microwave linear analog computers (MiLACs),” arXiv:2601.11438, 2026, preprint. [Online]. Available: https://arxiv.org/abs/2601.11438
-
[17]
M. Nerini and B. Clerckx, “Physics-compliant modeling and optimization of MIMO systems aided by microwave linear analog computers,” arXiv:2602.19379, 2026, preprint. [Online]. Available: https://arxiv.org/abs/2602.19379
-
[18]
Analog computing with hybrid couplers and phase shifters,
M. Nerini, X. Liu, and B. Clerckx, “Analog computing with hybrid couplers and phase shifters,” arXiv:2603.24604, 2026, preprint. [Online]. Available: https://arxiv.org/abs/2603.24604
-
[19]
Energy efficiency in wireless net- works via fractional programming theory,
A. Zappone and E. A. Jorswieck, “Energy efficiency in wireless net- works via fractional programming theory,”Foundations and Trends in Communications and Information Theory, vol. 11, no. 3–4, pp. 185–396, 2015
work page 2015
-
[20]
Energy-efficient resource allocation in OFDMA systems with large numbers of base station antennas,
D. W. K. Ng, E. S. Lo, and R. Schober, “Energy-efficient resource allocation in OFDMA systems with large numbers of base station antennas,”IEEE Transactions on Wireless Communications, vol. 11, no. 9, pp. 3292–3304, 2012
work page 2012
-
[21]
Energy and spectral efficiency of very large multiuser MIMO systems,
H. Q. Ngo, E. G. Larsson, and T. L. Marzetta, “Energy and spectral efficiency of very large multiuser MIMO systems,”IEEE Transactions on Communications, vol. 61, no. 4, pp. 1436–1449, 2013
work page 2013
-
[22]
Optimal design of energy-efficient multi-user MIMO systems: Is massive MIMO the answer?
E. Bj ¨ornson, L. Sanguinetti, J. Hoydis, and M. Debbah, “Optimal design of energy-efficient multi-user MIMO systems: Is massive MIMO the answer?”IEEE Transactions on Wireless Communications, vol. 14, no. 6, pp. 3059–3075, 2015
work page 2015
-
[23]
Coordinated multicell multiuser precoding for maximizing weighted sum energy efficiency,
S. He, Y . Huang, L. Yang, and B. Ottersten, “Coordinated multicell multiuser precoding for maximizing weighted sum energy efficiency,” IEEE Transactions on Signal Processing, vol. 62, no. 3, pp. 741–751, 2014
work page 2014
-
[24]
O. Orhan, E. Erkip, and S. Rangan, “Low power analog-to-digital conver- sion in millimeter wave systems: Impact of resolution and bandwidth on performance,” in2015 Information Theory and Applications Workshop (ITA), 2015, pp. 191–198
work page 2015
-
[25]
Low-complexity hybrid precoding in massive multiuser MIMO systems,
L. Liang, W. Xu, and X. Dong, “Low-complexity hybrid precoding in massive multiuser MIMO systems,”IEEE Wireless Communications Letters, vol. 3, no. 6, pp. 653–656, 2014
work page 2014
-
[26]
Hybrid MIMO architectures for millimeter wave communi- cations: Phase shifters or switches?
R. M ´endez-Rial, C. Rusu, N. Gonz ´alez-Prelcic, A. Alkhateeb, and R. W. Heath Jr., “Hybrid MIMO architectures for millimeter wave communi- cations: Phase shifters or switches?”IEEE Access, vol. 4, pp. 247–267, 2016
work page 2016
-
[27]
Y . Zhou, Y . Liu, H. Li, Q. Wu, S. Shen, and B. Clerckx, “Optimiz- ing power consumption, energy efficiency, and sum-rate using beyond diagonal RIS—a unified approach,”IEEE Transactions on Wireless Communications, vol. 23, no. 7, pp. 7423–7438, 2024
work page 2024
-
[28]
S. Shen, B. Clerckx, and R. Murch, “Modeling and architecture design of reconfigurable intelligent surfaces using scattering parameter network analysis,”IEEE Transactions on Wireless Communications, vol. 21, no. 2, pp. 1229–1243, 2022
work page 2022
-
[29]
On nonlinear fractional programming,
W. Dinkelbach, “On nonlinear fractional programming,”Management Science, vol. 13, no. 7, pp. 492–498, 1967
work page 1967
-
[30]
Q. Shi, M. Razaviyayn, Z.-Q. Luo, and C. He, “An iteratively weighted MMSE approach to distributed sum-utility maximization for a MIMO interfering broadcast channel,”IEEE Transactions on Signal Processing, vol. 59, no. 9, pp. 4331–4340, 2011
work page 2011
-
[31]
D. P. Bertsekas,Nonlinear Programming, 2nd ed. Belmont, MA: Athena Scientific, 1999
work page 1999
-
[32]
Ehrgott,Multicriteria Optimization, 2nd ed
M. Ehrgott,Multicriteria Optimization, 2nd ed. Berlin, Germany: Springer, 2005
work page 2005
-
[33]
Energy efficiency– spectral efficiency tradeoff: A multiobjective optimization approach,
O. Amin, E. Bedeer, M. H. Ahmed, and O. A. Dobre, “Energy efficiency– spectral efficiency tradeoff: A multiobjective optimization approach,” IEEE Transactions on Vehicular Technology, vol. 65, no. 4, pp. 1975– 1981, 2016
work page 1975
-
[34]
G. Zhou, Y . Mao, and B. Clerckx, “Rate-splitting multiple access for multi-antenna downlink communication systems: Spectral and energy efficiency tradeoff,”IEEE Transactions on Wireless Communications, vol. 21, no. 7, pp. 4816–4828, 2022
work page 2022
- [35]
