arxiv: 2604.24581 · v1 · submitted 2026-04-27 · ⚛️ physics.optics

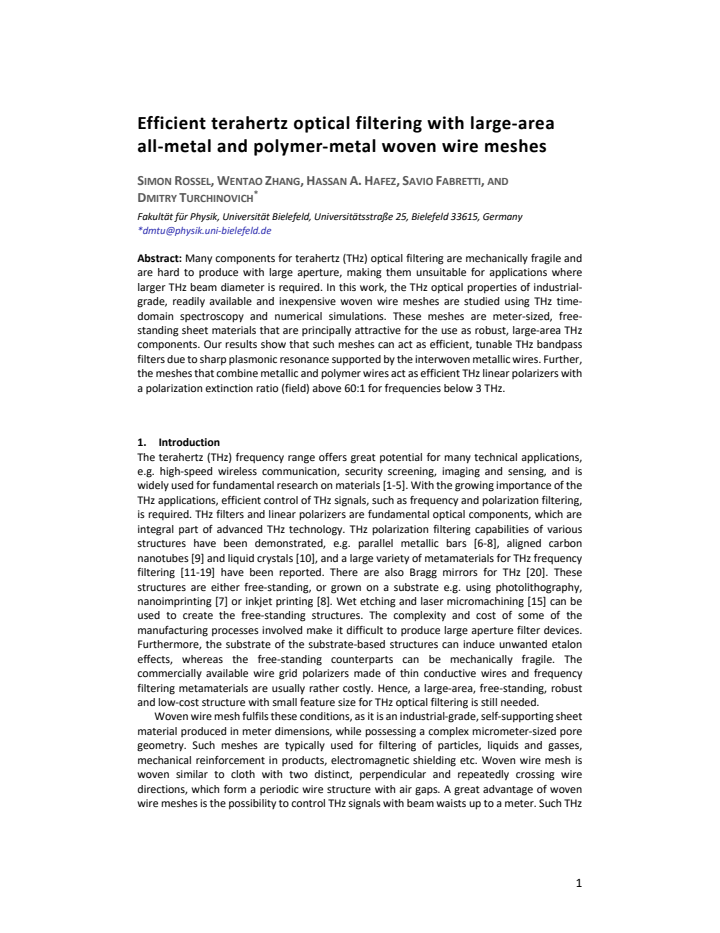

Efficient terahertz optical filtering with large-area all-metal and polymer-metal woven wire meshes

Simon Rossel , Wentao Zhang , Hassan A. Hafez , Savio Fabretti , Dmitry Turchinovich This is my paper

Pith reviewed 2026-05-08 01:46 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords terahertzwoven wire meshplasmonic resonancebandpass filterlinear polarizerTHz time-domain spectroscopy
0
0 comments X

The pith

Large woven wire meshes act as tunable THz bandpass filters and high-extinction polarizers through plasmonic resonances in their metallic wires.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the terahertz transmission properties of meter-scale industrial woven wire meshes, both all-metal and metal-polymer hybrids, using time-domain spectroscopy and simulations. It establishes that the interwoven metallic wires produce sharp plasmonic resonances, enabling the meshes to function as efficient, tunable bandpass filters. Hybrid meshes further serve as linear polarizers with field extinction ratios above 60:1 for frequencies below 3 THz. These findings matter because conventional THz filtering components are typically fragile and difficult to fabricate at large apertures, whereas these sheets are free-standing, inexpensive, and mechanically robust.

Core claim

Industrial-grade woven wire meshes exhibit sharp plasmonic resonances supported by the interwoven metallic wires that turn them into efficient tunable THz bandpass filters. Meshes combining metallic and polymer wires additionally function as THz linear polarizers with polarization extinction ratios above 60:1 below 3 THz.

What carries the argument

sharp plasmonic resonance supported by the interwoven metallic wires

If this is right

  • These meshes provide a scalable, low-cost route to large-aperture THz components without the fragility of traditional grids.
  • Resonance frequency can be tuned simply by choosing different wire spacing or diameter in the weave.
  • Hybrid metal-polymer meshes deliver strong polarization selectivity usable below 3 THz without extra optics.
  • The free-standing meter-scale format supports applications requiring wide THz beams.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The durability of these sheets could allow permanent mounting in THz beam paths where vibration or handling would damage fragile alternatives.
  • Varying the polymer wire material might extend the high-extinction polarization range or add frequency selectivity.
  • Large-area uniformity suggests direct use in THz imaging arrays or wide-field spectroscopy without beam expansion optics.

Load-bearing premise

The observed sharp resonances arise primarily from plasmonic effects in the wires rather than diffraction, scattering, or non-uniform fabrication across the large mesh area.

What would settle it

Transmission spectra measured at multiple positions across a single mesh sample that show resonance frequencies varying by more than the mesh periodicity, or extinction ratios falling below 60:1 when diffraction contributions are subtracted in simulation.

Figures

Figures reproduced from arXiv: 2604.24581 by Dmitry Turchinovich, Hassan A. Hafez, Savio Fabretti, Simon Rossel, Wentao Zhang.

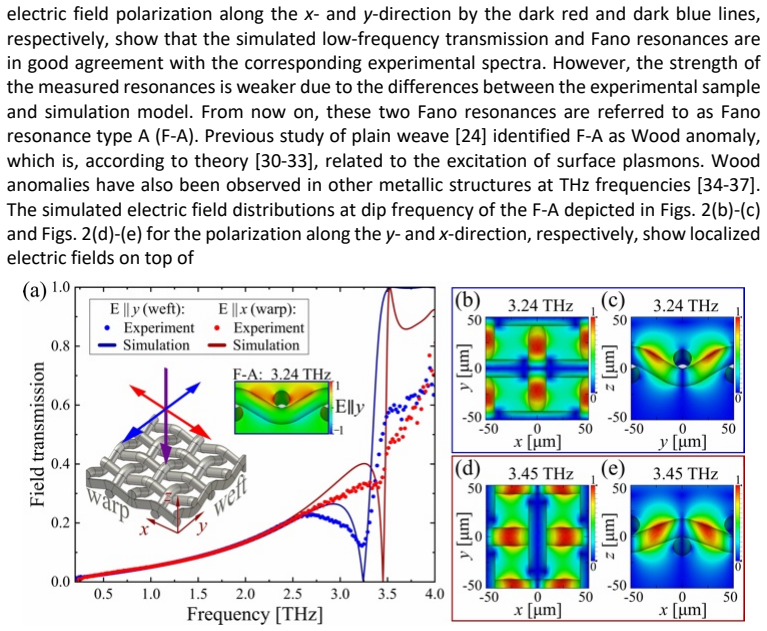

Figure 2
Figure 2. Figure 2: (a) Measured and simulated transmission spectra of stainless steel view at source ↗

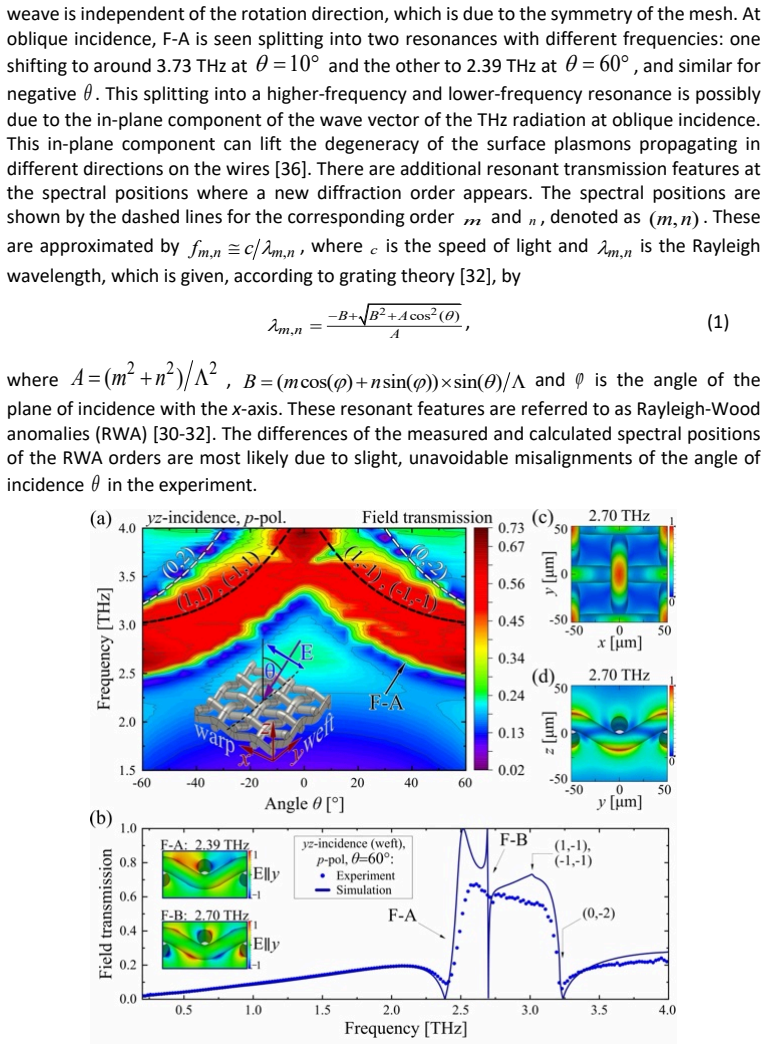

Figure 3
Figure 3. Figure 3: (a) Contour of measured field transmission spectra with view at source ↗

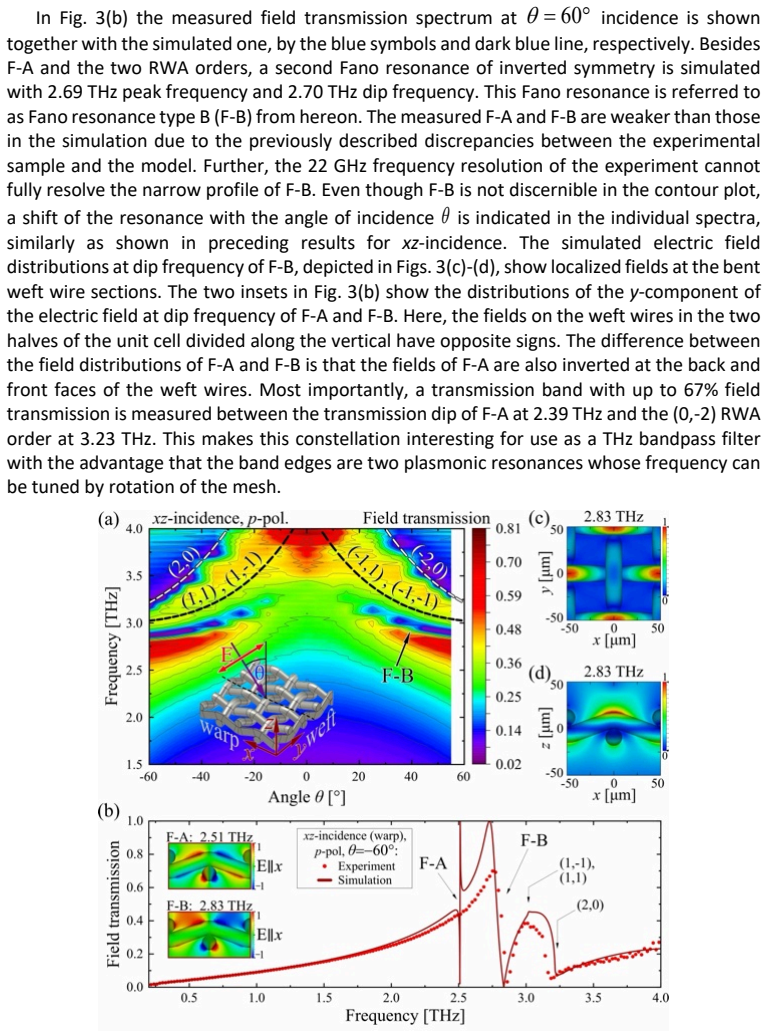

Figure 4
Figure 4. Figure 4: (a) Contour of measured field transmission spectra with xz-plane of incidence, (b) the measured and simulated spectra at incidence and (c), (d) the electric field distributions at 2.86 THz for incidence. The insets in (b) show the distributions of the x-component. The results of the THz radiation incident on the plain weave with the plane of incidence along the warp wires (xz-plane) is presented in Figs. 4… view at source ↗

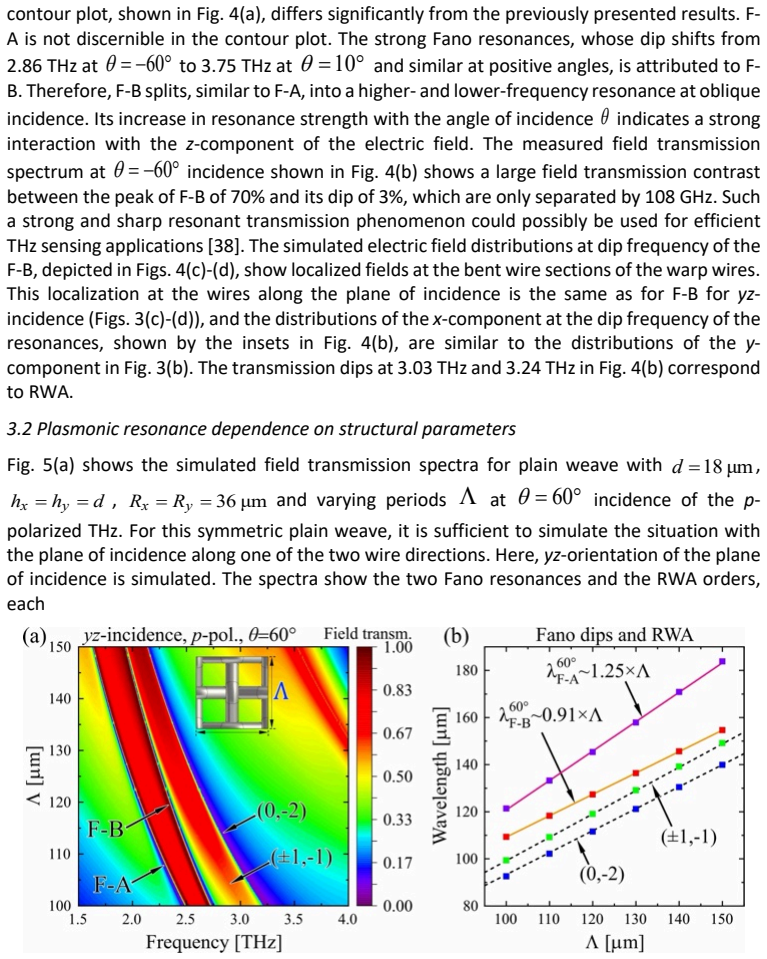

Figure 5
Figure 5. Figure 5: (a) Contour of simulated transmission through the symmetric view at source ↗

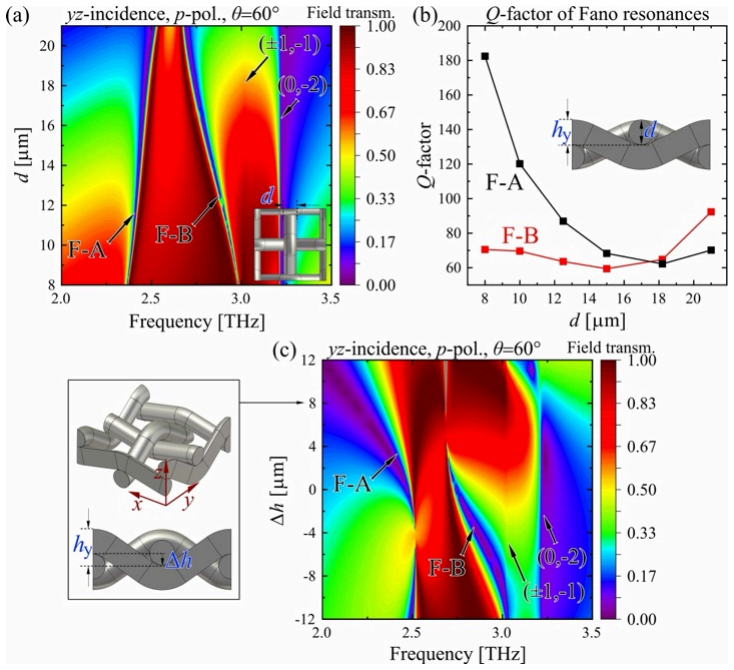

Figure 6
Figure 6. Figure 6: (a) Contour of simulated transmission of symmetric view at source ↗

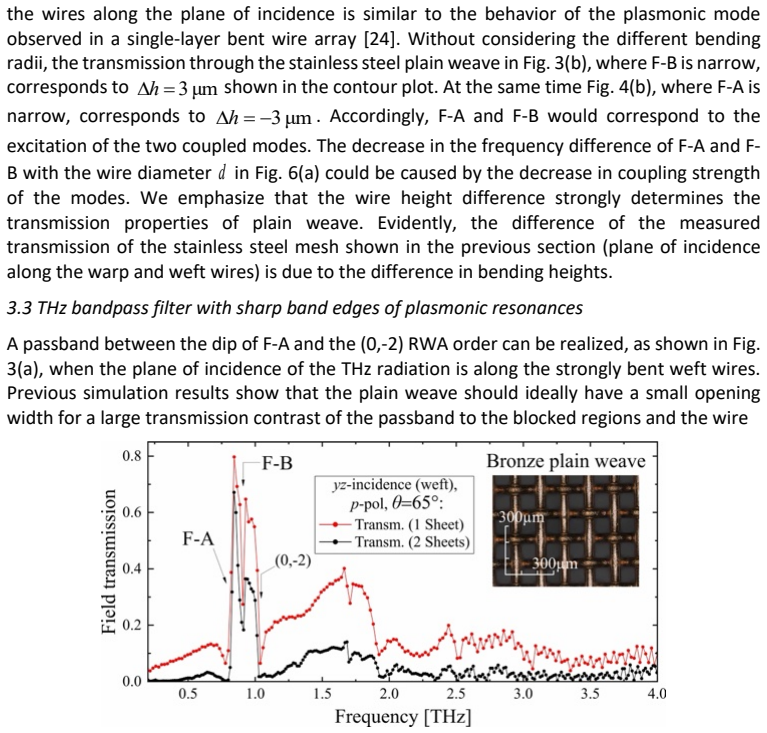

Figure 7
Figure 7. Figure 7: Measured field transmission of bronze plain weave, where the red and black dots view at source ↗
Figure 8
Figure 8. Figure 8: (a) Microscopic image and photograph of the polymer view at source ↗

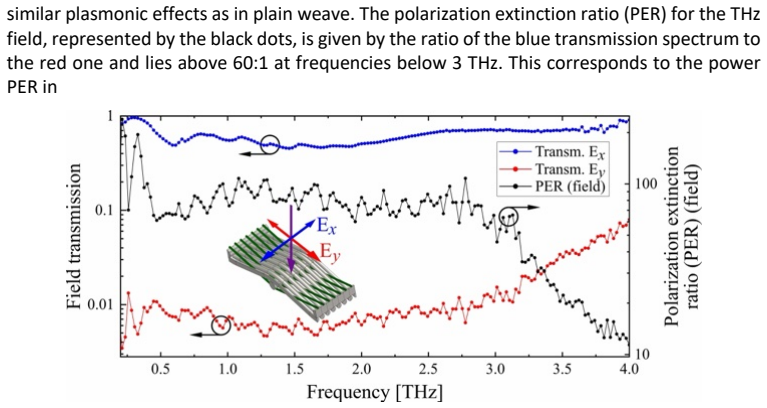

Figure 9
Figure 9. Figure 9: Measured transmission and calculated polarization extinction ratio for the polymer view at source ↗
read the original abstract

Many components for terahertz (THz) optical filtering are mechanically fragile and are hard to produce with large aperture, making them unsuitable for applications where larger THz beam diameter is required. In this work, the THz optical properties of industrial-grade, readily available and inexpensive woven wire meshes are studied using THz time-domain spectroscopy and numerical simulations. These meshes are meter-sized, free-standing sheet materials that are principally attractive for the use as robust, large-area THz components. Our results show that such meshes can act as efficient, tunable THz bandpass filters due to sharp plasmonic resonance supported by the interwoven metallic wires. Further, the meshes that combine metallic and polymer wires act as efficient THz linear polarizers with a polarization extinction ratio (field) above 60:1 for frequencies below 3 THz.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript examines the terahertz transmission properties of large-area, industrial woven wire meshes (all-metal and metal-polymer hybrids) via THz time-domain spectroscopy and numerical simulations. It claims that all-metal meshes function as efficient, tunable bandpass filters due to sharp plasmonic resonances supported by the interwoven metallic wires, while metal-polymer meshes act as linear polarizers with field extinction ratios above 60:1 for frequencies below 3 THz. The work emphasizes the practical advantages of these meter-scale, free-standing, robust materials over fragile conventional THz components.

Significance. If the central claims hold, the work provides a scalable, low-cost route to large-aperture THz filters and polarizers using readily available materials, which could enable applications requiring high beam diameters. The combination of experimental THz-TDS data with simulations is a strength, and the focus on industrial-grade meshes addresses real engineering constraints. However, the significance is tempered by the need to confirm the plasmonic (versus geometric) origin of the resonances, as this directly affects the interpretation and tunability claims.

major comments (2)
  1. [Abstract and Numerical Simulations section] Abstract and resonance discussion: The attribution of the sharp transmission peaks to 'plasmonic resonance supported by the interwoven metallic wires' is load-bearing for the bandpass-filter claim but lacks a clear separation from geometric effects (e.g., inductive-capacitive mesh behavior or lattice-periodicity anomalies). No simulation varying the metal permittivity (Drude plasma frequency) at fixed geometry is described to test this; equivalent-circuit models can reproduce similar bandpass features without material plasma response.
  2. [Experimental Results on Hybrid Meshes] Polarizer performance: The reported field extinction ratio >60:1 below 3 THz for metal-polymer meshes is promising, but the manuscript must quantify and subtract potential contributions from diffraction, scattering, or large-area fabrication nonuniformity (as flagged in the weakest assumption). Without error bars on the measured spectra or explicit comparison to a purely geometric anisotropic-grid model, the intrinsic material performance cannot be isolated.
minor comments (2)
  1. [Figures and Methods] Figure captions and methods: Include explicit mesh period, wire diameter, and material parameters in all figure captions and the experimental setup description to enable direct comparison with simulations and reproducibility.
  2. [Introduction] Add references to classic work on wire-grid polarizers and inductive meshes in the THz range to better situate the novelty relative to geometric-filter literature.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments highlight important points regarding the interpretation of the resonances and the robustness of the polarizer characterization. We address each major comment below and have made revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and Numerical Simulations section] Abstract and resonance discussion: The attribution of the sharp transmission peaks to 'plasmonic resonance supported by the interwoven metallic wires' is load-bearing for the bandpass-filter claim but lacks a clear separation from geometric effects (e.g., inductive-capacitive mesh behavior or lattice-periodicity anomalies). No simulation varying the metal permittivity (Drude plasma frequency) at fixed geometry is described to test this; equivalent-circuit models can reproduce similar bandpass features without material plasma response.

    Authors: We agree that a direct test separating the material response from geometric effects is needed to support the plasmonic interpretation. Although the original simulations used a realistic Drude model for the metal, we did not include an explicit parameter sweep of the plasma frequency. In the revised manuscript we have added new full-wave simulations in which the Drude plasma frequency is varied at fixed geometry; these show that the sharp transmission peaks weaken and shift as the plasma frequency is reduced, consistent with a plasmonic contribution. We also discuss the limitations of equivalent-circuit models for the observed sharp, frequency-dependent features in this geometry and THz range. The abstract and resonance discussion have been updated to reflect these clarifications. revision: yes

  2. Referee: [Experimental Results on Hybrid Meshes] Polarizer performance: The reported field extinction ratio >60:1 below 3 THz for metal-polymer meshes is promising, but the manuscript must quantify and subtract potential contributions from diffraction, scattering, or large-area fabrication nonuniformity (as flagged in the weakest assumption). Without error bars on the measured spectra or explicit comparison to a purely geometric anisotropic-grid model, the intrinsic material performance cannot be isolated.

    Authors: We thank the referee for this observation. The revised manuscript now includes error bars on all measured spectra, obtained from repeated THz-TDS scans at multiple locations across the meter-scale samples. We have added quantitative estimates of diffraction and scattering losses based on the known wire periodicity and wavelength range, showing these contributions remain small below 3 THz. A direct comparison to a purely geometric anisotropic-grid model has been included in the supplementary material; the measured extinction exceeds the geometric prediction, supporting the reported intrinsic performance. The discussion of fabrication nonuniformity (previously noted as the weakest assumption) has been expanded with these quantifications. revision: yes

Circularity Check

0 steps flagged

No circularity detected; claims rest on direct experimental measurements and independent numerical simulations

full rationale

The paper characterizes the THz properties of woven wire meshes via THz time-domain spectroscopy measurements and numerical simulations. The reported bandpass filtering and polarization performance are presented as direct outcomes of these independent methods, with no equations, fitted parameters, or self-citations that reduce the key results (resonance positions, extinction ratios) to quantities defined by the same data or prior author work. No self-definitional loops, fitted-input predictions, or ansatzes smuggled via citation are present in the derivation chain. The analysis is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard electromagnetic wave propagation and plasmonic resonance concepts from prior literature; no new free parameters, axioms, or invented entities are introduced in the abstract.

axioms (1)
  • standard math Standard electromagnetic theory and plasmonic resonance models apply to the wire mesh geometry
    Invoked to interpret the sharp resonances observed in spectroscopy and simulations
