Matching-free Acquisition of Channels with Anisotropic Wavefronts

Heling Zhang , Shidong Zhou
Authors on Pith no claims yet

Pith reviewed 2026-05-14 22:08 UTC · model grok-4.3

classification 📡 eess.SP
keywords anisotropic wavefront channelchannel estimationextremely large aperture arraysnear-field communicationFFT-based parameter recoverycurved reflecting surfacesMACAW algorithm
0
0 comments X

The pith

A parameterized model of anisotropic wavefront channels enables accurate estimation via FFT frequency analysis without dictionary matching.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper starts from the observation that real reflecting surfaces are often curved, so reflected waves arrive with non-uniform curvature rather than the spherical shape assumed by standard near-field models. From this it derives an explicit parameterized description of the resulting channel. The central step is to show that the unknown parameters in this description appear as distinct frequency components, so a simple FFT can extract them directly. This matters for future wireless systems that rely on extremely large antenna arrays, because accurate channel knowledge is required for precoding and the conventional spherical-wave approach loses accuracy precisely when surfaces are curved. The resulting algorithm runs at lower complexity than matching-pursuit methods that search over large dictionaries.

Core claim

We first derive a parameterized model for the anisotropic wavefront channel (AWC). Based on this model, we then propose the matching-free acquisition of channels with anisotropic wavefronts (MACAW) algorithm. Unlike conventional dictionary-based matching pursuit techniques, MACAW recovers channel parameters through fast-Fourier-transform-based frequency analysis. This approach enables precise channel estimation in AWC scenarios while maintaining a significantly lower computational complexity than existing methods.

What carries the argument

The parameterized AWC model, whose parameters manifest as separable frequency tones that an FFT can isolate directly.

If this is right

  • Channel estimation remains accurate even when reflectors have significant curvature.
  • Computational cost drops because FFT replaces exhaustive dictionary search.
  • Physical geometry of the environment directly controls the observed degree of anisotropy.
  • Precoding performance improves in near-field deployments once the correct wavefront model is used.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same frequency-analysis idea may apply to other non-spherical wavefronts arising from rough or non-planar surfaces.
  • Training overhead in large-array systems could shrink if the FFT step replaces iterative matching.
  • Standards for 6G channel modeling may need to incorporate an anisotropy parameter when surfaces are not assumed flat.

Load-bearing premise

The wavefront curvature produced by a curved reflector can be captured by a small number of parameters that appear as distinct frequencies in the observed signal.

What would settle it

In a controlled measurement with a known curved reflector, the mean-squared error of the FFT-extracted parameters either stays comparable to spherical-wave methods or grows with increasing curvature radius mismatch.

Figures

Figures reproduced from arXiv: 2604.24610 by Heling Zhang, Shidong Zhou.

Figure 2
Figure 2. Figure 2: The evolution of the reflected wavefront. During propagation, the view at source ↗

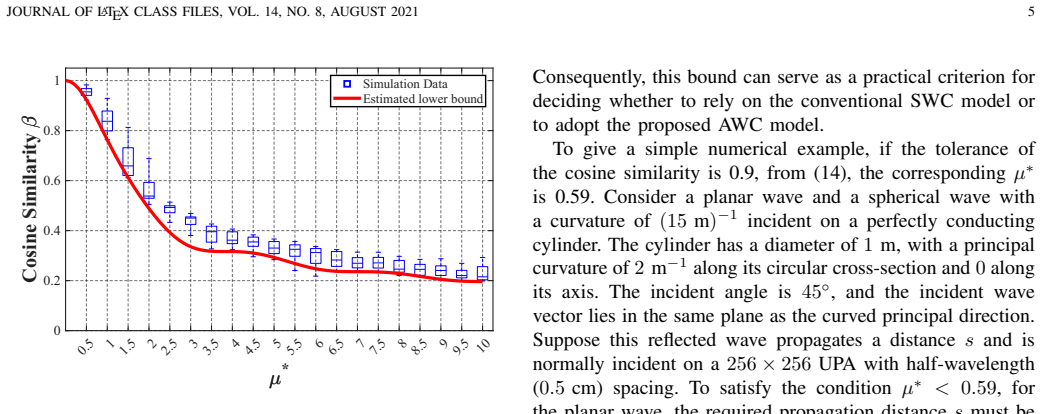

Figure 3
Figure 3. Figure 3: Comparison between the theoretical lower bound approximation of the view at source ↗

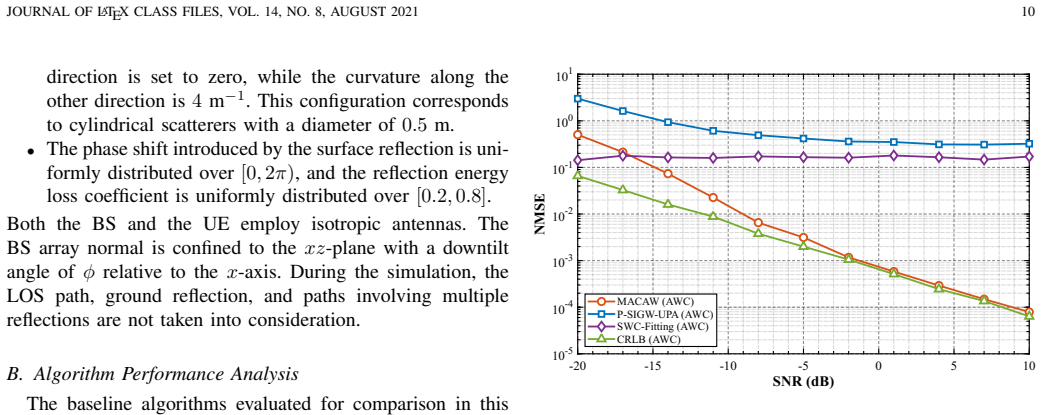

Figure 4
Figure 4. Figure 4: NMSE curves of compared algorithms in multipath AWC. view at source ↗

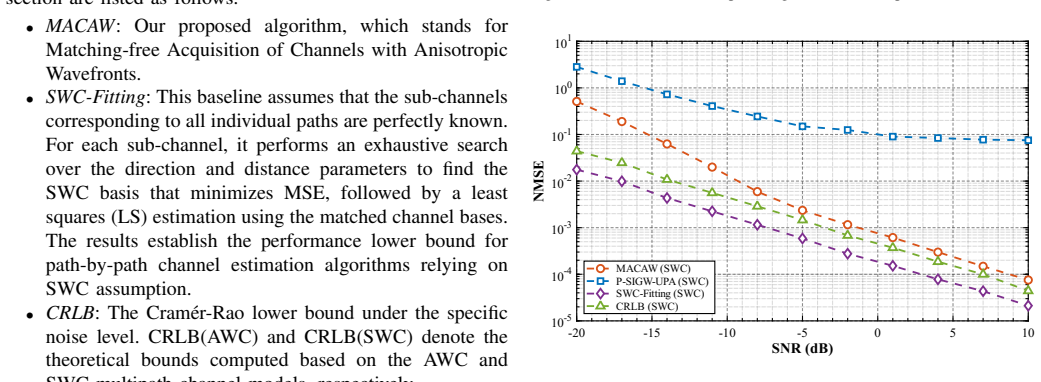

Figure 5
Figure 5. Figure 5: NMSE curves of compared algorithms in multipath SWC. view at source ↗

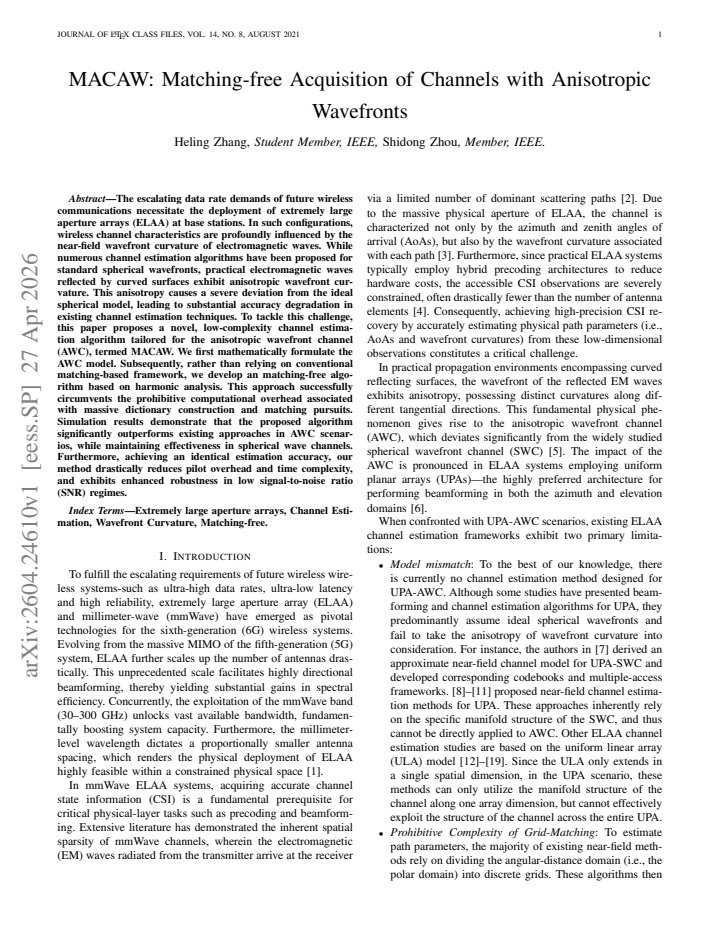

read the original abstract

The escalating data rate demands of future wireless communications necessitate the deployment of extremely large aperture arrays (ELAAs) in communication systems. Acquiring accurate channel state information is crucial to execute effective precoding for such systems, in which the near-field curvature effects on the channel must be considered. Current channel estimation algorithms are generally restricted to the spherical wavefront channel (SWC), which is appropriate for isotropic scatterers, point sources, and planar reflecting surfaces. However, in practical scenarios involving curved reflecting surfaces, the reflected waves exhibit anisotropic rather than spherical wavefronts, significantly degrading the accuracy of conventional SWC-based algorithms. To tackle this challenge, we first derive a parameterized model for the anisotropic wavefront channel (AWC). Based on this model, we then propose the matching-free acquisition of channels with anisotropic wavefronts (MACAW) algorithm. Unlike conventional dictionary-based matching pursuit techniques, MACAW recovers channel parameters through fast-Fourier-transform-based frequency analysis. This approach enables precise channel estimation in AWC scenarios while maintaining a significantly lower computational complexity than existing methods. Simulation results illustrate how physical characteristics of the propagation environment influence the degree of wavefront anisotropy, and demonstrate the effectiveness of the proposed algorithm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript derives a parameterized model for the anisotropic wavefront channel (AWC) arising from curved reflecting surfaces in near-field scenarios with extremely large aperture arrays, then proposes the MACAW algorithm that recovers the channel parameters via standard FFT-based frequency analysis without dictionary matching or iterative pursuit, claiming lower complexity than SWC-based methods while maintaining accuracy.

Significance. If the AWC parameterization produces a Fourier transform with isolated, directly interpretable peaks, the work would provide a computationally efficient alternative to matching-pursuit techniques for realistic propagation environments, addressing a gap between idealized spherical-wave models and practical curved-surface reflections in ELAA systems.

major comments (2)
  1. [§3] §3 (AWC Model Derivation): the central claim that standard FFT recovers the parameters exactly requires the derived channel response to exhibit isolated spectral lines; if the parameterization introduces nonlinear phase curvature or cross terms between range, angle, and anisotropy (as suggested by the skeptic note), the spectrum will contain broadened or interfering components, undermining the matching-free assertion. The abstract provides no explicit model equation to confirm the required spectral structure.
  2. [§4] §4 (MACAW Algorithm): the complexity advantage over dictionary-based methods is asserted but not quantified with operation counts or big-O expressions tied to the number of parameters; without this, the claim that FFT analysis is strictly lower-complexity cannot be verified as load-bearing for the contribution.
minor comments (2)
  1. [Abstract] Abstract: lacks any equation or parameter list for the AWC model, making it difficult to assess the FFT separability claim without reading the full derivation.
  2. [Simulations] Simulation section: the description of how physical characteristics influence anisotropy degree should include explicit parameter values and error metrics (e.g., NMSE vs. SNR) to allow reproduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the opportunity to clarify the spectral properties of the AWC model and the complexity claims of the MACAW algorithm. We address each major comment below and will incorporate the suggested improvements in the revised manuscript.

read point-by-point responses

  1. Referee: [§3] §3 (AWC Model Derivation): the central claim that standard FFT recovers the parameters exactly requires the derived channel response to exhibit isolated spectral lines; if the parameterization introduces nonlinear phase curvature or cross terms between range, angle, and anisotropy (as suggested by the skeptic note), the spectrum will contain broadened or interfering components, undermining the matching-free assertion. The abstract provides no explicit model equation to confirm the required spectral structure.

    Authors: The AWC parameterization is constructed precisely so that the phase term becomes linear in the transformed frequency domain, yielding isolated spectral lines whose locations directly encode the range, angle, and anisotropy parameters. The skeptic note in the manuscript identifies the regime where this linearity holds and shows that cross terms are eliminated by the chosen functional form of the anisotropy factor. Consequently, standard FFT recovers the parameters without broadening or interference under the stated conditions. To make this explicit, we will insert the core model equation into the abstract and add a short paragraph in Section 3 that derives the Fourier-domain representation and confirms the isolated-peak property. revision: yes

  2. Referee: [§4] §4 (MACAW Algorithm): the complexity advantage over dictionary-based methods is asserted but not quantified with operation counts or big-O expressions tied to the number of parameters; without this, the claim that FFT analysis is strictly lower-complexity cannot be verified as load-bearing for the contribution.

    Authors: We agree that a quantitative complexity analysis is needed. In the revision we will add explicit big-O expressions: MACAW requires O(N log N) operations for an N-element array (dominated by the FFT), independent of the number of parameters, while dictionary-based matching scales as O(M K) where M is the dictionary size and K the number of parameters. We will also include a table of operation counts for representative array sizes (e.g., N = 256, 1024) and compare them directly with SWC-based pursuit methods. revision: yes

Circularity Check

0 steps flagged

No significant circularity: new AWC model derived from physical assumptions, followed by standard FFT recovery

full rationale

The paper first derives a parameterized model for the anisotropic wavefront channel based on curved reflecting surfaces, then applies standard fast-Fourier-transform frequency analysis to recover parameters without dictionary matching. No load-bearing step reduces by construction to a fitted input, self-citation, or renamed known result; the derivation chain introduces an independent model and invokes conventional signal-processing tools on that model. The central claim remains self-contained against external benchmarks and does not rely on self-referential definitions or uniqueness theorems imported from the authors' prior work.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on a new parameterized model whose specific parameters and assumptions about anisotropy are introduced without independent evidence in the abstract.

free parameters (1)
  • AWC model parameters
    Parameterized model derived to capture anisotropy degree from curved surfaces.
axioms (1)
  • domain assumption Reflected waves from curved surfaces exhibit anisotropic wavefronts that degrade SWC-based estimation
    Stated as the motivation and practical scenario in the abstract.

pith-pipeline@v0.9.0 · 5501 in / 1168 out tokens · 40139 ms · 2026-05-14T22:08:23.620888+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Parvini, B

    M. Parvini, B. Banerjee, M. Q. Khan, T. Mewes, A. Nimr and G. Fettweis, ”A Tutorial on Wideband XL-MIMO: Challenges, Opportunities, and Future Trends,” in IEEE Open Journal of the Communications Society, vol. 6, pp. 5509-5534, 2025, doi: 10.1109/OJCOMS.2025.3583091

    work page doi:10.1109/ojcoms.2025.3583091 2025

  2. [2]

    Sloane, C

    W. Sloane, C. Gentile, M. Shafi, J. Senic, P. A. Martin and G. K. Woodward, ”Measurement-Based Analysis of Millimeter-Wave Channel Sparsity,” in IEEE Antennas and Wireless Propagation Letters, vol. 22, no. 4, pp. 784-788, April 2023, doi: 10.1109/LAWP.2022.3225246

    work page doi:10.1109/lawp.2022.3225246 2023

  3. [3]

    Spherical wave channel and analysis for large linear array in LoS conditions,

    Z. Zhou, X. Gao, J. Fang, and Z. Chen, “Spherical wave channel and analysis for large linear array in LoS conditions,” in Proc. IEEE Globecom Workshops 2015, Dec. 2015, pp. 1–6

    work page 2015

  4. [4]

    Ahmed et al., ”A Survey on Hybrid Beamforming Techniques in 5G: Architecture and System Model Perspectives,” in IEEE Communications Surveys & Tutorials, vol

    I. Ahmed et al., ”A Survey on Hybrid Beamforming Techniques in 5G: Architecture and System Model Perspectives,” in IEEE Communications Surveys & Tutorials, vol. 20, no. 4, pp. 3060-3097, Fourthquarter 2018, doi: 10.1109/COMST.2018.2843719

    work page doi:10.1109/comst.2018.2843719 2018

  5. [5]

    G. A. Deschamps, ”Ray techniques in electromagnetics,” in Proceed- ings of the IEEE, vol. 60, no. 9, pp. 1022-1035, Sept. 1972, doi: 10.1109/PROC.1972.8850

    work page doi:10.1109/proc.1972.8850 1972

  6. [6]

    C. A. Balanis, ”Evolution of Antenna Technology: Arrays, linear, planar, and circular.,” in IEEE Antennas and Propagation Magazine, vol. 67, no. 4, pp. 29-38, Aug. 2025, doi: 10.1109/MAP.2024.3428923

    work page doi:10.1109/map.2024.3428923 2025

  7. [7]

    Wu and L

    Z. Wu and L. Dai, ”Multiple Access for Near-Field Communica- tions: SDMA or LDMA?,” in IEEE Journal on Selected Areas in Communications, vol. 41, no. 6, pp. 1918-1935, June 2023, doi: 10.1109/JSAC.2023.3275616

    work page doi:10.1109/jsac.2023.3275616 1918

  8. [8]

    Huang, J

    C. Huang, J. Xu, W. Xu, X. You, C. Yuen and Y . Chen, ”Low-Complexity Channel Estimation for Extremely Large-Scale MIMO in Near Field,” in IEEE Wireless Communications Letters, vol. 13, no. 3, pp. 671-675, March 2024, doi: 10.1109/LWC.2023.3339653

    work page doi:10.1109/lwc.2023.3339653 2024

  9. [9]

    C. Chen, J. Sun, X. Jiang, S. Yao, W. Zhang and C. -X. Wang, ”Near-Field Channel Estimation for Uniform Planar Arrays Based on an End-to-End Spherical Wavefront Channel Model,” in IEEE Transac- tions on Wireless Communications, vol. 25, pp. 7065-7082, 2026, doi: 10.1109/TWC.2025.3628847. JOURNAL OF LATEX CLASS FILES, VOL. 14, NO. 8, AUGUST 2021 13

    work page doi:10.1109/twc.2025.3628847 2026

  10. [10]

    X. Guo, Y . Chen and Y . Wang, ”Compressed Channel Estimation for Near-Field XL-MIMO Using Triple Parametric Decomposition,” in IEEE Transactions on Vehicular Technology, vol. 72, no. 11, pp. 15040-15045, Nov. 2023, doi: 10.1109/TVT.2023.3279397

    work page doi:10.1109/tvt.2023.3279397 2023

  11. [11]

    X. Peng, L. Zhao, Y . Jiang and J. Liu, ”Channel Estimation for UPA- Assisted Near-Field Channel in Extremely Large-Scale Massive MIMO Systems,” 2024 IEEE International Conference on Communications Workshops (ICC Workshops), Denver, CO, USA, 2024, pp. 738-743, doi: 10.1109/ICCWorkshops59551.2024

    work page doi:10.1109/iccworkshops59551.2024 2024

  12. [12]

    Cui and L

    M. Cui and L. Dai, ”Channel Estimation for Extremely Large- Scale MIMO: Far-Field or Near-Field?,” in IEEE Transactions on Communications, vol. 70, no. 4, pp. 2663-2677, April 2022, doi: 10.1109/TCOMM.2022.3146400

    work page doi:10.1109/tcomm.2022.3146400 2022

  13. [13]

    Z. Zhu, R. Yang, C. Li, Y . Huang and L. Yang, ”Adaptive Joint Sparse Bayesian Approaches for Near-Field Channel Estimation,” in IEEE Transactions on Wireless Communications, vol. 24, no. 3, pp. 2590-2605, March 2025, doi: 10.1109/TWC.2024.3522887

    work page doi:10.1109/twc.2024.3522887 2025

  14. [14]

    Zhang, H

    X. Zhang, H. Zhang and Y . C. Eldar, ”Near-Field Sparse Channel Representation and Estimation in 6G Wireless Communications,” in IEEE Transactions on Communications, vol. 72, no. 1, pp. 450-464, Jan. 2024, doi: 10.1109/TCOMM.2023.3322449

    work page doi:10.1109/tcomm.2023.3322449 2024

  15. [15]

    Hussain, A

    A. Hussain, A. Abdallah and A. M. Eltawil, ”Near-Field Channel Estimation for Ultra-Massive MIMO Antenna Array with Hybrid Ar- chitecture,” 2024 IEEE Wireless Communications and Networking Con- ference (WCNC), Dubai, United Arab Emirates, 2024, pp. 1-6, doi: 10.1109/WCNC57260.2024.10570663

    work page doi:10.1109/wcnc57260.2024.10570663 2024

  16. [16]

    K. Qu, S. Guo, J. Ye and H. Zhao, ”Two-Stage Beamspace MUSIC- Based Near-Field Channel Estimation for Hybrid XL-MIMO,” in IEEE Communications Letters, vol. 28, no. 8, pp. 1949-1953, Aug. 2024, doi: 10.1109/LCOMM.2024.3409411

    work page doi:10.1109/lcomm.2024.3409411 1949

  17. [17]

    J. Cao, J. Du, M. Han, J. Liu, X. Li and D. B. da Costa, ”Efficient Sparse Bayesian Channel Estimation for Near-Field Ultra-Scale Massive MIMO Systems,” in IEEE Wireless Communications Letters, vol. 12, no. 12, pp. 2133-2137, Dec. 2023, doi: 10.1109/LWC.2023.3309712

    work page doi:10.1109/lwc.2023.3309712 2023

  18. [18]

    H. Wang, P. Guo, X. Li, F. Wen, X. Wang and A. Nallanathan, ”MBPD: A Robust Algorithm for Polar-Domain Channel Estimation in Near-Field Wideband XL-MIMO Systems,” in IEEE Internet of Things Journal, vol. 12, no. 12, pp. 18461-18470, 15 June15, 2025, doi: 10.1109/JIOT.2024.3477573

    work page doi:10.1109/jiot.2024.3477573 2025

  19. [19]

    Y . Xi, F. Zhu, B. Zhou, T. Liu and S. Ma, ”Gridless Hybrid-Field Channel Estimation for Extra-Large Aperture Array Massive MIMO Systems,” in IEEE Wireless Communications Letters, vol. 13, no. 2, pp. 496-500, Feb. 2024, doi: 10.1109/LWC.2023.3333531

    work page doi:10.1109/lwc.2023.3333531 2024

  20. [20]

    Zhang, J

    Z. Zhang, J. Ryu, S. Subramanian and A. Sampath, ”Coverage and channel characteristics of millimeter wave band using ray tracing,” 2015 IEEE International Conference on Communications (ICC), London, UK, 2015, pp. 1380-1385, doi: 10.1109/ICC.2015.7248516

    work page doi:10.1109/icc.2015.7248516 2015

  21. [21]

    Fraunhofer and fresnel distances: Unified derivation for aperture antennas,

    K. T. Selvan and R. Janaswamy, “Fraunhofer and fresnel distances: Unified derivation for aperture antennas,” IEEE Antennas Propag. Mag., vol. 59, no. 4, pp. 12–15, Aug. 2017

    work page 2017

  22. [22]

    C. A. Balanis, ”Advanced Engineering Electromagnetics,” Hoboken, NJ, USA: Wiley, 2012

    work page 2012

  23. [23]

    D. P. Woodruff, ”Sketching as a tool for numerical linear algebra,” Found. Trend Theor. Comput. Sci., vol. 10, no. 2, pp. 1–157, 2014

    work page 2014

  24. [24]

    L. Dai, J. Tan, Z. Chen and H. V . Poor, ”Delay-Phase Precoding for Wideband THz Massive MIMO,” in IEEE Transactions on Wire- less Communications, vol. 21, no. 9, pp. 7271-7286, Sept. 2022, doi: 10.1109/TWC.2022.3157315

    work page doi:10.1109/twc.2022.3157315 2022

  25. [25]

    Blank and K

    J. Li and P. Stoica, ”Efficient mixed-spectrum estimation with applica- tions to target feature extraction,” Conference Record of The Twenty- Ninth Asilomar Conference on Signals, Systems and Computers, Pa- cific Grove, CA, USA, 1995, pp. 428-432 vol.1, doi: 10.1109/AC- SSC.1995.540585

    work page doi:10.1109/ac- 1995

  26. [26]

    D. W. Marquardt, ”An Algorithm for Least-Squares Estimation of Nonlinear Parameters”, Journal of the Society for Industrial and Applied Mathematics, vol. 11, no. 2, pp. 431–441, 1963

    work page 1963

  27. [27]

    Wold, Estimation of Principal Components and Related Models by Iterative Least Squares

    H. Wold, Estimation of Principal Components and Related Models by Iterative Least Squares. New York, NY , USA: Academic, 1966

    work page 1966

  28. [28]

    Bentley, ”Programming pearls: algorithm design techniques,” Com- mun

    J. Bentley, ”Programming pearls: algorithm design techniques,” Com- mun. ACM, vol. 27, no. 9, pp. 865–873, Sept. 1984

    work page 1984

  29. [29]

    I. S. Gradshteyn and I. M. Ryzhik, ”Table of Integrals, Series and Products,” 7th ed. San Diego, CA, USA: Academic, 2007

    work page 2007

  30. [30]

    C. A. Balanis, ”Antenna Theory: Analysis and Design,” Hoboken, NJ, USA: Wiley, 2016

    work page 2016
