Computational Design and Co-Robotic Fabrication for Material Reuse in Architecture
Pith reviewed 2026-05-08 02:54 UTC · model grok-4.3
The pith
An integrated framework using data-driven design and human-robot collaboration enables construction of nonstandard structures from reclaimed timber of varying sizes.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper claims that an integrated framework coupling data-driven computational design with feedback-driven adaptive human-robot collaborative fabrication and assembly enables the realization of nonstandard structures made from reclaimed timber of varying length and geometries, supplemented with new timber when necessary, as validated through the Timbrelyn case-study.
What carries the argument
The integrated framework that combines data-driven computational design to match structures to available materials with feedback-driven co-robotic fabrication that adapts to real-time variations.
If this is right
- Nonstandard architectural forms can be achieved without relying solely on uniform new materials.
- Design processes can directly incorporate constraints from reclaimed material inventories.
- Real-time feedback in fabrication allows handling of uncertainties in material properties.
- Human-robot collaboration facilitates complex assembly tasks that pure automation might struggle with.
Where Pith is reading between the lines
- This approach might scale to larger buildings if computational models improve in predicting structural performance from varied timbers.
- Similar frameworks could apply to reusing other heterogeneous materials like salvaged steel in architecture.
- Future tests could compare material waste and labor time against conventional methods to quantify benefits.
Load-bearing premise
The challenges of accommodating varying reclaimed timber can be effectively addressed through the data-driven design and adaptive co-robotic fabrication demonstrated in the single case study.
What would settle it
A detailed measurement of the Timbrelyn project showing that a significant portion of the structure required new timber or that assembly errors occurred despite the feedback system would challenge the framework's ability to handle material heterogeneity.
Figures

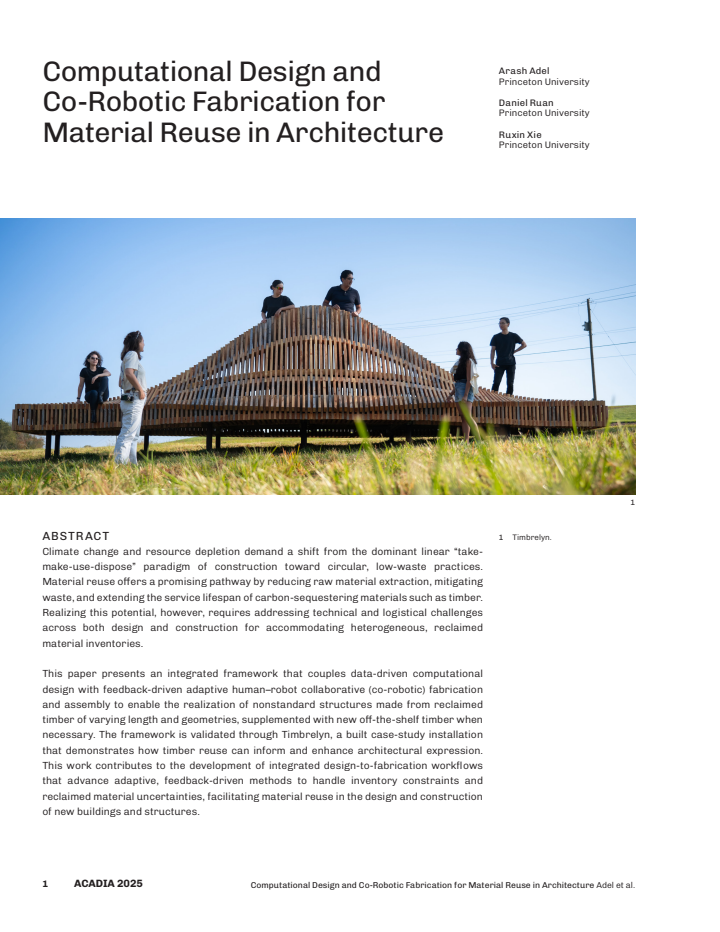

read the original abstract
Climate change and resource depletion demand a shift from the dominant linear "take-make-use-dispose" paradigm of construction toward circular, low-waste practices. Material reuse offers a promising pathway by reducing raw material extraction, mitigating waste, and extending the service lifespan of carbon-sequestering materials such as timber. Realizing this potential, however, requires addressing technical and logistical challenges across both design and construction for accommodating heterogeneous, reclaimed material inventories. This paper presents an integrated framework that couples data-driven computational design with feedback-driven adaptive human-robot collaborative (co-robotic) fabrication and assembly to enable the realization of nonstandard structures made from reclaimed timber of varying length and geometries, supplemented with new off-the-shelf timber when necessary. The framework is validated through Timbrelyn, a built case-study installation that demonstrates how timber reuse can inform and enhance architectural expression. This work contributes to the development of integrated design-to-fabrication workflows that advance adaptive, feedback-driven methods to handle inventory constraints and reclaimed material uncertainties, facilitating material reuse in the design and construction of new buildings and structures.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents an integrated framework coupling data-driven computational design with feedback-driven adaptive human-robot collaborative (co-robotic) fabrication and assembly. It aims to enable nonstandard structures from reclaimed timber of varying lengths and geometries (supplemented by new timber as needed), with validation via the built Timbrelyn case-study installation that demonstrates architectural expression through material reuse.
Significance. If the framework's claims hold with quantitative support, the work would meaningfully advance circular-economy practices in architecture by integrating computational design and co-robotic methods to handle reclaimed-material uncertainties, reducing waste and extending timber service life. The built demonstration provides a concrete existence proof of feasibility for expressive nonstandard forms.
major comments (1)
- [Abstract and Case-Study section] Abstract and Case-Study section: The central claim that the framework 'effectively addresses' logistical challenges of heterogeneous reclaimed inventories rests on the Timbrelyn installation, yet the manuscript supplies no quantitative metrics (e.g., inventory-matching success rate, waste fraction, assembly tolerance under uncertainty, or baseline comparisons). This leaves the assertion that data-driven design plus feedback-driven co-robotics accommodates varying lengths/geometries at scale untested beyond qualitative demonstration.
minor comments (2)
- [Introduction] The abstract and introduction could more explicitly distinguish the novel contributions of the co-robotic feedback loop from prior work on robotic timber assembly.
- [Methods/Case Study] Figure captions and method descriptions should include explicit references to how sensor feedback is used to adapt to specific material deviations (e.g., length or curvature tolerances).
Simulated Author's Rebuttal
We thank the referee for the constructive review and for recognizing the potential significance of the integrated framework. We address the single major comment below.
read point-by-point responses
-
Referee: [Abstract and Case-Study section] Abstract and Case-Study section: The central claim that the framework 'effectively addresses' logistical challenges of heterogeneous reclaimed inventories rests on the Timbrelyn installation, yet the manuscript supplies no quantitative metrics (e.g., inventory-matching success rate, waste fraction, assembly tolerance under uncertainty, or baseline comparisons). This leaves the assertion that data-driven design plus feedback-driven co-robotics accommodates varying lengths/geometries at scale untested beyond qualitative demonstration.
Authors: We agree that the manuscript presents the Timbrelyn installation primarily as a qualitative demonstration and existence proof rather than a quantitative evaluation. The paper's scope is to describe the coupled computational-co-robotic workflow and its application in a built project; it does not claim statistical validation of scalability. In revision we will (1) revise the abstract and Case-Study section to replace 'effectively addresses' with 'demonstrates a pathway toward addressing' and (2) add an explicit limitations paragraph noting the absence of large-scale quantitative benchmarks and the need for future studies. Where project records permit, we will also report concrete figures such as the number of reclaimed elements matched, observed dimensional tolerances, and material waste fraction to provide limited quantitative context without overstating generality. revision: partial
Circularity Check
No circularity: framework description and case-study validation contain no derivations or self-referential fits
full rationale
The paper presents an integrated design-to-fabrication framework and validates it through the Timbrelyn built installation. No equations, parameter fitting, uniqueness theorems, or derivation chains appear in the provided text. Claims rest on qualitative demonstration of the built structure rather than any reduction of outputs to inputs by construction. This matches the default expectation of no significant circularity for descriptive applied work.
Axiom & Free-Parameter Ledger

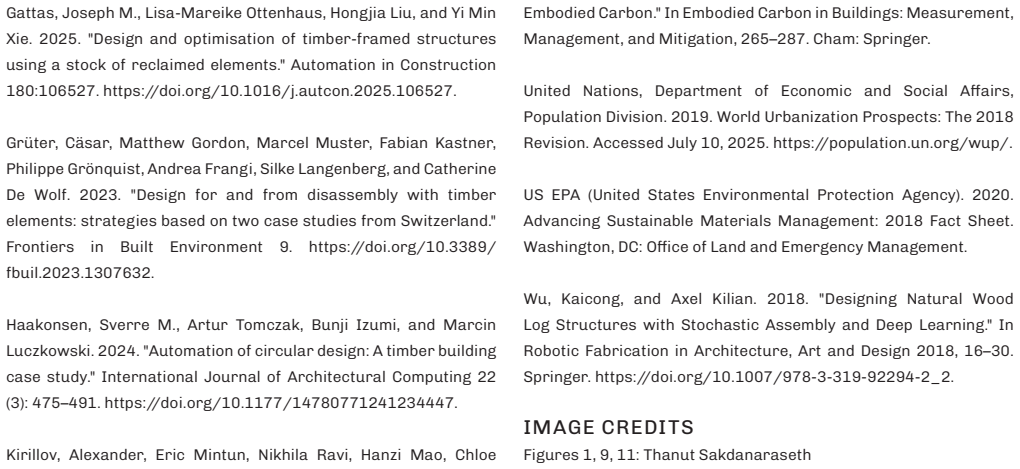

Reference graph
Works this paper leans on
-
[1]
Confinement and the center of the gauge group,
"Feedback-driven adaptive multi-robot timber construction." Automation in Construction 164. https:/ /doi.org/10.1016/j. autcon.2024.105444. American Wood Council. 2023. National Design Specification (NDS) for Wood Construction. Leesburg: American Wood Council. Bergsagel, Dan, and Felix Heisel. 2023. "Structural design using reclaimed wood – A case study a...
work page doi:10.1016/j 2024
-
[2]
Robotic Fabrication of Nail- Laminated Timber: A Case Study Exhibition
https:/ /www.rhino3d.com/. Ruan, Daniel, and Arash Adel. 2023. "Robotic Fabrication of Nail- Laminated Timber: A Case Study Exhibition." In Habits of the Anthropocene, Proceedings of the 43rd Annual Conference of the Association for Computer Aided Design in Architecture (ACADIA), 220–225. https:/ /dx.doi.org/10.7302/21575. Ruuska, Antti, and Tarja Häkkine...
