Digital Twins in Coronary Artery Disease: A Mathematical Roadmap

Alessandro Veneziani , Annalisa Quaini , Marco Tezzele , Omer San , Traian Iliescu This is my paper

Pith reviewed 2026-05-08 02:08 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords digital twinscoronary artery diseasewall shear stressdata assimilationprobabilistic graphical modelsmathematical modelingpersonalized medicineinfarct prevention
0
0 comments X

The pith

A bidirectional framework of data assimilation and probabilistic models personalizes wall shear stress estimates to enable digital twins for coronary artery disease.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sketches a mathematical approach to building digital twins for coronary artery disease by fusing patient-specific data with fluid-flow models. Central to the proposal is the accurate estimation of wall shear stress, a quantity linked to plaque formation and infarct risk. The authors describe two-way communication: data assimilation updates the model with new measurements, while probabilistic graphical models fill in gaps and quantify uncertainty. If the steps work, clinicians could receive real-time, individualized predictions to guide prevention rather than relying on population averages. The text frames this as a roadmap of required mathematical pieces rather than a finished software system.

Core claim

The central claim is that data assimilation combined with probabilistic graphical models supplies the bidirectional link needed to personalize and synthesize wall shear stress from diagnostic devices, thereby constructing a digital twin capable of supporting decisions that reduce the risk of myocardial infarction.

What carries the argument

Bidirectional communication between the digital twin and patient data, achieved through data assimilation for updating models with measurements and probabilistic graphical models for uncertainty handling and data synthesis, with wall shear stress as the focal output quantity.

If this is right

  • Clinicians could obtain personalized risk assessments for coronary artery disease based on individual artery geometry and flow conditions.
  • Treatment planning would incorporate synthesized estimates where direct measurements are unavailable or invasive.
  • The same framework would allow continuous updating of the twin as new imaging or sensor data arrive.
  • Prevention strategies could shift from generic guidelines toward model-driven thresholds for intervention.
  • The roadmap identifies concrete mathematical tasks whose completion would make such systems feasible.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar assimilation-plus-graphical-model pipelines could be tested on other cardiovascular flows, such as aortic aneurysms or cerebral vessels.
  • Computational cost of the bidirectional updates would need to drop to seconds or minutes before routine bedside use.
  • The approach might extend to multi-organ digital twins if the same uncertainty-handling machinery proves transferable.
  • Success would require large, anonymized patient cohorts to train the probabilistic components without overfitting.

Load-bearing premise

That data assimilation and probabilistic graphical models can be combined to produce accurate, patient-specific wall shear stress estimates from standard diagnostic inputs.

What would settle it

A controlled clinical validation trial in which the digital twin's wall shear stress predictions show no statistical correlation with observed plaque progression or infarct events.

Figures

Figures reproduced from arXiv: 2604.24910 by Alessandro Veneziani, Annalisa Quaini, Marco Tezzele, Omer San, Traian Iliescu.

Figure 1

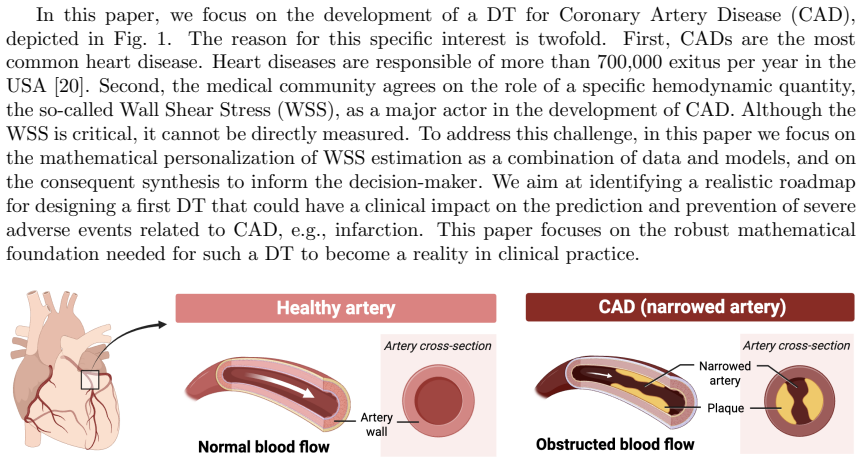

Figure 1. Figure 1: Comparison between a healthy coronary and a coronary affected by CAD. Image created view at source ↗
Figure 2

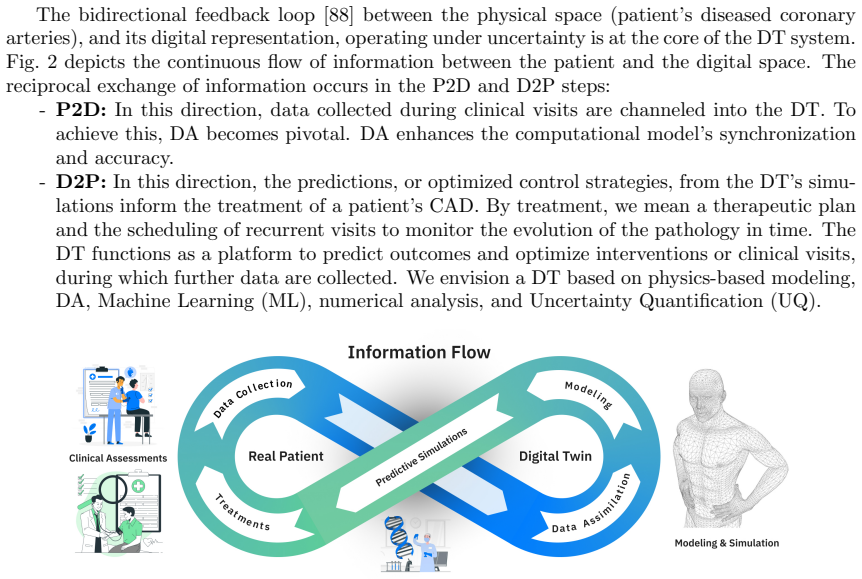

Figure 2. Figure 2: Information flow of a DT with bidirectional feedback loop. view at source ↗
Figure 3

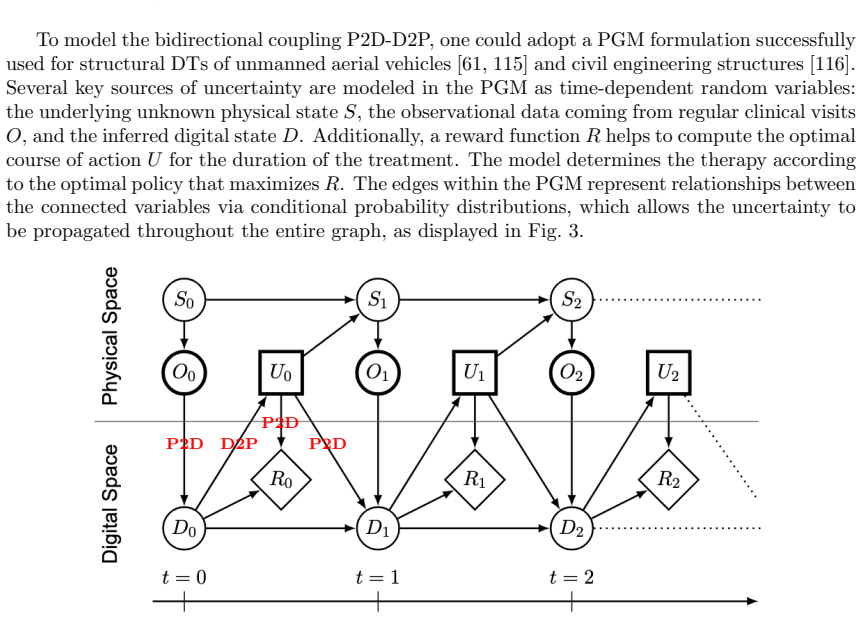

Figure 3. Figure 3: Example of a PGM with highlighted P2D and D2P couplings in the first time step. view at source ↗
Figure 4

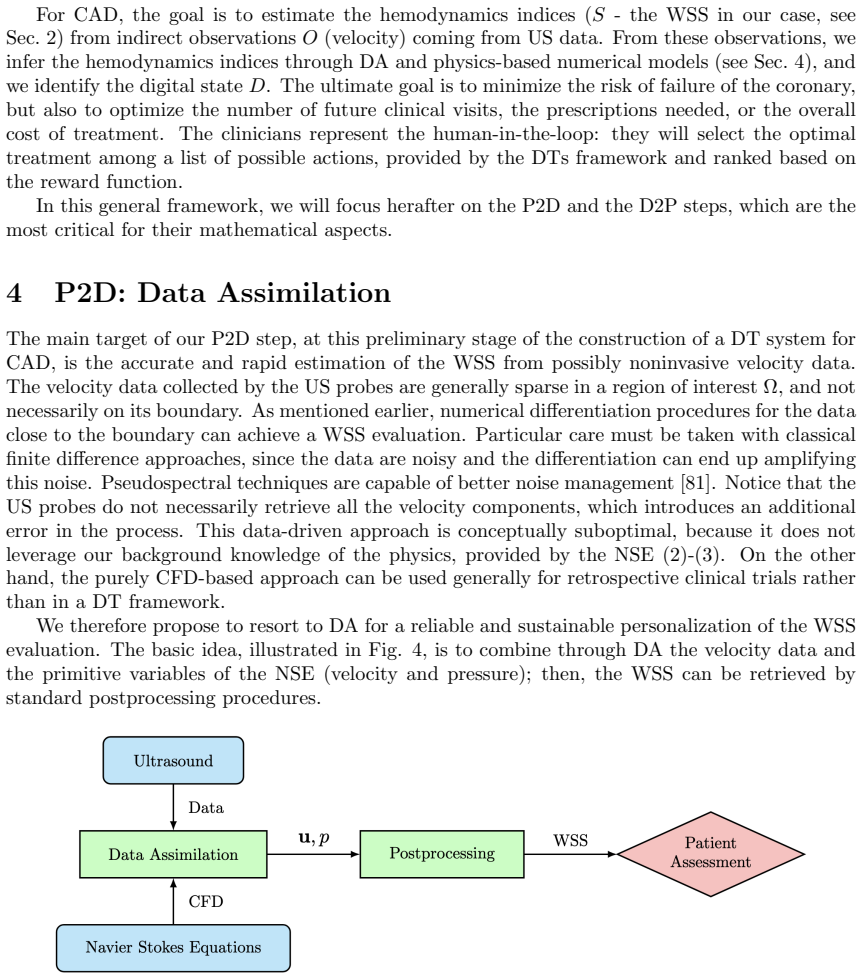

Figure 4. Figure 4: Block-diagram for the estimation of WSS through DA. view at source ↗
Figure 5

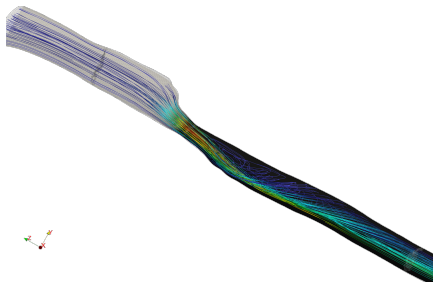

Figure 5. Figure 5: A coronary artery reconstructed from intravascular imaging. The plaque is evident at view at source ↗
Figure 6

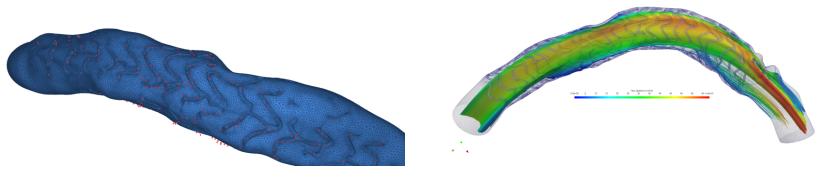

Figure 6. Figure 6: Lumen of a patient-specific coronary artery with the footprint of the stent (left) and view at source ↗
read the original abstract

The combination of data and models, enhanced by AI methodologies, leads to the paradigm called Digital Twins. This concept is expected to bring unprecedented support to personalized medicine. The combination of mathematical and numerical models with diagnostic devices that provide patient-specific knowledge in a bidirectional framework can be a formidable decision support for clinicians. In this paper, we consider some mathematical aspects of constructing a Digital Twin to prevent and treat Coronary Artery Disease. The keywords for the bidirectional communication between twins in our system are (i) Data Assimilation and (ii) Probabilistic Graphic Models. In particular, a quantity of paramount interest in the evaluation and prognosis of Coronary Artery Disease is the Wall Shear Stress, i.e., the tangential component of normal stress on the arterial wall. By considering steps for the personalization and the synthesis of Wall Shear Stress estimation, we propose a mathematical roadmap for constructing a Digital Twin system that could help prevent infarcts, one of the most lethal diseases in the world.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper proposes a high-level conceptual roadmap for constructing Digital Twins in Coronary Artery Disease (CAD). It advocates a bidirectional framework that combines data assimilation (DA) with probabilistic graphical models (PGM) to personalize patient-specific data from diagnostic devices and synthesize estimates of wall shear stress (WSS), with the stated aim of providing clinical decision support to help prevent myocardial infarctions.

Significance. If implemented, the proposed integration of DA and PGM could advance patient-specific hemodynamic modeling for CAD, where WSS is a key prognostic quantity. The bidirectional aspect addresses uncertainty in clinical measurements and could support real-time personalization. As a purely conceptual outline without derivations or examples, however, the work primarily serves to highlight research directions rather than deliver validated methods or predictions.

major comments (2)
  1. [Abstract / Proposal] Abstract and main proposal: the central claim of a 'mathematical roadmap' is not supported by any concrete mathematical content. No equations, algorithms, pseudocode, or even high-level flow diagrams are supplied for the DA-PGM bidirectional loop, the personalization step, or the WSS synthesis step, leaving the proposal at the level of aspirational description rather than a usable roadmap.
  2. [WSS estimation steps] Section describing WSS estimation: the personalization and synthesis steps are presented qualitatively without any discussion of numerical stability, error propagation, convergence criteria for the assimilation-synthesis cycle, or identifiability of parameters in the PGM, all of which are load-bearing for a numerical-analysis contribution.
minor comments (3)
  1. [Abstract] The phrase 'Probabilistic Graphic Models' appears in the abstract and should be corrected to the standard term 'Probabilistic Graphical Models'.
  2. [Introduction / Related work] The manuscript would benefit from explicit citations to existing DA or PGM applications in cardiovascular modeling to clarify the incremental contribution of the proposed combination.
  3. [Overall presentation] Figure or schematic illustrating the bidirectional DA-PGM flow is absent; adding one would greatly improve clarity of the roadmap.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help clarify the intended scope of our work as a high-level mathematical roadmap. We address each major comment below and outline planned revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract / Proposal] Abstract and main proposal: the central claim of a 'mathematical roadmap' is not supported by any concrete mathematical content. No equations, algorithms, pseudocode, or even high-level flow diagrams are supplied for the DA-PGM bidirectional loop, the personalization step, or the WSS synthesis step, leaving the proposal at the level of aspirational description rather than a usable roadmap.

    Authors: We agree that the manuscript is deliberately conceptual and does not derive new equations or provide pseudocode, as its goal is to synthesize existing techniques from data assimilation and probabilistic graphical models into a bidirectional framework for digital twins in CAD. The absence of detailed algorithms reflects the roadmap nature of the paper rather than an oversight. To make the proposal more concrete and usable, we will add a high-level flow diagram in the revised version that illustrates the DA-PGM bidirectional loop, the personalization of patient-specific data from diagnostic devices, and the synthesis of wall shear stress estimates. This visual aid will better convey the structure without expanding the work into a full methodological paper. revision: partial

  2. Referee: [WSS estimation steps] Section describing WSS estimation: the personalization and synthesis steps are presented qualitatively without any discussion of numerical stability, error propagation, convergence criteria for the assimilation-synthesis cycle, or identifiability of parameters in the PGM, all of which are load-bearing for a numerical-analysis contribution.

    Authors: The referee correctly notes that the descriptions of personalization and synthesis remain qualitative. As a roadmap paper, the focus was on outlining the overall integration strategy rather than performing a full numerical analysis. In the revision, we will expand these sections with a concise discussion of relevant considerations, including references to numerical stability issues in data assimilation, error propagation in probabilistic models, convergence of iterative assimilation-synthesis cycles, and parameter identifiability within PGMs. These additions will draw on established literature in the field and better align with the expectations for a numerical-analysis contribution while preserving the high-level roadmap character. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely conceptual roadmap

full rationale

The paper is a forward-looking conceptual proposal outlining high-level steps for a bidirectional data assimilation and probabilistic graphical models framework to personalize and synthesize wall shear stress estimates. It contains no equations, derivations, numerical predictions, fitted parameters, or theorems that could reduce by construction to the paper's own inputs. No self-citations are invoked as load-bearing uniqueness results, and the central claim is simply the act of proposing the roadmap itself rather than asserting validated outputs. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The abstract relies on domain assumptions from cardiovascular modeling and numerical methods without specifying free parameters or new entities; the roadmap invokes standard techniques whose validity is taken from prior literature.

axioms (2)
  • domain assumption Wall Shear Stress is a quantity of paramount interest in the evaluation and prognosis of Coronary Artery Disease
    Explicitly stated in the abstract as central to CAD assessment.
  • domain assumption The combination of mathematical and numerical models with diagnostic devices can form a bidirectional framework for personalized medicine
    Core premise of the digital twin paradigm presented in the abstract.
invented entities (1)
  • Digital Twin system for CAD no independent evidence
    purpose: Bidirectional decision support tool integrating data assimilation and probabilistic models for WSS estimation and infarct prevention
    Introduced as the target paradigm combining data and models, but no independent evidence or falsifiable prediction is provided beyond the proposal itself.

pith-pipeline@v0.9.0 · 5471 in / 1422 out tokens · 35069 ms · 2026-05-08T02:08:36.538823+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
